UDCC Equipamento de Destilação Contínua, Controlado por Computador (PC)

11.1.4.- DESTILAÇÃO E CRAQUEAMENTO
COMPUTER CONTROLLED CONTINUOUS DISTILLATION UNIT - UDCC

Unit: UDCC. Computer Controlled Continuous Distillation Unit

COMPUTER CONTROLLED CONTINUOUS DISTILLATION UNIT - UDCC

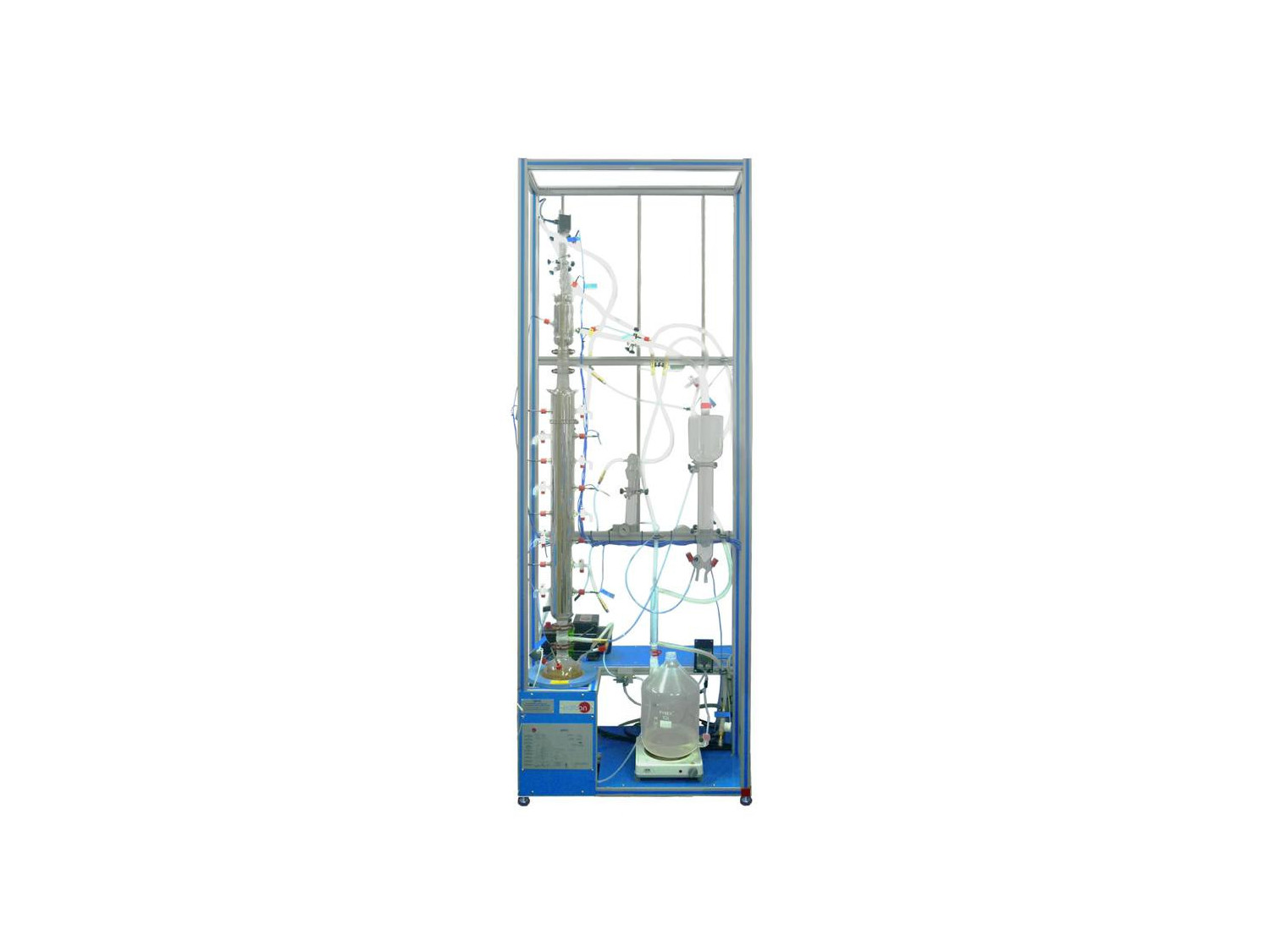

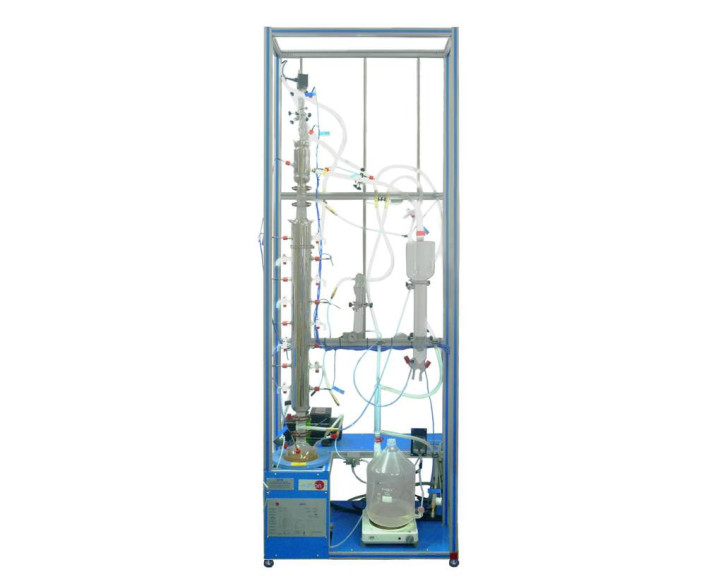

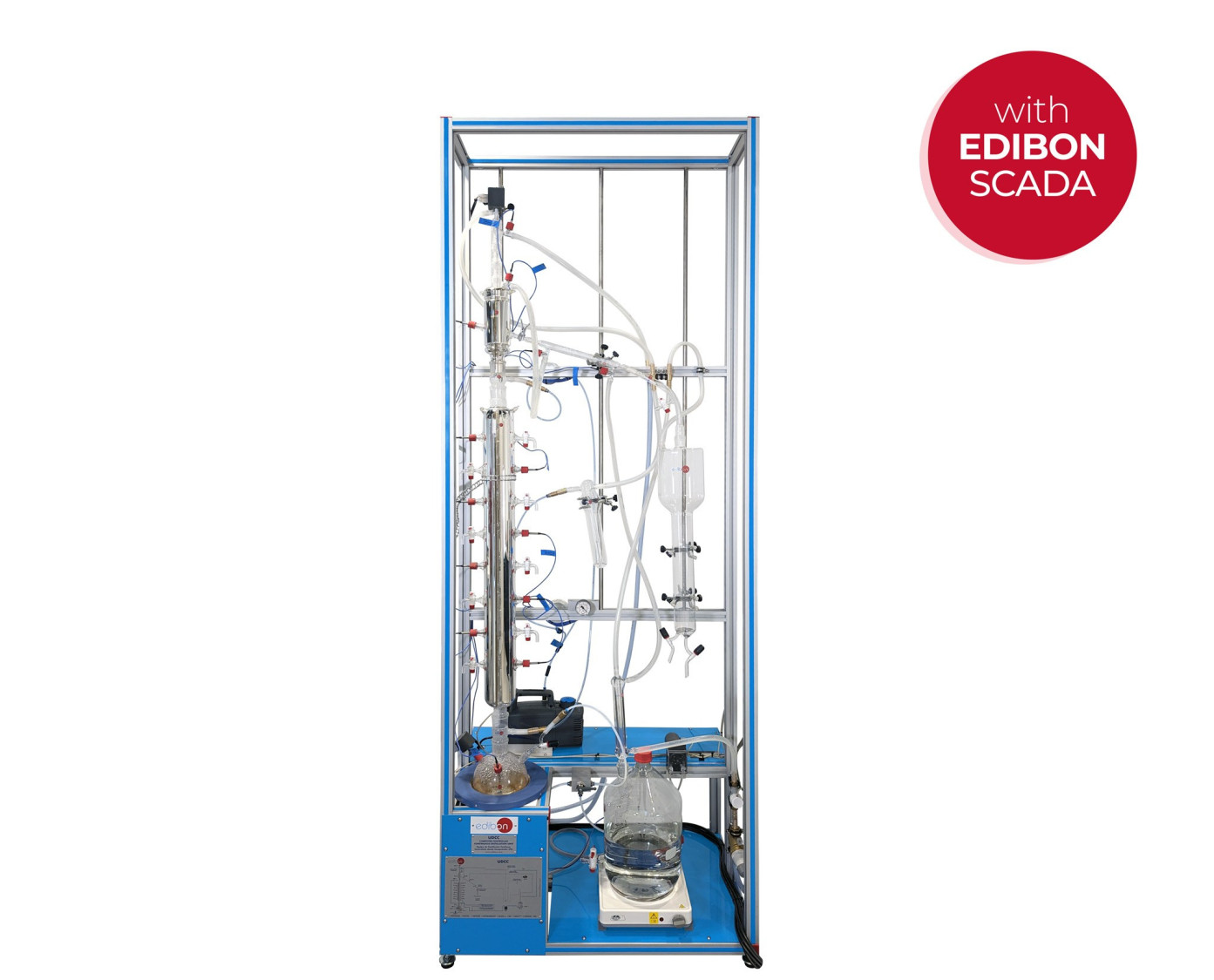

Complete UDCC Unit

COMPUTER CONTROLLED CONTINUOUS DISTILLATION UNIT - UDCC
COMPUTER CONTROLLED CONTINUOUS DISTILLATION UNIT - UDCC

SISTEMAS INOVADORES

The Computer Controlled Continuous Distillation Unit, "UDCC", designed by EDIBON, is a powerful laboratory tool for the study of variables affecting the distillation process. The student can investigate the principles that govern the transfer of matter and energy, as well as determine the optimum operating point for carrying out a large number of separations.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

11TV
 Laboratório de Engenharia Química para o Ensino Técnico e Vocacional
11HE
 Laboratório de Engenharia Química para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Ler mais
Setting up at the Universidad Centroamericana José Simeón Cañas (UCA) in El Salvador
Setting up at the Universidad Centroamericana José Simeón Cañas (UCA) in El Salvador
Recently, we have had the pleasure of making an installation at the at the Universidad Centroamericana José Simeón Cañas (UCA) in El Salvador
Ler mais
Installation at UAH - University of Alabama in Huntsville
Installation at UAH - University of Alabama in Huntsville
We continue to expand and help with training to more universities. This time we move to The University of Alabama in Huntsville ,in Huntsville. There, students can enjoy and learn with #UDCC, Computer Controlled Continuous Distillation Unit, the variables that affect the distillation process. It...
Ler mais
Installation at UPV/EHU - San Sebastian
Installation at UPV/EHU - San Sebastian
The EDIBON team has carried out a new installation, this time in our country, at the International UPV/EHU. Now, students and professors of the university have the possibility to continue their studies with the Computer Controlled Continuous Distillation, UDCC, the Computer Controlled Test Bench...
Ler mais

Descrição Geral

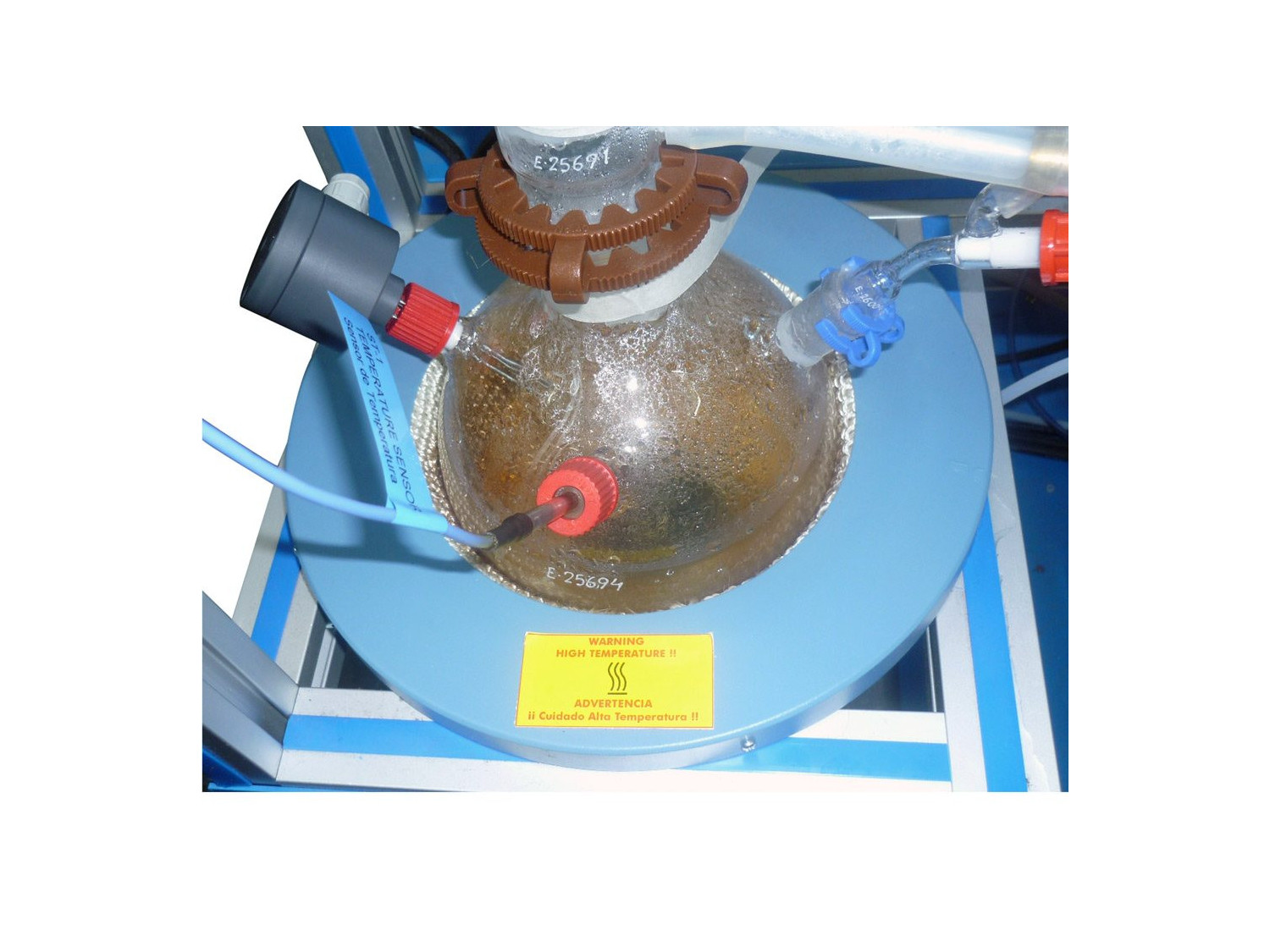

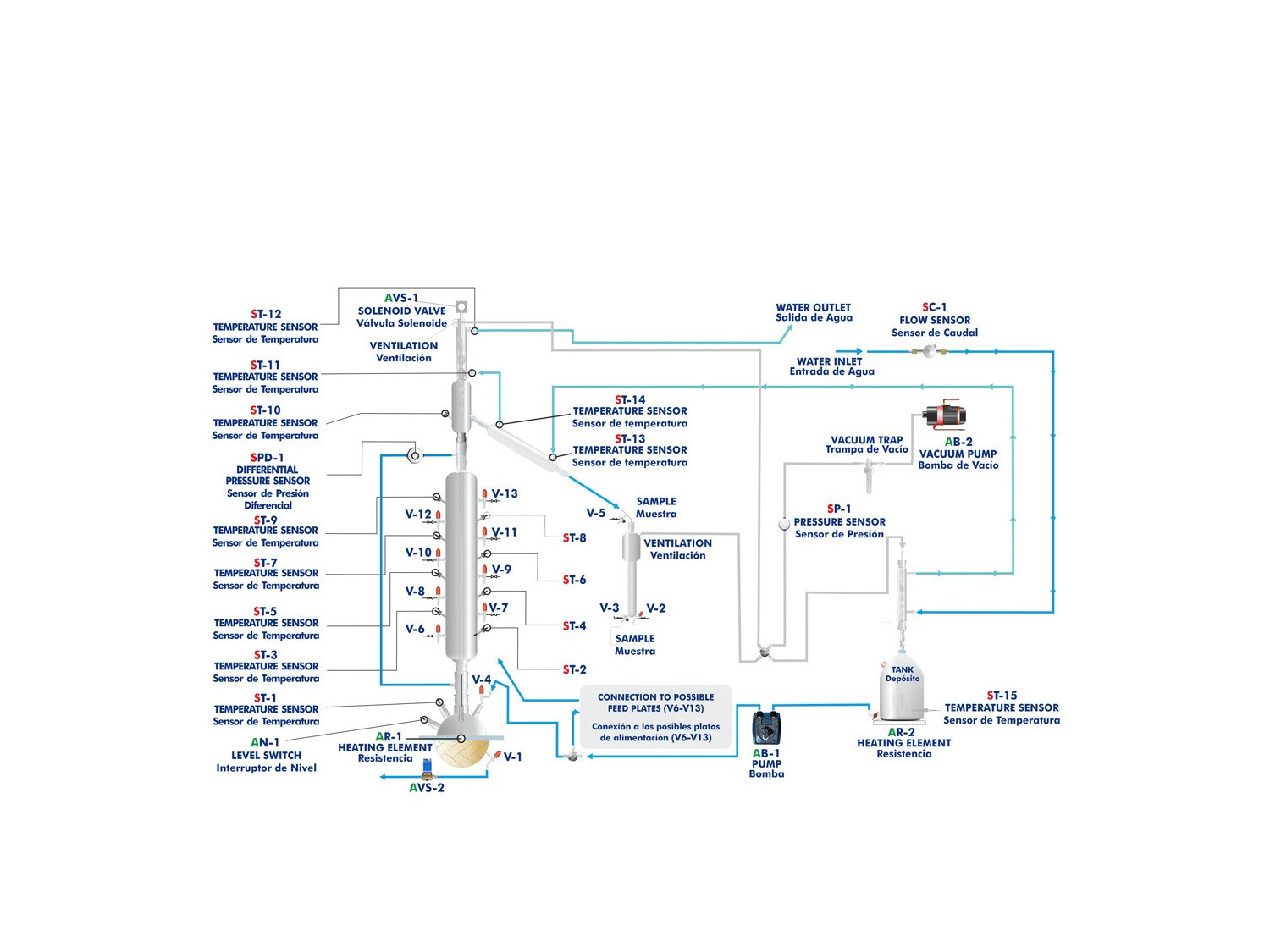

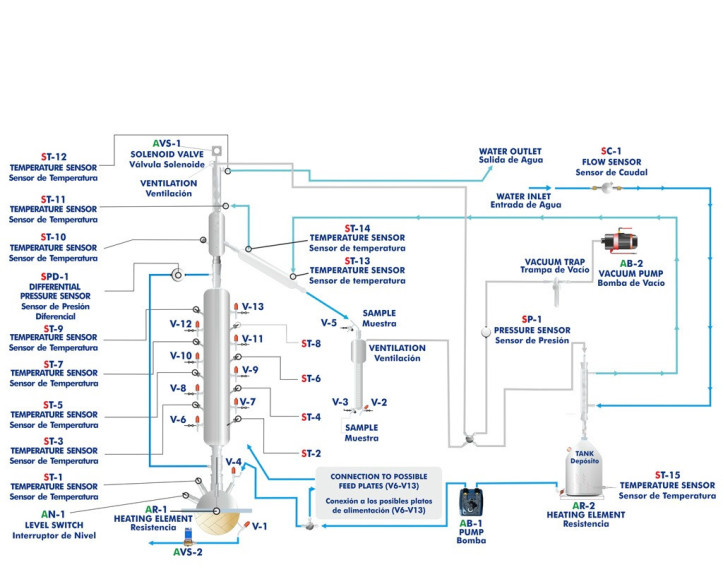

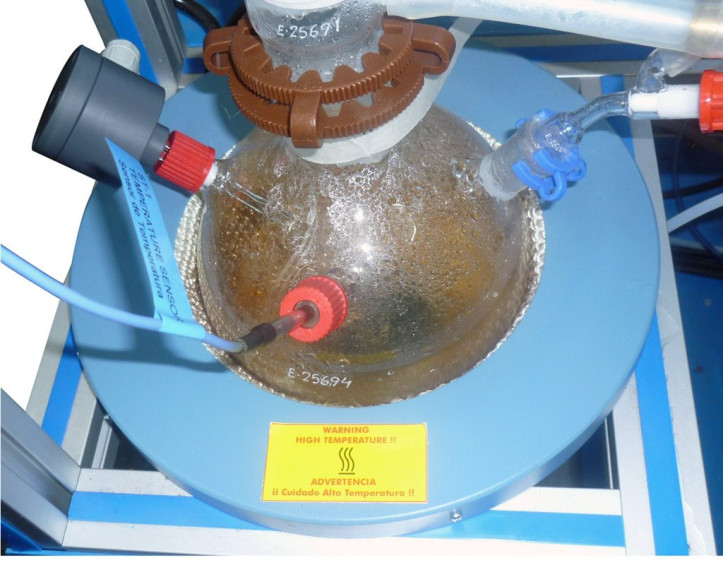

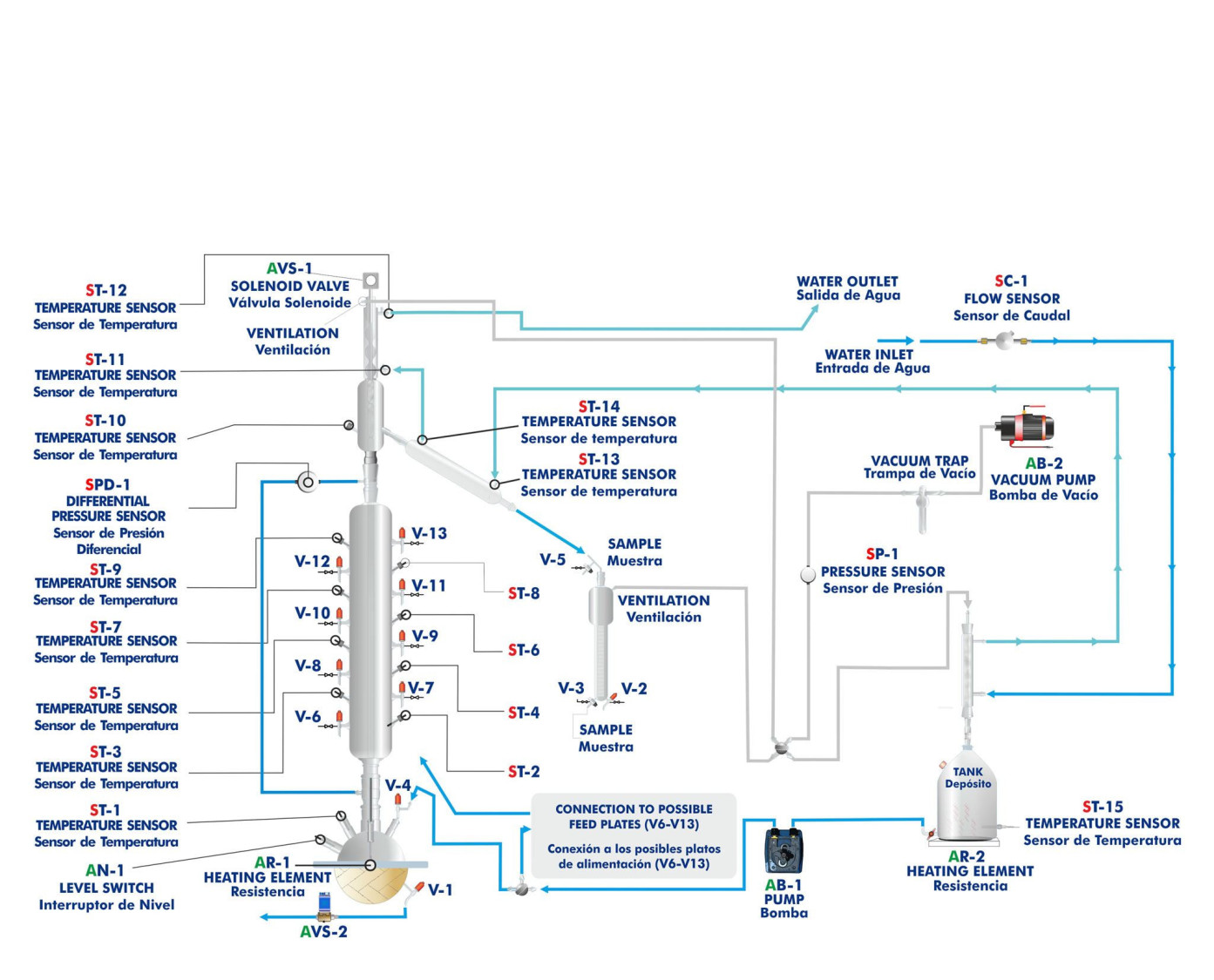

The Computer Controlled Continuous Distillation Unit, "UDCC", is basically composed by a boiler on which different types of columns can be adapted (plate columns and Raschig rings column). An eight plate column, a reflux system, a tank for distillation, a vacuum pump and a feeding pump (for continuous feeding) are included.

The steam that goes to the head of the column is sent to a total condenser. The cooling water flow that crosses the condenser is regulated and indicated in a flow sensor. Distillation can be carried out at low pressures with the help of an adjustable vacuum pump. The pressure loss in the column can be measured with a pressure sensor.

It allows continuous operation and batch operation.

For proceeding to continuous feeding, a pump that can inject the substance directly into the boiler or in any of the plates is available.

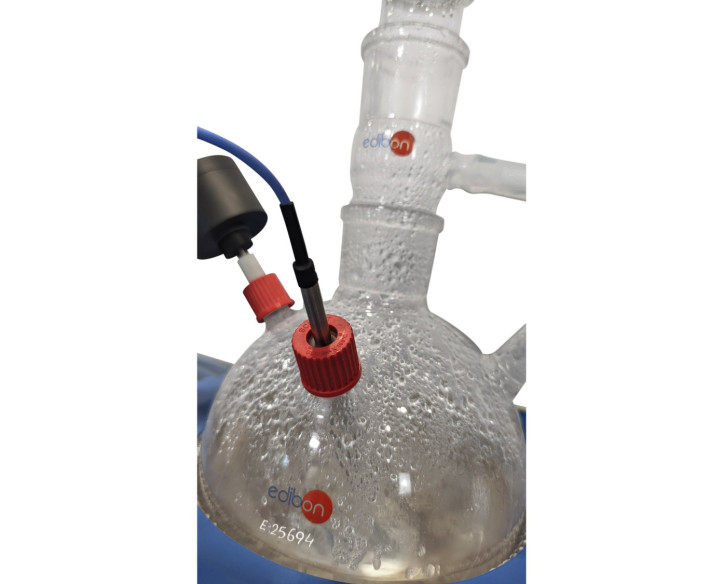

The temperatures of the system are measured by sensors placed in strategic positions.

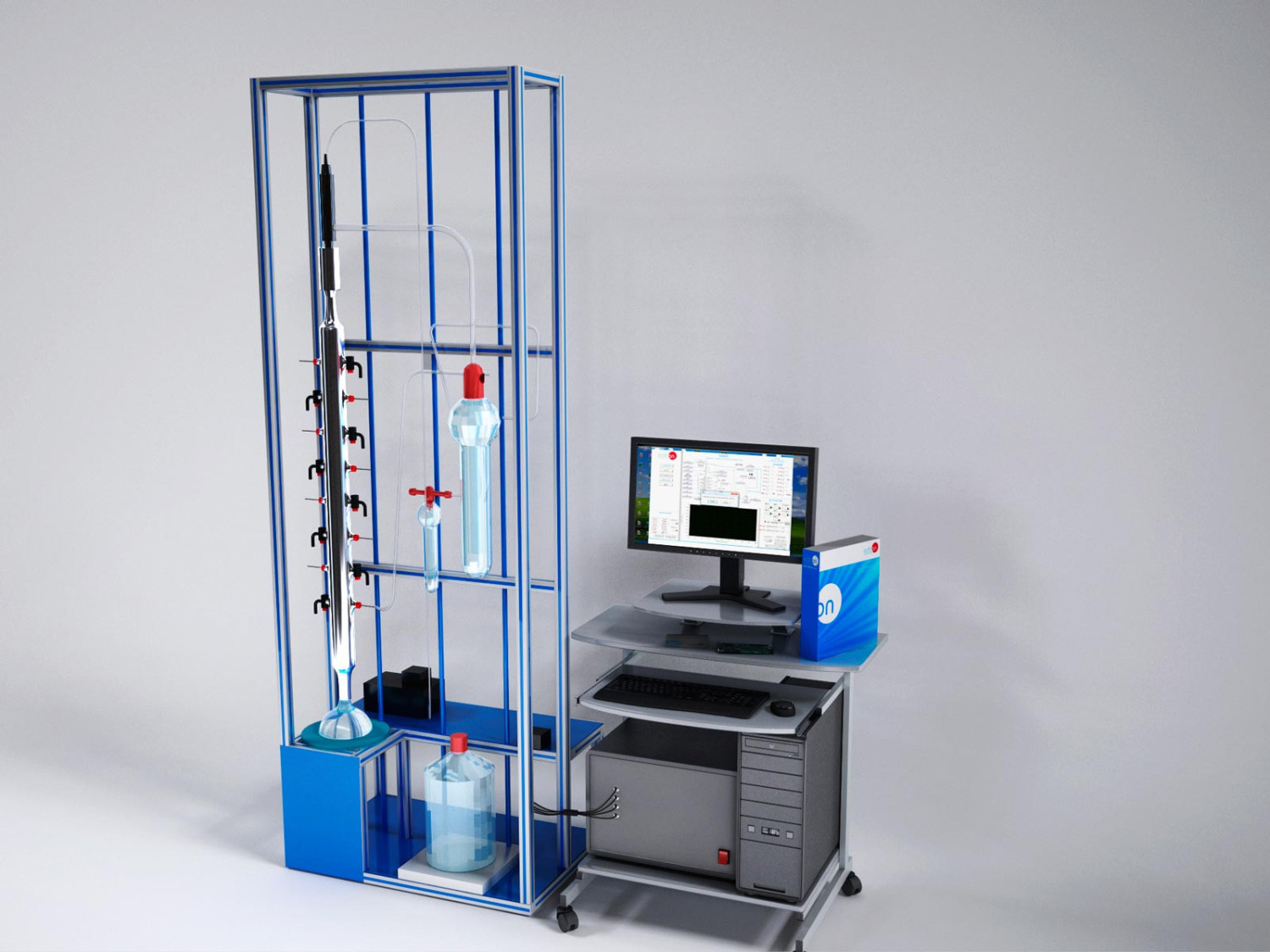

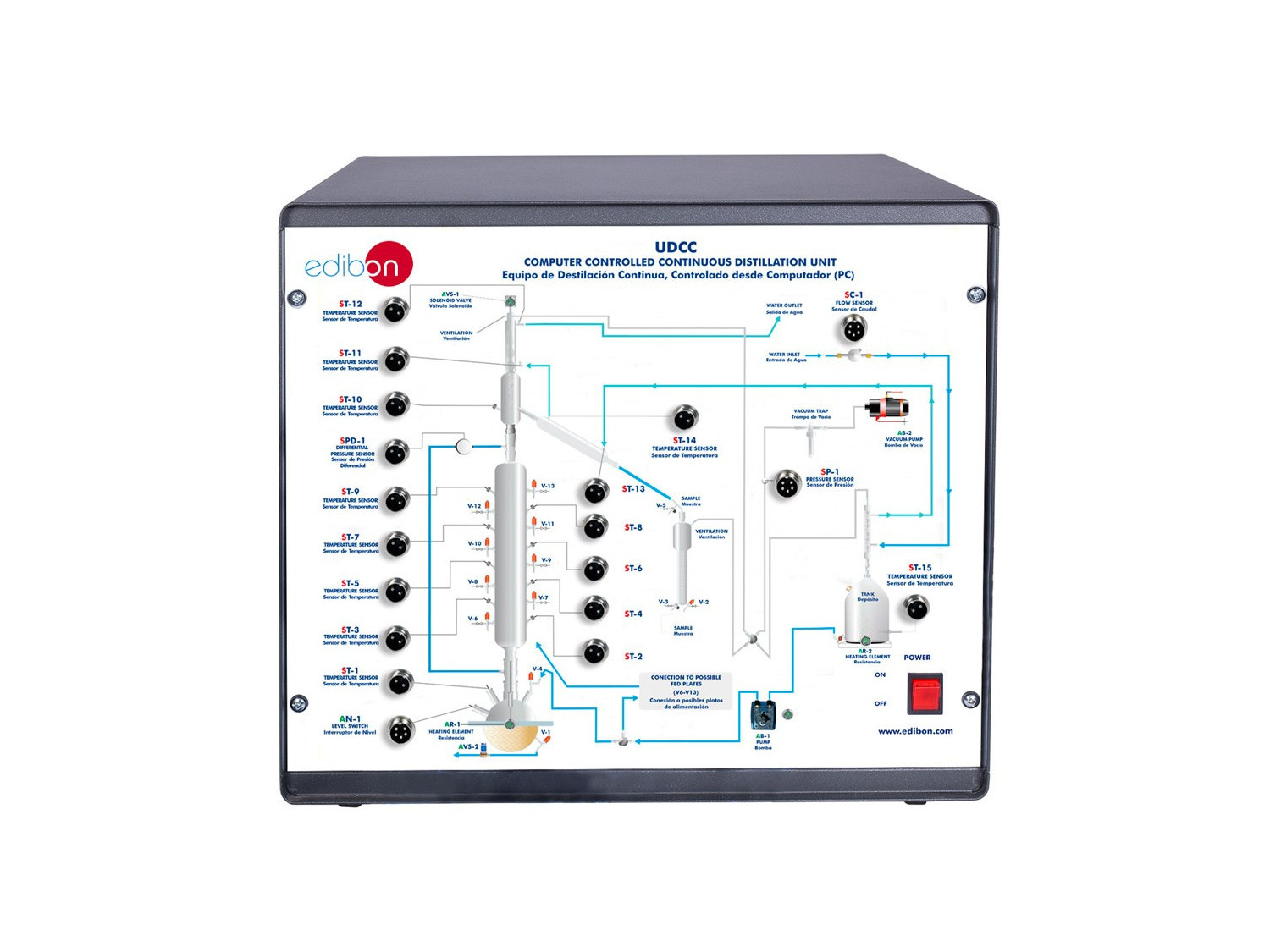

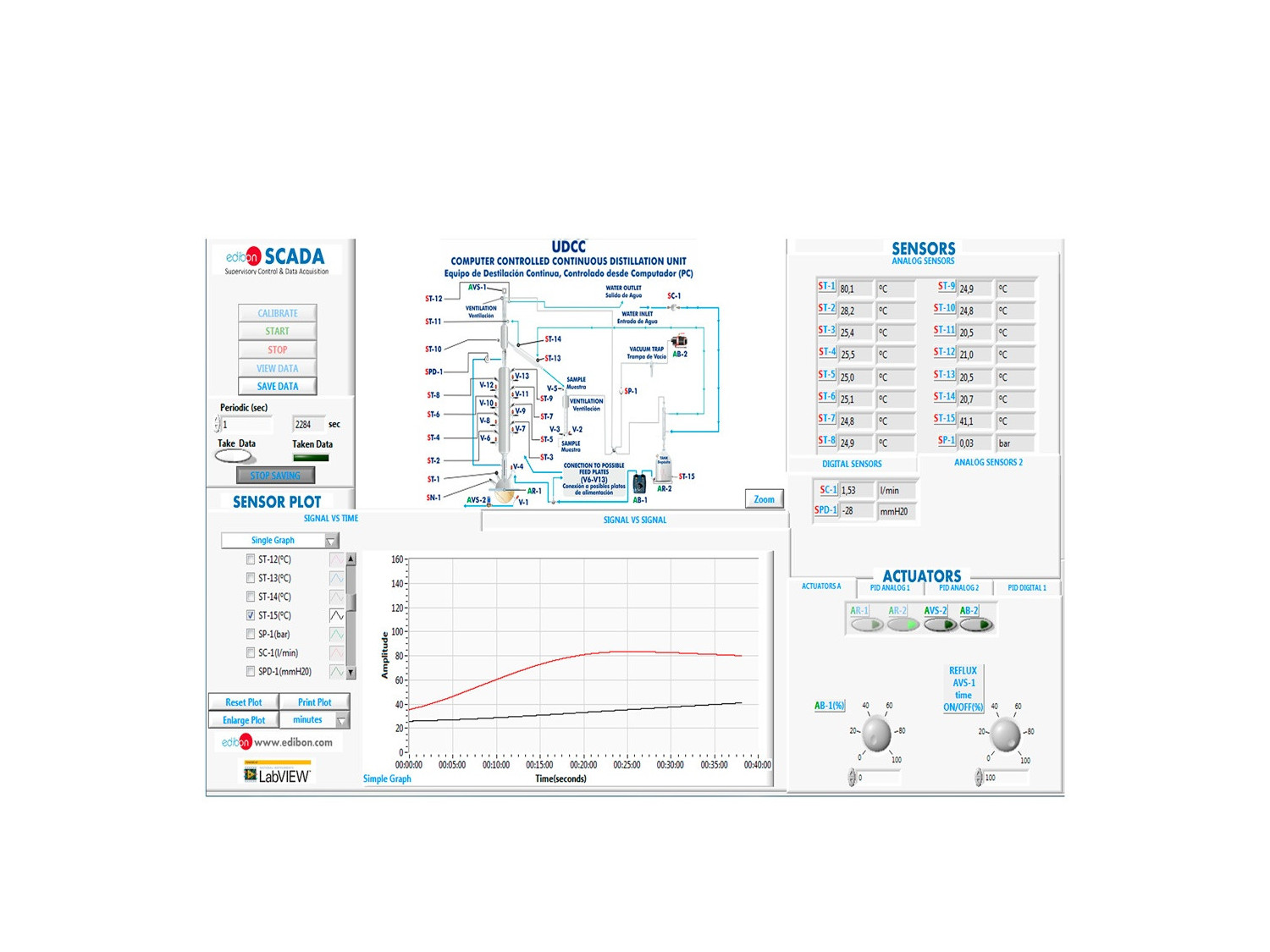

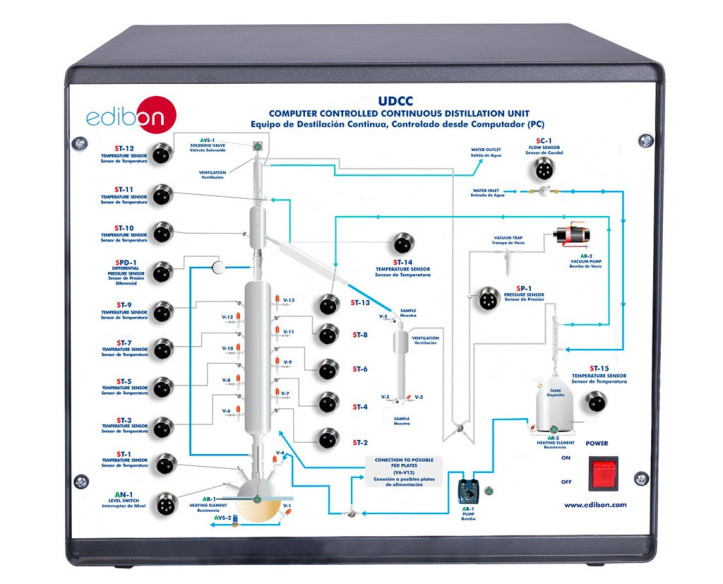

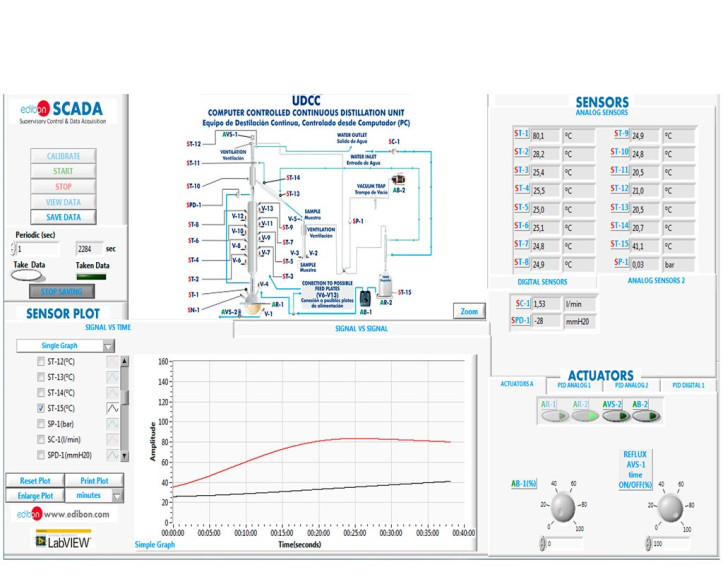

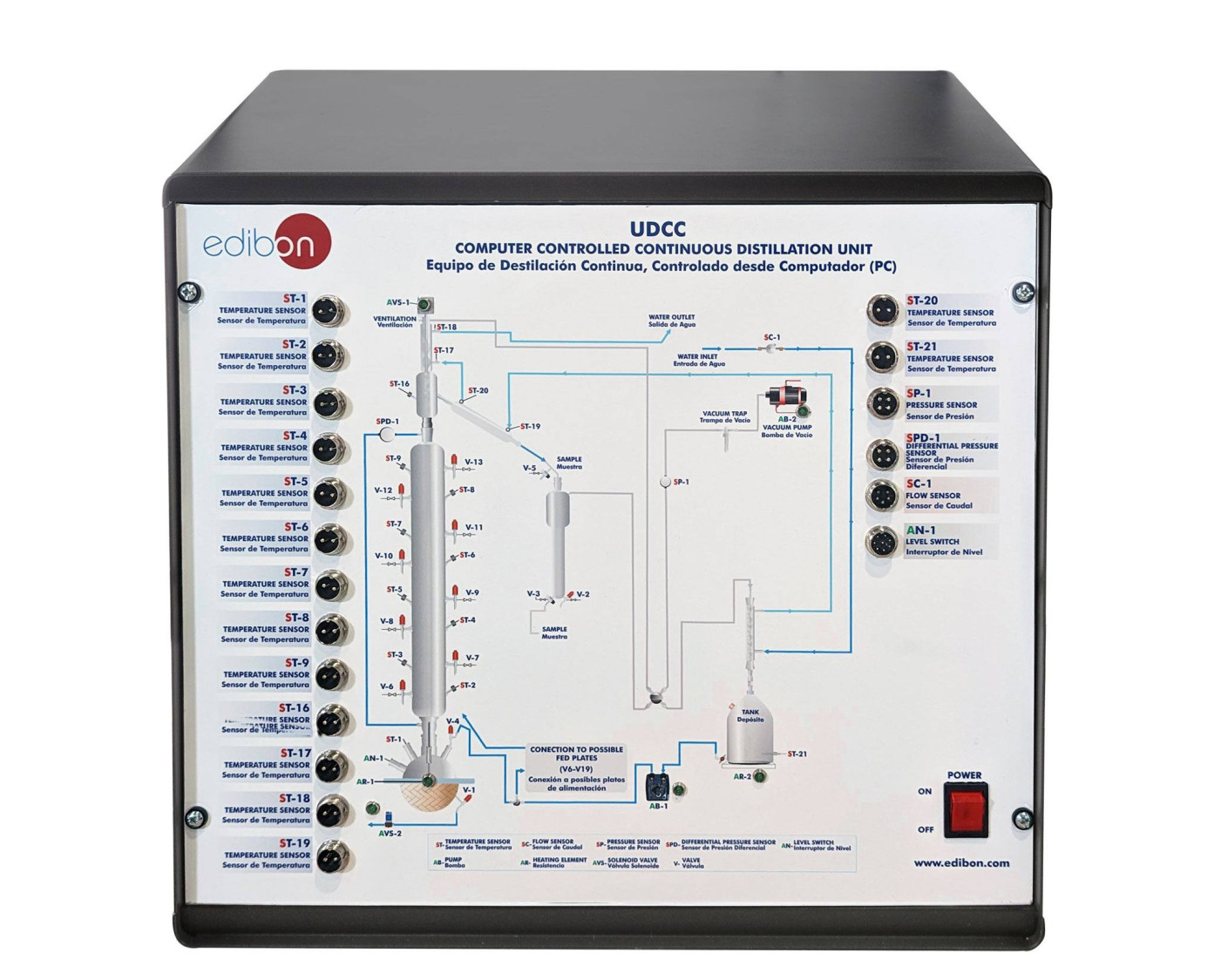

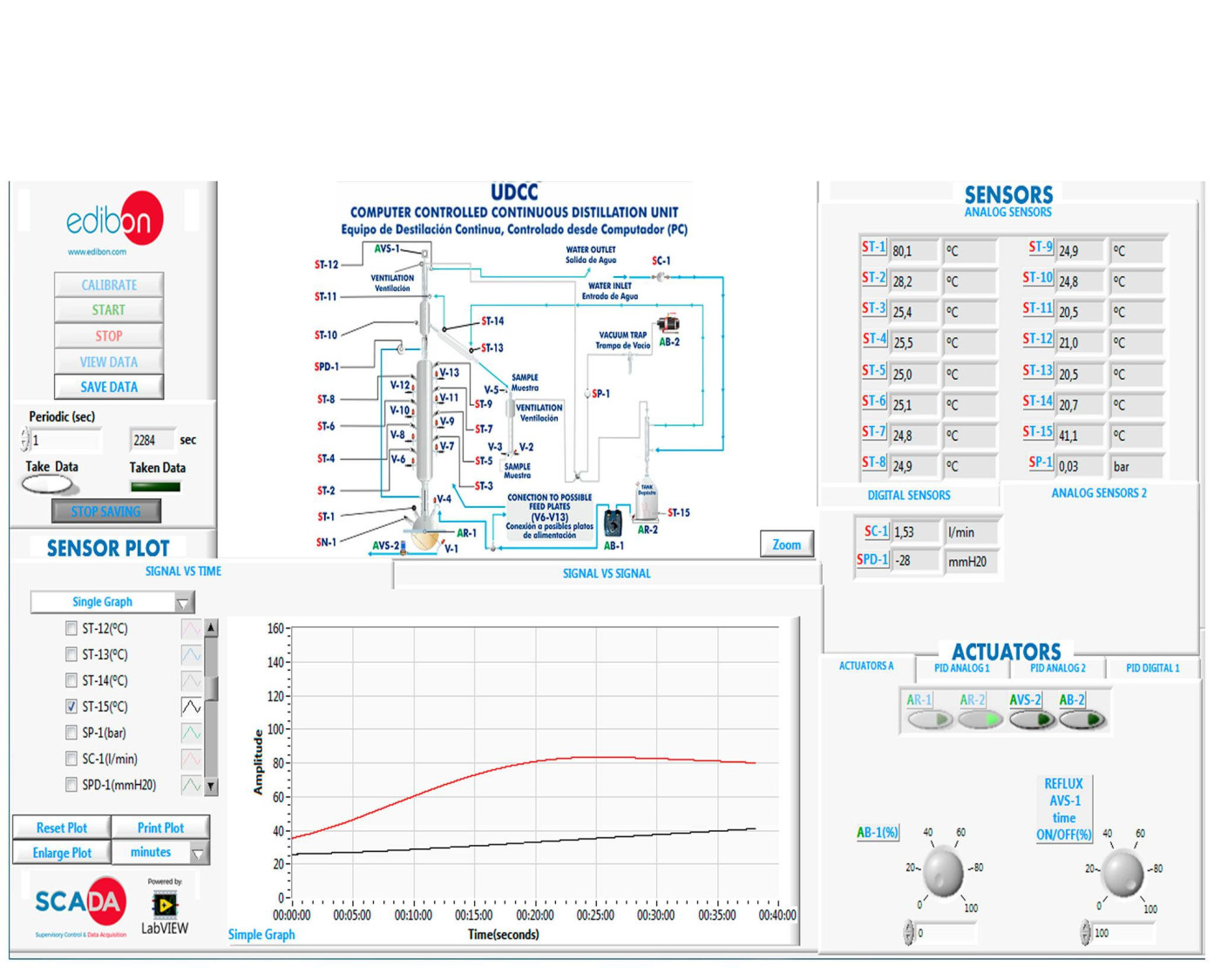

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Preparation of solutions.
  2. Analytic valuation techniques.
  3. Filling of the column.
  4. Batch operation. Continuous operation.
  5. Obtaining the McCabe-Thiele diagram. Without reflux.
  6. Obtaining the number of plates. Without reflux.
  7. Efficiency calculations. Without reflux.
  8. Variation of the composition of the distilled product: constant reflux ratio.
  9. Constant composition of the distilled product: variation of reflux ratio.
  10. Constant composition of the distilled product: constant reflux ratio.
  11. Continuos feeding of the column.
  12. Mass and energy balances across the system.
  13. Plates fluid dynamics studies, including load loss and column flooding.
  14. Study of the feed temperature effect on the continuos processes.
  15. Calculation of the theoretical number of floors in the plates columns, and the equivalent height of the theoretical floor (HEPT) in the Raschig rings columns.
  16. Pursuit of the temperatures in all plates in the column (Plates columns).
  17. Study of the rectification efficiency at different pressures.
  18. Effect of feed pre-heat.
  19. Effect of feed position.
  20. Demonstration of azeotropic distillation.
  21. Work different heating contribution with regulation by the computer.
  22. Studies of heating interchange in glass refrigerators.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

Additional practical possibilities:

  1. Dosing pump calibration.
  2. Sensors calibration.
  3. Study of PID controls.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the UDCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the UDCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
