AV-ECD Equipamento de Dispositivo de Controle Eletrônicos Automotivo
SISTEMAS INOVADORES

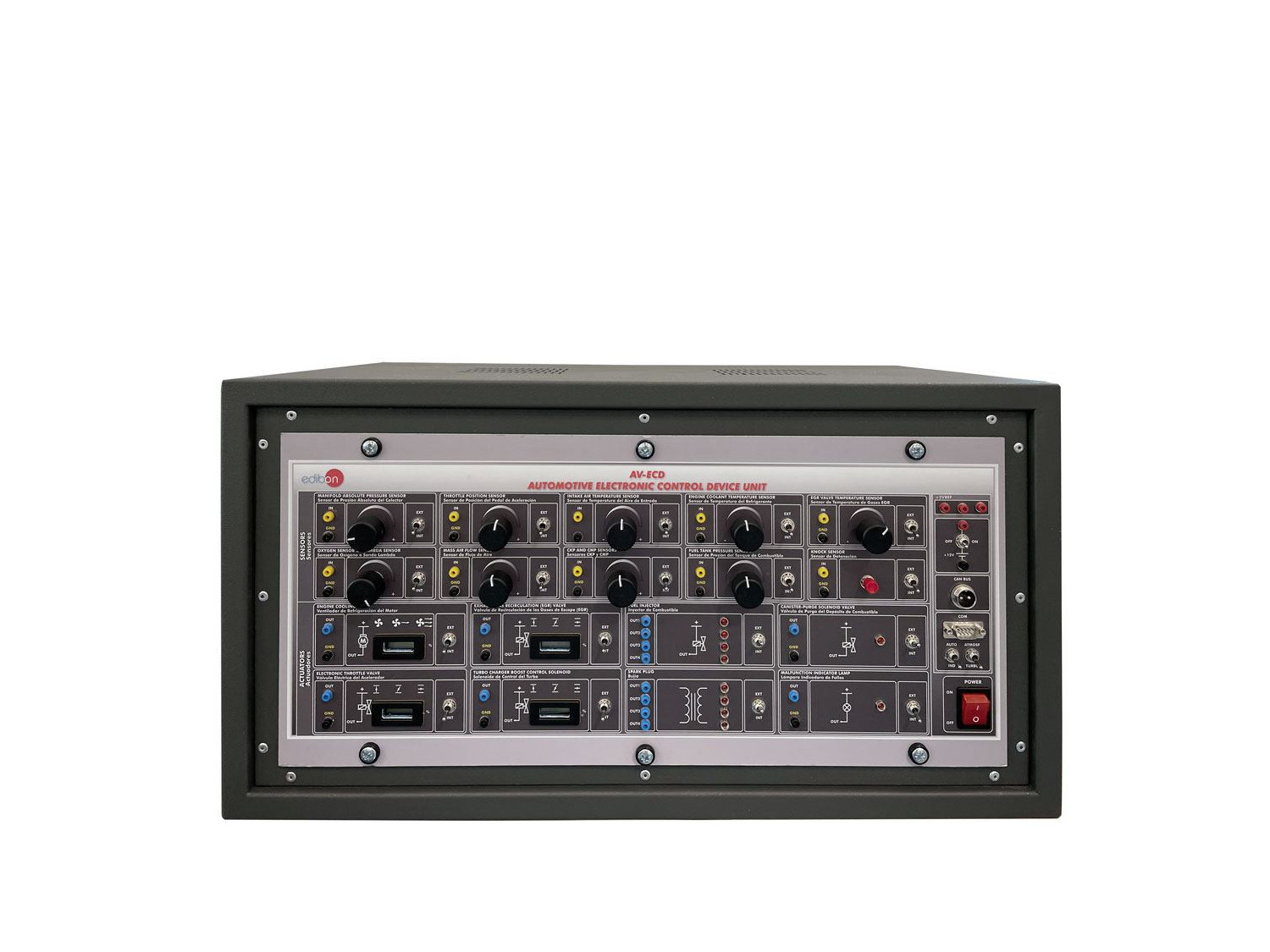

The Automotive Electronic Control Device Unit included in the "AV-ECD" designed by EDIBON allows the flashing an ECU (electronic control unit) with different programs, changing the response of the ECU to different input signals, etc.
NOTÍCIAS RELACIONADAS
Descrição Geral

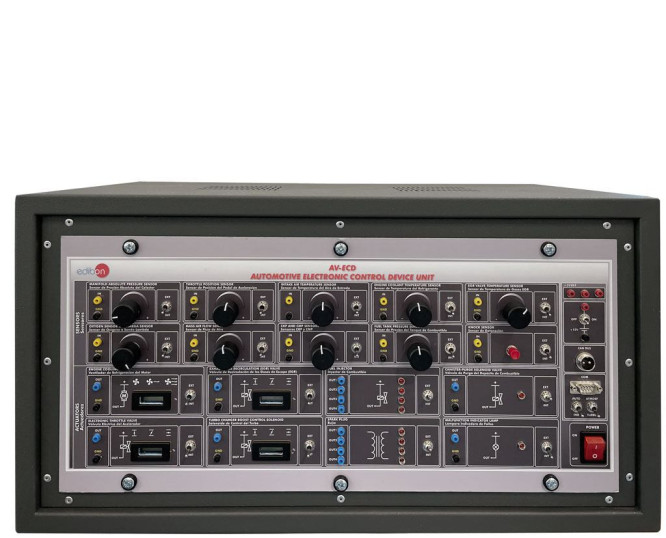

The Automotive Electronic Control Device Unit, "AV-ECD", provides a practical solution to the introduction of electronic control units or ECUs.

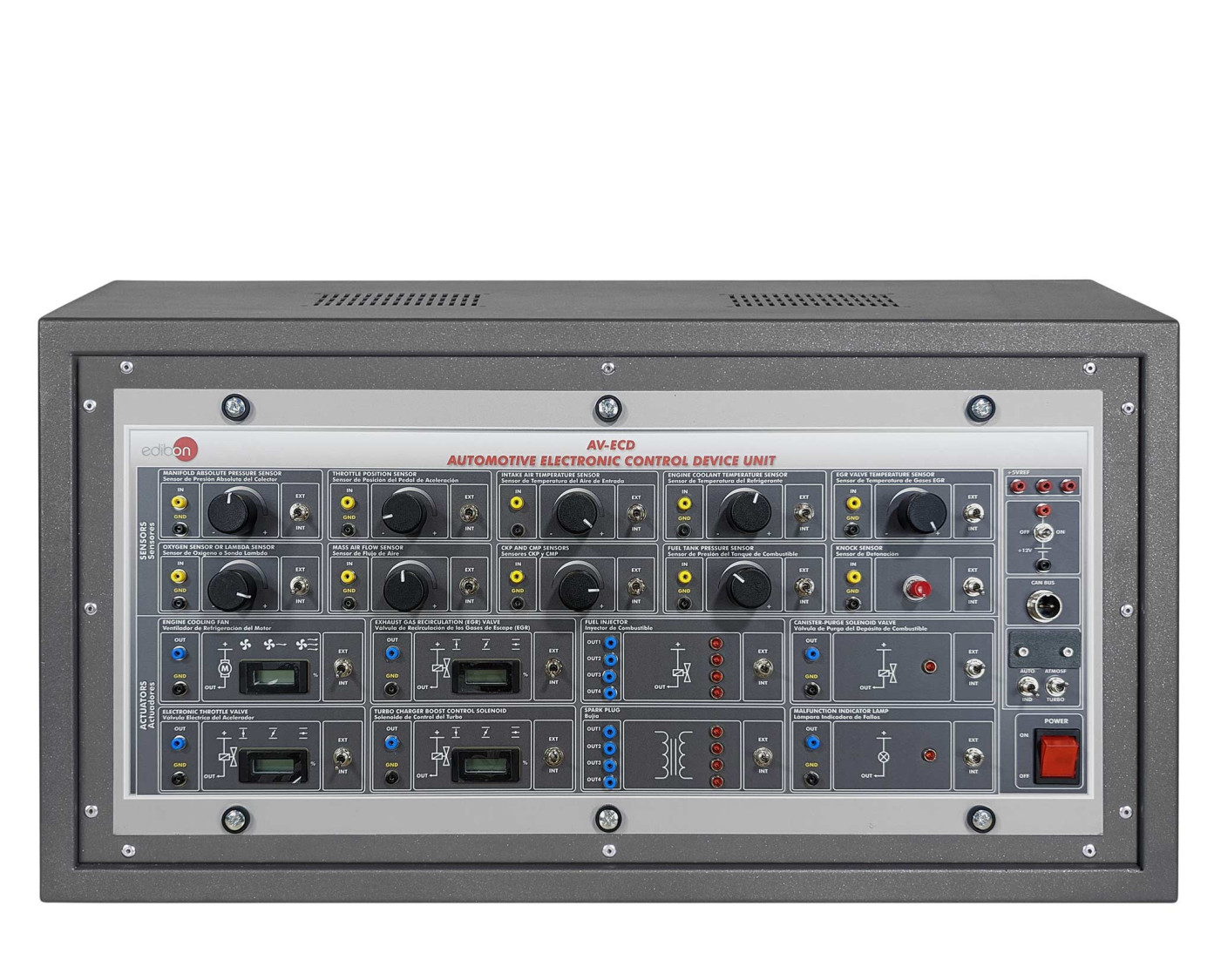

The Automotive Electronic Control Device Unit, "AV-ECD", is composed of an Electronic Control Unit (ECU) configured to work with the emulated sensors and actuators included in the unit, but the "AV-ECD" can also work in conjunction with other EDIBON units: it can operate with the sensors of the Automotive Sensors Unit, "AV-S" and with the actuators of the Automotive Actuators Unit, "AV-A".
The "AV-ECD" unit includes a combination of sensors and actuators that generate and receive the same signal as the sensors and actuators of the automotive computers. The emulated sensors and actuators included in the unit are focused on the engine management system: knock sensor, engine coolant sensor, Lambda sensor, camshaft position sensor, turbocharger boost control solenoid, electronic throttle valve, engine cooling fan, etc.
The communication protocol of the ECU varies depending on the characteristics of the sensors and actuators connected. This communication with the electronic control units can be done through CAN or LIN network protocols or through digital or analog signals.
All sensor and actuator circuits included in the unit are isolated to understand the function of the circuits separately. Each circuit has different test points accessible through 2 mm standard lab sockets.
The sensor and actuator circuits allow the simulation of faults in the components, inserted with toggle switches. The system faults are indicated by the malfunction indicator lamp (MIL). The sensors and actuators can work individually or with other related sensors and actuators.
The "AV-ECD" circuits include a series of faults, which can be inserted to the input and output signals of the ECU, to allow the students to detect and understand common faults of the electronic components.
The "AV-ECD" unit is provided with a different set of practical exercises, through which the student will understand how the electronic control units work.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
Electronic control unit (ECU):
- ECU self-diagnosis to detect faults.
- Absolute pressure sensor signal.
- Function of the fuel tank pressure sensor and the canisterpurge solenoid valve.
- Coolant temperature sensor signal.
- Function of the exhaust gas recirculation (EGR) temperature sensor.
- Function of the accelerator pedal position sensor.
- Oxygen or Lambda sensor signal.
- Mass air flow sensor signal.
- Intake air temperature sensor signal.
- Crankshaft position sensor signal.
- Camshaft position sensor signal.
- Checking faults in the sensor signals.
- Turbocharger boost solenoid control signal.
- Function of the exhaust gas recirculation (EGR) valve.
- Understanding the electronic throttle valve function.
- Function of the fuel pump.
- Spark plug control signal.
- Fuel injector control signal.
- Engine cooling fan control signal.
- Checking faults in the actuator signals.
- ECU self-diagnostic function.
- Reprogram the ECU with the atmospheric engine configuration.
- Reprogram the ECU with the turbocharged engine configuration.
EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE
- Several other exercises can be done and designed by the user.
EQUIPAMENTOS COMPLEMENTARES
2.5.- ELETRÔNICA AUTOMOTIVA
AEL-EHVC
The Computer Controlled Hybrid and Electric Vehicles Application, "AEL-EHVC", is an application designed by EDIBON for the theoretical and practical training of the different topologies of electric/hybrid vehicles most used today.Given the...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-EC
Equipamento de Circuitos Eletrônicos Fundamentais Automotivos
The Automotive Fundamental Electronic Circuits Unit, "AV-EC", provides a practical solution to the introduction of electronics in the automotive field with a group of common circuits used in the automobiles nowadays.The circuits included in the...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-ELC
Equipamento de Circuitos Elétricos Fundamentais Automotivos
The Automotive Fundamental Electrical Circuits Unit, "AV-ELC", provides a practical solution to the introduction of electricity in the automotive field with a group of common circuits used by the automobiles today.The circuits included in the...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-A
Equipamento de Atuadores Automotivos
The Automotive Actuators Unit, "AV-A", provides a practical solution to become familiar with the actuators used in today’s automobiles.The Automotive Actuators Unit, "AV-A", is composed by real actuators and components used in present automotive...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-WW
Equipamento de Limpador de Para-brisas Automotivos
The Automotive Wiper Washer Unit, "AV-WW", provides a practical solution to the introduction of the components of the wiper washer system used in the automotive field nowadays.The components included in the "AV-WW" are focused on different...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-ECC
Equipamento de Circuito de Refrigeração em Motor Automotivo
The Automotive Engine Cooling Circuit Unit, "AV-ECC", provides a practical solution to the introduction of the engine cooling systems electronics used in the automotive field nowadays.The components included in the "AV-ECC" are focused on...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-AC
Equipamento de Componentes Auxiliares Automotivos
The Automotive Auxiliary Components Unit, "AV-AC", provides a practical solution to obtain advance knowledge in the electronic and electric systems used in the automotive field today.All sensors and actuators included in the "AV-AC" unit are...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-S
Equipamento de Sensores Automotivos
The Automotive Sensors Unit, "AV-S", provides a practical solution to familiarize the students with the sensors used in modern automotive systems.The Automotive Sensors Unit, "AV-S", is composed of real sensors and components used in current...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-SCS
Equipamento de Sistemas de Arranque e Carregamento Automotivos
The Automotive Starting and Charging Systems unit, "AV-SCS", has been designed by EDIBON to provide theoretical and practical trainingin the field of electrical starting and charging systems for motor vehicles. This unit aims to provide students...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-GE
Equipamento de Gerador Elétrico Automotivo

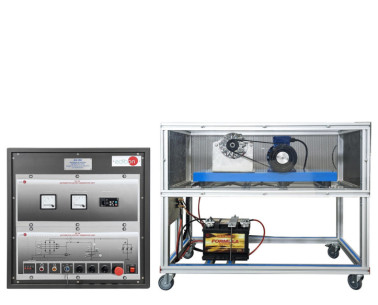

The Automotive Electric Generation Unit, "AV-GE", provides a practical solution to help to become familiar with the components used intoday’s automobile electrical circuits.The components included in "AV-GE" focus on the generation of electrical...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-HYB
Equipamento de Simulação de Veículos Híbridos, Controlado por Computador (PC)

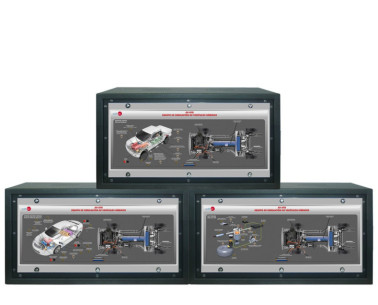

The Computer Controlled Automotive Hybrid Simulation Unit, "AV-HYB", has been designed by EDIBON to study and analyze the operationof the hybrid vehicle through the different forms of combination of the energy sources it uses. For this purpose,...
