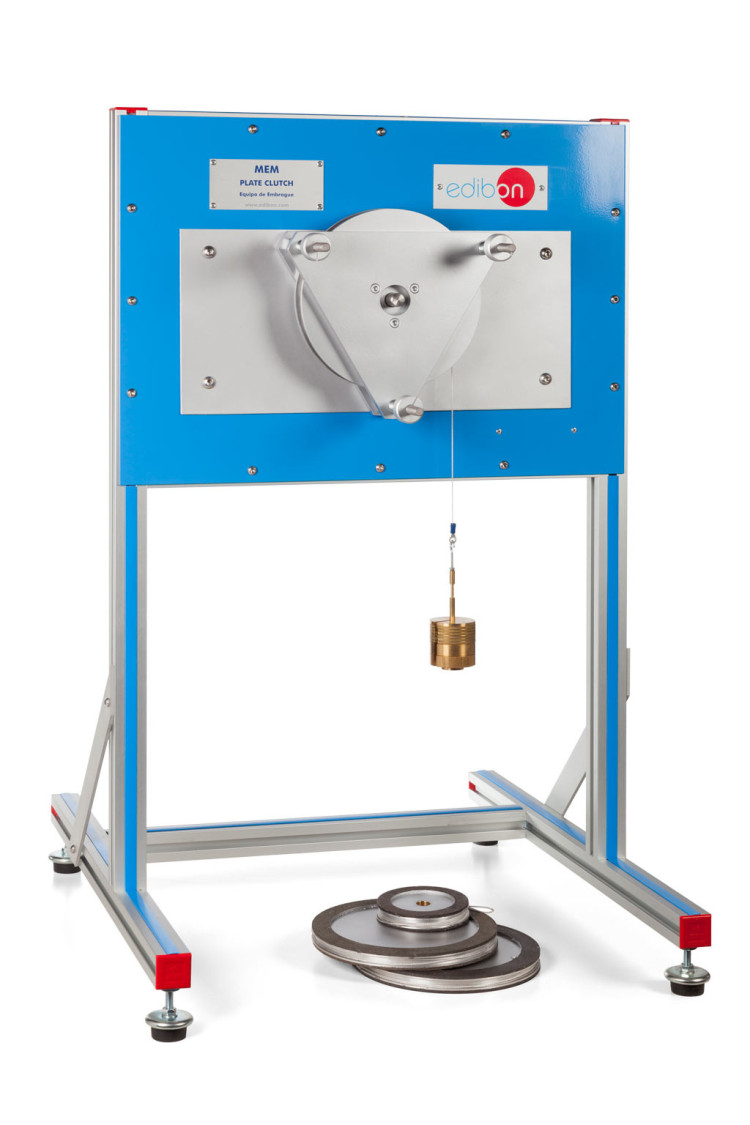

MEM Equipamento de Embreagem

The Plate Clutch, "MEM", allows to demonstrate the influence of the friction surface and the applied pressure of the springs on the transmitted torque for a friction clutch. To this end, several clutch discs with different diameters and coefficients of friction and springs, with marked tightening nuts, will be used to increase the pressure in the system.

The "MEM", unit consists of a disc with friction material attached and one or two discs, depending on the study that is to be carried out, that when rubbing with the friction disc it produces a friction force.

These discs are arranged on a stainless steel shaft, so that, the friction disc rotates thanks to a series of weights that have to be hung to produce a torque, whereas said will be stopped by the pressure discs that produce the friction force, since these are joint to the shaft and the structure.

To apply pressure on the system, three springs, with marked tightening nuts are used. All nuts are marked to be able to perform the same force with all, and thus increase pressure throughout the system uniformly. This system transmits the force to the pressure discs that transmit it to the rest of the equipment.

Several friction discs with different diameters and different friction materials are available in order to be able to study both the variation as a function of the size and as a function of the coefficient of friction.

The study can be done with one or two pressure discs.
