EESFC Equipamento de Energia Solar Fotovoltaica, Controlado por Computador (PC)

5.3.1.- ENERGIA SOLAR FOTOVOLTAICA
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

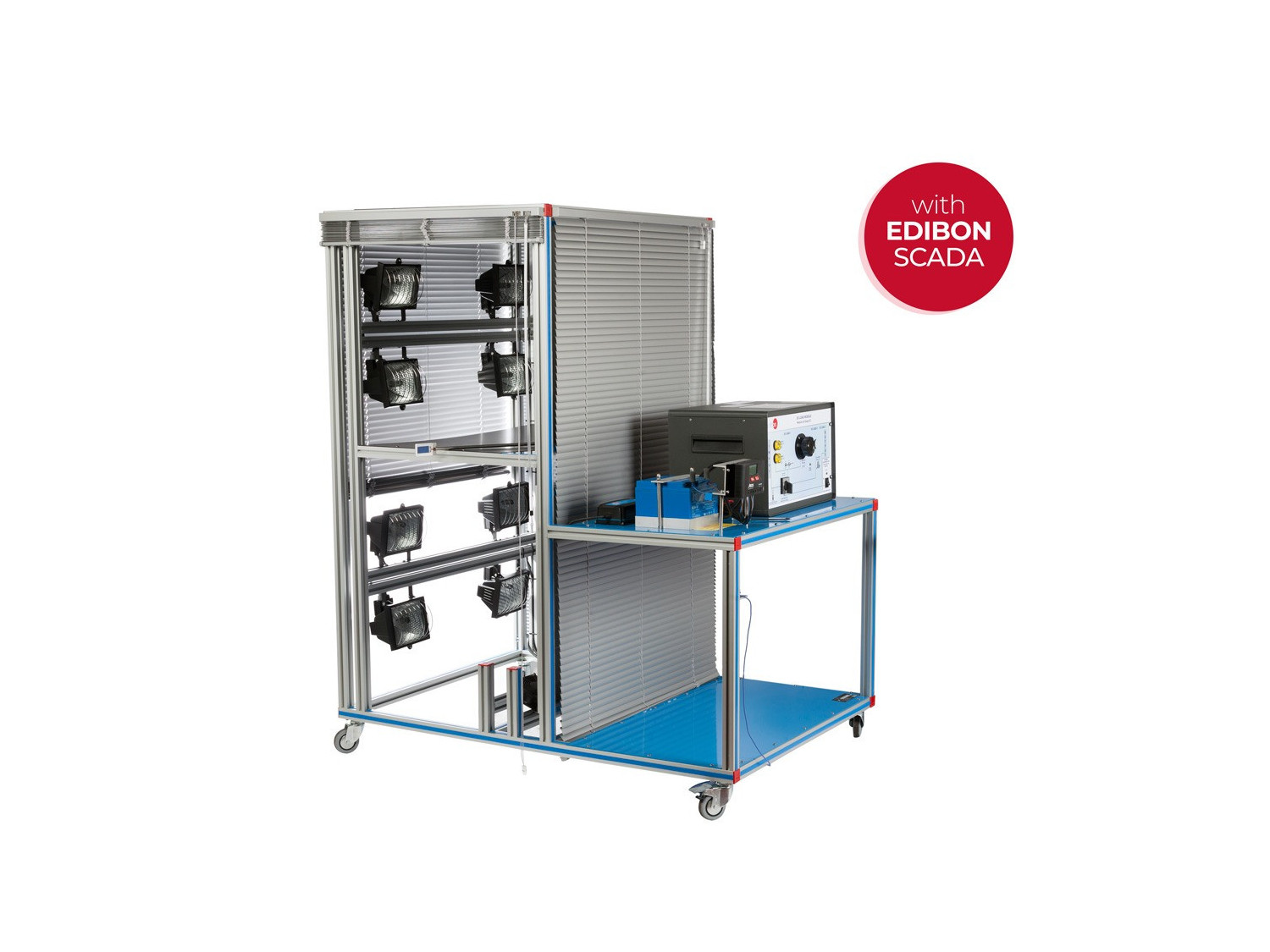

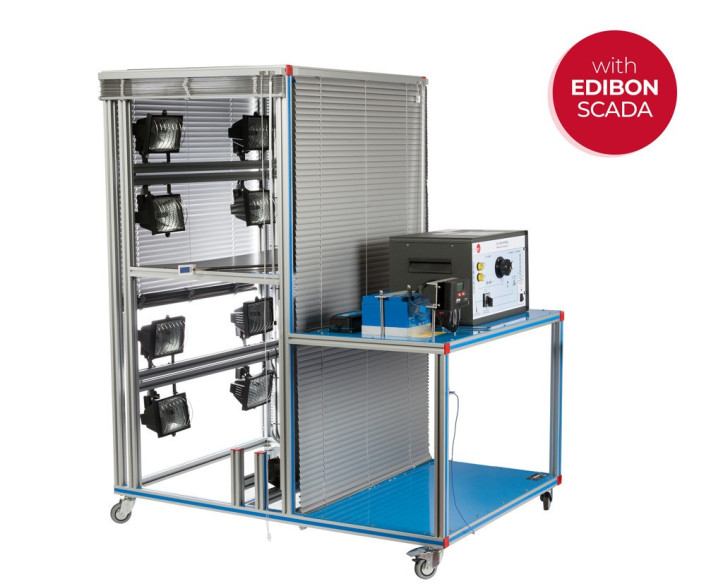

Unit: EESFC. Computer Controlled Photovoltaic Solar Energy Unit

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

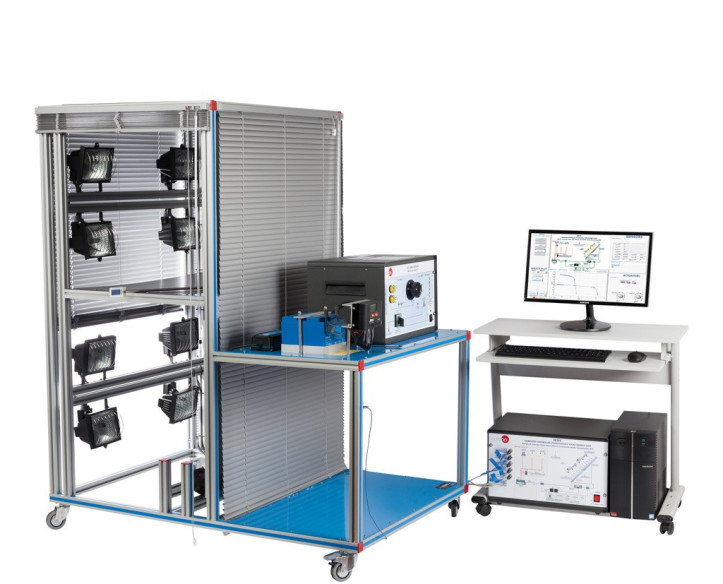

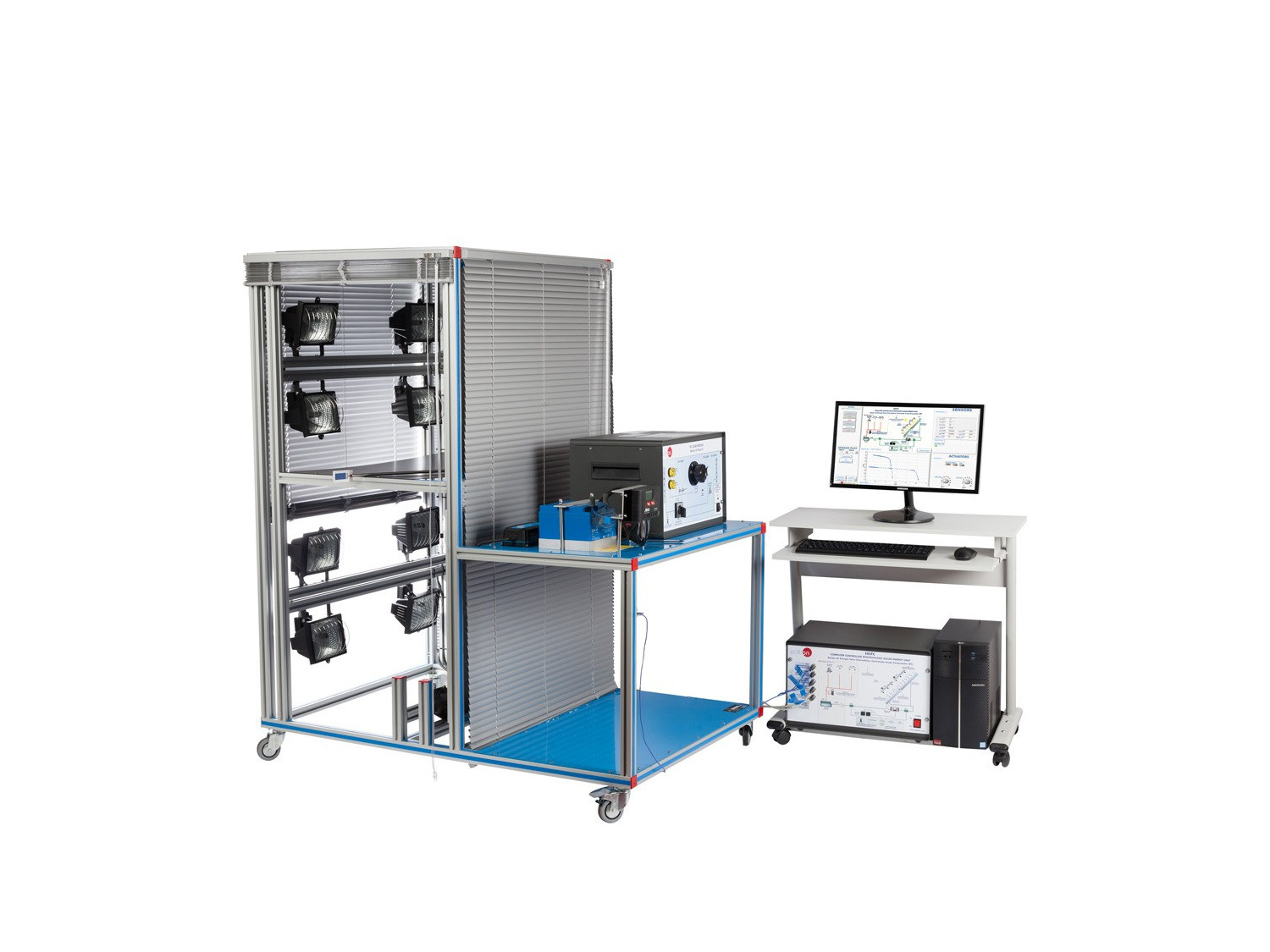

Complete EESFC unit

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

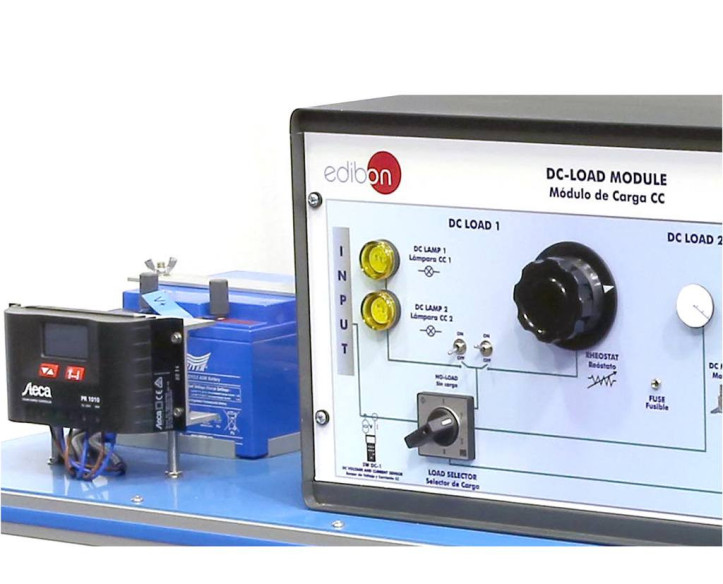

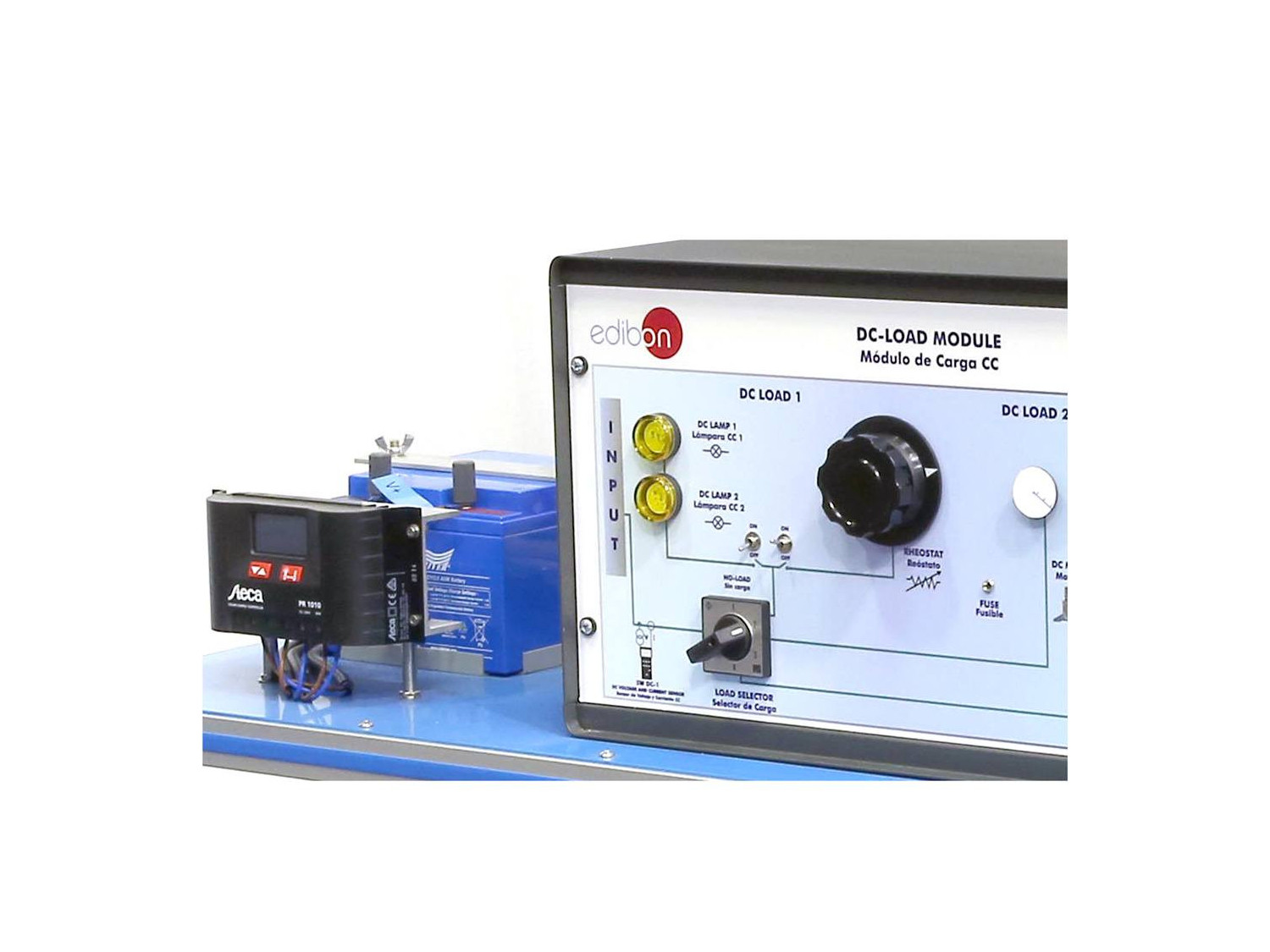

Unit details

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

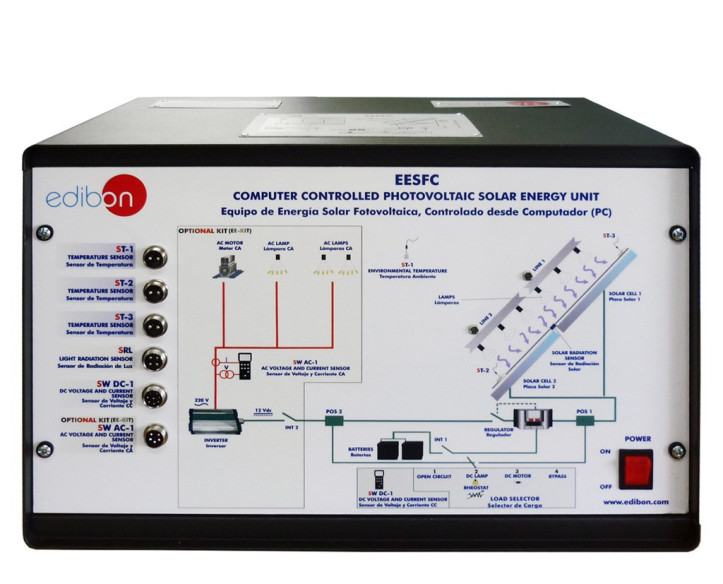

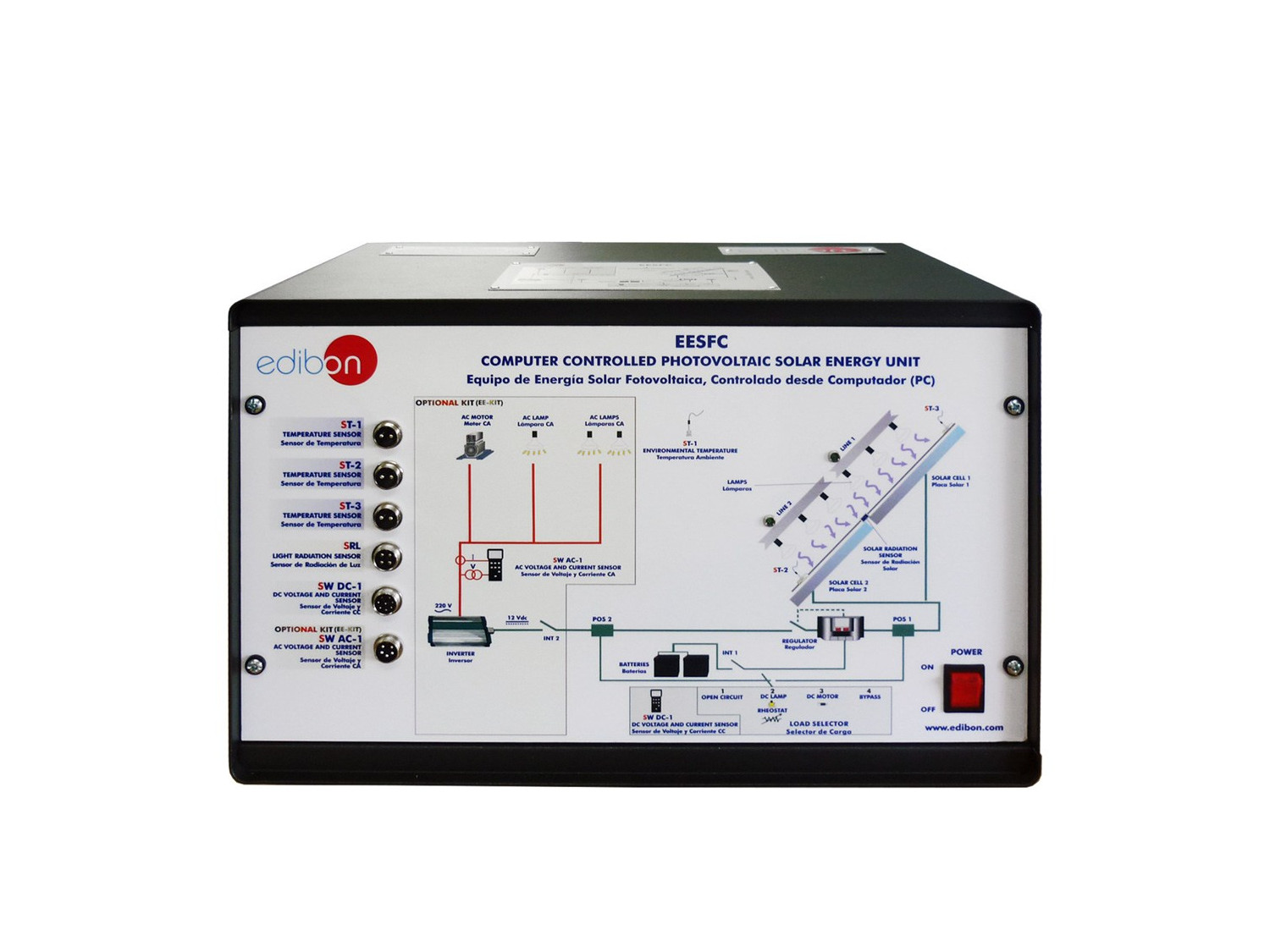

EESFC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

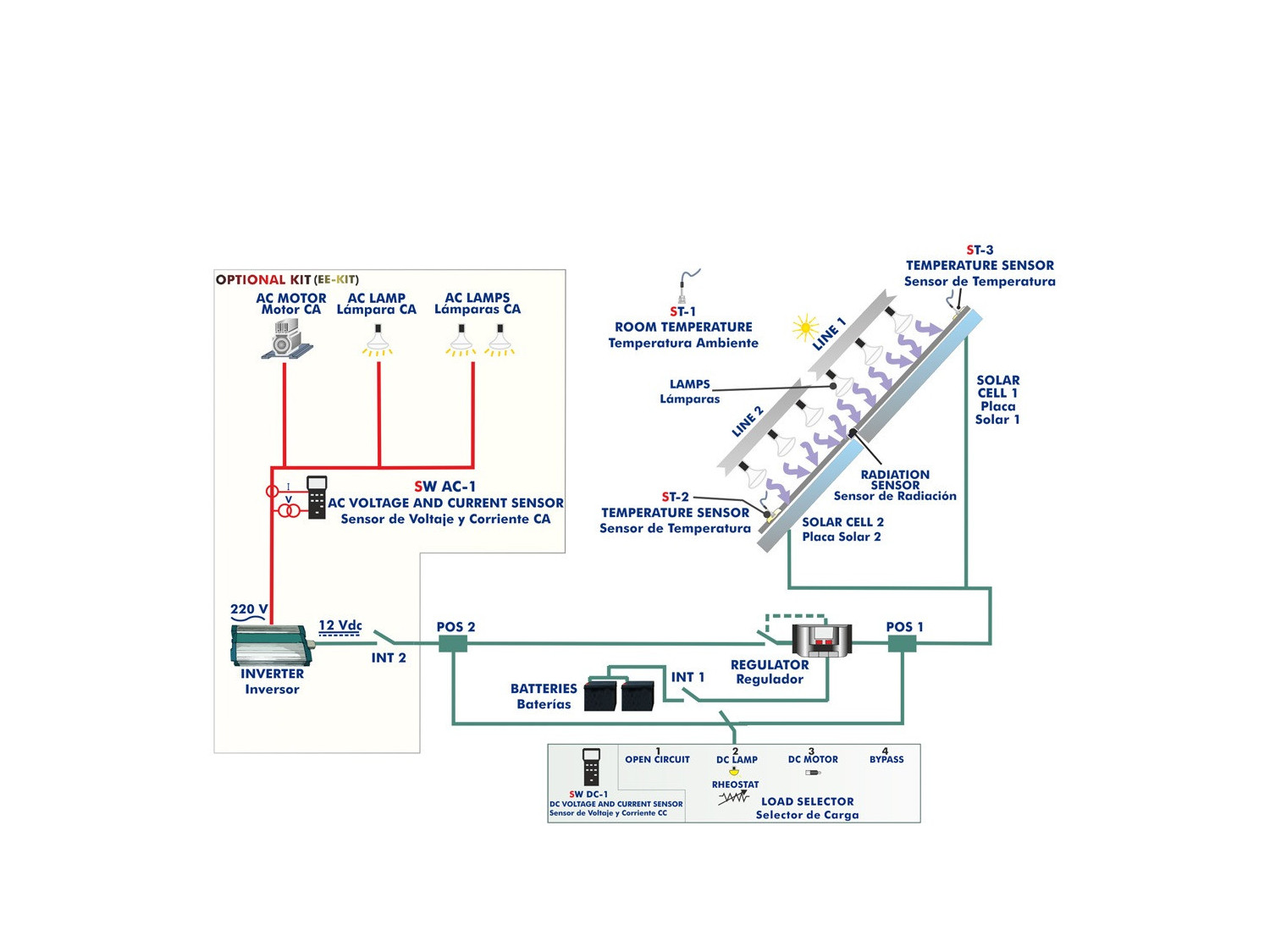

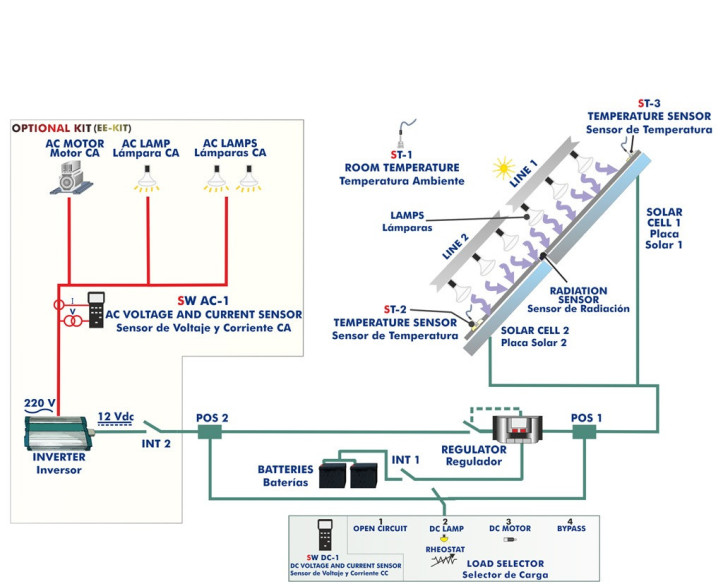

Process diagram and unit elements allocation

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

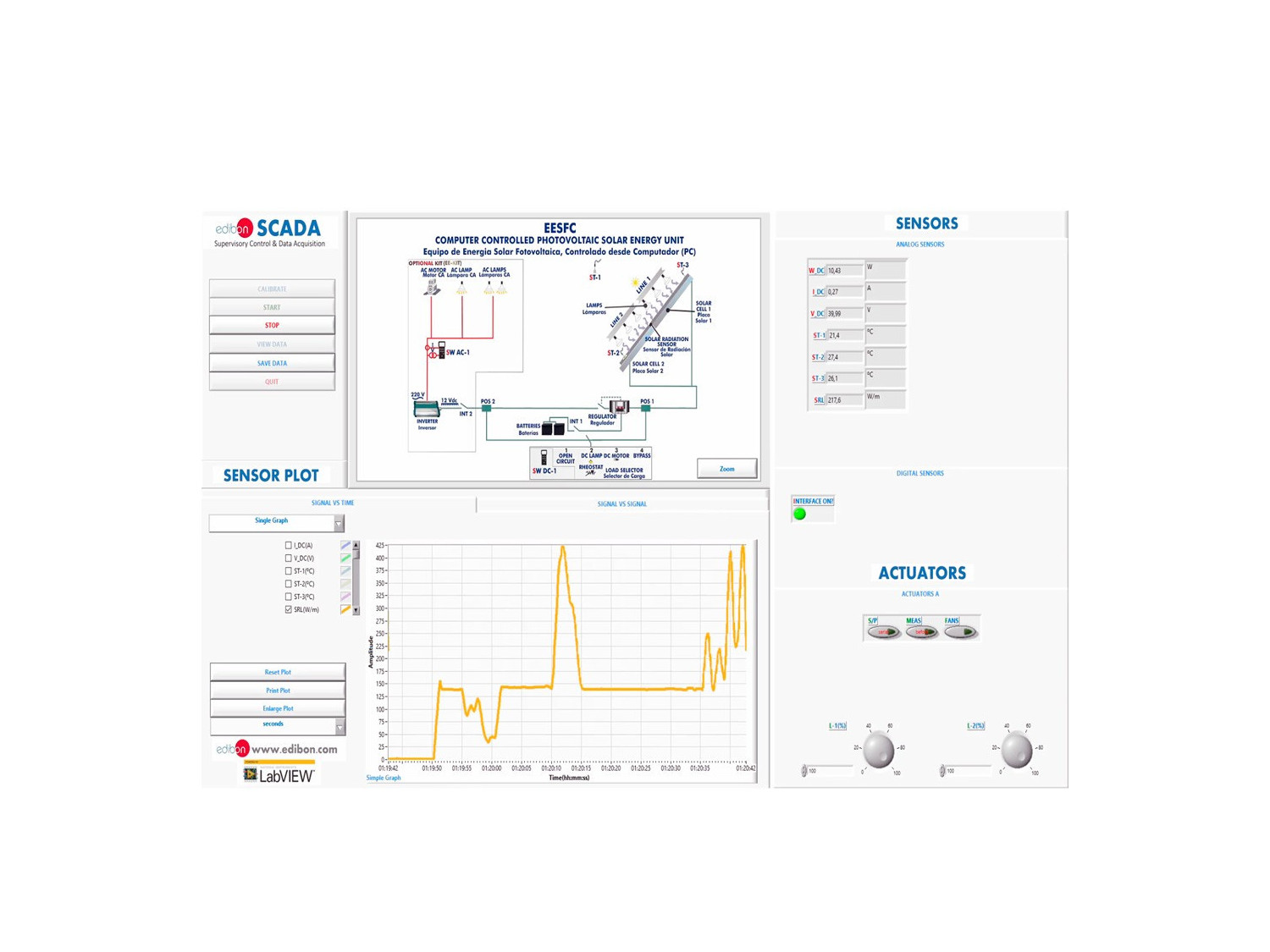

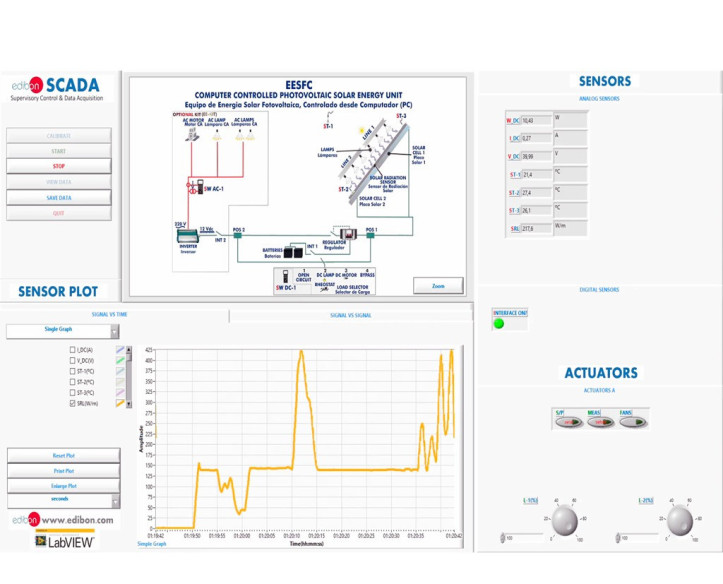

EESFC/SOF. EESFC Software. Main Screen

COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC
COMPUTER CONTROLLED PHOTOVOLTAIC SOLAR ENERGY UNIT - EESFC

SISTEMAS INOVADORES

The Computer Controlled Photovoltaic Solar Energy Unit, "EESFC", includes equipment that uses the photo-conversion law, which directly converts solar radiation into electricity. The absorbed energy is provided by simulated solar radiation, which in our case is supplied by a panel with powerful light sources (solar lamps).

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

5RTV
 Laboratório de Energias Renováveis para o Ensino Técnico e Vocacional
5RHE
 Laboratório de Energias Renováveis para o Ensino Superior

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up at University of the Punjab, Pakistan.
Setting up at University of the Punjab, Pakistan.
Our local representative just completed an installation at University of the Punjab, Pakistan. There we installed equipment like the HCMP; AFTC; PBSPC; HVCC; EMLS; LFFC; LIFLUBA; FME00; TMTC; TSTCC; EESTC; EESFC; EE-KIT; EEEC; EEF; EBEC; EBDC; TTEC; SFU; RETU, among others. Our cutting-edge...
Ler mais
Setting up at some universities in Cuba
Setting up at some universities in Cuba
There we have traveled to the University of Santa Clara, the Technological University of Havana (CUJAE), the University of Matanzas, University of Cienfuegos and the University of Sancti Spiritus. We have had the honor of installing many of our equipment in their facilities
Ler mais
Renewable energies in trend
Renewable energies in trend
Renewable energies are clean and have almost unlimited resources provided by nature. Due to their indigenous nature, they help to reduce a country's dependence on external supplies, reduce the risk of a poorly diversified supply and promote the development of new technologies and job creation.
Ler mais
Setting up at University of Newcastle (NEWC)
Setting up at University of Newcastle (NEWC)
This time we have moved to the Faculty of Engineering and Built Environment of the University of Newcastle to install some of our equipment in the area of environment and energy
Ler mais

Descrição Geral

The Computer Controlled Photovoltaic Solar Energy Unit, "EESFC", includes equipment that uses the photo-conversion law for the direct conversion of solar radiation into electricity. The absorbed energy is provided by simulated solar radiation, which in our case is supplied by a panel with powerful light sources (solar lamps).

The unit contains:

  • Photovoltaic solar panels.
  • Solar simulator composed of solar lamps.
  • Ventilation system.
  • DC load and battery charger regulator.
  • Auxiliary battery charger.
  • Battery.
  • DC Loads module.
  • Sensors (temperature, light radiation, DC current and DC voltage).

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Identification and familiarization with all components of the unit and how they are associated with its operation.
  2. Determination of the solar panel characteristic parameters.
  3. Study of the materials that make up the solar cell.
  4. Study of the p and n sides of a solar cell.
  5. Study of the I-V and P-V curves.
  6. Study of the inverse current or the saturation current.
  7. Study of V, I and W according to different loads.
  8. Measurement of the open-circuit voltage and the short-circuit current for a solar panel with load.
  9. Measurement of the maximum power for a solar panel with load.
  10. Study of the relationship between power generated and solar radiation power.
  11. Study of the solar panel maximum power.
  12. Study of the influence of temperature on the solar panel opencircuit voltage.
  13. Determination of the photo-conversion efficiency.
  14. Study of the efficiency of the solar panels connected in parallel.
  15. Study of the efficiency of the solar panels connected in series.
  16. Study of the efficiency, depending on the temperature, of the photovoltaic system connected in parallel.
  17. Study of the operation of the photovoltaic generation system supplying power to different DC loads without an auxiliary battery.
  18. Study of the photovoltaic power generation system operation with an auxiliary battery and supplying different DC/AC loads.
  19. Study of the operation of the photovoltaic system in series/parallel with connection of different loads and without the support of the storage battery.
  20. Study of the operation of the photovoltaic system in series/parallel with connection of different loads DC and with the support of the storage battery.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Sensors calibration.
  2. Lamps illumination profile study.
  3. Determination of the resistance of a solar cell connected in series and in parallel.
  4. Study of the parameters that define the quality of a solar cell.
  5. Study of the dependence of the voltage of open circuit (V∞) on the lumens.

Practices to be done with the OPTIONAL KIT "EE-KIT":

  1. Study of the operation of the photovoltaic system in series/parallel with connection of different loads and without the support of the storage battery.
  2. Study of the operation of the photovoltaic system in series/parallel with connection of different AC loads and with the support of the storage battery.
  3. Study of the connection of loads to an alternating voltage of 220V.

Practices to be done with the additional recommended element "EE-HYB-KIT":

  1. Study of the hybrid inverter’s grid connection procedure: correct sequence of battery and grid switches.
  2. Study of the hybrid inverter configuration.
  3. Study of the hybrid inverter in grid connection mode.
  4. Study of the hybrid inverter in island mode.
  5. Study of the behavior of the hybrid inverter in the event of a blackout.
  6. Study of the charging process of the battery from the laboratory grid through the hybrid inverter.
  7. Study of the battery charging process from a renewable energy source.
  8. Study of the power flows of the battery and the grid under variations of the energy demand with the variable resistive load.
  9. Study of the response of the hybrid inverter when the critical discharge point of the battery is reached.
  10. Study of the energy balance between the battery-charge-grid by means of the analog ammeters and voltmeters incorporated in the kit.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the EESFC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the EESFC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
Ver mais
