CHARPY AND IZOD IMPACT TESTING UNIT - EEICI

SISTEMAS INOVADORES

The Charpy and Izod Impact Testing Unit, "EEICI", is a unit designed for carrying out resilience or impact tests on plastic materials. The resilience test is a type of destructive test that gives us the toughness measure of a material and indirectly its ductility.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

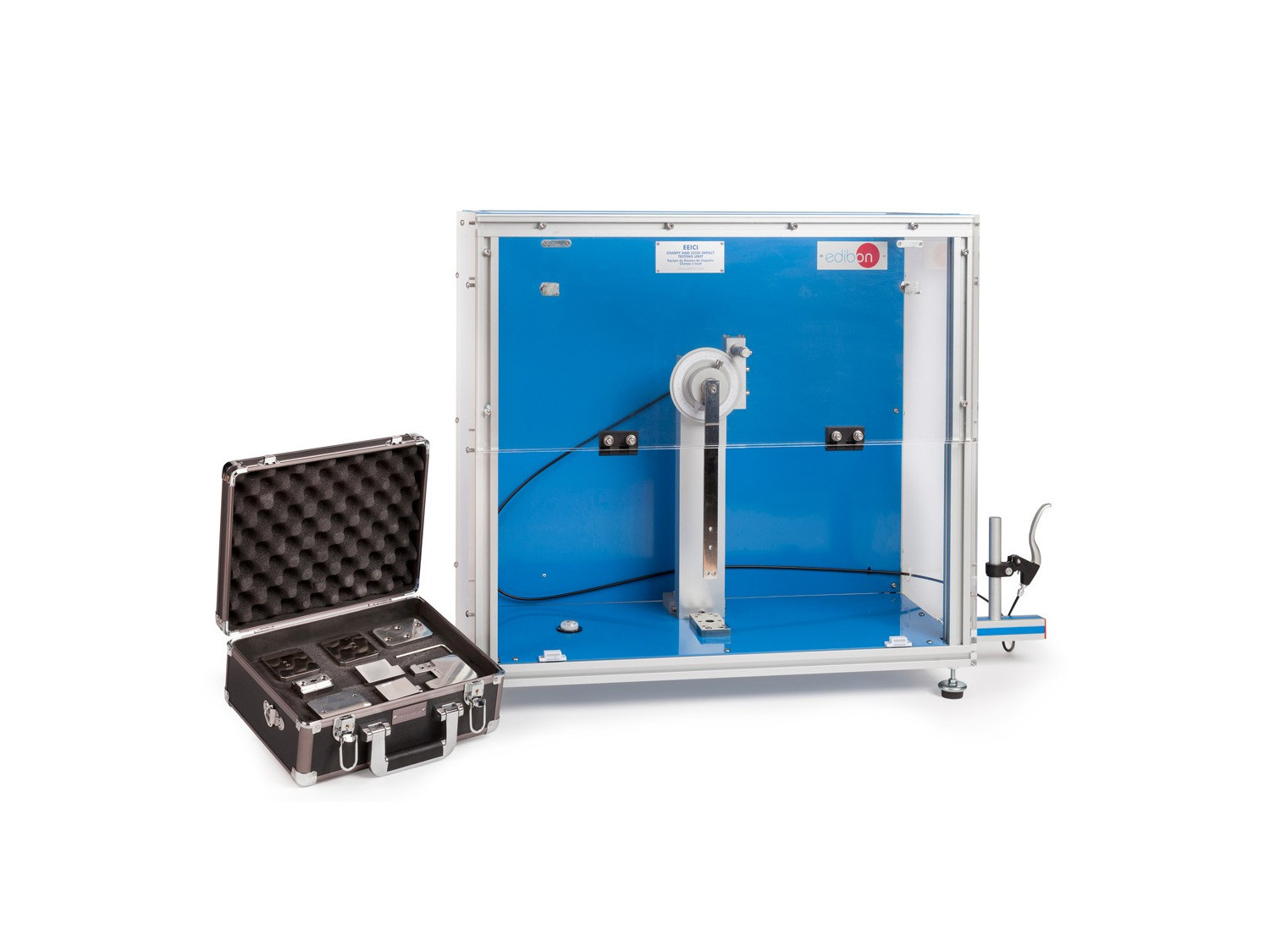

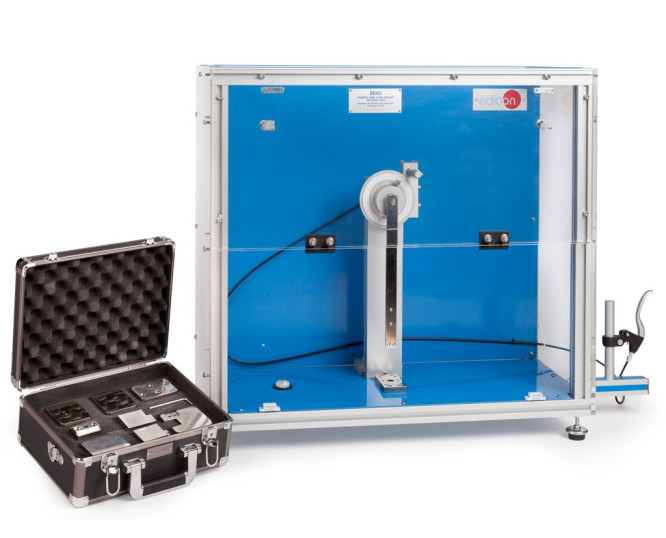

The Charpy and Izod Impact Testing Unit, "EEICI", consists of a pendulum supported on bearings with an arm of 330 mm long and a fastening system in the initial position of the test. The suitable hammer either for Charpy or Izod test is screwed to one of its ends.
