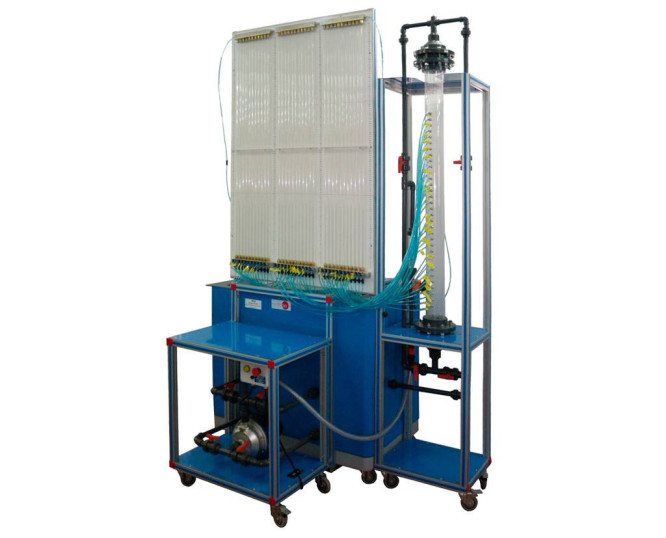

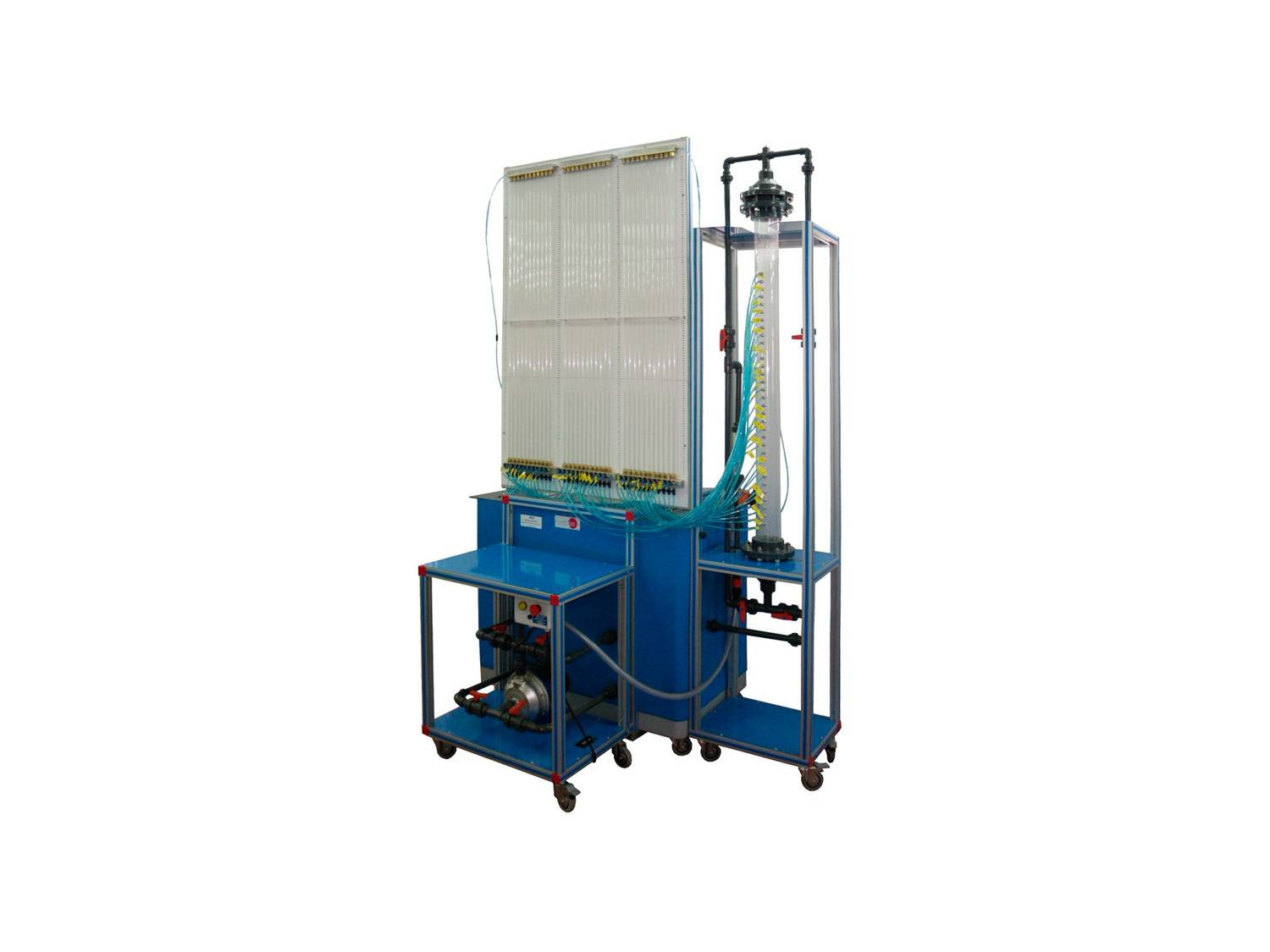

DEEP BED FILTER UNIT - EFLP

SISTEMAS INOVADORES

The Deep Bed Filter Unit, "EFLP", enables to study filtration in open and closed circuit, as well as to visualize the bed washing process.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Ler mais
Captura Direta de Ar: A Tecnologia Chave na Luta Contra a Mudança Climática
Captura Direta de Ar: A Tecnologia Chave na Luta Contra a Mudança Climática
A Captura Direta de Ar (DAC) é uma tecnologia inovadora que remove o CO₂ diretamente do ar usando reações químicas com solventes líquidos ou absorventes sólidos. Apesar dos desafios, como altos custos e consumo de energia, a DAC oferece uma solução potencial para reduzir as concentrações de CO₂...
Ler mais
Compreendendo e Melhorando os Sistemas de Tratamento de Água Potável
Compreendendo e Melhorando os Sistemas de Tratamento de Água Potável
Instalações de Tratamento de Águas Residuais Enquanto as estações de tratamento de água potável se concentram em fornecer água potável segura, as instalações de tratamento de águas residuais lidam com o tratamento da água usada antes de ser liberada novamente no meio ambiente. Essas instalações...
Ler mais
Installation at UPC - Universidad Peruana de Ciencias Aplicadas
Installation at UPC - Universidad Peruana de Ciencias Aplicadas
We are grateful for the trust of UPC - Universidad Peruana de Ciencias Aplicadas that has allowed us to install seven units [EBGC, EFLP, EII, PDAC, PDS, PEAI, PEF] to help future engineers to understand in a simpler way everything related to #environmental engineering
Ler mais
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Ler mais

Descrição Geral

The Deep Bed Filter Unit, "EFLP", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.

The pump takes raw water from one of the reservoirs of the unit and propels it towards the upper part of the column. That raw water passes through a diaphragm valve that controls the inlet flow rate of the column and a flowmeter that measures such flow rate.

The liquid to be filtered goes down the column, crossing the filtering media settled as a bed and the pressure along the entire bed is measured at 30 points. It enables the measurement of the pressure drop that is visualized by the increase of the resistance that the filter opposes to the fluid.

The filtration process can be performed in closed or open circuit.

The solids settled in the filter can be removed by countercurrent washing.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the initial head loss of a deep bed.
  2. Evolution through time of the head loss of the deep bed.
  3. Measuring pressure drop profiles through the bed.
  4. Demonstration of reversed flow and backwashing fluidisation.
  5. Filtering in open and closed circuit.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. The column may be readily adapted for absorption and ion exchange studies.
  2. Measuring suspension concentration profiles through the filter bed.
  3. Filtration efficiency. Clarification.
