STRUT BUCKLING UNIT - MFLT

SISTEMAS INOVADORES

The Strut Buckling Unit, "MFLT", has been designed by EDIBON for demonstrate the buckling of structures by compression, allowing to calculate the critical buckling load in function of different end fixation conditions.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

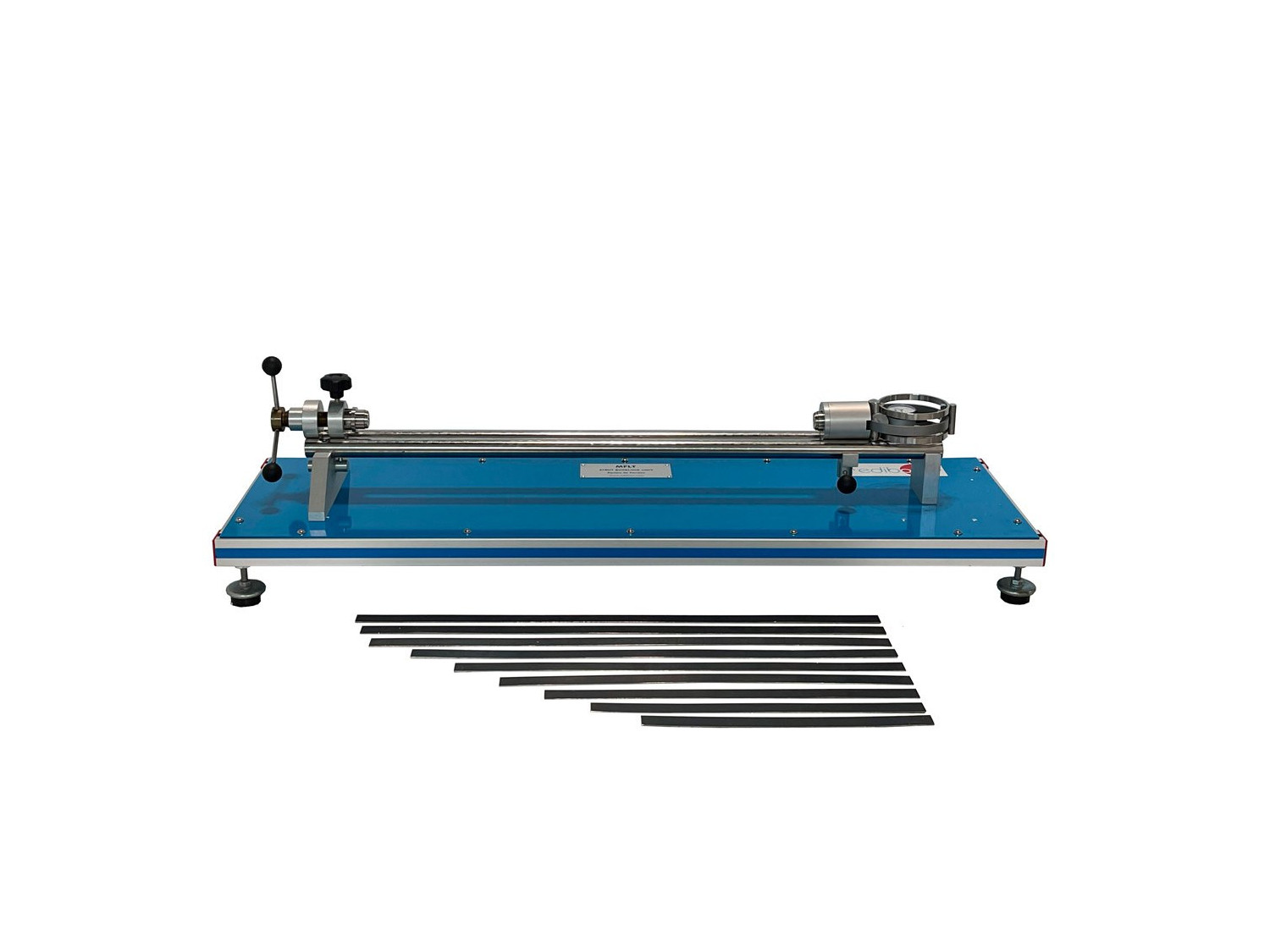

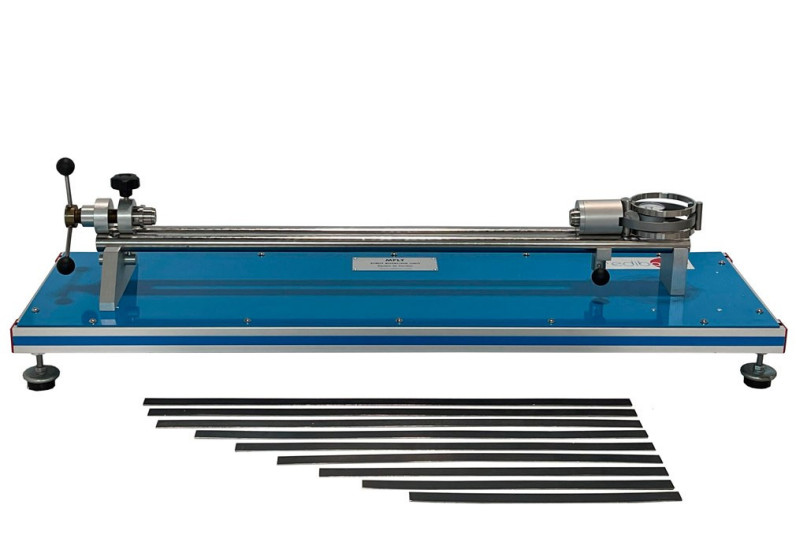

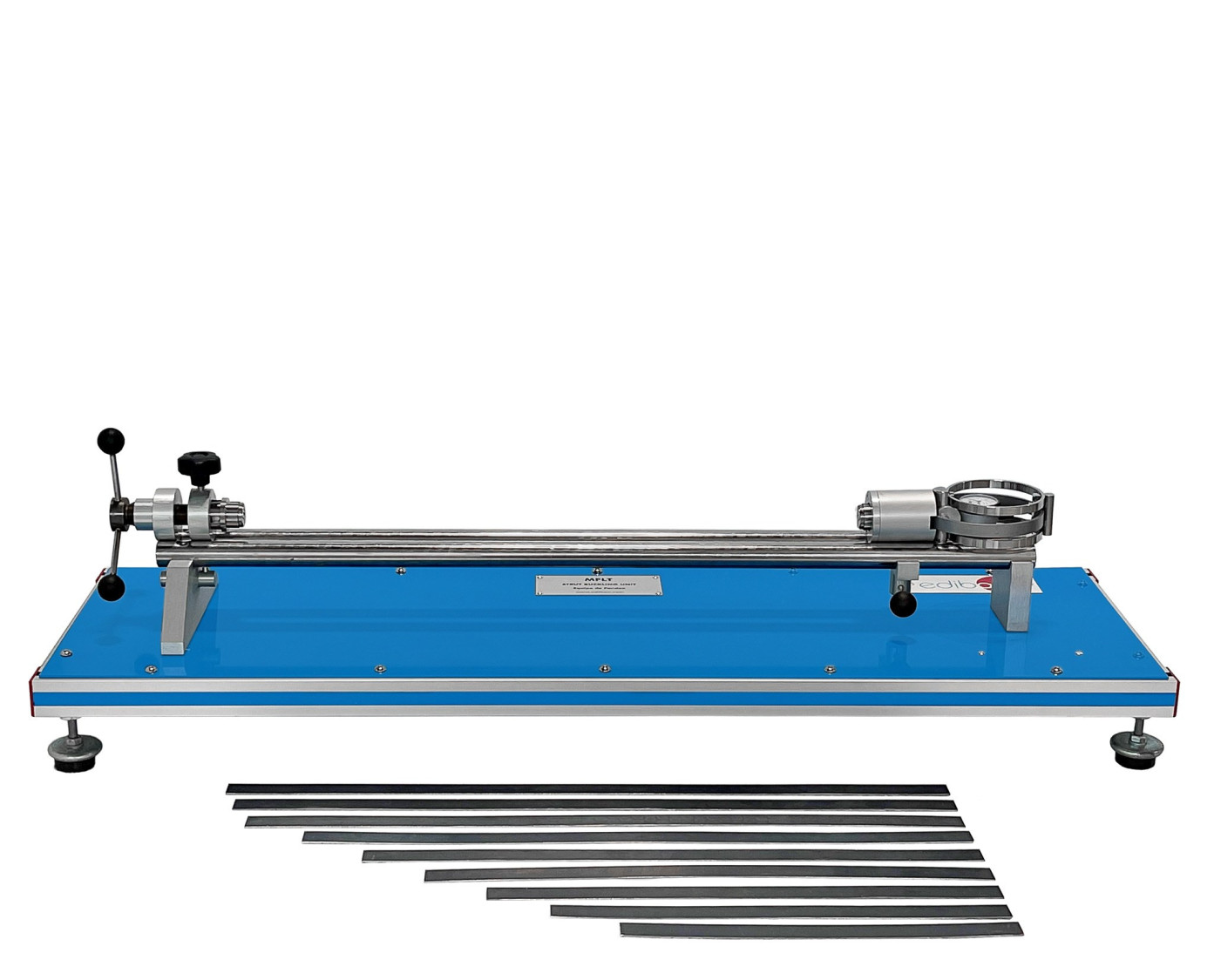

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.

The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm., to which different support conditions can be applied:

  • Pin-joined end conditions.
  • Rigidly fixed end conditions.
  • One end pinned and the other fixed.

To carry out the practical exercises correctly , it is very important to apply the force with an only axial component. For that purpose, the MFLT unit has a differential screw placed at one end, which allows the system compression.

To measure the compression force exerted on the structure, there is a system composed of an elastic ring whose deformation is measured. The compression force will be directly proportional to the deformation registered in a dial gauge.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of deformation in beams.
  2. Determination of the critical buckling load of a flat test piece, pinned at both ends.
  3. Determination of the critical buckling load of a flat test piece, with one fixed end and one pinned end.
  4. Determination of the critical buckling load of a flat test piece with both ends fixed.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Demonstration of the Euler theory for beams.
  2. Determination of the relationship between buckling load and slenderness modulus for axial loads.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- ENSAIOS MECÂNICOS
MUP
Equipamento Universal de Flambagem
The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
