MFD Equipamento de Freio a Disco

7.2.1.- FREIOS E EMBREAGENS
DISC BRAKE UNIT - MFD

SISTEMAS INOVADORES

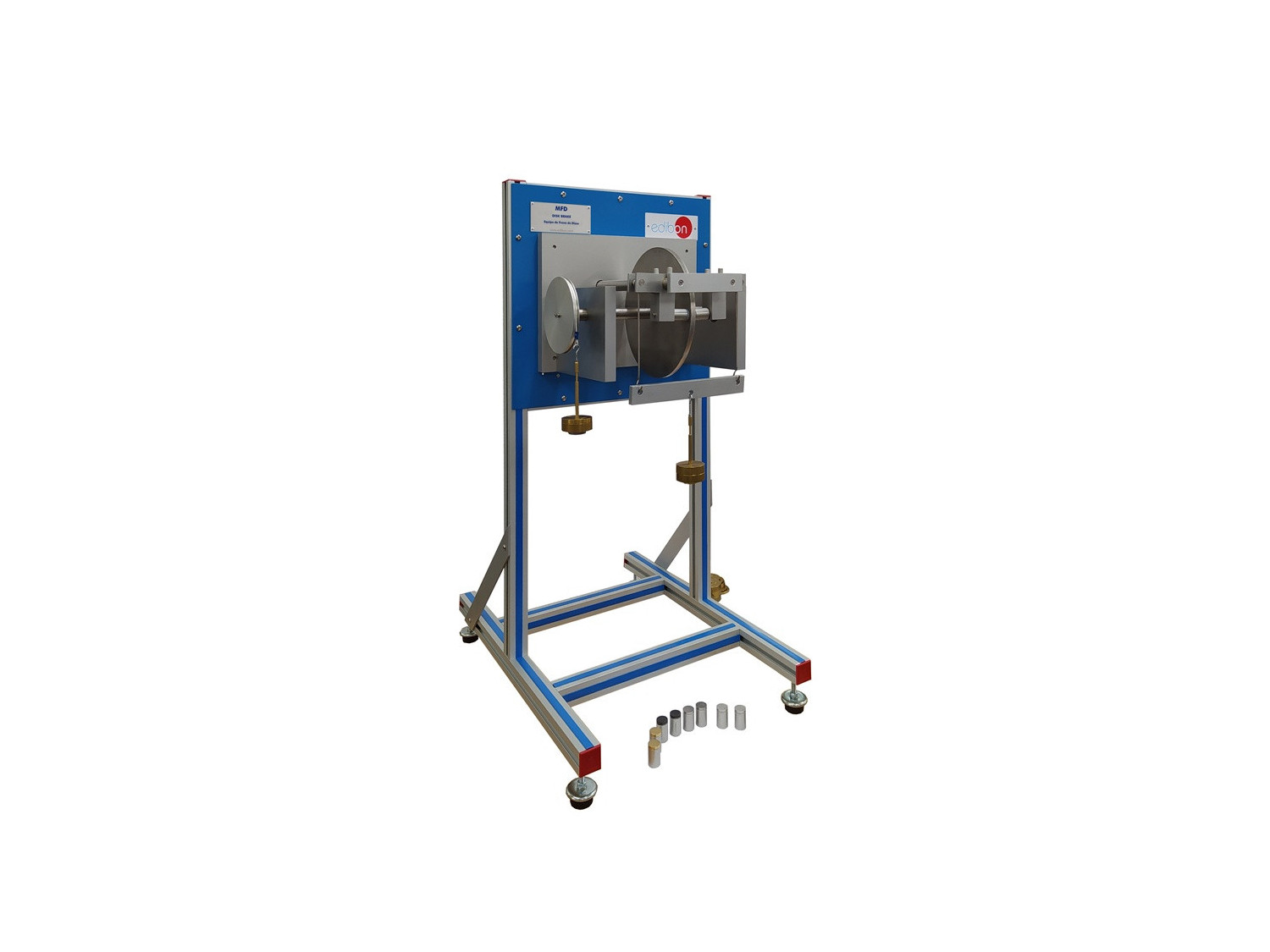

The Disc Brake Unit, "MFD", designed by EDIBON, allows the study of the operation of a disc brake, the effective radius of the brake pads and the suitability of the materials used.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
We have supplied some of our units to the IES Pedro Mercedes (Cuenca), IES Aguas Vivas (Guadalajara) and IES Juanelo Turriano (Toledo).
Ler mais

Descrição Geral

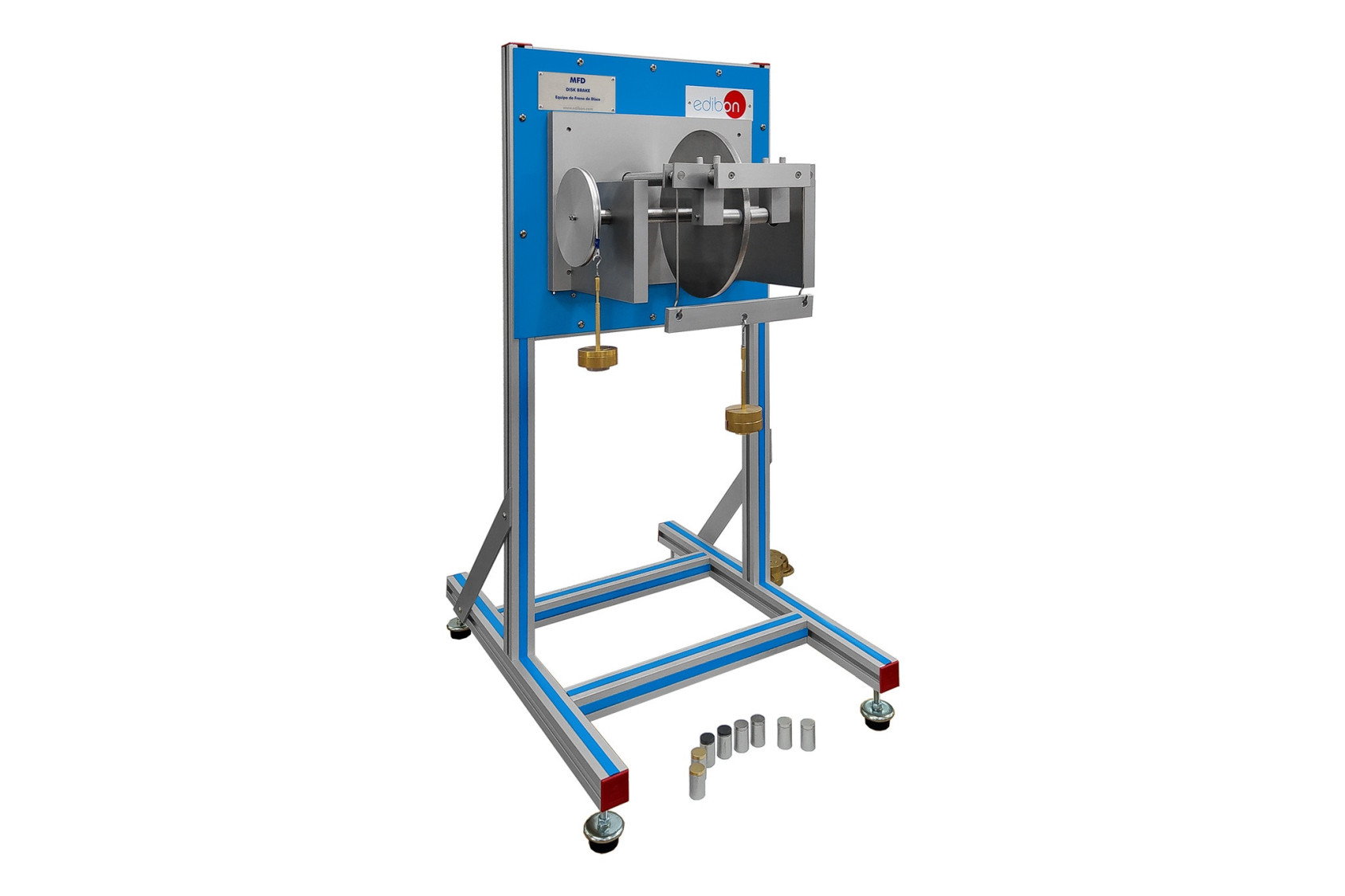

This unit "MFD" has been designed to carry out experiments to investigate the relationship between the normal force acting on the brake pads, the effective radius of the brake pads and the braking torque.

The brake pads are located on bell crank levers to which the load hangers may be attached. A load beam is supplied for use when carrying out experiments with two brake pads. The support shafts are drilled and pins provided so that the bell crank levers can be located in different radial positions.

Different brake pads materials can be tested.

The braking torque can be determined by attaching masses or weights to a cord wrapped round the pulley on the disc shaft.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

With this unit we can study and carry out experiments to investigate:

  1. Normal force acting on the brake pads.
  2. Friction and material suitability of the brake pads.
  3. Determination of the effective radius of the brake pads.
  4. Determination of the braking torque.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

DRUM BRAKE UNIT - MFT
  • MFT
Available
7.2.1.- FREIOS E EMBREAGENS
MFT
Equipamento de Freio a Tambor
The Drum Brake Unit, "MFT", allows the study of the forces acting on a drum brake, the difference between the braking torque of the primary shoe and secondary shoe braking systems and determining the coefficient of friction between the drum and...
Ver Equipamento

Qualidade

Serviço pós-venda

Solicitar informação
