Descrição Geral

The Basic Teaching Unit for the Study of Regulation and Control, "RYC/B", allows the user to learn the basics about regulation and control of first and second order systems.

This unit enables to carry a set of practices related with basic regulation and control, through which the user will understand how to characterize first and second order systems and how a PID controller works.

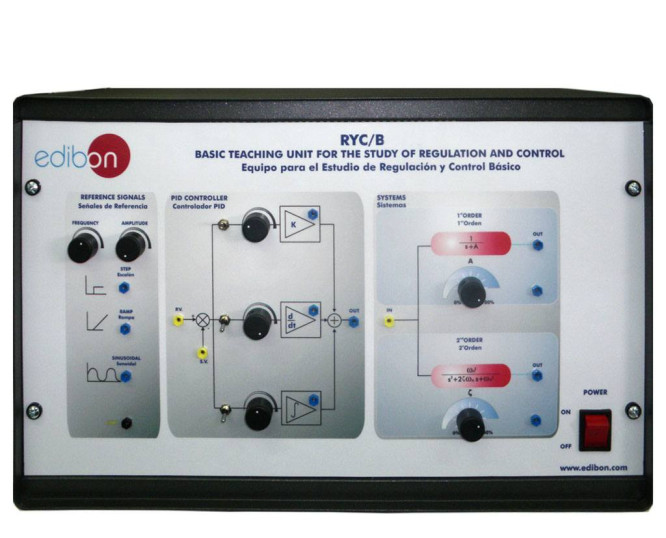

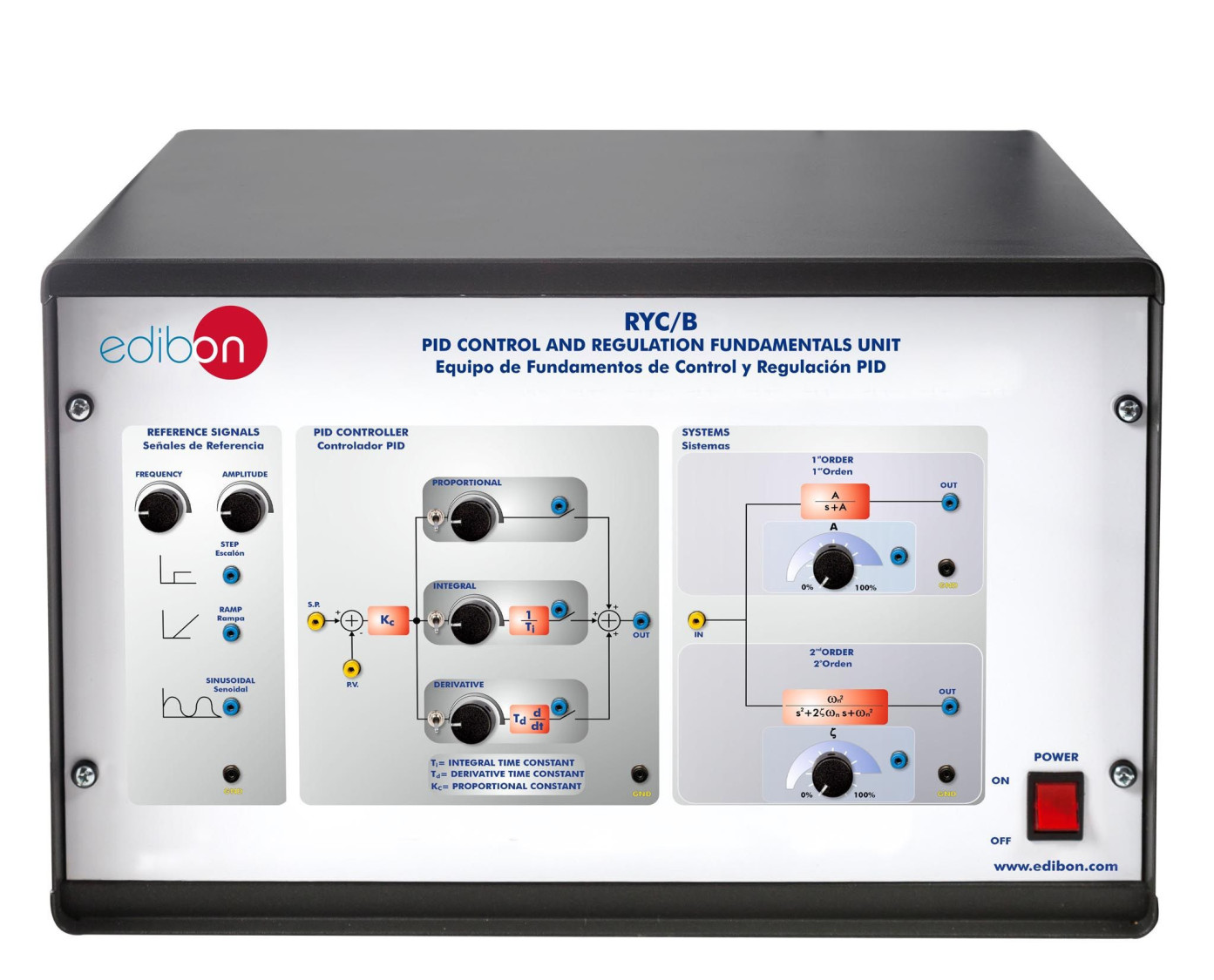

The unit has three modules: reference signals, PID Controller, first order system and second order system module.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Response of a first order system in time domain. (Step-response).
  2. Response of a first order system in time domain. ((Ramp response).
  3. Response of a first order system in time domain. (Sinusoidalresponse).
  4. Response of a first order system in frequency domain. (Sinusoidalresponse).
  5. Response of a second order system in time domain. (Stepresponse).
  6. Response of a second order system in time domain. (Rampresponse).
  7. Response of a second order system in time domain. (Sinusoidalresponse).
  8. Response of a second order system in frequency domain. (Sinusoidal-response).
  9. Structure of a PID controller. (Proportional-Integrative-Derivative blocks).
  10. PID control of a first order system in open-loop.
  11. PID control of a second order system in open-loop.
  12. PID control of a first order system in closed- loop. (Mathematical tuning).
  13. PID control of a first order system in closed- loop. (Experimental tuning).
  14. PID control of a first order system in closed- loop. (Ziegler - Nichols tuning).
  15. PID control of a second order system in closed- loop. (Mathematical tuning).
  16. PID control of a second order system in closed- loop. (Experimental tuning).
  17. PID control of a second order system in closed- loop. (Ziegler - Nichols tuning).
