AV-GE Equipamento de Gerador Elétrico Automotivo
SISTEMAS INOVADORES
The Automotive Electric Generation Unit, "AV-GE", provides a practical solution to help to become familiar with the components used intoday’s automobile electrical circuits.
NOTÍCIAS RELACIONADAS
Descrição Geral
The Automotive Electric Generation Unit, "AV-GE", provides a practical solution to help to become familiar with the components used intoday’s automobile electrical circuits.
The components included in "AV-GE" focus on the generation of electrical energy and the charging of the automobile battery.

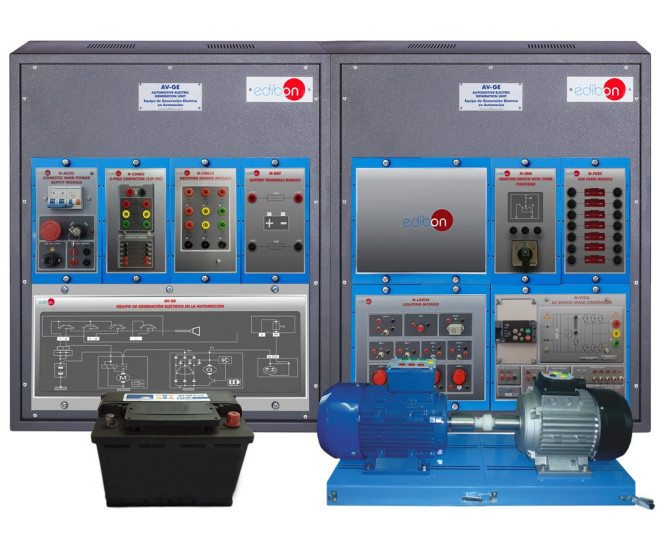

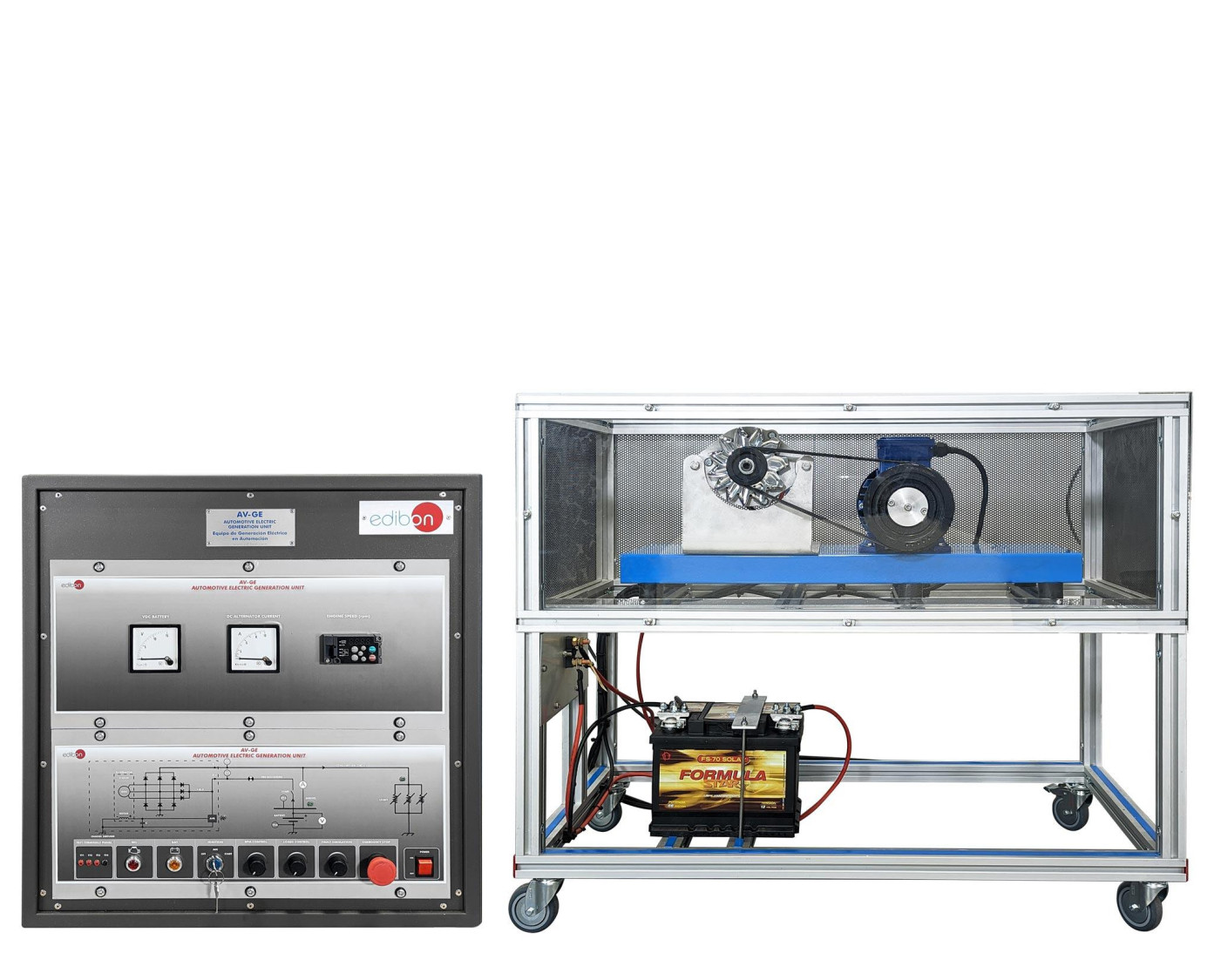

The "AV-GE" unit contains an engine and generator assembly coupled together through a belt and pulley system, such as those of anactual automobile. The generator drive motor is an electric motor that will emulate the function of the internal combustion engine of theautomobile. The electrical circuit of the unit uses a 12V automotive battery as its accumulator component.
Furthermore, the "AV-GE" unit includes an instrument panel with an electric key switch and the warning lights that illuminate when the mosttypical faults of automotive electrical systems occur: electrical circuit malfunction indicator (GEN-L), battery or electrical circuit malfunctionindicator (BATT), and malfunction indicator or engine check light (MIL).
The "AV-GE" unit consists of the following elements:
- Instrument panel with warning lights.
- Electric key switch.
- Fuse and relay block.
- Variable frequency drive for electric motor control.
- Electric motor for petrol engine simulation.
- Alternator.
- 12 VDC battery with accessible terminals (battery points).
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Function of every element in the automotive electrical circuit.
- Operation of the alternator.
- Function of the rectifier.
- Alternator voltage adjustment.
- Ignition switch sequence.
- Features and operation of the battery.
- Operation of the electrical circuit of an automobile on batterydischarge.
- Operation of the electrical circuit of an automobile on batterycharge.
- Behavior of the system when an alternator failure occurs.
- Behavior of the system when a battery failure occurs.
- Behavior of the system when an internal combustion enginefailure occurs.
EQUIPAMENTOS COMPLEMENTARES
2.5.- ELETRÔNICA AUTOMOTIVA
AEL-EHVC

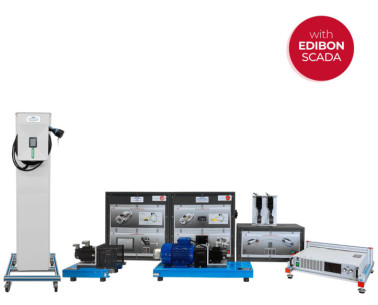

The Computer Controlled Hybrid and Electric Vehicles Application, "AEL-EHVC", is an application designed by EDIBON for the theoretical and practical training of the different topologies of electric/hybrid vehicles most used today.Given the...
2.5.- ELETRÔNICA AUTOMOTIVA
AV-EC
Equipamento de Circuitos Eletrônicos Fundamentais Automotivos

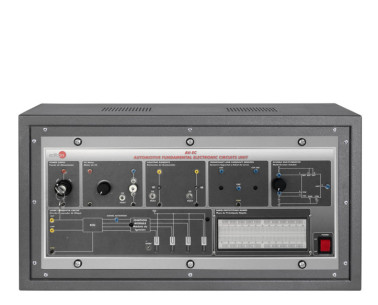

The Automotive Fundamental Electronic Circuits Unit, "AV-EC", provides a practical solution to the introduction of electronics in the automotive field with a group of common circuits used in the automobiles nowadays.The circuits included in the...
