LFF Equipamento de Leito Fixo e Fluidizado

11.1.1.- FLUIDIZAÇÃO
FIXED AND FLUIDIZED BED UNIT - LFF

SISTEMAS INOVADORES

The Fixed and Fluidized Bed Unit, "LFF", allows a full study about everything concerning the flow of a fluid through a particles bed, both fixed and fluidized.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Ler mais

Descrição Geral

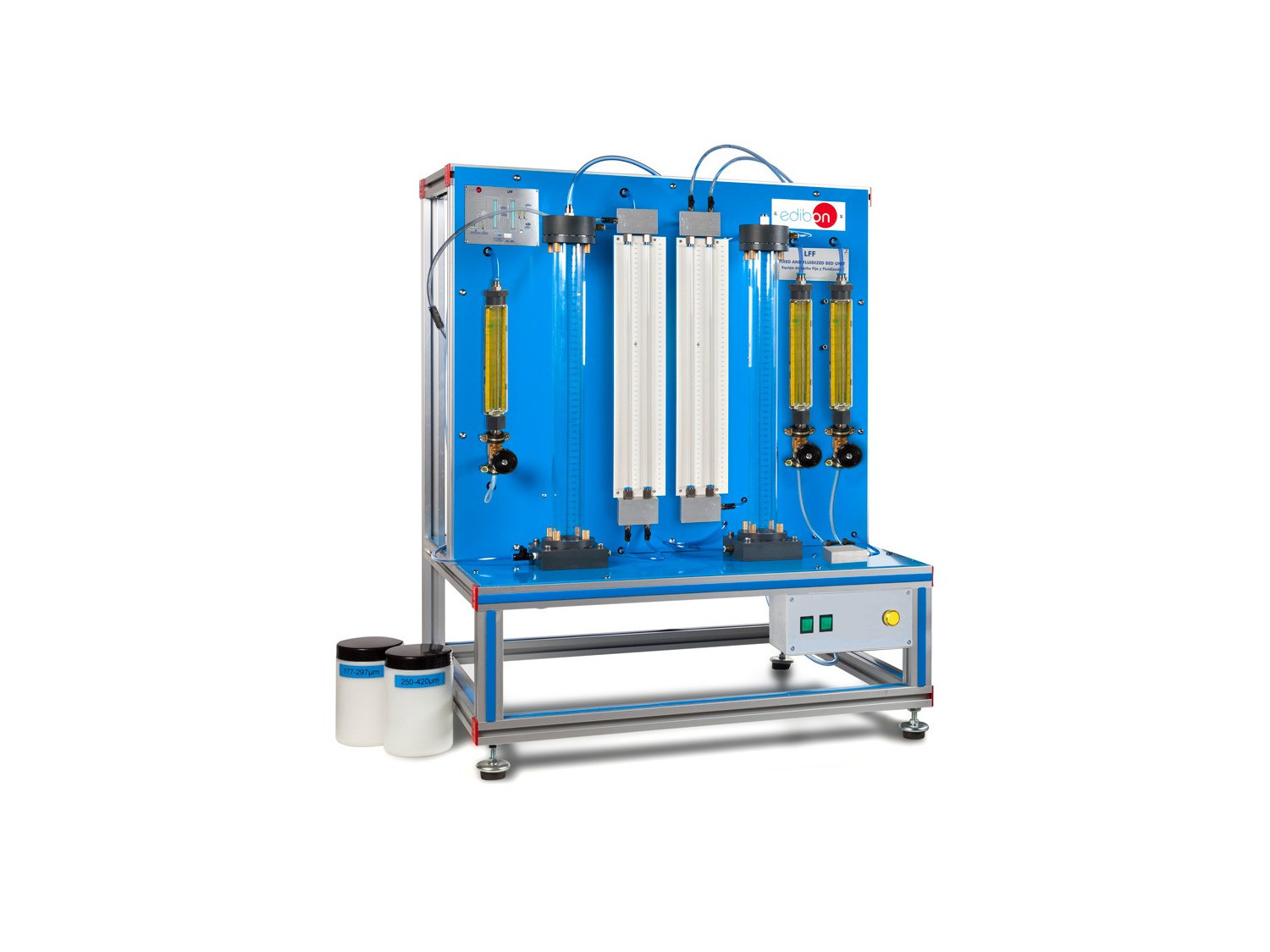

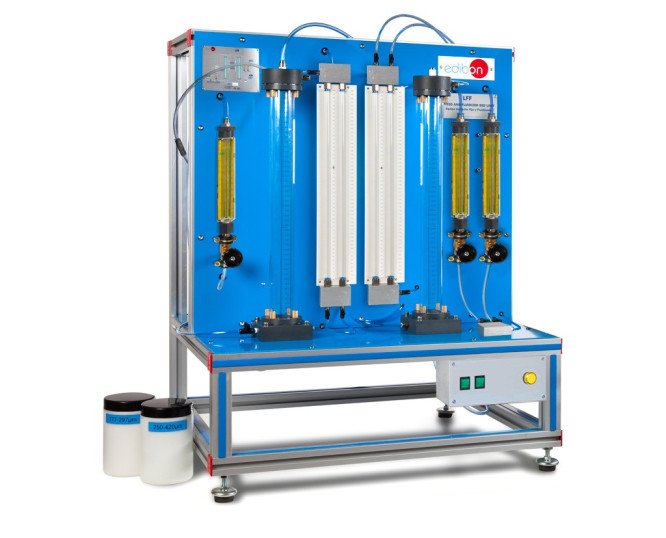

The Fixed and Fluidized Bed Unit, "LFF", allows a full study about everything concerning the flow of a fluid through a particles bed, both fixed and fluidized.

The unit is composed of two transparent removable columns for the simultaneous study of the air and water flow through the bed.

In the Fixed and Fluidized Bed Unit, "LFF", each column is connected to a manometers panel, which indicates at all times the pressure drop caused by the bed.

Water is pumped from a tank, located at the back side of the unit, to the bottom of the first column, passing through a flow control valve and a flow meter.

Air is supplied to the second column through a compressor located at the back of the unit. The air flow is measured by a flow meter.

There are glass beads of two different sizes for the bed.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the basis of fixed bed fluidization.
  2. Comparison of the fluidization process in water and air currents.
  3. Study of the pressure drop through fixed and fluidized beds in function of:
  • The flow speed.
  • The size of the bed particles.
  • Type of fluid: air or water.
  1. Verification of Carman-Kozeny equation.
  2. Study and determination of the minimum fluidization speed.
  3. Study and determination of the fluidization speed and comparison with theoretical calculated values (Ergun equation).
  4. Study of differences between particulate and aggregative fluidization.
  5. Observation of the "bubbling" fluidization phenomenon.
