MGCM Equipamento de Modelo em Corte de uma Transmissão Cônica

7.4.1.- MODELOS SECCIONADOS

UNIT TO STUDY A MITRE GEAR CUTAWAY MODEL - MGCM

SISTEMAS INOVADORES

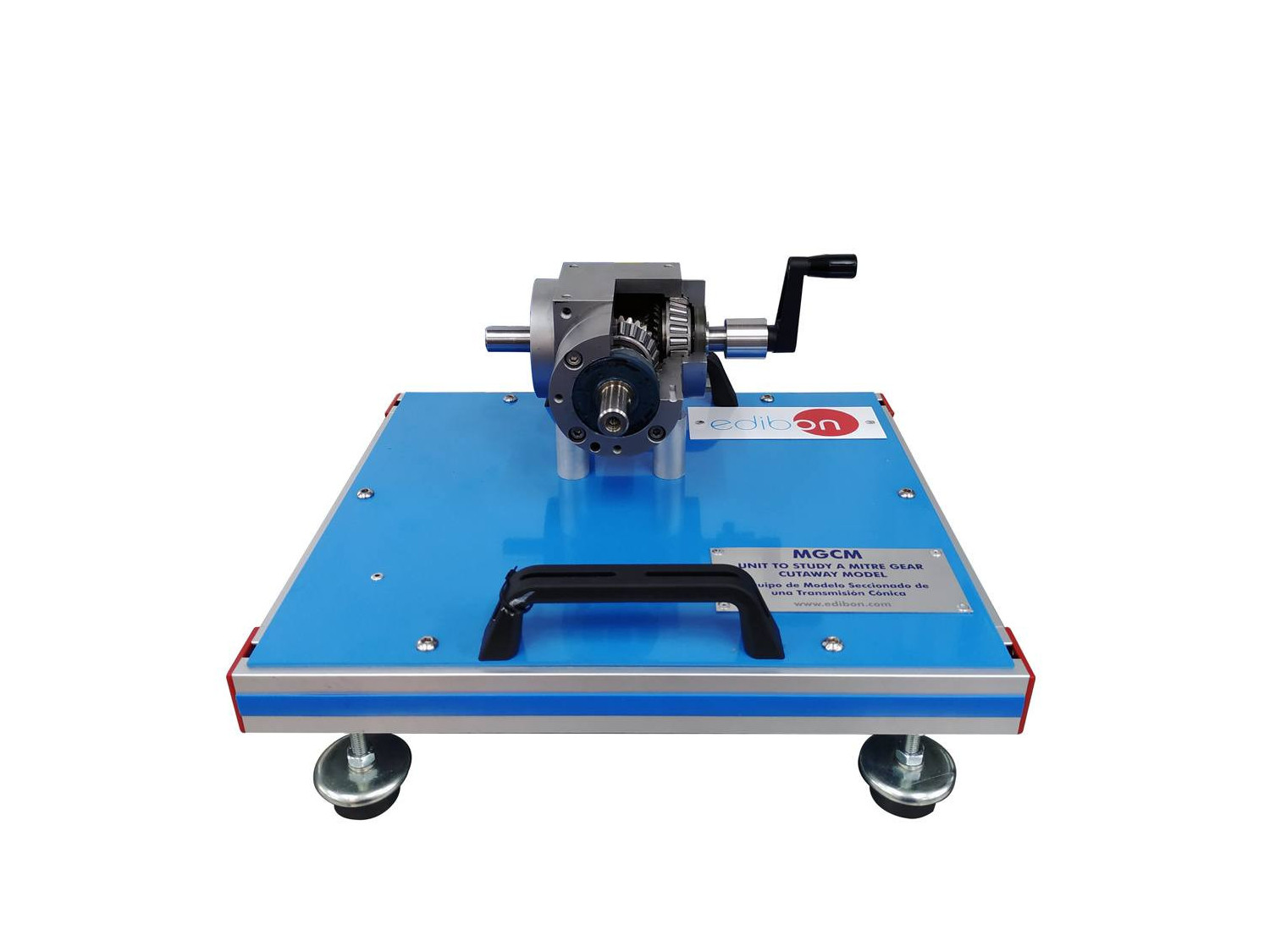

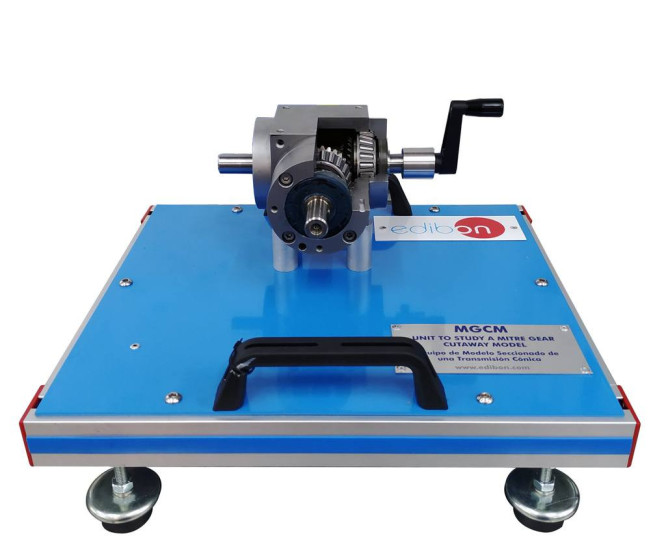

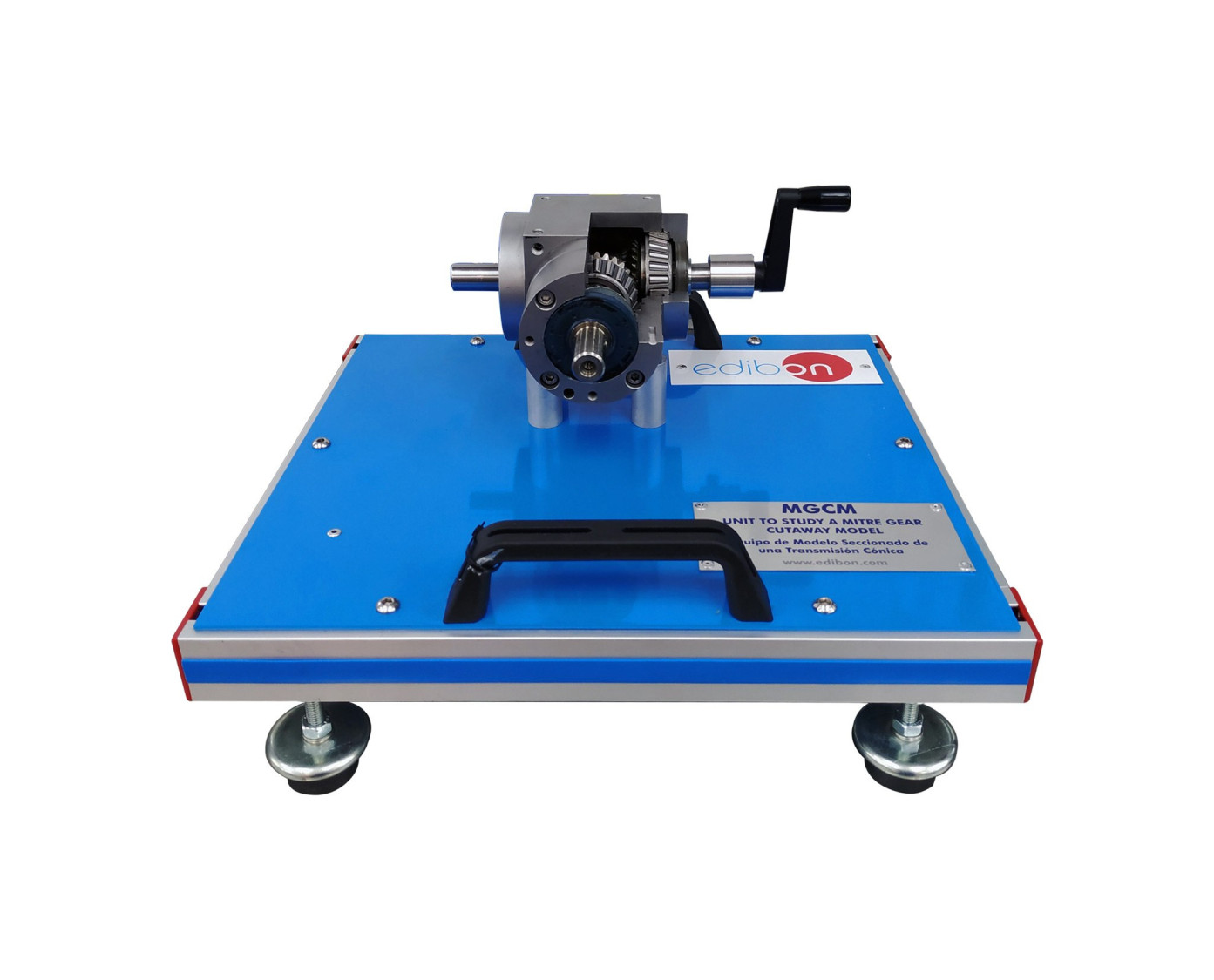

The Unit to Study a Mitre Gear Cutaway Model, designed by EDIBON, allows for the study of this type of transmission, which uses bevel gears to transmit motion between intersecting shafts, typically at a right angle.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

NOTÍCIAS RELACIONADAS

Descrição Geral

The Unit to Study a Mitre Gear Cutaway Model provides a detailed study of this transmission system, composed of two conical cogwheels, designed to transmit motion between two intersecting shafts, usually positioned at a right angle.

Due to their ability to change the direction of rotation and adjust torque transmission efficiently, mitre gear transmissions are widely used in automotive differentials, industrial machinery, and mechanical power transmission systems, where precise and stable motion control is required.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Identify the components of a mitre gear transmission.
Study of the operation of a mitre gear transmission.
Fault analysis and maintenance of a mitre gear transmission.
