EULER BUCKLING MODES UNIT - MEBM

SISTEMAS INOVADORES

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

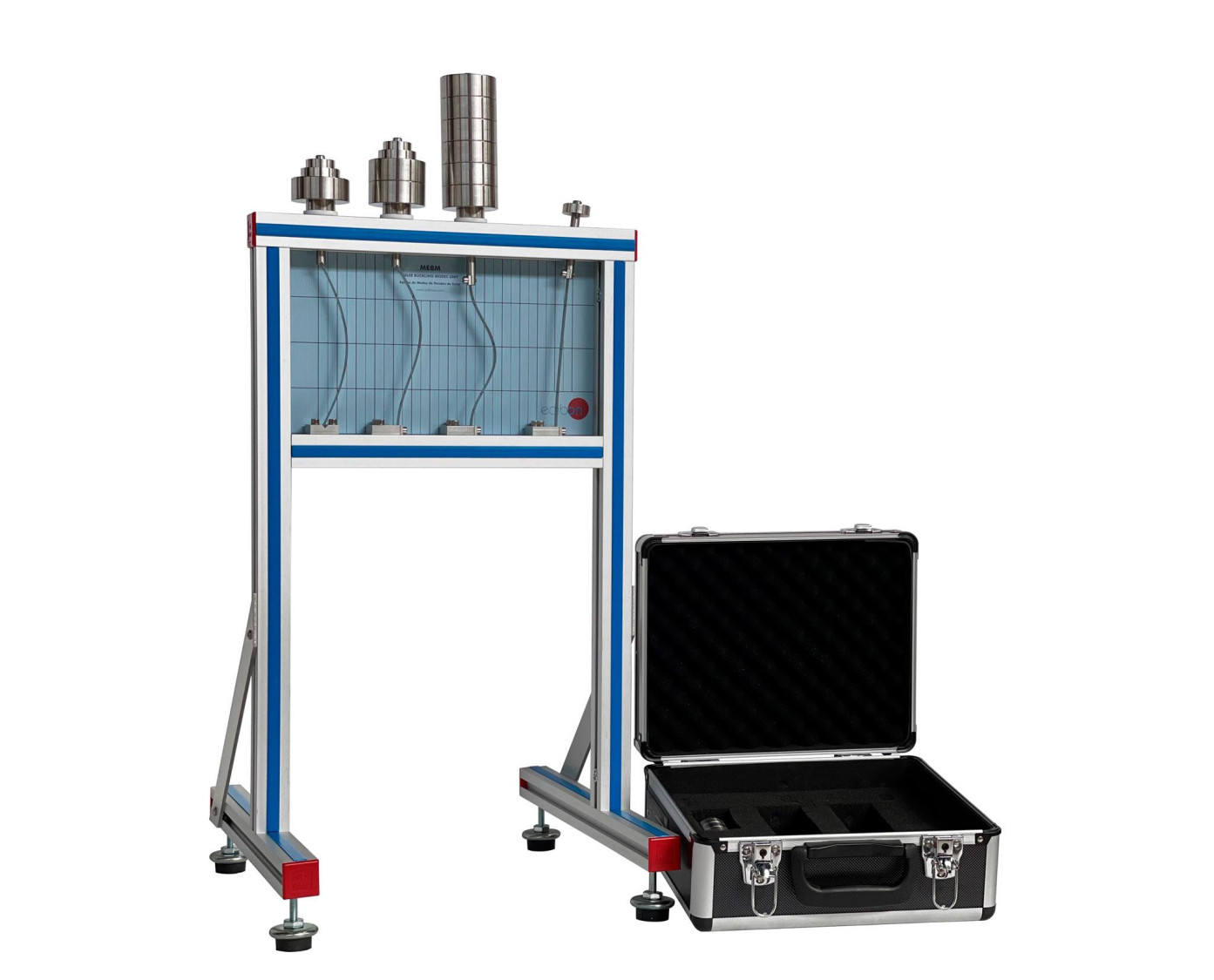

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

The elastic bars can be free or supported by embedment or articulation and different weights can be placed on the upper supports in a staggered manner to apply the compression load until buckling starts and the axes of the bars are laterally deformed determining the critical buckling load.

The different supports of the elastic bars allow the study of:

  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.

The buckling length can be easily determined with the help of a grid located on the rear wall of the frame.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Representation of the Euler buckling cases:
  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.
  1. Study of the relationship between the buckling length and the critical buckling load.
  2. Study of the relationship between the critical buckling load and the various forms of support.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Study of the relationship between the buckling length and the different forms of support.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- ENSAIOS MECÂNICOS
MUP
Equipamento Universal de Flambagem
The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
Ver Equipamento
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- ENSAIOS MECÂNICOS
MFLT
Equipamento de Flambagem em Barras
The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...
Ver Equipamento

Qualidade

Serviço pós-venda

Solicitar informação
