COMPUTER CONTROLLED TWO DOORS DOMESTIC REFRIGERATION UNIT - TRD2PC

SISTEMAS INOVADORES

The objective of the Computer Controlled Two Doors Domestic Refrigeration Unit, "TRD2PC", is to introduce the student into the complex world of refrigeration systems through a common domestic appliance.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

9TV
 Laboratório de Termodinâmica e Termotecnia para o Ensino Técnico e Vocacional
9HE
 Laboratório de Termodinâmica e Termotecnia para o Ensino Superior

NOTÍCIAS RELACIONADAS

Installation at UPV/EHU - San Sebastian
Installation at UPV/EHU - San Sebastian
The EDIBON team has carried out a new installation, this time in our country, at the International UPV/EHU. Now, students and professors of the university have the possibility to continue their studies with the Computer Controlled Continuous Distillation, UDCC, the Computer Controlled Test Bench...
Ler mais

Descrição Geral

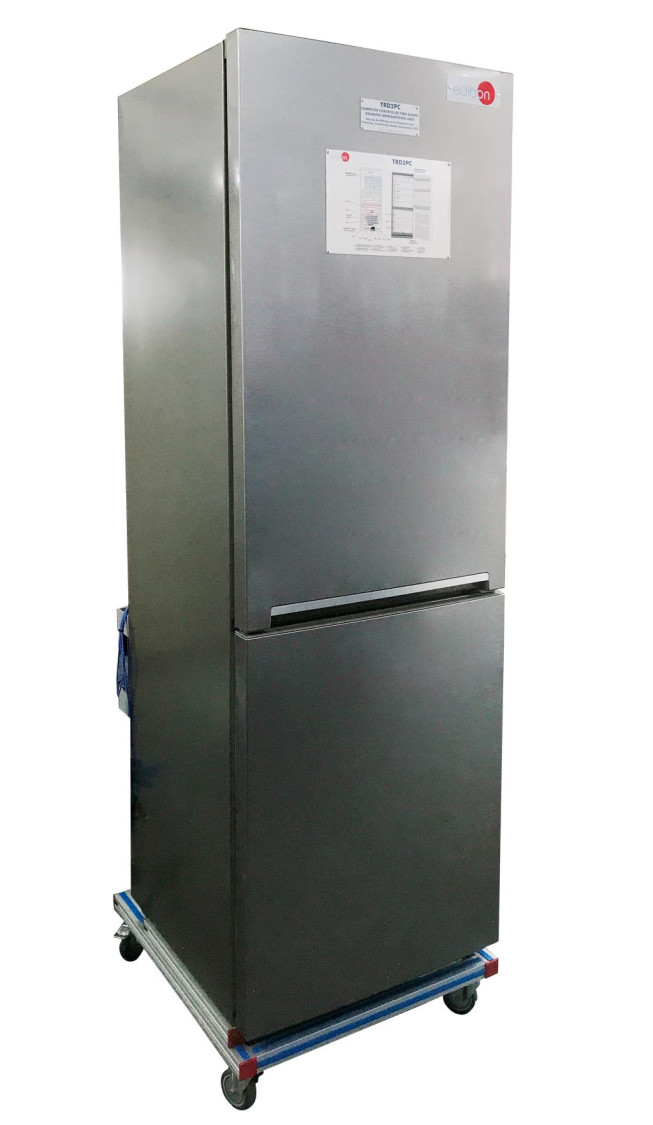

The main element of the Computer Controlled Two Doors Domestic Refrigeration Unit, "TRD2PC", is a combifridge freezer with transparent panels to observe all the elements of a refrigeration cycle: compressor, filter,evaporator, condenser, etc.

Throughout the refrigeration circuit, temperature sensors and pressure sensors are arranged at key points ofthe circuit.

The fridge has an upper door for a refrigerator and a lower door for the freezer. There are mobile temperaturesensors in both compartments.

It has a thermostat to adjust the cooling temperature and a defrost heating element to prevent the evaporatorfrom freezing.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes:The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisitionand Data Management Software Packages, for controlling the process and all parameters involved in theprocess.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the operating principle of a combi fridge freezer.
  2. Familiarization with the main components of a refrigerator.
  3. Study of the food position influence in the refrigerator.
  4. Thermostat setting.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously.To view all results in real time in the classroom by means of aprojector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control.This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a realindustrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic,and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.
  7. Control of the TRD2PC unit process through the control interfacebox without the computer.
  8. Visualization of all the sensors values used in the TRD2PC unitprocess.
  9. Several other exercises can be done and designed by the user.
