MRYE1 Equipamento de Roda e Eixo

7.1.3.- ESTÁTICA E DINÂMICA 14.1.3.- ESTÁTICA E DINÂMICA

SISTEMAS INOVADORES

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV

Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional

7HE

Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

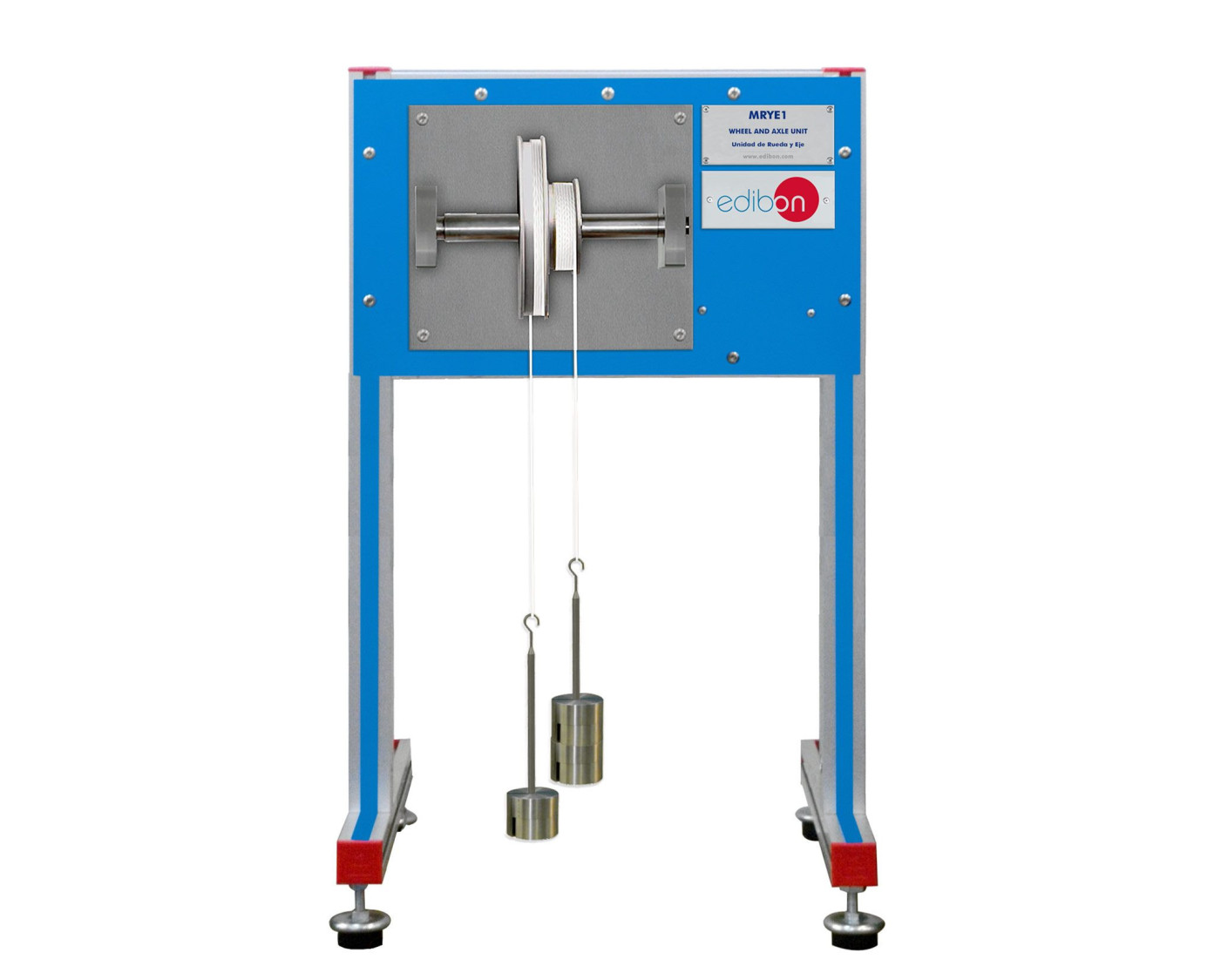

Two pulleys with different diameter have an axle supported on pivots with ball bearings in a base plate. Each pulley (wheel) has a cord wrapped around its periphery. The cords can be wrapped in either direction around each pulley.

A weights holder is added to each cord, allowing the loading of the pulleys using the set of weights provided. These weights can be easily changed, thus allowing to quickly vary the peripheral force on the pulleys.

Using the holders and weights the velocity ratio can be experimentally determined and compared with the calculated values. Students can also determine the variation of effort with load and the variation of efficiency with load.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Study of equilibrium of moments.
Determination of velocity ratio and comparison with calculated value.
Determination of variation of effort with load.
Determination of variation of efficiency with load.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

WHEEL AND DIFFERENTIAL AXLE UNIT - MRYE2

MRYE2

Available

7.1.3.- ESTÁTICA E DINÂMICA

MRYE2

Equipamento de Roda e Eixo Diferencial

The Wheel and Differential Axle Unit, "MRYE2", is a unit that allows for investigating the mechanics of a wheel and differential axle mechanism and demonstrating the force reduction on a differential pulley block.A wheel, consisting of a pulley...

EQUIPAMENTOS COMPLEMENTARES

UNIT FOR STUDYING EQUILIBRIUM OF MOMENTS ON A TWO ARM LEVER - MEMB2

MEMB2

Available

7.1.3.- ESTÁTICA E DINÂMICA

MEMB2

Equipamento de Estudo de Equilíbrio de Momentos em uma Alavanca de Dois Braços

The Unit for studying Equilibrium of Moments on a Two Arm Lever,"MEMB2", allows to study the fundamentals of the equilibrium of moments and the application of the law of levers on a two-arm lever.A pivoted beam in the extreme of a vertical support...

COMPUTER CONTROLLED BALANCE OF RECIPROCATING MASSES UNIT - MBMRC

MBMRC

Available

7.1.3.- ESTÁTICA E DINÂMICA

MBMRC

Equipamento de Balanceamento de Massas Recíprocas, Controlado por Computador (PC)

The Computer Controlled Balance of Reciprocating Masses Unit, "MBMRC", is a bench-mounting unit that allows to investigate and examine the free masses and moments of a reciprocating engine with a single cylinder, with two cylinders or with four...

MEAL

Available

7.1.3.- ESTÁTICA E DINÂMICA

MEAL

Equipamento de Estudo e Análise de Cames

The Cam Analysis Unit "MEAL" allows to observe the effect of the profile of a cam, the study of the displacement, velocity and acceleration profiles of the cam and the identification of the factors that can modify the dynamics of the cam. This...

CORIOLIS FORCE DEMONSTRATION UNIT - MDFC

MDFC

Available

7.1.3.- ESTÁTICA E DINÂMICA

MDFC

Equipamento para Demonstração da Força de Coriolis

The Coriolis Force Demonstration Unit, "MDFC", is used to observe the deflection of a jet of water generated by a pump attached to a rotating arm that rotates to different speeds in a horizontal plane. An electronically controlled motor rotates...

MFCE

Available

7.1.3.- ESTÁTICA E DINÂMICA

MFCE

Equipamento para Estudo de Força Centrífuga

The Centrifugal Force Unit, "MFCE", is used to demonstrate the relationship between centrifugal force, rotational speed, mass of a rotating body and distance from the axis. The unit consists of a vertical axis of rotation and a rotating arm....

Available

7.1.3.- ESTÁTICA E DINÂMICA

MGI

Giroscópio

The Gyroscope, "MGI", allows the experimental demonstration of the different rotation modes of a gyroscope and the moments generated by the gyroscopic effect. The rotor of the electric motor (rotating motor) shares a horizontally supported shaft...

Available

7.1.3.- ESTÁTICA E DINÂMICA

CGU

Equipamento de Reguladores Centrífugos

The Centrifugal Governor Unit, "CGU", has been designed to study the operating mode of different centrifugal governors, including three interchangeable governors: Porter governor, Hartnell governor and Proell governor.Interchangeable governors...

Available

7.1.3.- ESTÁTICA E DINÂMICA

MED

Equipamento de Equilíbrio Dinâmico/Estático

The Static and Dynamic Balancing Unit, "MED", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is...

Available

7.1.3.- ESTÁTICA E DINÂMICA

MES

Equipamento de Equilíbrio Simples

The Simple Balancing Unit, "MES", developed by EDIBON is a unit to study and analyze the oscillations and vibrations and how to eliminate or diminish them.Basically, the unit is formed by a shaft mounted on bearings. The shaft is coupled by pulley...

Available

7.1.3.- ESTÁTICA E DINÂMICA

MIF

Equipamento de Volante de Inércia

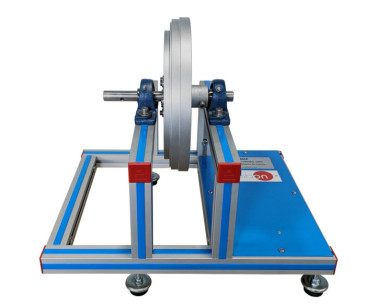

The Inertia Flywheel Unit, "MIF", consists of an inertia disc with a rotation shaft at the center of the disc.The shaft is supported at two points by bearings.A cord is attached by one of the ends to the shaft and wound around it. At the other end...

MRYE2

Available

7.1.3.- ESTÁTICA E DINÂMICA

MRYE2

Equipamento de Roda e Eixo Diferencial

MELH

Available

7.1.3.- ESTÁTICA E DINÂMICA

MELH

Equipamento para Estudo da Lei de Hooke

The Unit for studying Hooke's Law, "MELH", designed by EDIBON, demonstrates the application of Hooke's Law and allows the visualization of the deformation of tension springs under load and the performance of oscillation experiments on a spring –...
