TORSION UNIT - MTB

SISTEMAS INOVADORES

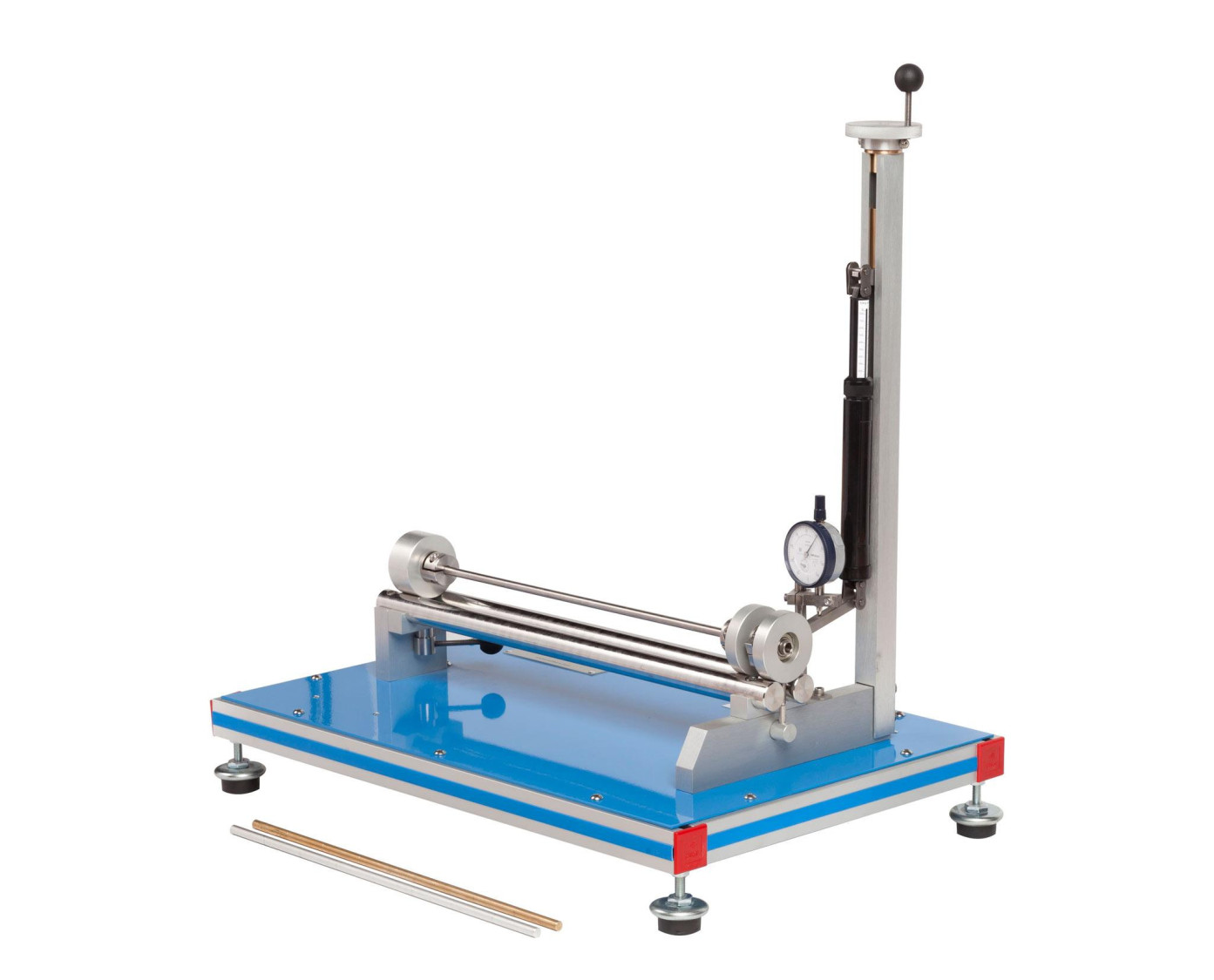

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate: circular rods elastic torsion equation and the rigidity modulus of different materials.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate:

  • Circular rods elastic torsion equation.
  • The rigidity modulus of different materials.

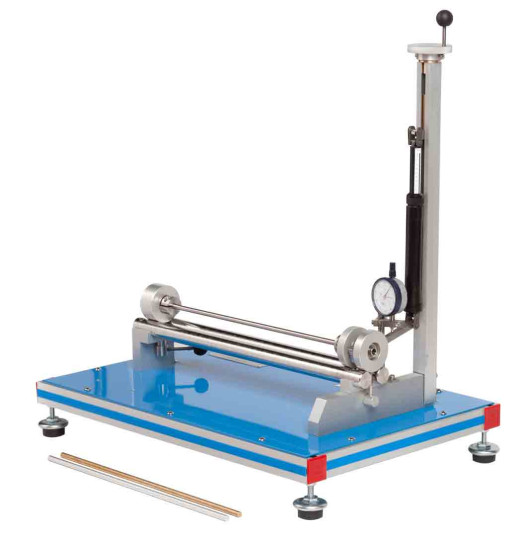

To perform the tests a metallic rod is fastened by clamps and subjected to the testing force. Force is gradually applied on the rod to observe the elastic tension generated. The force moment or torque is applied by a dynamometer with a lever. Deformation generated by the torsional stress is obtained by reading a dial gauge in contact with the arm. The torsional deformation angle is obtained by a simple trigonometric identity, providing the unit with important didactic characteristics.

Steel, brass and aluminum rods are supplied to perform the practical exercises. Additionally, rods made of other materials can be employed.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Verification of the elastic torsion equation of circular rods.
  2. Experimental determination of the relationship between the torsion moment and the shaft angular determination.
  3. Experimental determination of the relationship between the test rod length and the shaft turn angle for a same torsional force.
  4. Experimental determination of the calue of the Modulus of Rigidity for steel, brass and aliminum.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

TORSION AND BEND UNIT - MTP
  • MTP
Available
7.3.2.1.- ENSAIOS MECÂNICOS
MTP
Equipamento de Torção e Flexão
The Torsion and Bend Unit, "MTP", designed by EDIBON, is a combined unit for the demonstration of both torsion and bend to be used in the laboratory or as a complement of the theoretical study about torsion and bend. Its size and weight facilitate...
Ver Equipamento
TORSION TEST UNIT (30NM) - MTT
  • MTT
Available
7.3.2.1.- ENSAIOS MECÂNICOS
MTT
Equipamento de Teste de Torção (30Nm)

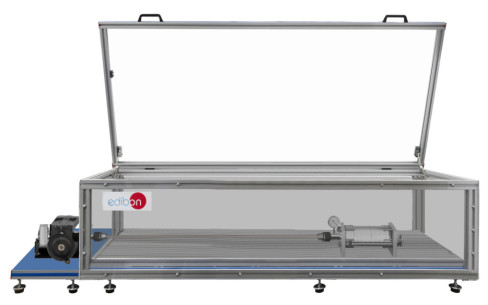

To perform the tests, the test specimen is clamped and twisted by means of a flywheel and a worm gear until it breaks. The force is gradually applied to the specimen to observe the elastic strain produced. The specimen will deform and manifest...
