VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

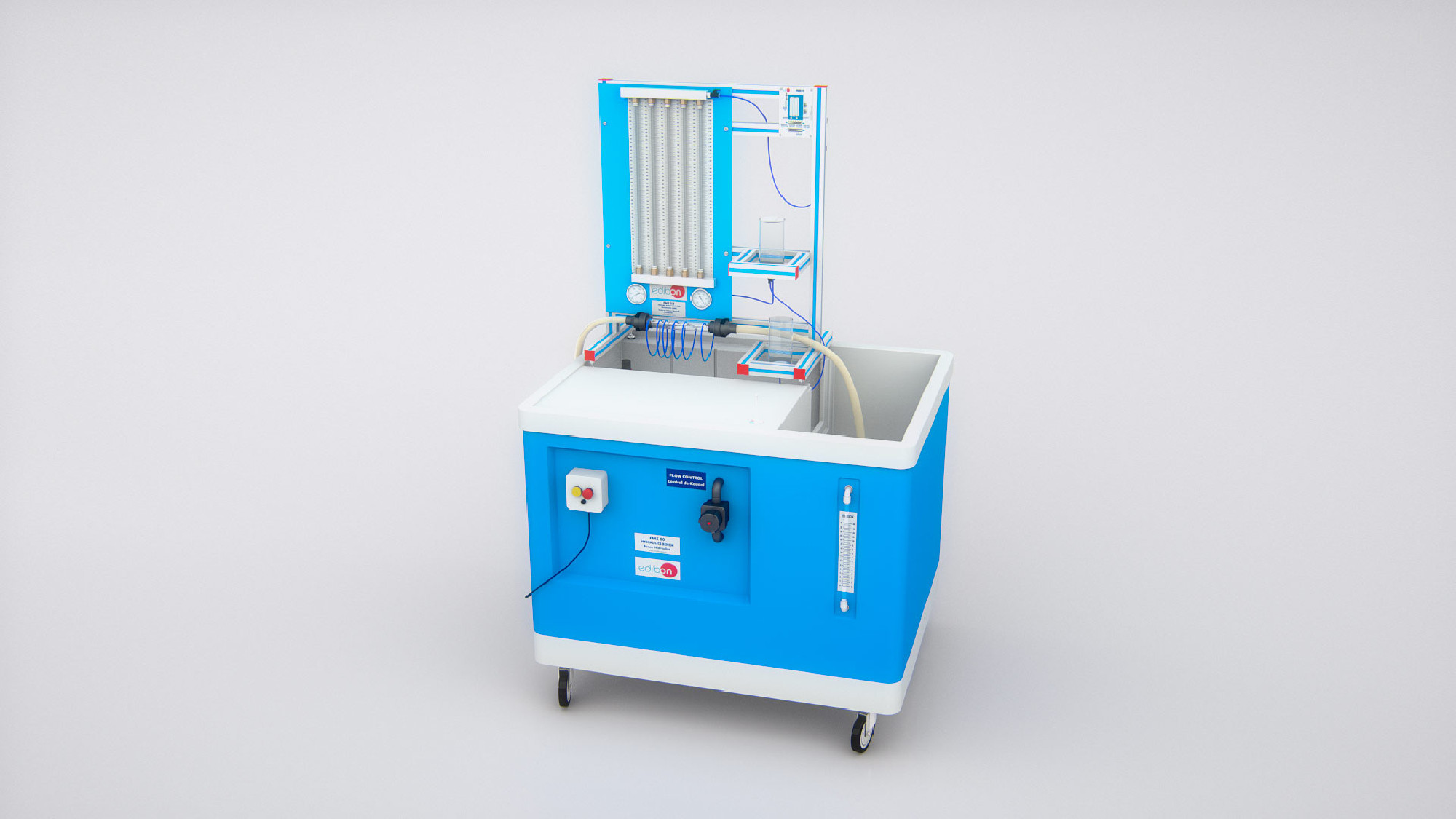

Complete FME22 Unit

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22 Unit with service unit FME00

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

SISTEMAS INOVADORES

This module is designed for demonstrating some practical possibilities with the Venturi’s tube.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Laboratory practices at Universidad Europea Miguel de Cervantes - UEMC featuring EDIBON equipment.
Laboratory practices at Universidad Europea Miguel de Cervantes - UEMC featuring EDIBON equipment.
At EDIBON, we are immensely proud to have supplied the equipment used by Industrial Organization Engineering students (hybrid mode) during their laboratory practices at Universidad Europea Miguel de Cervantes - UEMC in Valladolid.
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.

This unit is designed for demonstrating some practical possibilities with the Venturi’s tube. This Venturi is made of transparent methacrylate for a better visualization.

It consist of a circular transverse section Venturi tube with six taps (Divergent/Convergent). Being transparent, it gives a better visualization of the cavitation phenomenon.

It includes a manometer and a vacuum gauge, as well as five manometric tubes.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. How to fill the manometric tubes.
  2. Flow calculation.
  3. Determination of the exact section in Venturi’s tube. Bernoulli’s theorem study.
  4. Cavitation study.
  5. Pressure reduction in a tank.
  6. Aspiration pump.
  7. Aspiration pump for mixing two liquids.
  8. Using for air and water mixing.

ELEMENTOS NECESSÁRIOS
