MVRE Equipamento de Vibração em Mola Espiral
SISTEMAS INOVADORES
The Vibration of Coil Spring Unit, "MVRE", unit has been designed to study and understand a coil torsion spring, a mass-spring system and the fundamental properties of its characteristic periodic motion.
Expansões
NOTÍCIAS RELACIONADAS
Descrição Geral

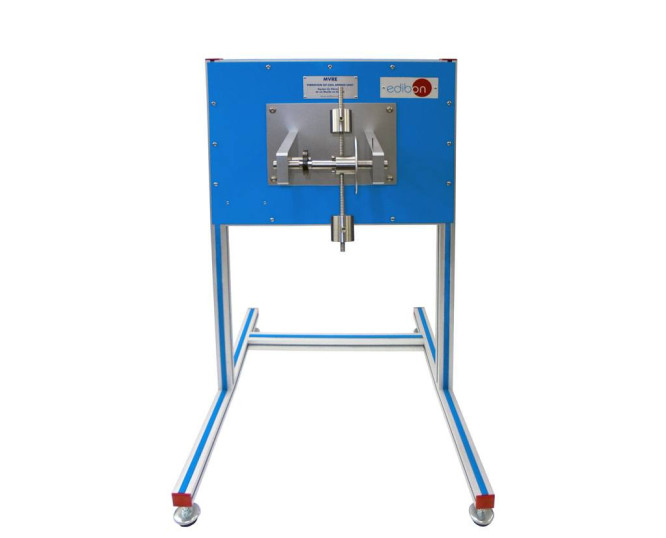

The Vibration of Coil Spring Unit, "MVRE", unit has been designed to study and understand a coil torsion spring, a mass-spring system and the fundamental properties of its characteristic periodic motion.
In this sense, the unit consists of a rigid plate equipped with anchorage points where a rotating horizontal shaft is supported. A graduated disc to read the rotated angle, a lever joined to the shaft, where masses are located at different distance, and a coil torsion spring, attached to the shaft by one end and to the rigid plate by the other end, are arranged on the shaft.
Displacing the system a specific angle, the spring will exert a recovery force (torque) proportional to the stiffness of the spring due to the elastic deformation experienced. This parameter is one of the characteristic aspects of the spring and is known as spring constant "k".
On the other hand, locating the weights symmetrically in the arms of the lever a mass-spring system is generated. When that system is displaced a certain angle from its equilibrium position, it will describe a periodic motion characterized by its vibration frequency. Thus, it is possible to analyze the influence of the masses and their positions on the normal frequency of the resulting simple harmonic motion.
Besides, the unit can be directly fixed to the wall if desired.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Determination of the spring constant "k" of a coil torsion spring by Hooke’s law (static method).
- Experimental determination of the natural frequency of vibration of a spring-mass system.
- Determination of the spring constant "k" of a coil torsion spring by the dynamic method.
- Influence of the mass distribution on the natural frequency of vibration of a spring-mass system.
EQUIPAMENTOS COMPLEMENTARES
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MEVTC
The Computer Controlled Torsional Vibration Unit, "MEVTC" is designed to study torsion suffered by some shafts with rotation motion, apart from studying the torsional rigidity and the behavior of a torsional vibration system with one, two or three...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MVL
Equipamento de Vibrações Livres
The Free Vibration Unit, "MVL", has been developed to cover a range of demonstrations and experiments which provide the user with an understanding of the free vibrations of a simple spring-mass-damper system. Simple adjustments can be made to the...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MVLF
Equipamento de Vibrações Livres e Forçadas
The Free and Forced Vibration Unit, "MVLF", has been developed to cover a range of demonstrations and experiments which provide the user with an understanding of the free and forced vibrations of a simple spring-mass-damper system. Simple...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MEVLB
Equipamento de Estudo de Vibração Livre em Barras
The Unit for Studying Free Vibration of a Bar,"MEVLB", allows to study the features of the free vibrations of a bending bar.The natural frequency of the bending bar can be modified adding additional loads at the free end of a bar or varying the...
7.1.3.- ESTÁTICA E DINÂMICA
MSHU
Equipamento de Movimento Harmônico Simples
This Simple Harmonic Motion Unit, "MSHU", allows many experiments using several pendulums and devices, such as different types of pendulums (simple, bifilar, trifilar and Kater’s pendulum) and springs.Consists of a panel with a support that allows...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MOT
Equipamento de Oscilação Torcional
The Torsional Oscillations Unit, "MOT", is intended for easy experiments. It enables to illustrate and investigate the torsional oscillation in single rotor, multi-rotor and geared systems. The unit basically consists of a rigid frame that have...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES
MVCC
Equipamento para Estudo da Velocidade Crítica, Controlado por Computador (PC)
Some phenomena that appear in mechanical systems, such as vibration, self-centering and resonance in rotary shafts, can be clearly demonstrated with the Computer Controlled Critical Speed Investigation Unit, "MVCC". The operation of the "MVCC"...
7.1.4.- VIBRAÇÕES E OSCILAÇÕES

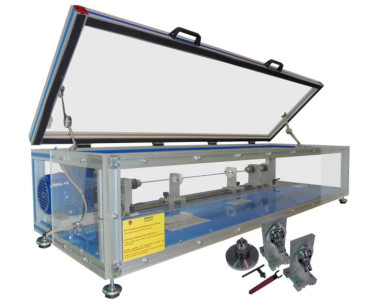

MEER
