MSH Equipamento Hidráulico Simples

7.2.1.- FREIOS E EMBREAGENS
SIMPLE HYDRAULIC UNIT - MSH

SISTEMAS INOVADORES

The Simple Hydraulic Unit, "MSH", has been designed to demonstrate how a fluid can be used to transmit a force and to study the relationships between the force on the pistons, the cross-sectional area of the pistons and the fluid pressure in the unit.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
We have supplied some of our units to the IES Pedro Mercedes (Cuenca), IES Aguas Vivas (Guadalajara) and IES Juanelo Turriano (Toledo).
Ler mais

Descrição Geral

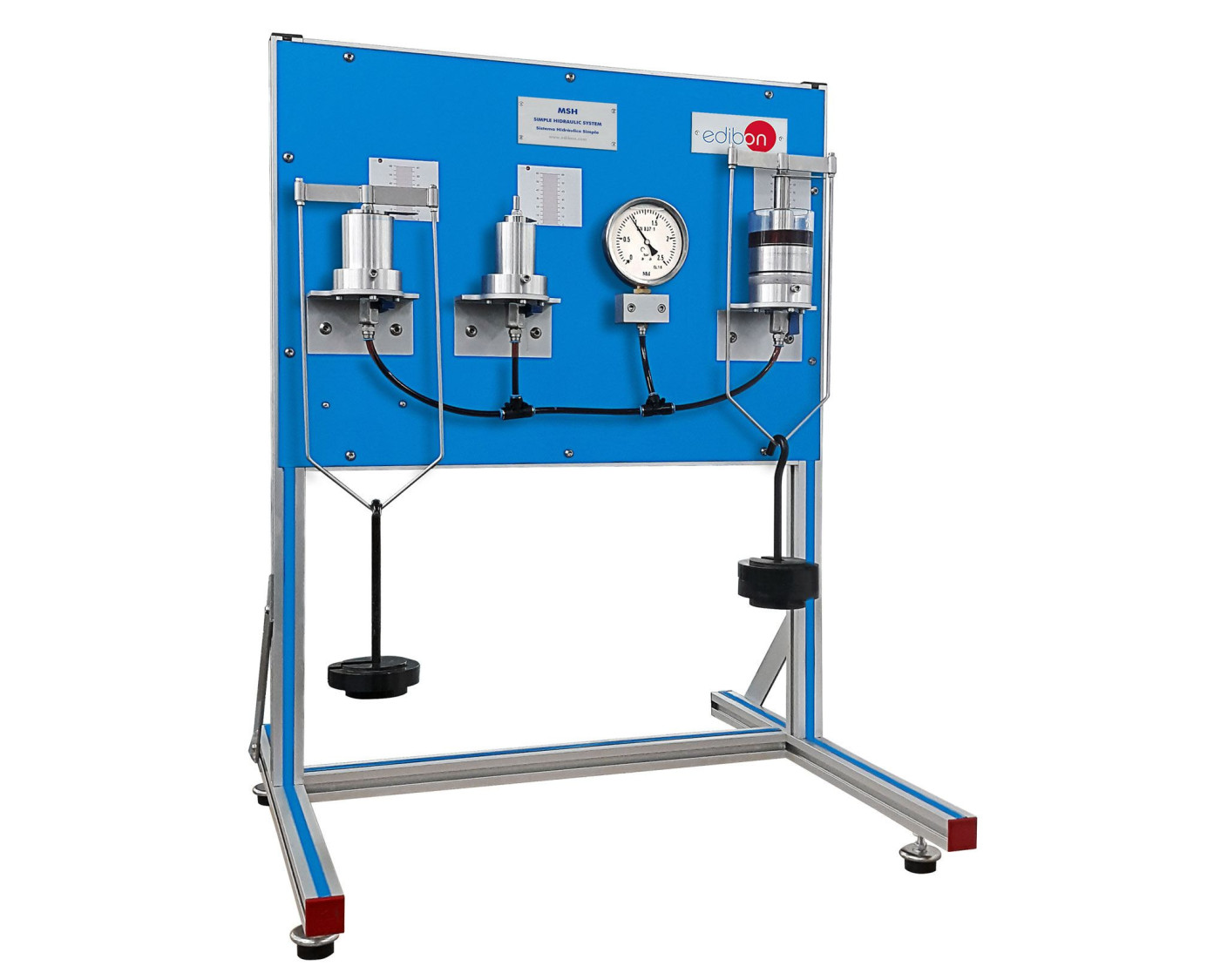

The Simple Hydraulic Unit, "MSH", has been designed for studies related to mechanical engineering and motor vehicles. It is used to demonstrate how a liquid can be used to transmit a force.

The unit can also be used to conduct experiments to study the relationships between the force on the pistons, the cross-sectional area of the pistons and the fluid pressure in the unit.

The unit consists of three cylinders and pistons whose cross sections are in the ratio 1, 2 and 6. These three cylinders and the pressure gauge are connected in parallel. With the ON/OFF keys included in the circuit, any of the cylinder units can be isolated from the unit.

Load hangers are supplied.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of a hydraulic unit.
  2. Analysis of the force transmitted by a hydraulic unit.
  3. Study of the operation of a hydraulic piston.
  4. Use of a fluid to transmit a force.
  5. Study of the relations between:
  • The force on the pistons.
  • The transversal area of the pistons.
  • The pressure of the fluid in the unit.

Qualidade

Serviço pós-venda

Solicitar informação
