SRI Equipamento para Estudo do Momento de Inércia Rotacional

7.1.3.- ESTÁTICA E DINÂMICA 14.1.3.- ESTÁTICA E DINÂMICA
UNIT TO STUDY ROTATIONAL INERTIA - SRI

SISTEMAS INOVADORES

The Unit to Study Rotational Inertia, "SRI", has been designed to perform tests for the analysis of the moments of inertia of rotating bodies.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

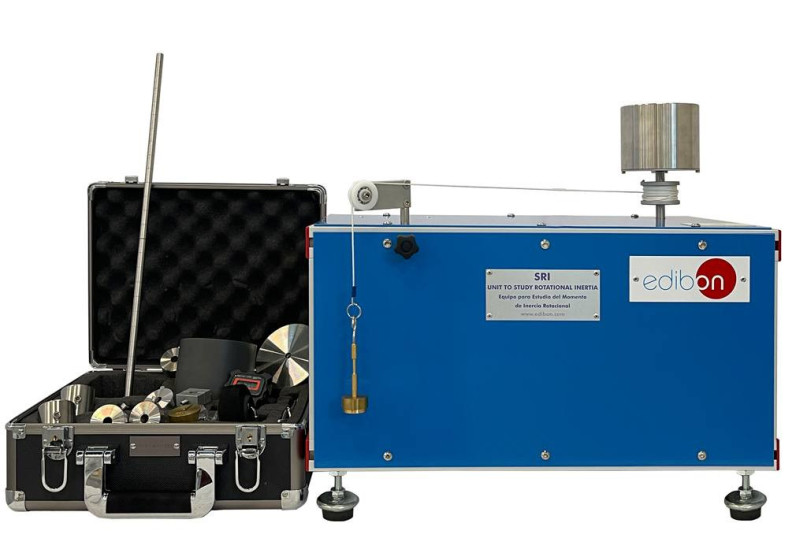

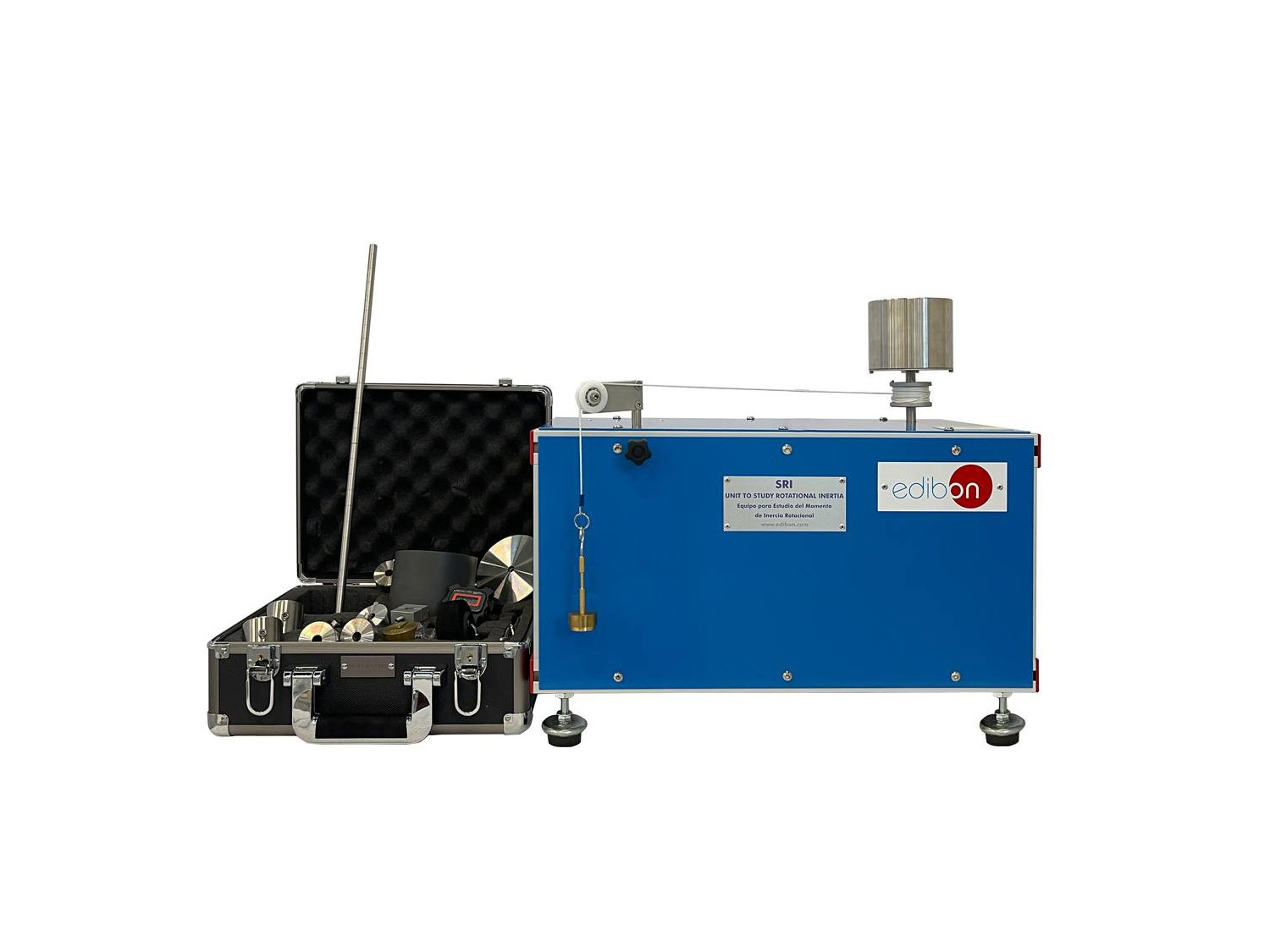

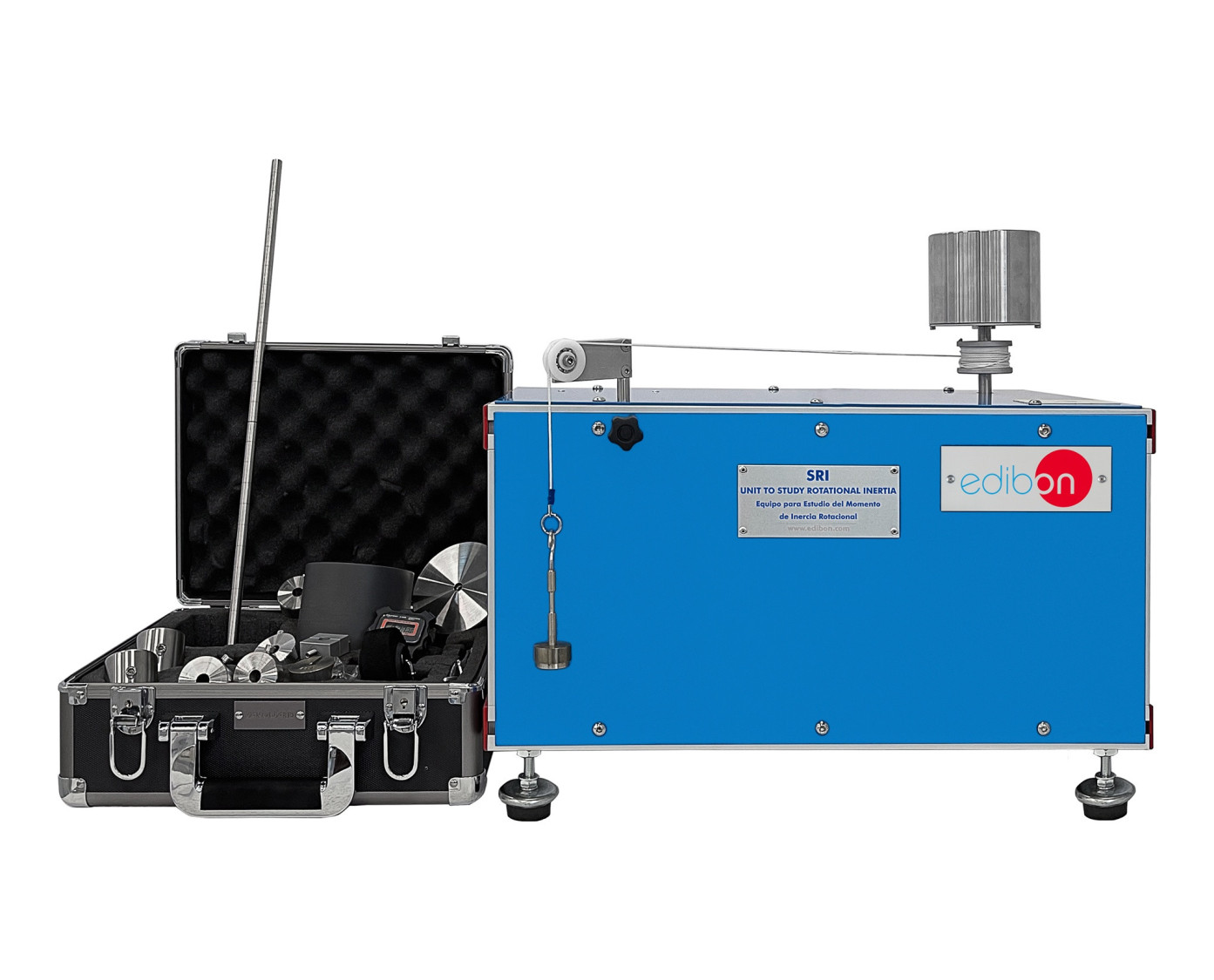

The Unit to Study Rotational Inertia, "SRI", has been designed to carry out tests to analyze the moments of inertia of a solid and a hollow cylinder, both with same mass and diameter. The moment of inertia of another hollow cylinder with different mass but same diameter can also be compared.

Besides, systems with different weight and distribution of weights can be studied with a rotating rod to which different weights can be attached in various positions (at different distances from the center).

The unit consists of two support rods. One rod is the rotation axis with the body under study and from the other rod a uniformly accelerated rotational motion in the rotation axis is generated. The rotation axis is accelerated by a fixed pulley and a cable wound on it, where a weight is hung.

The moment of inertia is determined with the measurements of the time (with a chronometer), the mass under study and the acceleration distance.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Generation of a uniform acceleration rotation movement.
  2. Study and analysis of the moment of inertia of bodies in rotation movement.
  3. Comparison of the moment of inertia of a hollow cylinder and a solid cylinder in rotation.
  4. Comparison of the moment of inertia of two hollow cylinders of same shape but different mass in rotation.
  5. Study of the influence of the rotating mass in the moment of inertia.
  6. Study and analysis of the moment of inertia as a function of the radius.
  7. Comparison of experimental results and theoretical values.
