UNIT FOR THE KINEMATIC STUDY OF GEAR TRAINS - KSGT

SISTEMAS INOVADORES

The Unit for the Kinematic Study of Gear Trains, "KSGT", has been designed to perform the kinematic study of spur gears and planetary gears.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

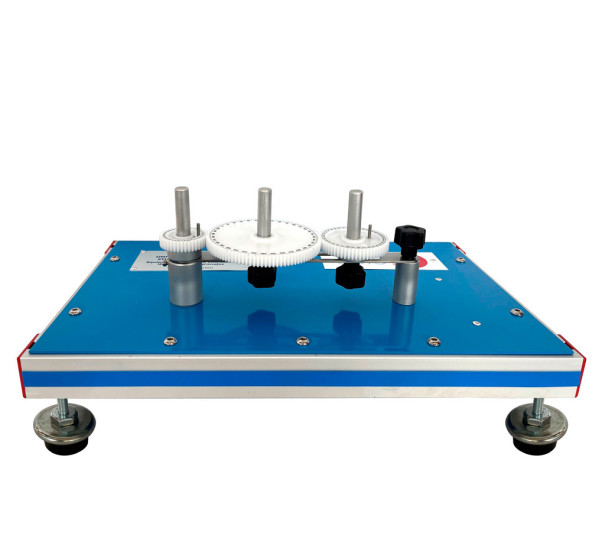

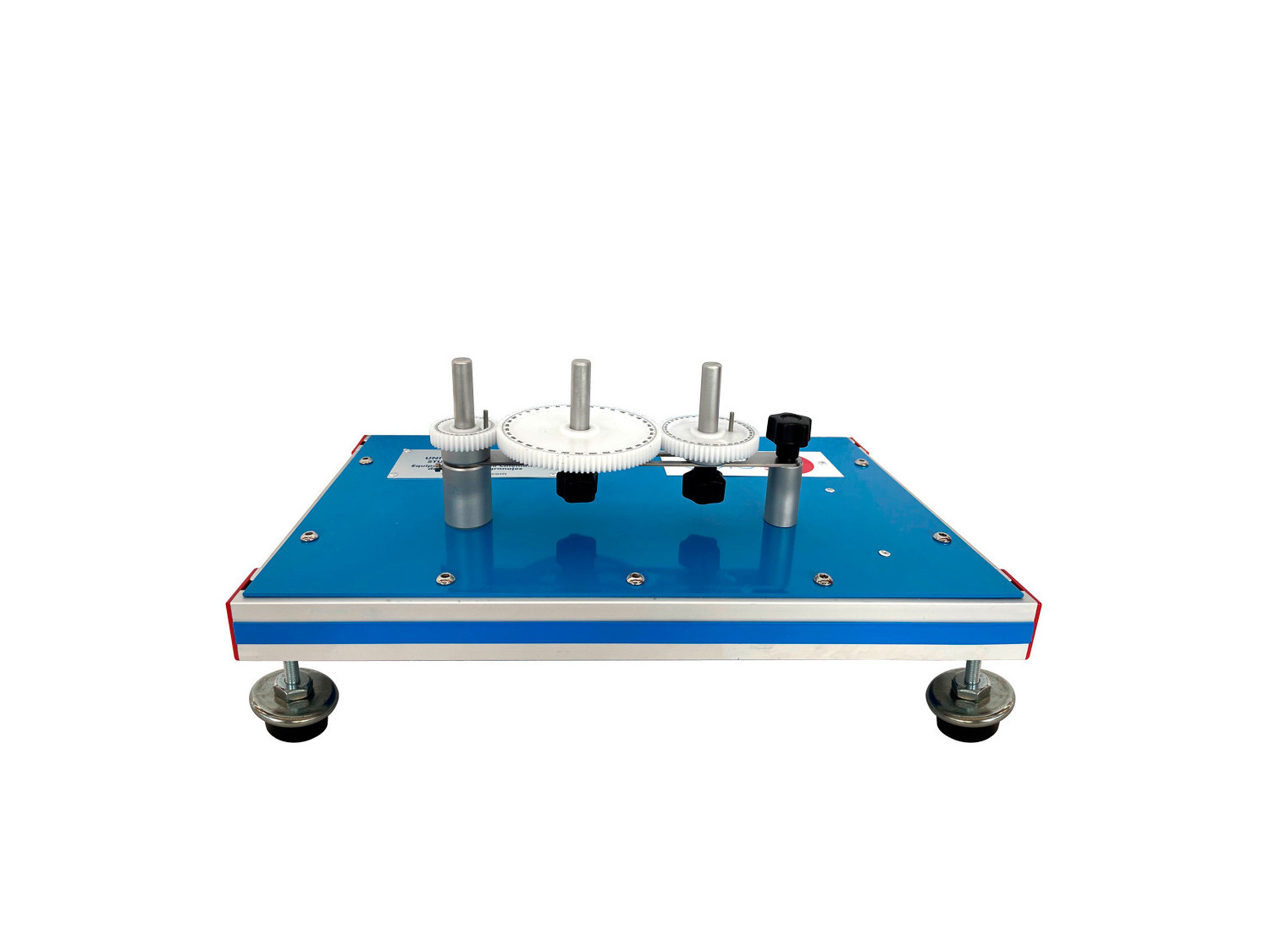

The Unit for the Kinematic Study of Gear Trains, "KSGT", unit includes a pivoting rail with a fixed axle to which two more axles can be fixed in any position in function of the feature to study.

The cogwheels may be assembled on the axles in combination, thus studying different gear ratios.

The spur gears can be studied having the pivoting rail fixed. One or two more axles, and therefore one or two more cogwheels, may be placed on the rail.

The planetary gears may be studied having the pivoting rail loose. The pivoting rail is used to support the planetary cogwheel on which the planetary cogwheels are located. Thus, the motion of the rail acts as input of the gear. The planet gears transmit their motion to the sun gear, which is the output element of the gear train.

The gear ratio may be determined in both cases by counting the complete turns of the cogwheels.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of single-stage spur gears.
  2. Study of multistage spur gears.
  3. Study of planetary gears.
  4. Determine the gear ratio.
