SSM Equipamento para o Estudo de Tensões em uma Membrana

7.1.6.- MECÂNICA DE ESTRUTURAS 14.1.6.- MECÂNICA DE ESTRUTURAS

SISTEMAS INOVADORES

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

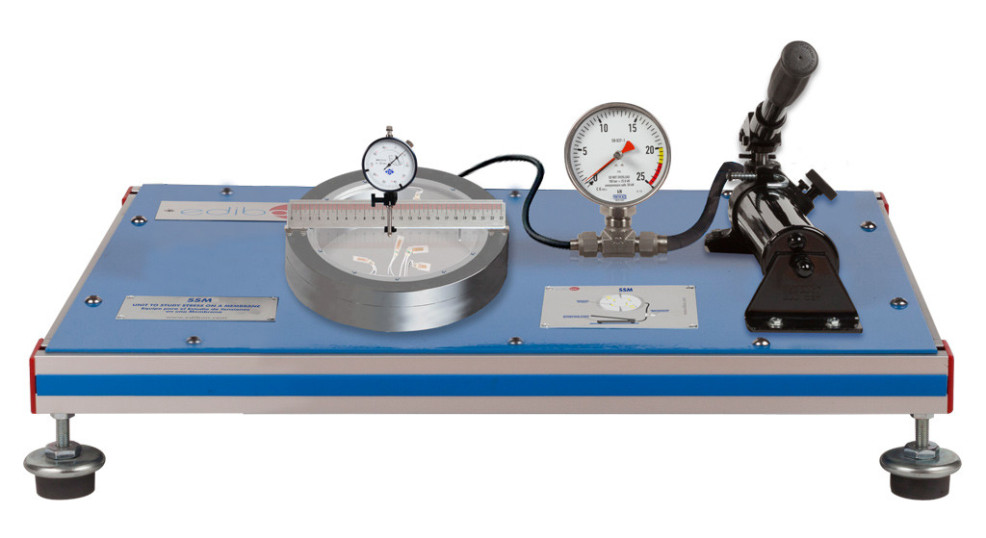

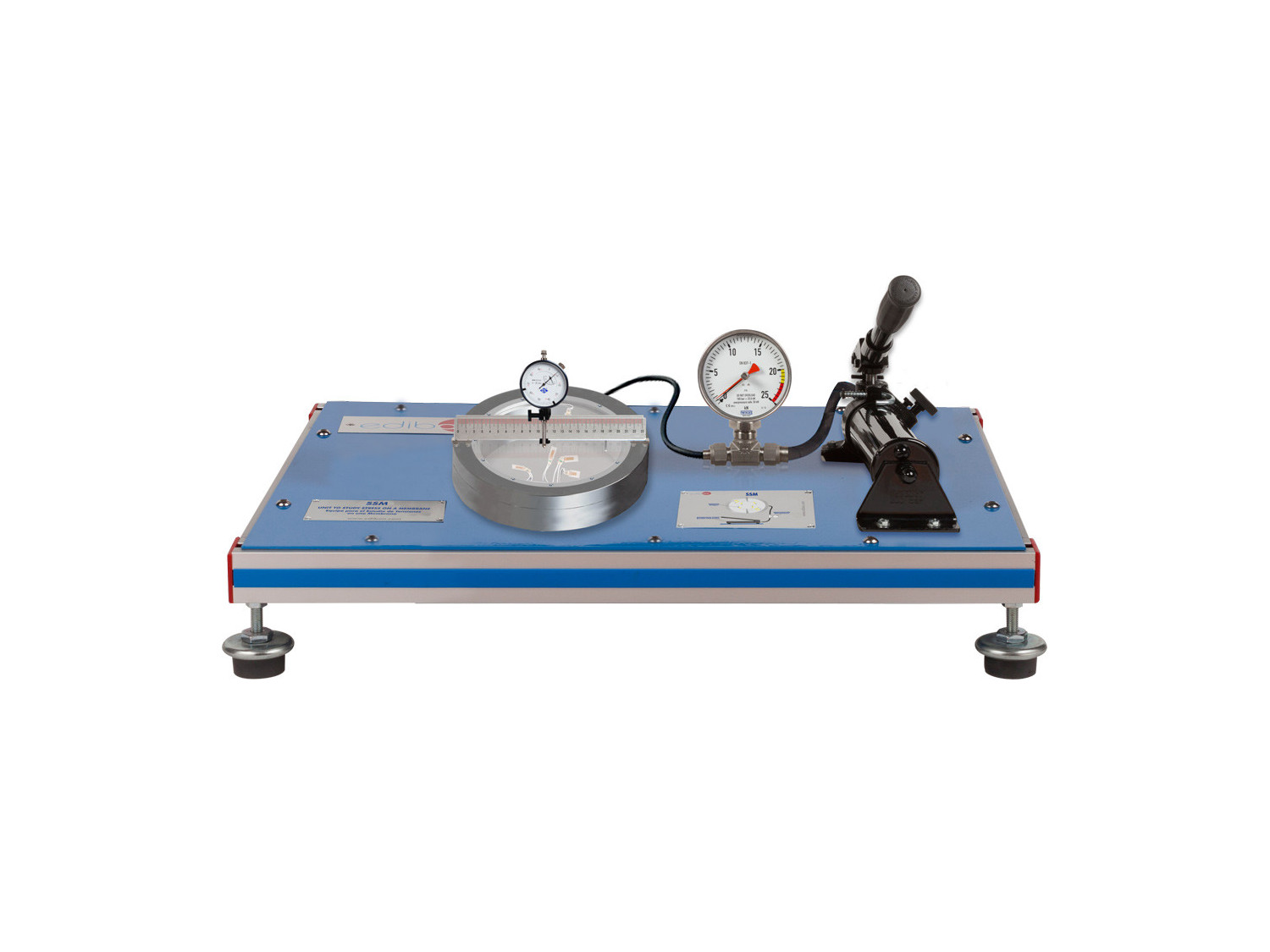

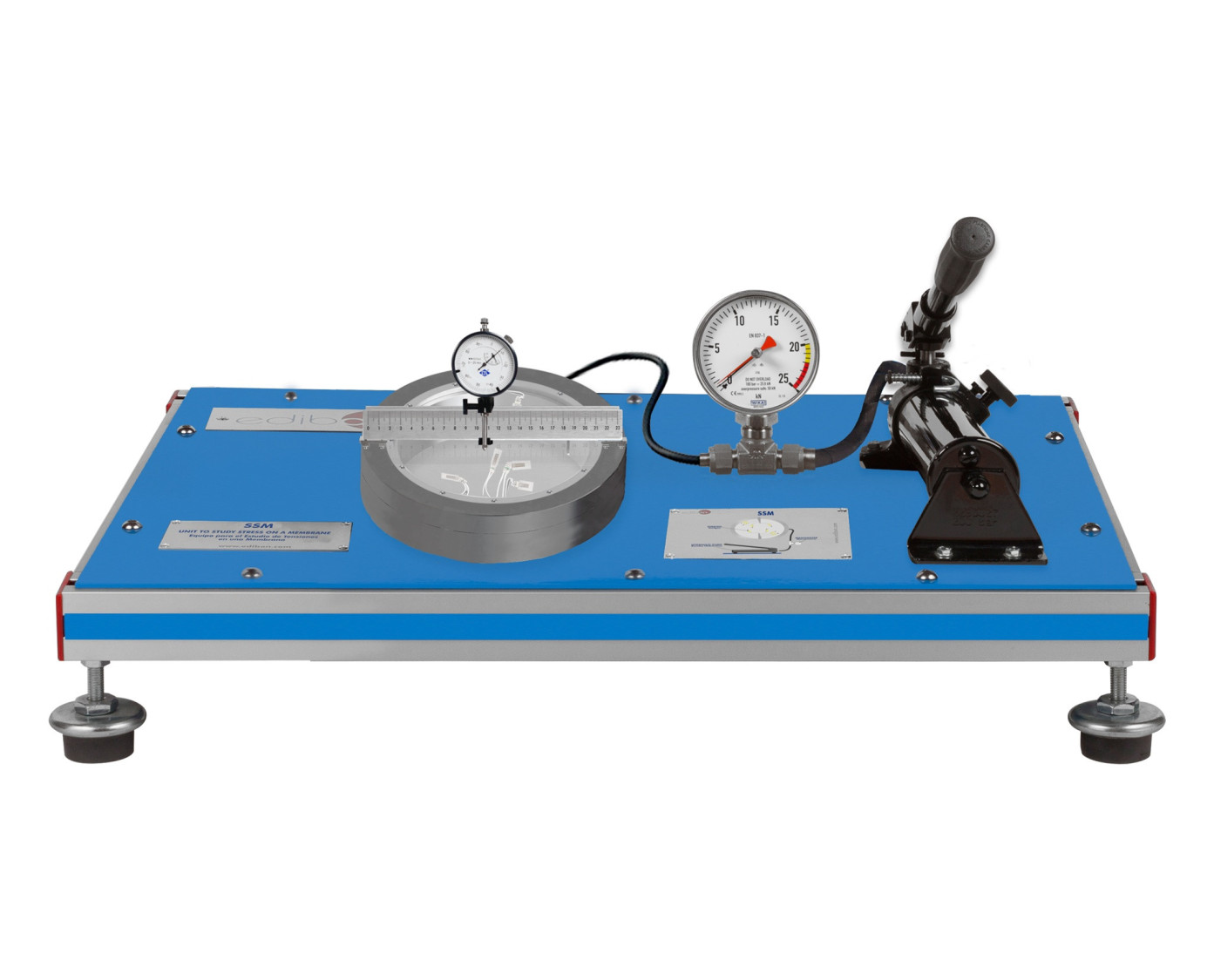

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

The main element of the equipment is a thin disc or membrane that is subjected to pressure and has eight strain gauges attached to its surface that allow the recording of the deformations produced.

A hydraulic system generates the pressure by means of a cylinder and a piston, which is measured by means of a manometer.

In addition, it is also possible to measure the deflection produced in the disc or membrane by means of a dial gauge which can be moved along the entire length of the thin disc. Curvature can be measured at any radius.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Measurement of radial and shear stresses with strain gauges.
Measurement of deflections with dial gauges.
Calculation of radial and shear stresses from the measured deflections.
Study of the direction of principal stress.
Study of deformation
