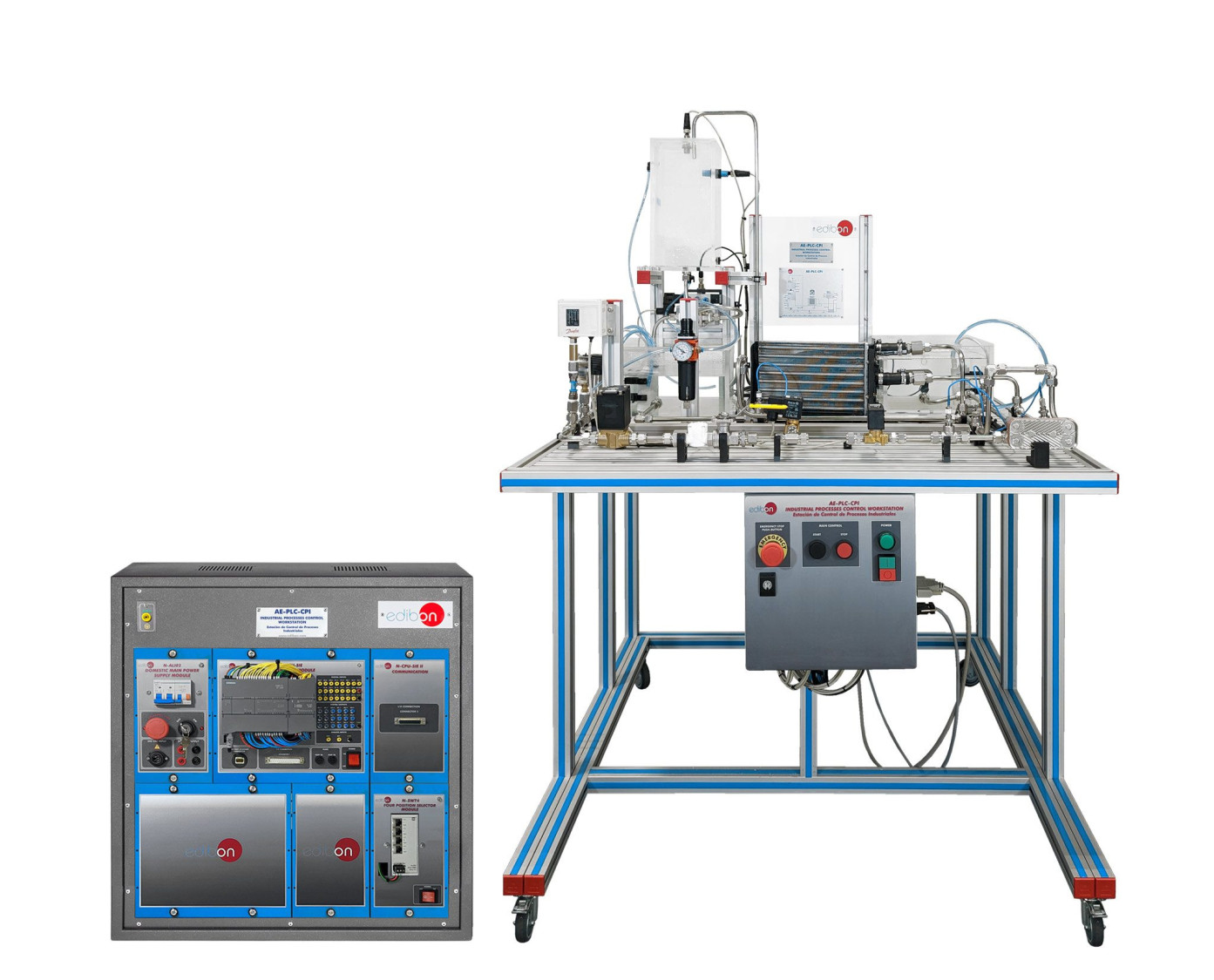

AE-PLC-CPI Estação de Controle de Processos Industriais

6.2.4.- APLICAÇÕES INDUSTRIAIS COM PLC

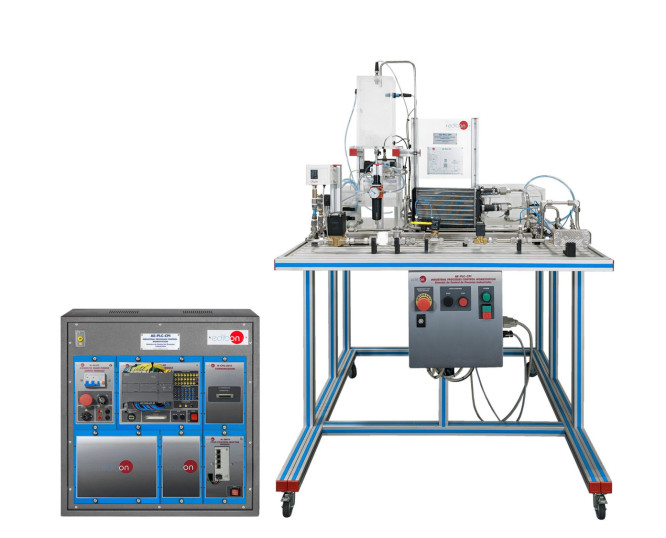

INDUSTRIAL PROCESSES CONTROL WORKSTATION - AE-PLC-CPI

SISTEMAS INOVADORES

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level,temperature and pressure.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level, temperature and pressure. A flexible system of ball valves and pipe connections makes the configuration of the control loops be quick and easy. The sensors and actuators included in the application allow for the implementation of different types of regulators (P, I, PI, PID) through a controller. In addition, there are elements that generate disturbances in the system so that the response of the control loop is observed.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Implementation of a complex process control system.
  2. Sensor operation principle: inductive, capacitive, ultrasoundand infrared sensors.
  3. Actuator operation principle: pump and proportionaldirectional control valve.

With PLC Programmable Controller (Base Unit):

  1. Structure of a PLC program.
  2. Programming and use of digital and analog signals.
  3. Programming of different operating modes.
  4. Programming of alternative branches (Grafcet).
  5. Communication with extended I/O remote module.
  6. Time and response optimization. Programming a PID levelcontroller via PLC.
  7. Time and response optimization. Programming a PID flowcontroller via PLC.
  8. Time and response optimization. Programming a PIDtemperature controller via PLC.
  9. Time and response optimization. Programming a PID pressurecontroller via PLC.
