AE-PLC-MPS Estação de Manipulação de Peças
SISTEMAS INOVADORES

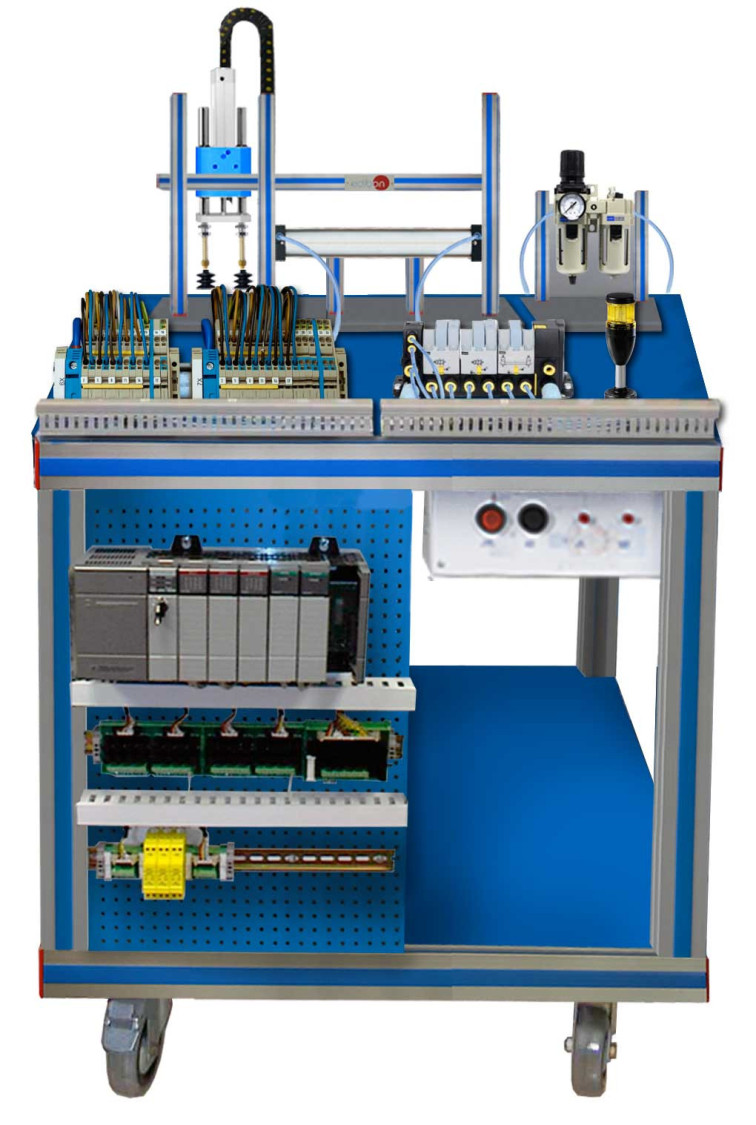

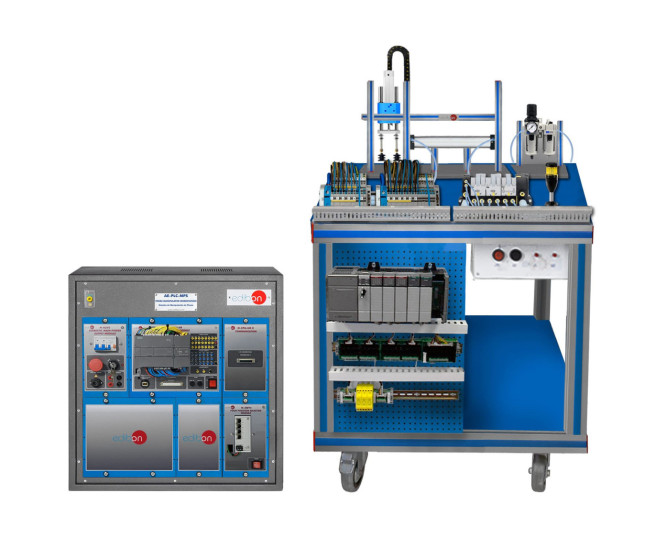

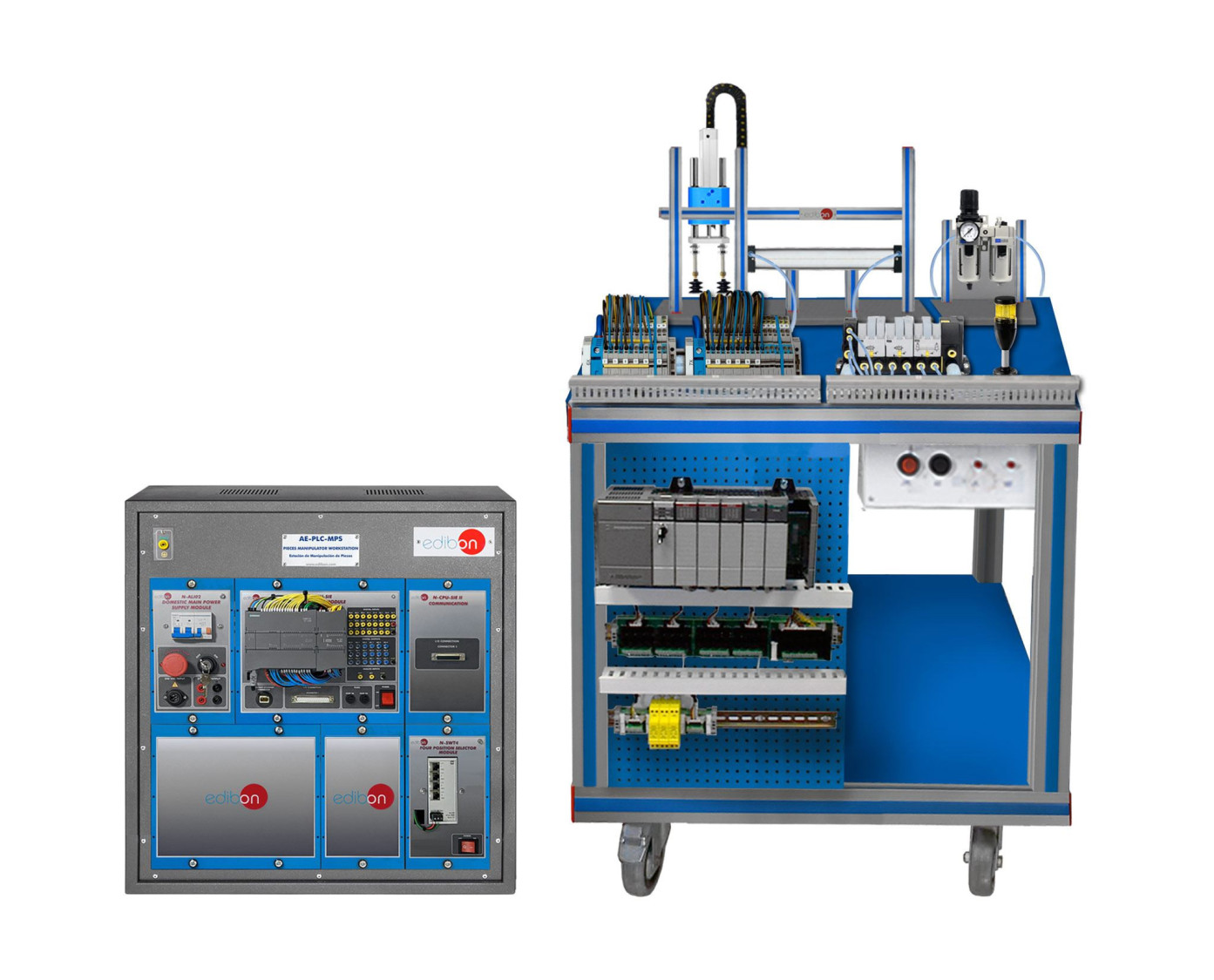

The "AE-PLC-MPS", Pieces Manipulator Workstation, is a unit that works with pneumatics, electro-pneumatics and vacuum technologies.
NOTÍCIAS RELACIONADAS
Descrição Geral
The "AE-PLC-MPS", Pieces Manipulator Workstation, is a unit that works with pneumatics, electro-pneumatics and vacuum technologies.
The "AE-PLC-MPS" performs the following operation: moving a piece from one position to another by using suction pads and vacuum technology.
The "AE-PLC-MPS", designed by EDIBON, allows the user to learn about the basic concepts of pneumatics, electro-pneumatics and vacuum (operation, elements of each circuit, etc.) without any previous knowledge or experience.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Introduction to computer-integrated manufacturing (CIM).
- Introduction to pneumatic and electro-pneumatic technology.
- Configuration of a pneumatic application.
- Introduction to vacuum technology.
- Configuration of a vacuum application.
- Provision of pieces to an automated system.
