MEMT-3 Fricção Dinâmica de um Pino em um Disco

7.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO) 14.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO)
DYNAMIC FRICTION OF A PIN ON A DISC - MEMT-3

SISTEMAS INOVADORES

This unit allows to study the friction forces between several vertical friction pins of different materials and a rotating friction disc.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

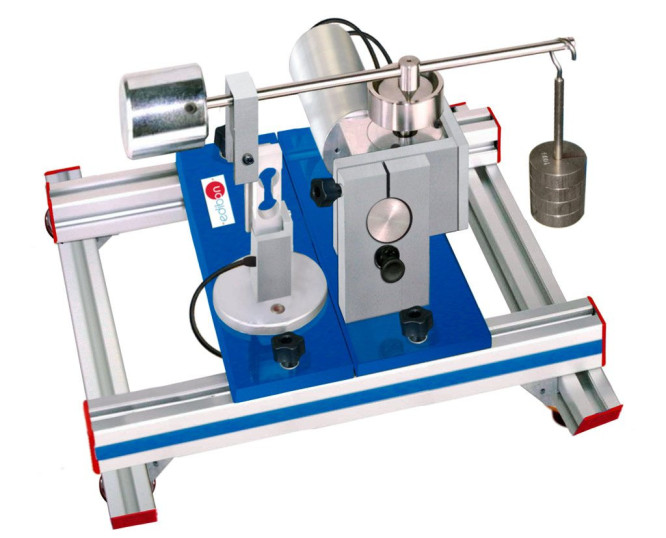

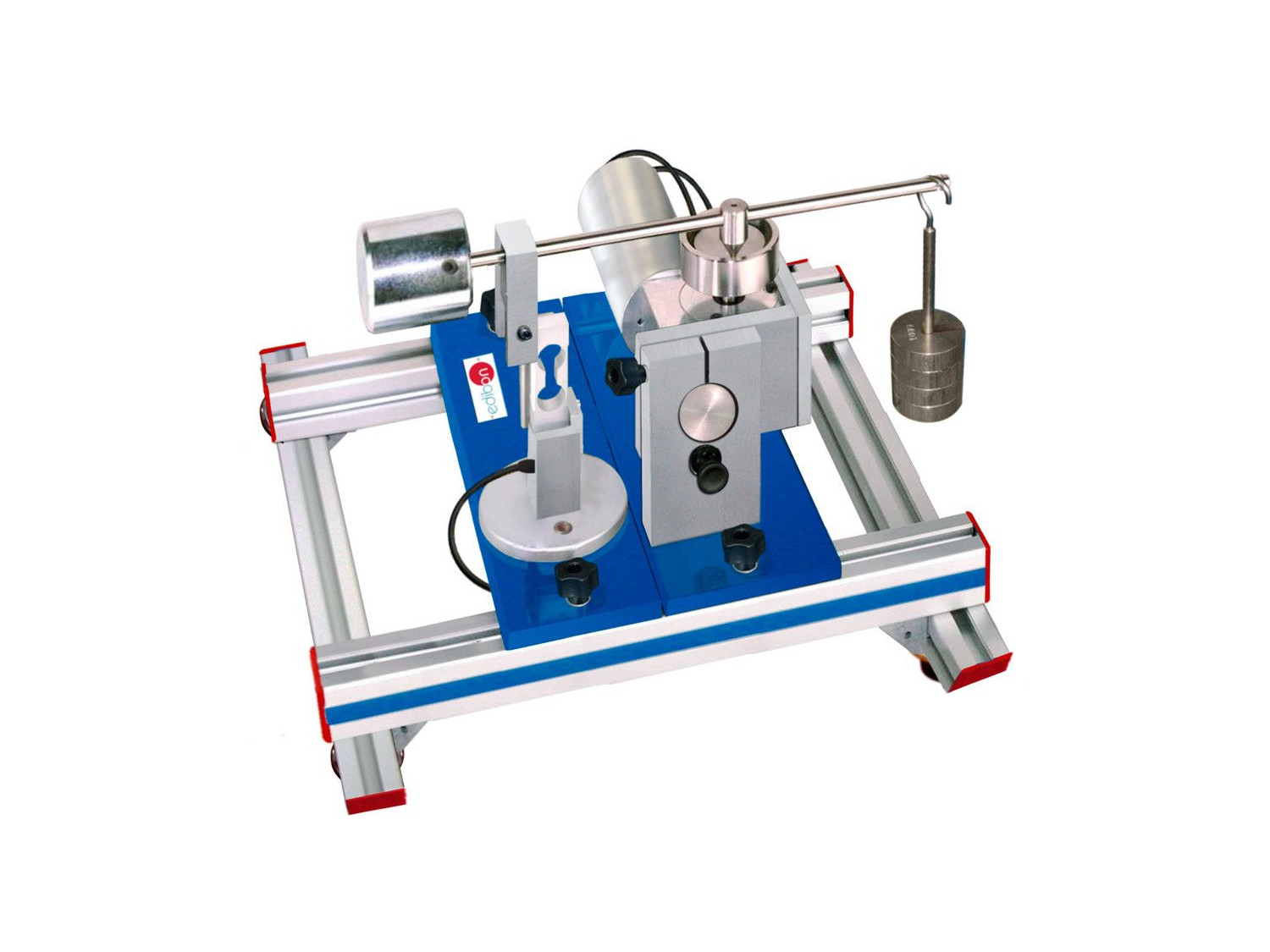

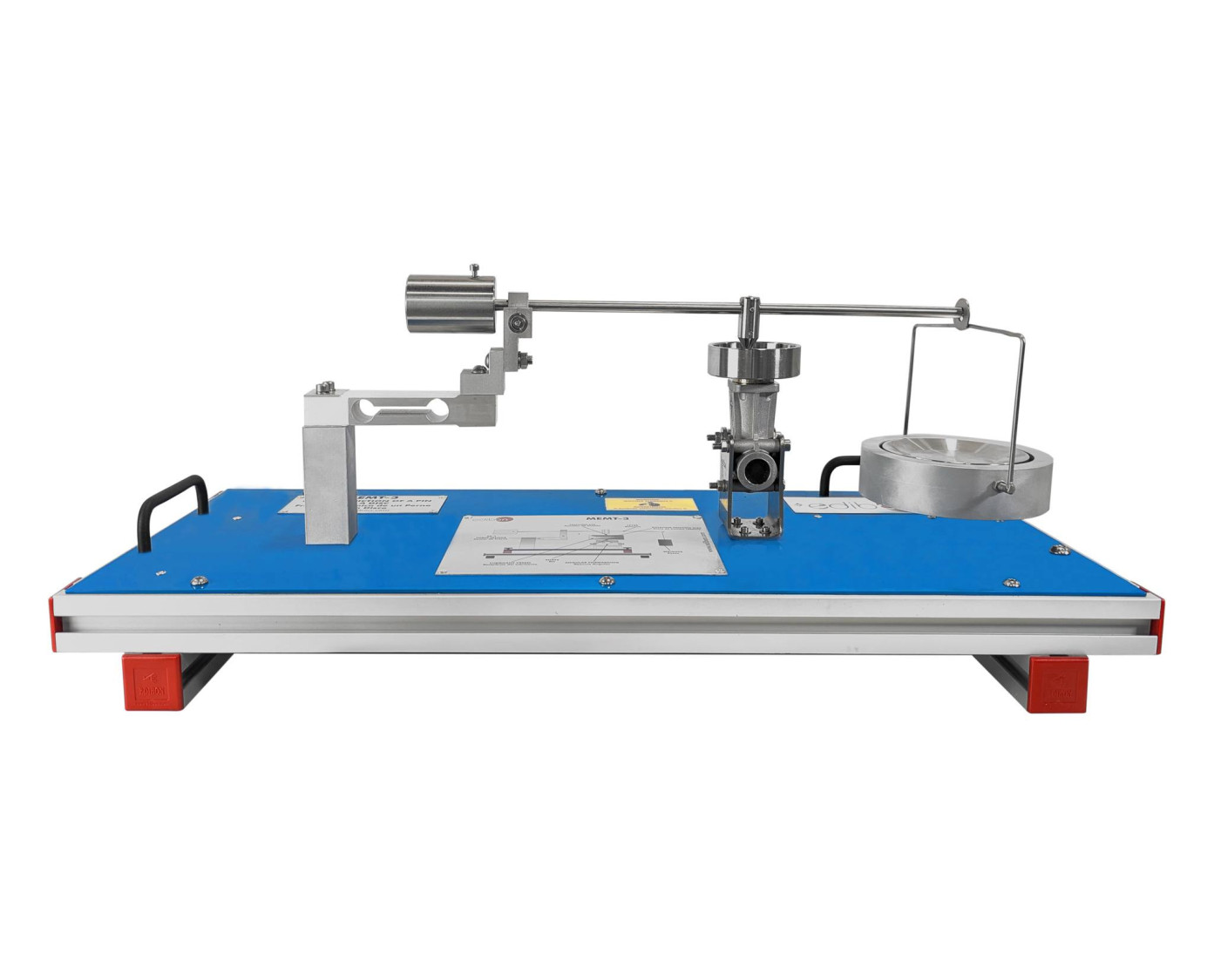

This unit allows to study the friction forces between several vertical friction pins of different materials and a rotating friction disc.

The end of each vertical pin is made of a different material and rubs against the rotating steel disc. The speed of the rotating disc can be adjusted. The contact pressure between the vertical pin and the rotating disc can be adjusted with a lever and a set of weights. The disc is enclosed in an open vessel that can be filled with different lubricants. A force sensor measures the friction forces as function of the pairs of friction materials, the speed of the rotating disc, the load and the lubrication conditions.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the friction forces between several vertical pins of different materials and a rotating friction disc.
  2. Investigation of the friction forces for several pairs of friction materials.
  3. Investigation of the friction forces for several loads.
  4. Investigation of the friction forces with different lubricants.
  5. Investigation of the friction forces at different speeds of the rotating disc.
  6. Study of the wear for different friction parameters.
