Descrição Geral

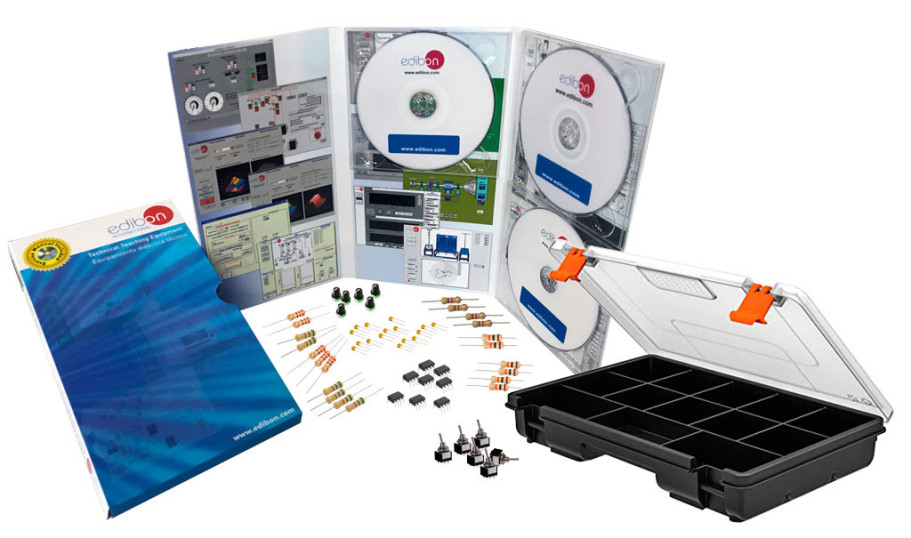

With Operational Amplifiers Kit, "M7/KIT", designed by EDIBON, the different amplifiers can be studied: inverting, non-inverting, additive, differential and comparators.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Operational amplifier characteristics:

  1. Operational amplifier study.
  2. Closed-loop output compensation voltage.
  3. Operational amplifier fault study.
  4. Theoretical/practical exercises.

The inverting amplifier:

  1. Inverting amplifier study.
  2. Inverting amplifier fault study.
  3. Theoretical/practical exercises.

The non-inverting amplifier:

  1. Study of the non-inverting amplifier.
  2. Voltage follower.
  3. Fault study in the non-inverting amplifier.
  4. Theoretical/practical exercises.

The adder amplifier:

  1. Adding amplifier study.
  2. Faults study in the adding amplifier.
  3. Theoretical/practical exercises.

The differential amplifier:

  1. Differential amplifier study.
  2. Differential amplifier fault study.
  3. Theoretical/practical exercises.

Comparators:

  1. Comparator study.
  2. Comparators fault study.
  3. Theoretical/practical exercises.
Ver mais

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Attenuator.
  2. Voltage Divider.
  3. Open-loop operation.
  4. Several other exercises can be done and designed by the user.

ELEMENTOS NECESSÁRIOS

EQUIPAMENTOS SIMILARES DISPONÍVEIS

OPERATIONAL AMPLIFIERS MODULE - N-M7
  • N-M7
Available
14.2.1.2.- ELETRÔNICA ANALÓGICA
N-M7
Módulo de Amplificadores Operacionais
Operational amplifiers are compact, active, linear and high-gain devices designed to provide the desired transfer function. An operational amplifier consists of an electronic circuit having two inputs and one output. The output is the difference...
