M8/KIT Kit de Filtros

2.2.- KITS PARA MONTAGEM DE CIRCUITOS

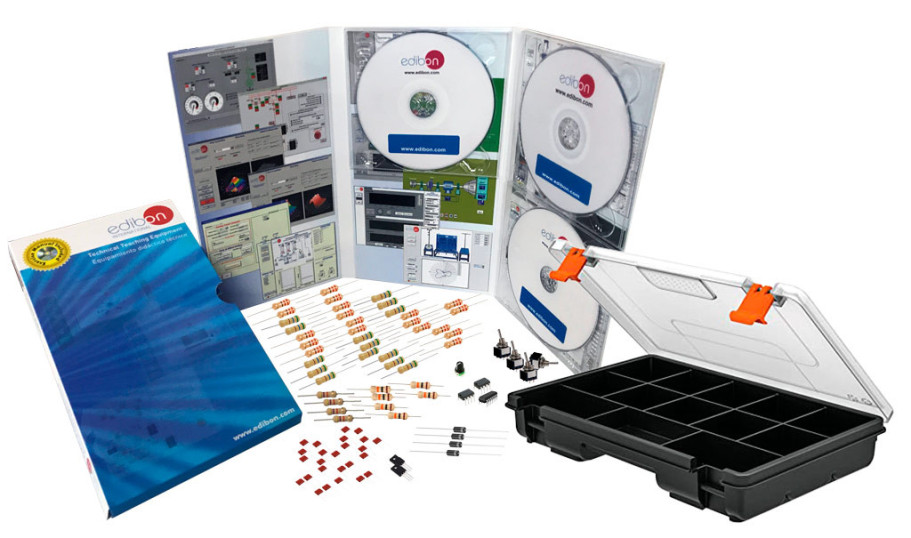

FILTERS KIT - M8/KIT

SISTEMAS INOVADORES

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

LABORATÓRIOS

2TV
 Laboratório de Electrónica para o Ensino Técnico e Profissional

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais

Descrição Geral

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

RC and LC filter responses:

  1. Frequency response.
  2. Low-pass filter.
  3. High-pass filter.
  4. LC Circuit.
  5. Faults study in low-pass filter.
  6. Faults study in high-pass filter.
  7. Theoretical/practical exercises.

T-shaped Filter:

  1. Filter with double T link.
  2. Signal generator circuit.
  3. Faults study in RC filters with double T.
  4. Theoretical/practical exercises.

Active filters:

  1. Low-pass filter with load.
  2. Low-pass filter with an operational amplifier.
  3. High-pass filter with load.
  4. High-pass filter with an operational amplifier.
  5. The attenuation is cumulative.
  6. Use of operational amplifier.
  7. Faults study in active filters.
  8. Theoretical/practical exercises.

Association of filters:

  1. Behaviour of the filter.
  2. Filtering of a distorted signal.
  3. Filter in cascade: low pass filter and high pass filter.
  4. Filter in parallel.
  5. Faults study in filters.
  6. Theoretical/practical exercises.
Ver mais

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Band-pass and band-stop filters.
  2. Several other exercises can be done and designed by the user.
