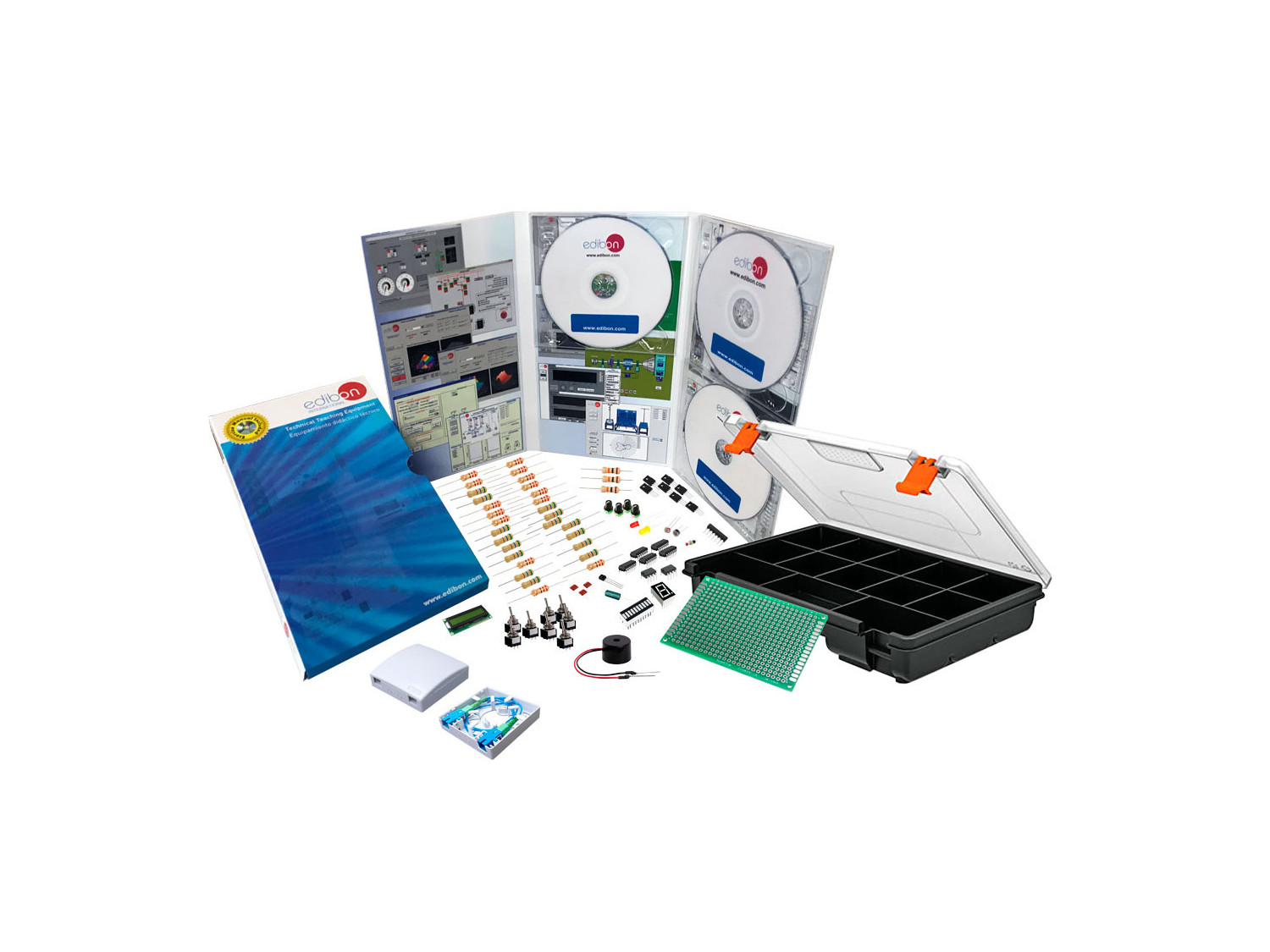

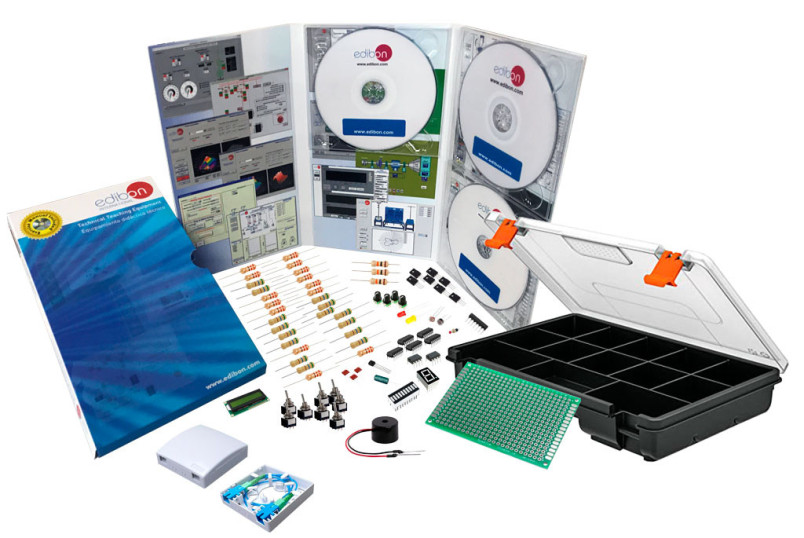

M14/KIT Kit de Optoeletrônica

2.2.- KITS PARA MONTAGEM DE CIRCUITOS

SISTEMAS INOVADORES

With Optoelectronics Kit, "M14/KIT", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

LABORATÓRIOS

2TV

Laboratório de Electrónica para o Ensino Técnico e Profissional

NOTÍCIAS RELACIONADAS

Descrição Geral

With Optoelectronics Kit, "M14/KIT", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Light transmitters and liquid crystal display (LCD):

Light transmitters.
Bargraph.
LCD display and 7-segment display.
Faults study in light transmitters and liquid crystal display.
Theoretical/practical exercises.

Photo-conducting cells:

Light dependent resistors.
Alarm.
Faults study on the photo-conducting cell.
Theoretical/practical exercises.

Fiber optics:

Fiber optics practice.
Faults study using fiber optics.
Theoretical/practical exercises.

Infrared:

Circuit with infrared diodes.
Faults study of the infrared diodes.
Theoretical/practical exercises.

Ver mais

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

Several other exercises can be done and designed by the user.
