MBI Mecanismo de Biela

7.1.2.1.- MECANISMOS 14.1.2.1.- MECANISMOS
CRANK MECHANISM - MBI

SISTEMAS INOVADORES

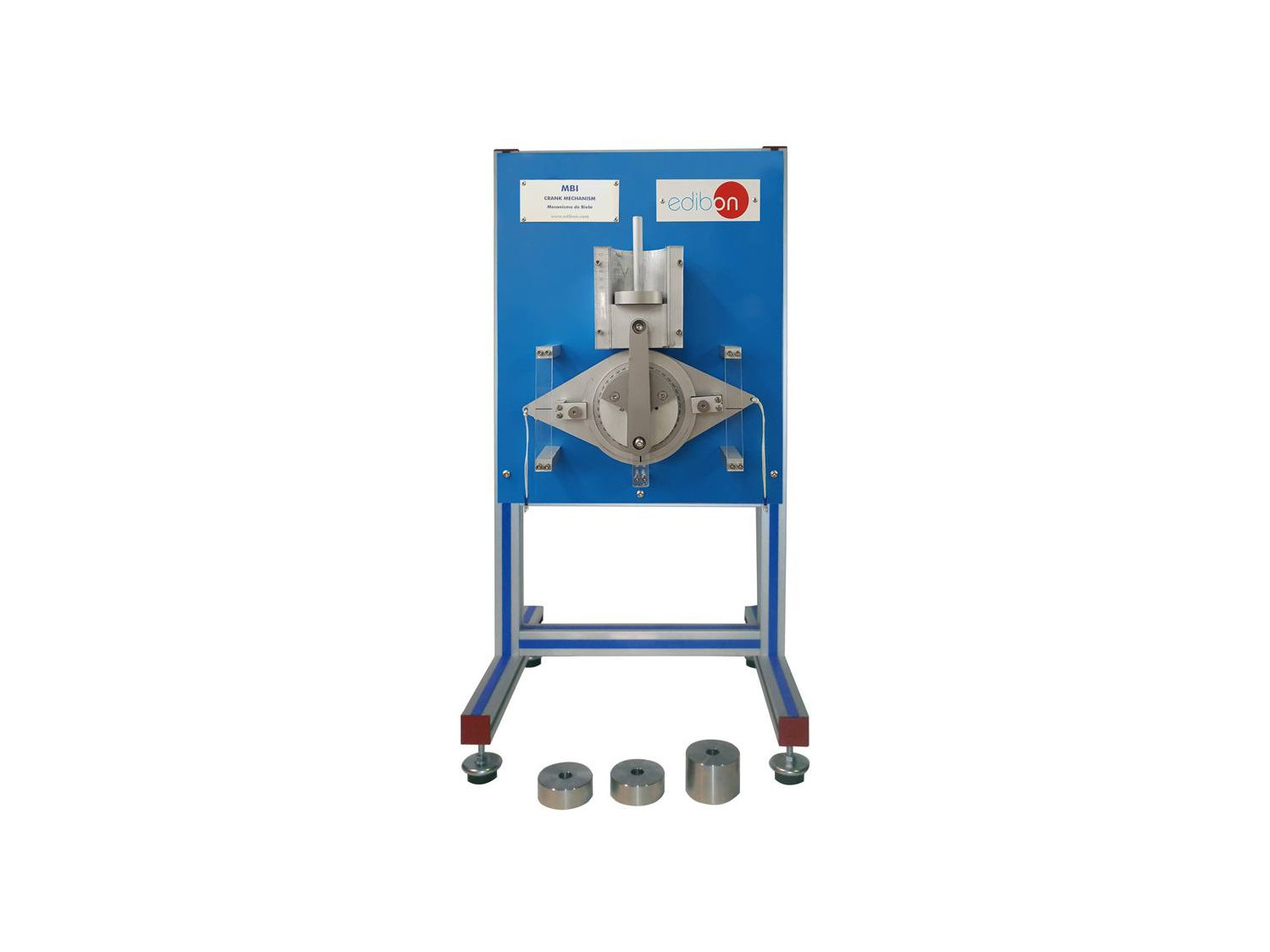

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

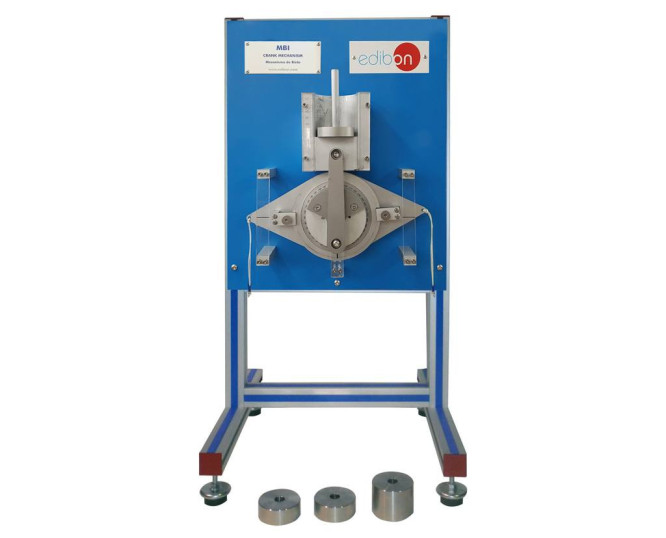

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

The piston is linearly displaced through a cylinder with the aid of a guide.

Bearings are coupled to the connecting rod so that friction is kept to a minimum.

There is a protractor attached to the crank, which can be rotated on the beam balance arm and locked in any predetermined angular position.

The piston displacement can be measured with a linear scale attached to the piston guide. The piston can be fitted with removable weights to change the piston mass.

The crank effort can be determined by attaching weights to the beam balance arm.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the crank effort.
  2. Balancing of the crankshaft.
  3. Measurement of the piston displacement.
  4. Experimental relationship between piston displacement and crank angle.
  5. Theoretical relationship between piston displacement and crank angle.
  6. Comparison of the piston displacement value theoretically and experimentally.
  7. Experimental relationship between turning moment and crankshaft angle.
  8. Theoretical relationship between turning moment and crankshaft angle.
