CAM AND FOLLOWER MECHANISM - MEX

SISTEMAS INOVADORES

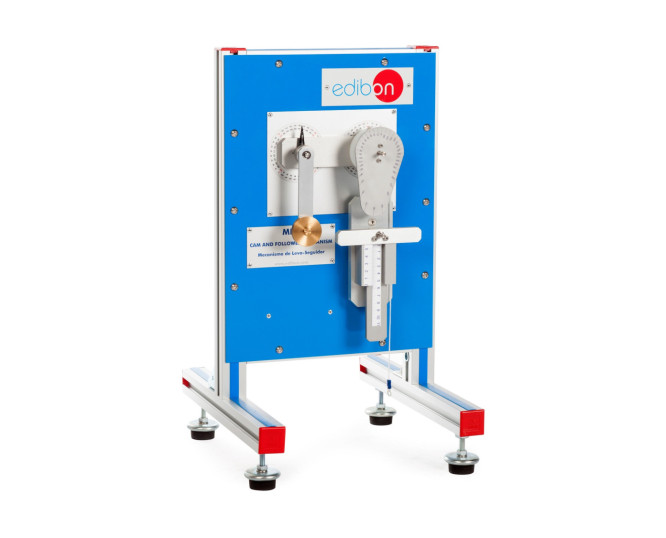

The Cam and Follower Mechanism, "MEX", designed by EDIBON, allows to demonstrate the operation of a cam-follower mechanism in a clear way.
