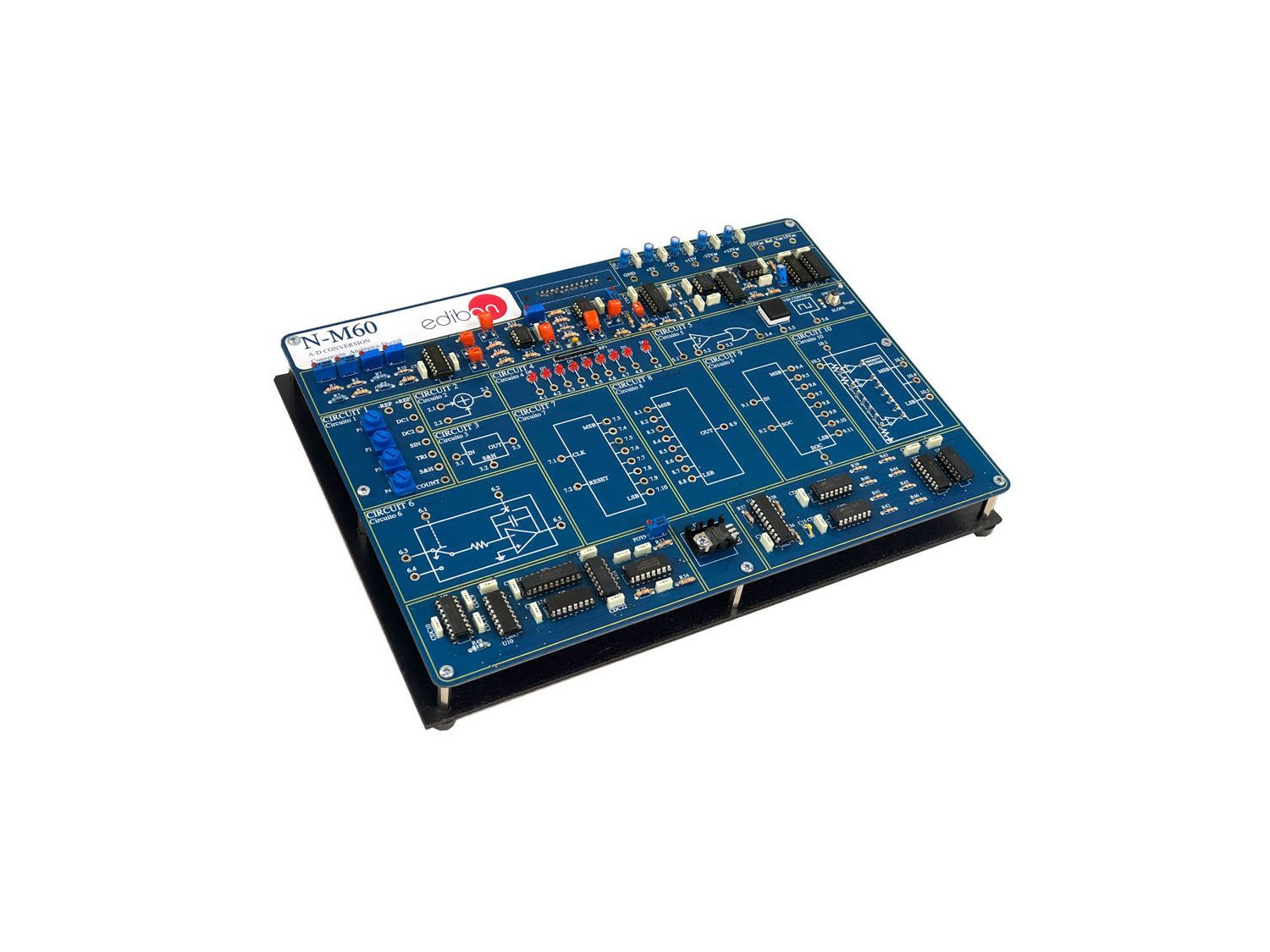

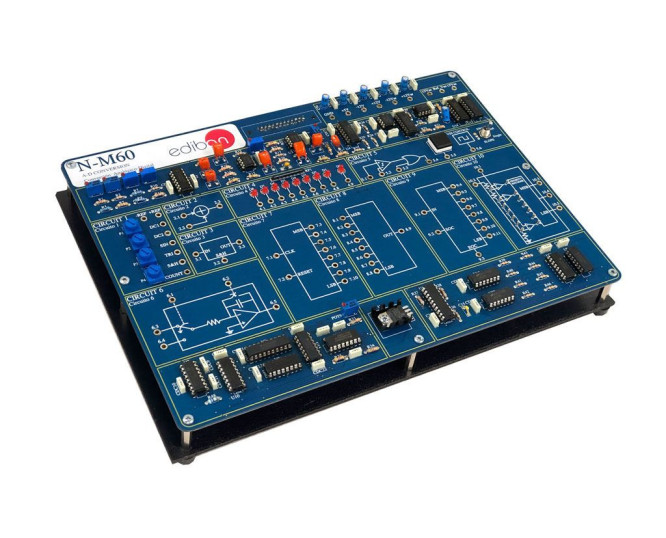

N-M60 Módulo de Conversores Analógico/Digital

2.3.3.- ELETRÔNICA DIGITAL 14.2.1.3.- ELETRÔNICA DIGITAL
ANALOG/DIGITAL CONVERTERS MODULE - N-M60

SISTEMAS INOVADORES

With EDIBON's Analog/Digital Converters Module, "N-M60", the different types of analog/digital conversion can be studied.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais

Descrição Geral

Most of the "information" generated in the world by various physical phenomena has a strong analogical character. This means that the information undergoes a continuous variation within certain limits determined over time. Of course, there is also information of a digital character, but its number is considerably smaller than that mentioned above.

When you need to process information, an analog signal, it is usually better to convert the signal to digital form so you can process it digitally. The reason is that the automatic processing of digital information involves great technological simplicity.

With EDIBON's Analog/Digital Converters Module, "N-M60", the different types of analog/digital conversion can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Sampling theorem.
  2. Monopolar simple ramp converter.
  3. Monopolar double ramp converter.
  4. Monopolar binary ramp converter.
  5. A/D integrated converter. Monopolar assembly.
  6. A/D integrated converter. Bipolar assembly.
  7. Flash converter.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Several other exercises can be done and designed by the user.
