OPTOELECTRONICS MODULE - N-M14

SISTEMAS INOVADORES

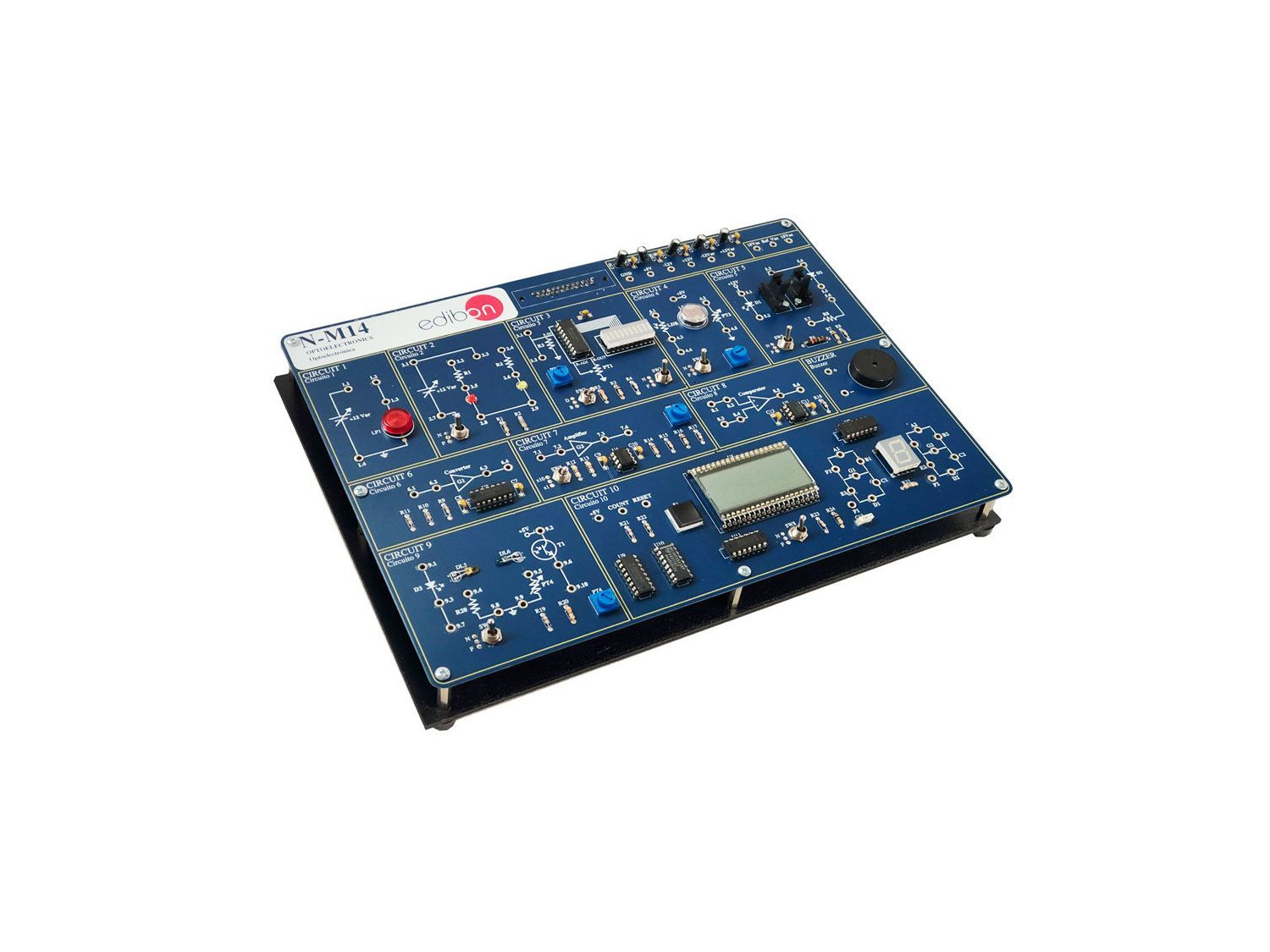

With Optoelectronics Module, "N-M14", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
EMSK

Kit de Desenvolvimento EDIBON para Simulação de Circuitos, Desenvolvido pelo NI LabVIEW™

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais

Descrição Geral

Optoelectronics is the link between optical systems and electronic systems. Optoelectronic components are those whose operation is directly related to light.

They are semiconductor devices capable of producing light radiation within the human visible spectrum or outside the human visible spectrum (infrared). Also included are components which are sensitive to light and whose operation is governed by light.

Among the optoelectronic components are: LEDs, photodiodes, luminescent displays, optocouplers, phototransistors, liquid crystal displays, fluorescent displays.

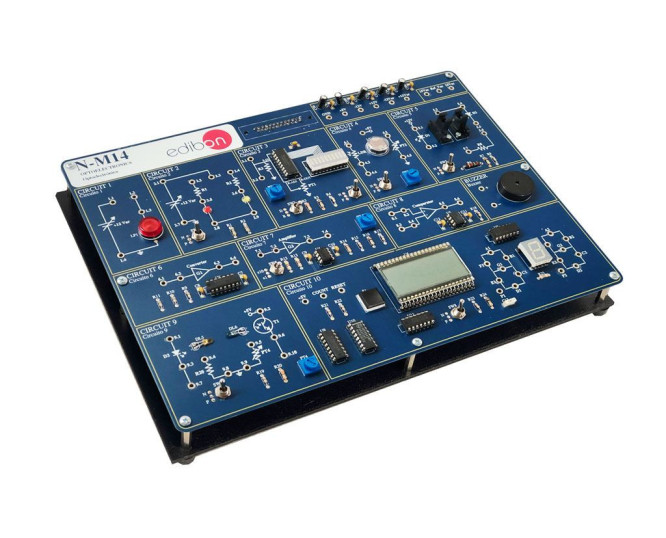

With Optoelectronics Module, "N-M14", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Light transmitters and liquid crystal display (LCD):

  1. Light transmitters.
  2. Bargraph.
  3. LCD display and 7-segment display.
  4. Faults study in light transmitters and liquid crystal display.
  5. Theoretical/practical exercises.

Photo-conducting cells:

  1. Light dependent resistors.
  2. Alarm.
  3. Faults study on the photo-conducting cell.
  4. Theoretical/practical exercises.

Fiber optics:

  1. Fiber optics practice.
  2. Faults study using fiber optics.
  3. Theoretical/practical exercises.

Infrared:

  1. Circuit with infrared diodes.
  2. Faults study of the infrared diodes.
  3. Theoretical/practical exercises.
