SEMICONDUCTORS II MODULE - N-M4

SISTEMAS INOVADORES

With Semiconductors II Module, "N-M4", designed by EDIBON, semiconductors can be studied by extending the knowledge acquired in the basic module "N-M3".

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
EMSK

Kit de Desenvolvimento EDIBON para Simulação de Circuitos, Desenvolvido pelo NI LabVIEW™

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais

Descrição Geral

To improve and extend the characteristics of the input signals, it is possible to use two or more transistors. Thus, you may want to build an amplifier in which you want to increase the input impedance without decreasing the gain. The solution to this lies in the combined use of two or more transistors. Thus, it is common to find structures that improve the characteristics of the individual transistors.

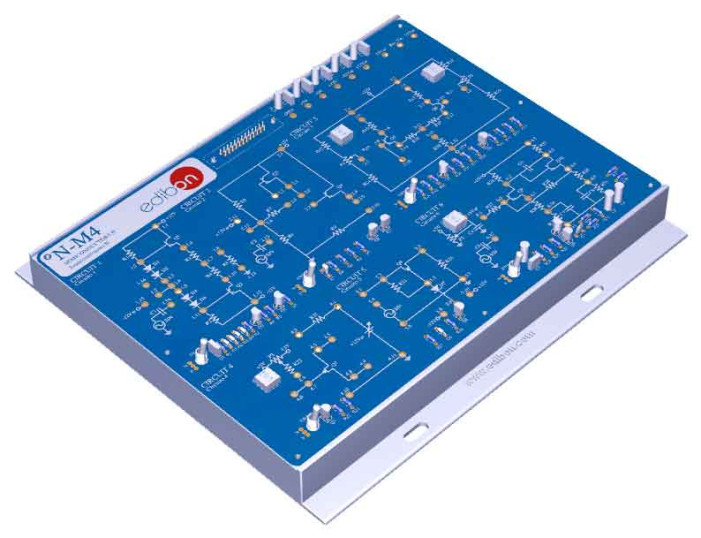

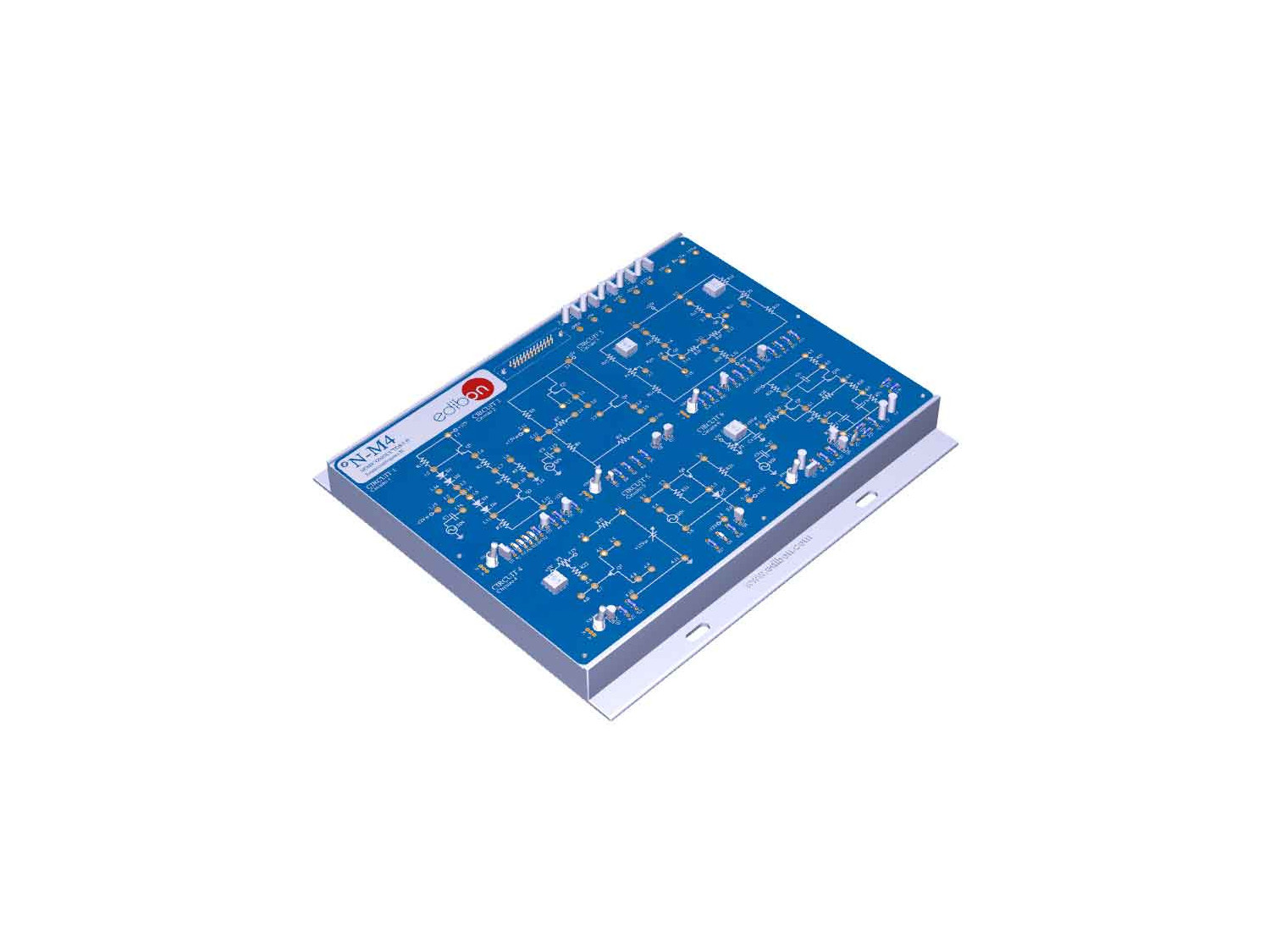

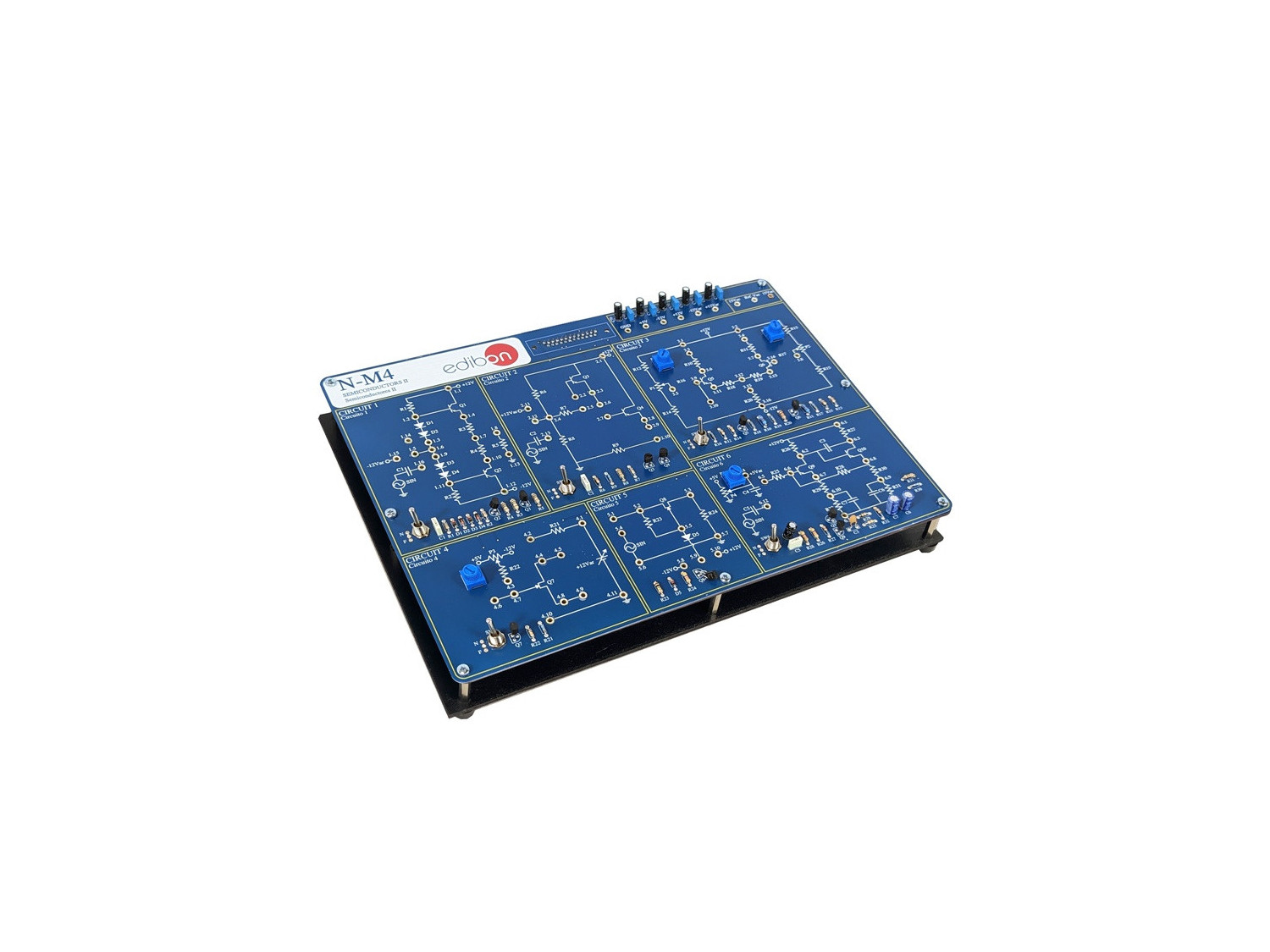

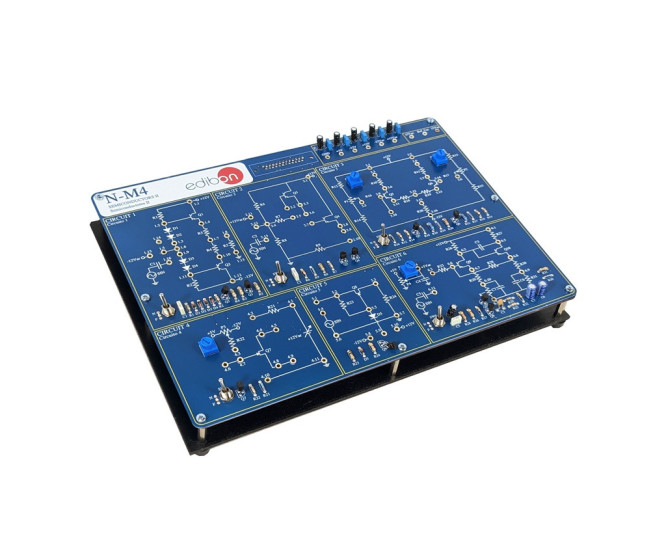

With Semiconductors II Module, "N-M4", designed by EDIBON, semiconductors can be studied by extending the knowledge acquired in the basic module "N-M3".

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Complementary transistors pair:

  1. Complementary transistors pair.
  2. Transistors pair with alternating signal.
  3. Faults study of the complementary transistor pair.
  4. Theoretical/practical exercises.

Darlington configuration:

  1. Darlington configuration.
  2. Faults study of the Darlington configuration.
  3. Theoretical/practical exercises.

Differential amplifier:

  1. Differential amplifier.
  2. Faults study in the differential amplifier.
  3. Theoretical/practical exercises.

Study and characteristics of the JFET transistor:

  1. JFET characteristics.
  2. Faults study with the JFET transistor.
  3. Theoretical/practical exercises.

Analog switch:

  1. Analog switch.
  2. Theoretical/practical exercises.

Direct Coupled Amplifier:

  1. Direct coupled amplifier.
  2. Faults study in an amplifier coupled directly.
  3. Theoretical/practical exercises.
Ver mais

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Several other exercises can be done and designed by the user.

ELEMENTOS NECESSÁRIOS

Qualidade
