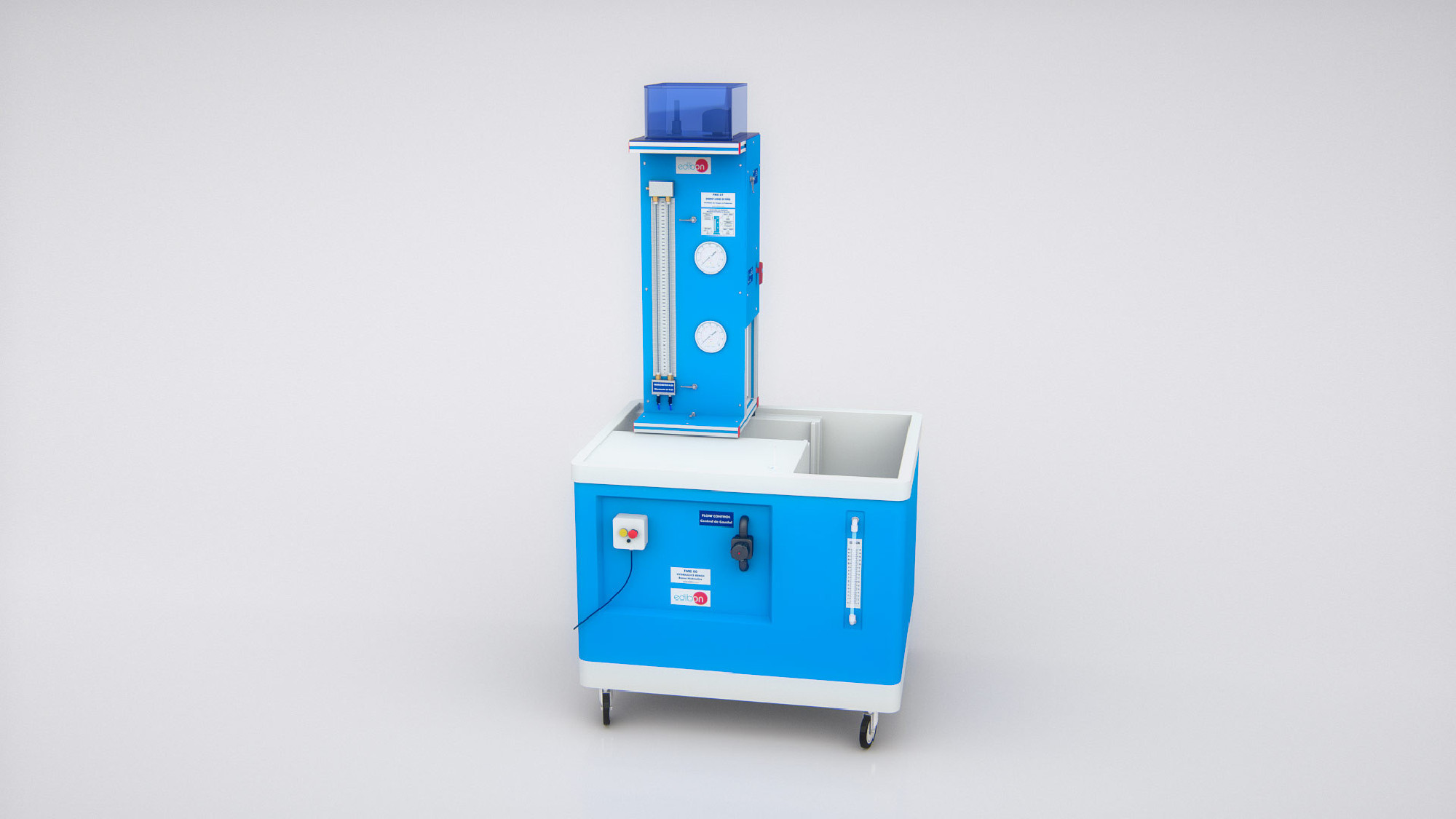

ENERGY LOSSES IN PIPES - FME07

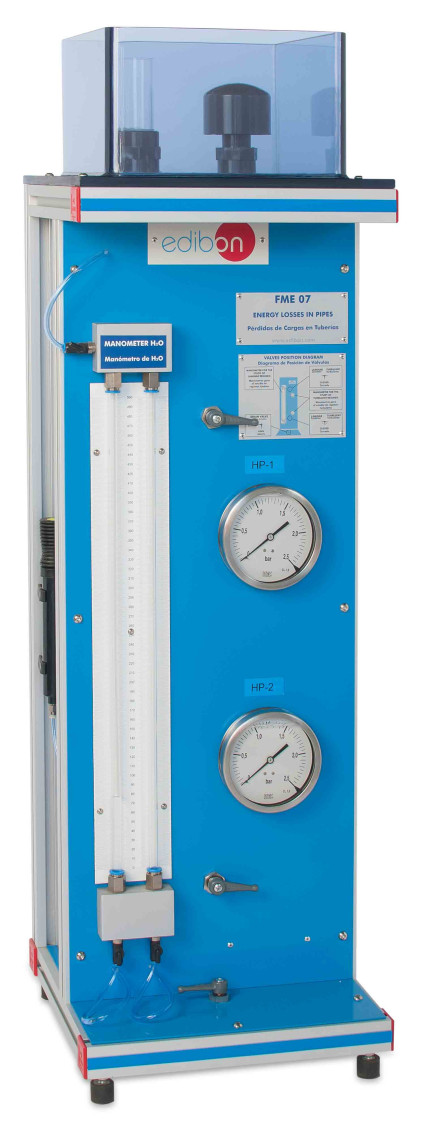

Complete FME07 Unit

ENERGY LOSSES IN PIPES - FME07

FME07 Unit with service unit FME00

ENERGY LOSSES IN PIPES - FME07

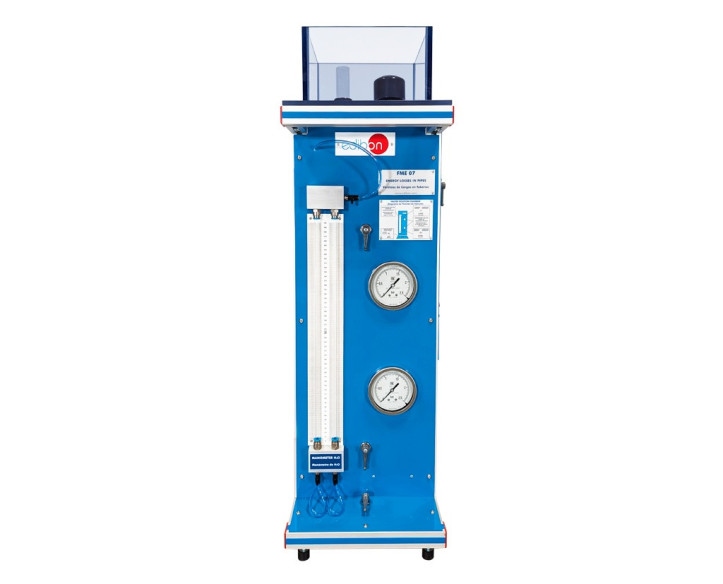

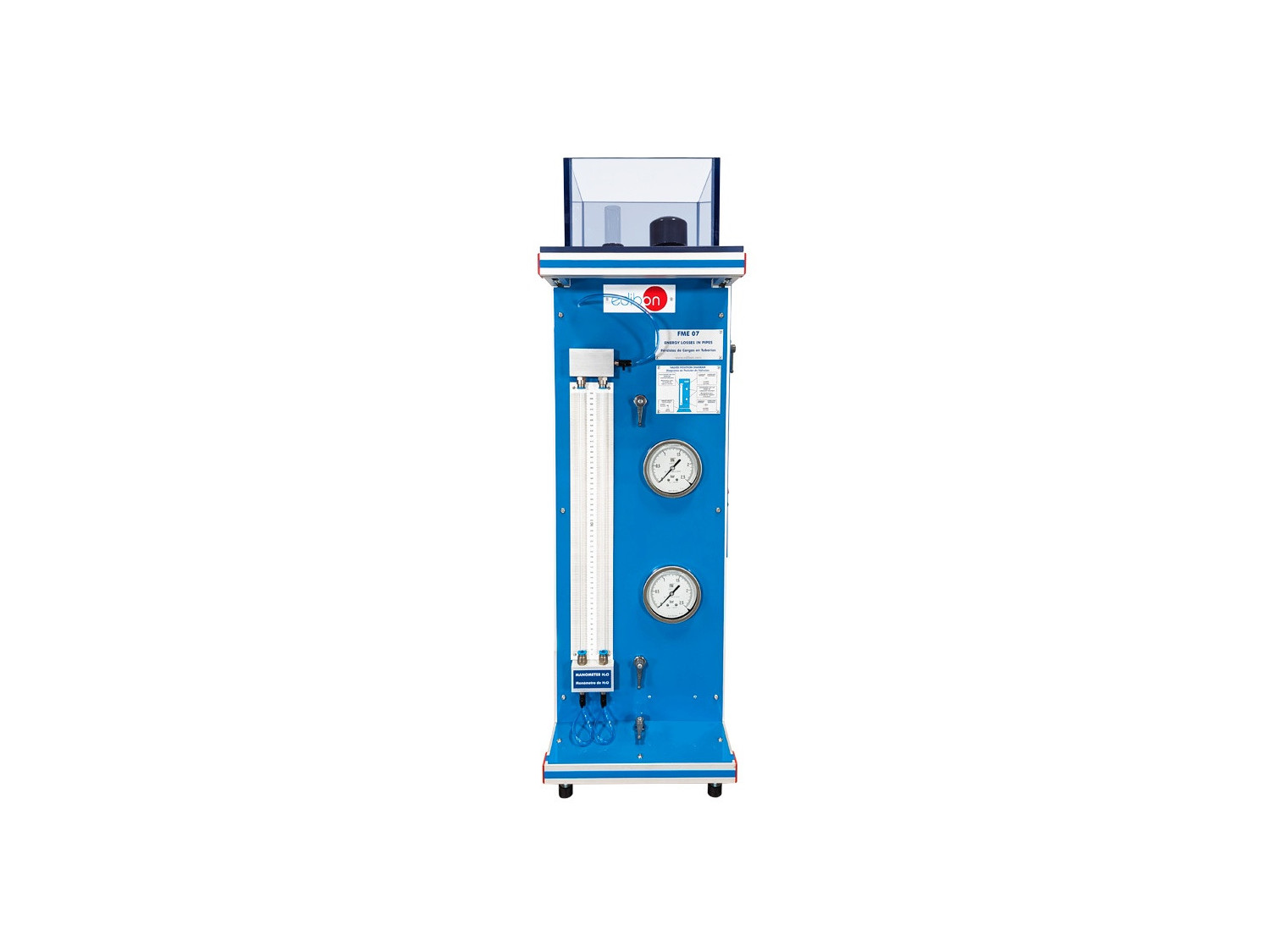

ENERGY LOSSES IN PIPES - FME07

SISTEMAS INOVADORES

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.
