WIRING INSTALLATION TRAINING FOR AC AND DC INDUSTRIAL ELECTRICAL MOTORS - WIT-IEM

SISTEMAS INOVADORES

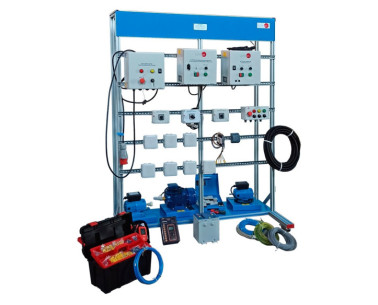

The Wiring Installation Training for AC and DC Industrial Electrical Motors, "WIT-IEM", has been designed by EDIBON for training at a practical-professional level in the field of installation, wiring and commissioning of industrial electric motors, both AC and DC. With this unit, students will learn how the motors themselves work, as well as the necessary elements for their correct operation and protection.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Ler mais
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

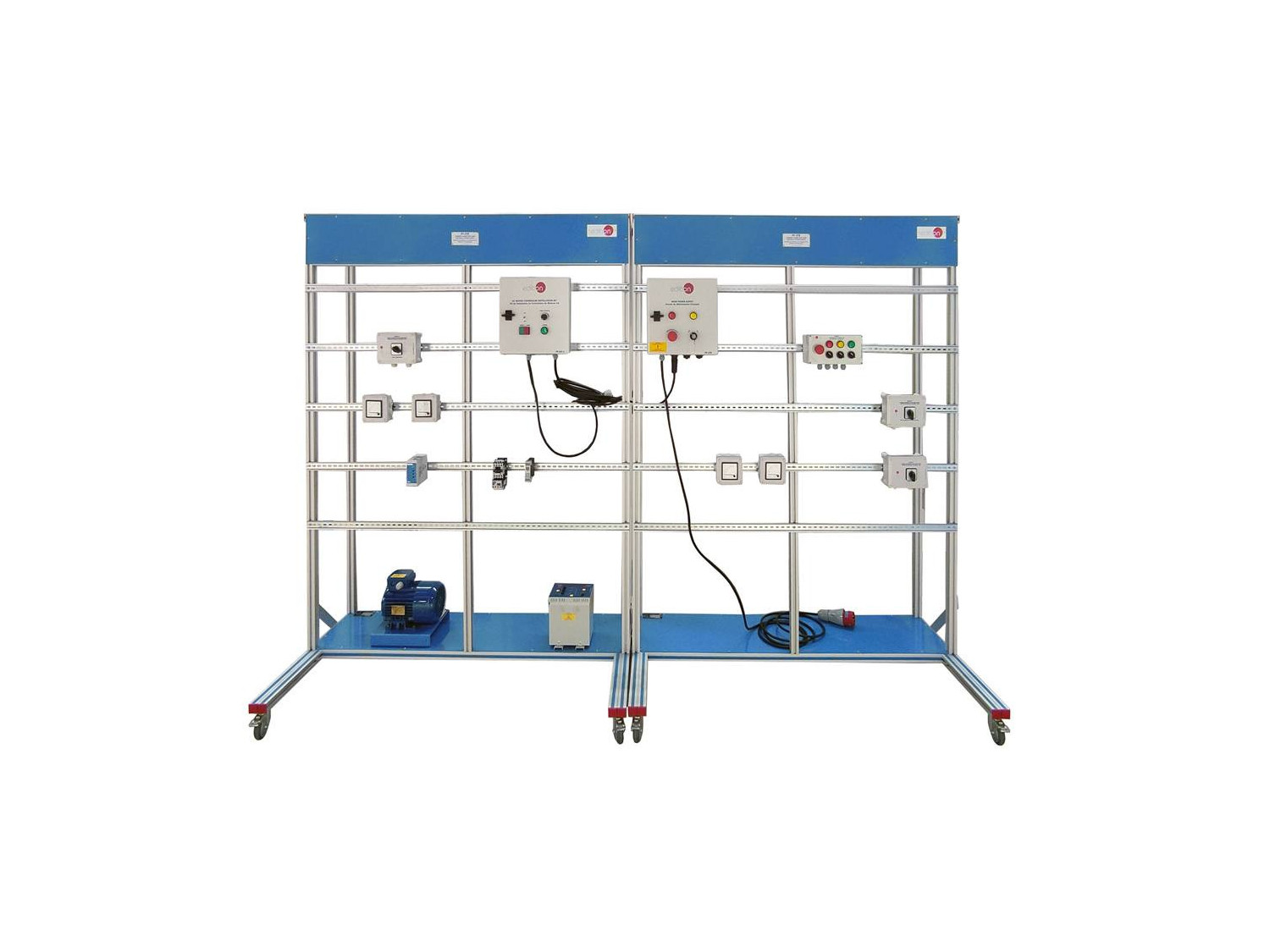

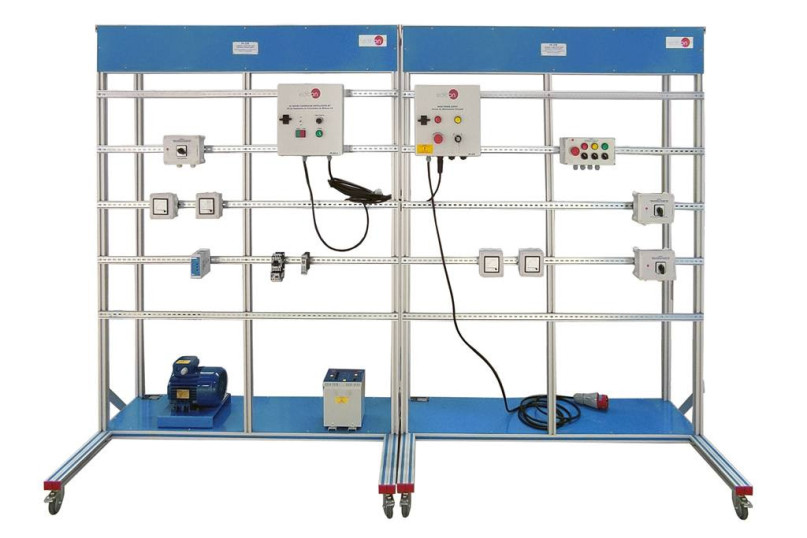

The Wiring Installation Training for AC and DC Industrial Electrical Motors, "WIT-IEM", has been designed by EDIBON for the formation at professional-practical level in the field of the installation, wiring and commissioning of industrial electrical motors.

This unit provides the future professionals with knowledge and essential skills on the assembly, installation, wiring, commissioning and operation of the most representative industrial electrical motors such us DC motor with wound rotor, AC synchronous three-phase motor alternator, asynchronous three-phase motor of squirrel cage, Dahlander three-phase motor, asynchronous single-phase motor with starting capacitor. The unit includes a specific manual in which is explained, at theoretical-practical level, the aspects concerning to the installation procedures, wiring and operation of these machines.

With this unit, the student will be able to understand different types of AC motor starting such as direct starting, star-delta starting, starting using a variable frequency drive and a soft starter. On the other hand, the student will be able to perform other maneuvers such as reversing and starting with timer.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Wiring of AC motor protections.
  2. Wiring of AC motor direct manual starter.
  3. Wiring of AC motor direct manual starter with inversion.
  4. Wiring of AC motor star-delta manual start.
  5. Wiring and commissioning of an AC frequency controller connected to a three-phase squirrel cage AC motor.
  6. Wiring of an electronic soft starter for AC motors.
  7. Wiring of a motor with delay timer.

Some possible practices with the recommended additional elements:

  1. Installation and wiring of DC Motor with Wound Rotor, its protection system and its power and control circuitry.
  2. Installation and wiring of manual commutators for reversing operations of the DC Motor with Wound Rotor.
  3. Installation and wiring of Dahlander Three-Phase Motor, its protection system and its power and control circuitry.
  4. Manual reversing operations of the Dahlander Three-Phase Motor.
  5. Manual speed variation of the Dahlander Three-Phase Motor.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Several other exercises can be done and designed by the user.
