FME26 Sistema de Medida de Depressão (vacuômetro)

8.1.2.- MEDIÇÃO

DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

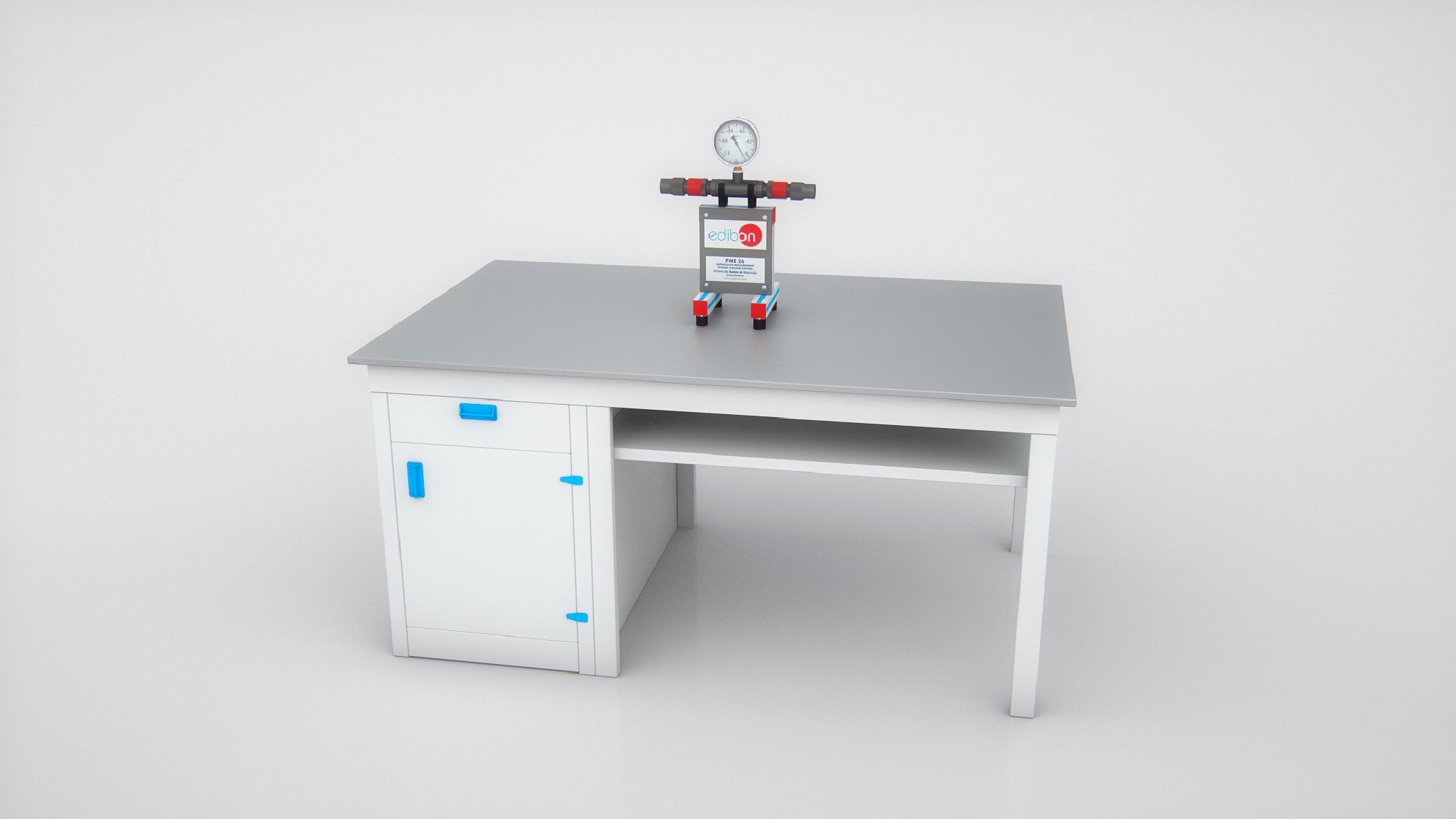

Complete FME26 Unit

FME26 Unit with service unit FME00

SISTEMAS INOVADORES

The depression measurement system, in pressure fall, FME 26, is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV

Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional

8HE

Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be usually a water pump that takes out some liquid from a tank.

Anodized aluminum structure that supports a vacuum gauge whose reading gives us the measurement.

Two quick connections at both sides of the vacuum gauge allow connecting reinforced flexible pipes.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

To measure the depression caused for the fluid aspiration by an hydraulic pump.
We can observe the different negative readings due to the different methods of fluid aspiration for its subsequent impulsion.
