AEL-FUSG-N Smart Grid (Usuário Final) - Aplicação de Net Metering

5.1.2.- SMART GRIDS E POWER SYSTEMS (USUÁRIO FINAL)
FINAL USER SMART GRID - NET METERING APPLICATION - AEL-FUSG-N

SISTEMAS INOVADORES

The AEL-FUSG-N is a trainer that reflects actual operations about Net-Metering, auto-consumption and electricity selling.

Ver descrição geral

LABORATÓRIOS

5TV
 Laboratório de Energia para o Ensino Técnico e Vocacional
11PTC
 Laboratório para o Centro de Formação Petrolífera
5HE
 Laboratório de Energia para o Ensino Superior

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Ler mais
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Ler mais

Descrição Geral

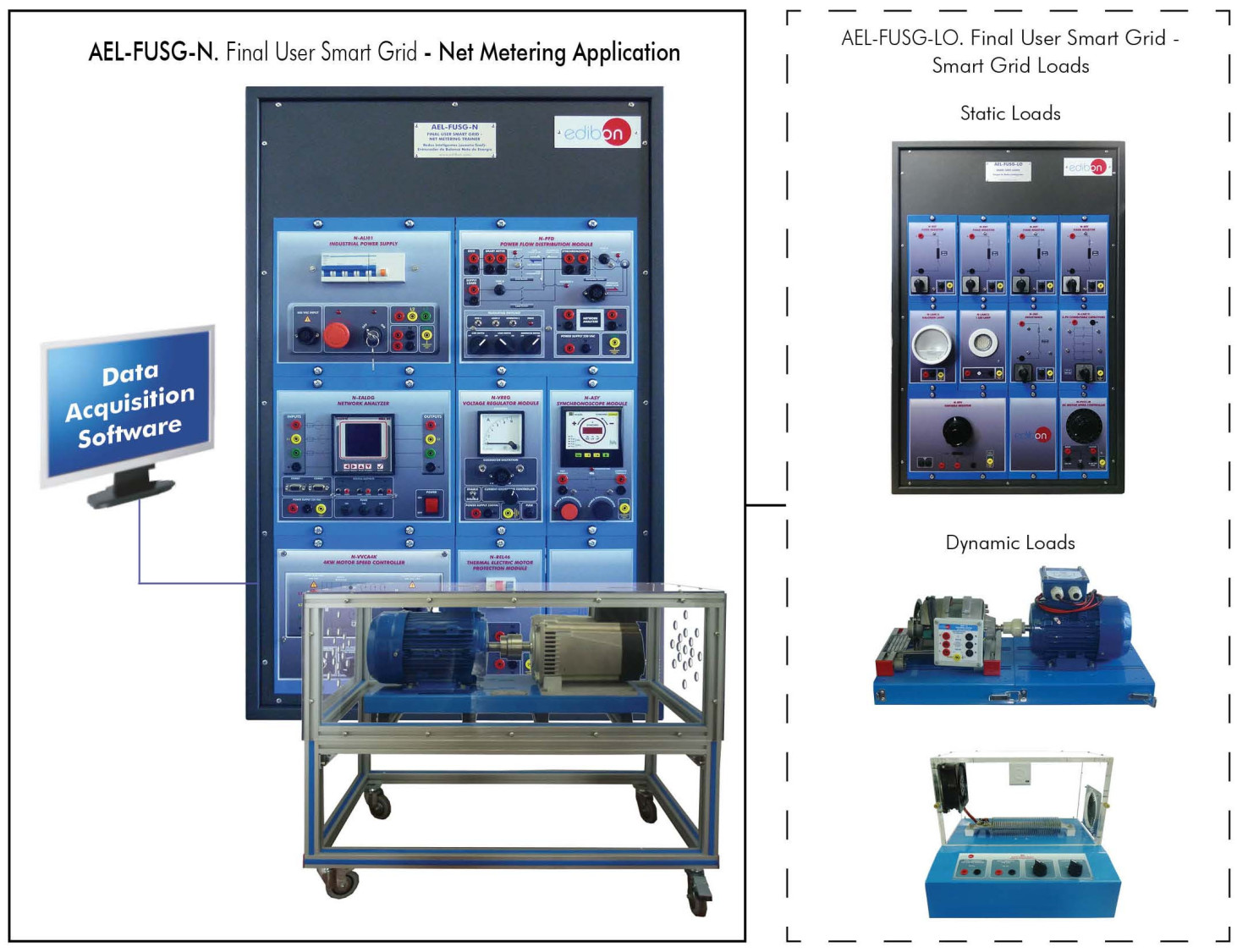

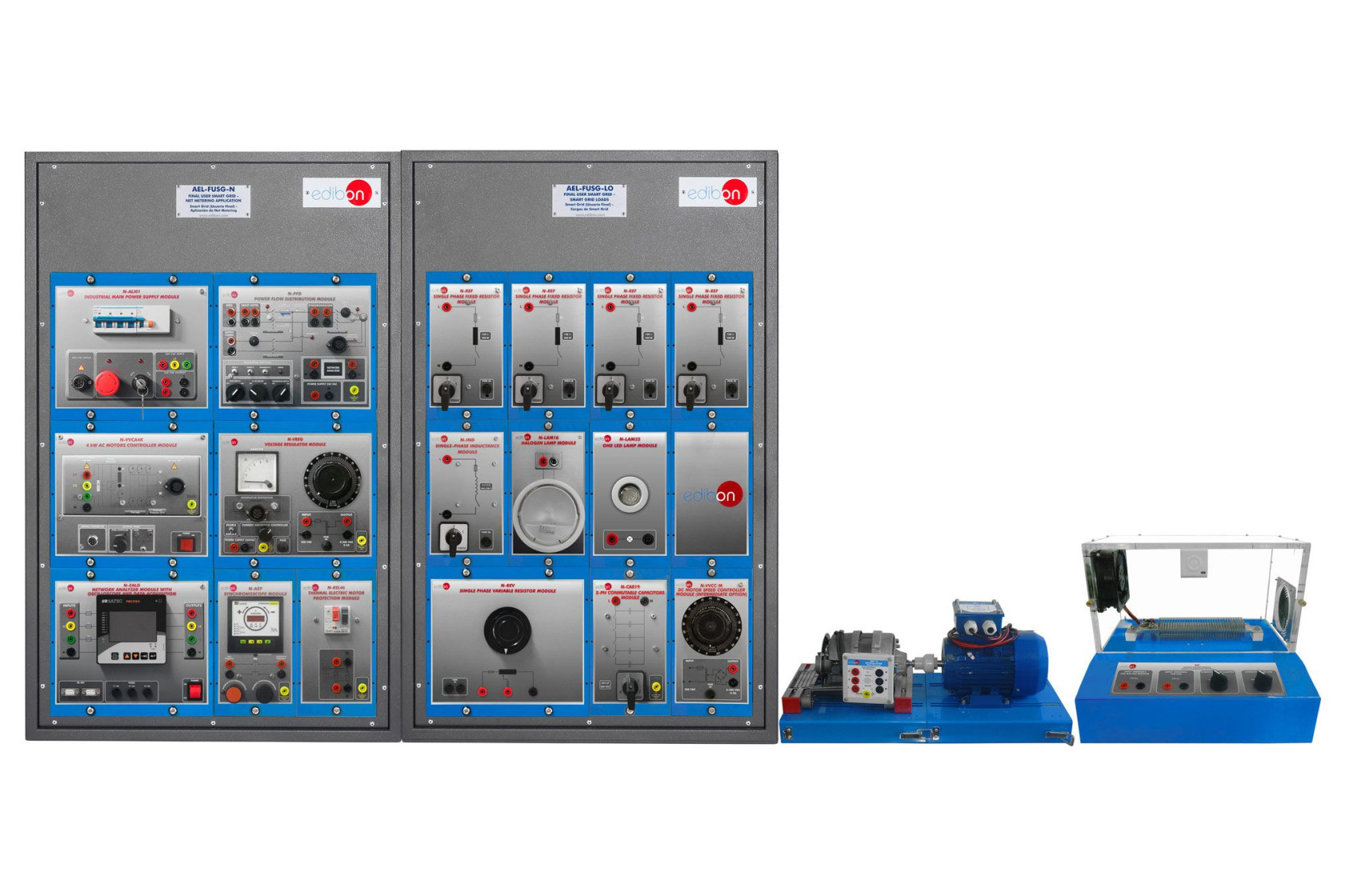

The AEL-FUSG-N is a trainer that reflects actual operations about Net-Metering, auto-consumption and electricity selling. For that purpose, this trainer has a synchronous generator that simulates a wind turbine.

The wind turbine will be controlled with a voltage regulator and a prime motor (wind speed). With the voltage regulator the user will control the generation voltage. The prime motor will be controlled through a frequency controller, so the user will control the speed of the generator (generation frequency) and the active power generated.

Besides, a synchronoscope is included to synchronize the generator and the grid. This device lets user to study different actual operations: Net-Metering, Auto-consumption, isolated grid mode, parallel operation mode, etc.

Finally, a network analyzer is included to take readings in different important points. This module let us to measure energy demanded by the loads, energy supplied by the grid, energy supplied by the generator and energy injected by the generator in the grid and the loads. All this maneuvers can be done in real time with the main module, the N-PFD (Power Distribution Module).

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Synchronization operations of the generator.
  2. Real time monitoring of local consumptions with induction, resistor or capacitive loads.
  3. Simulation of renewable energy generation through GeneratorMotor Group.
  4. Measurement of the energy generated by the Generator-Motor Group.
  5. Net Metering. Measuring the energy consumed and the energy injected to the grid and, finally, measuring the positive or negative energy balance.
  6. Measuring of the energy consumption by the loads without generator.
  7. Measuring the energy consumption by the loads with the generator and the grid controlling the power flows from the generator.
  8. Net-Metering operations: selling energy to the grid.

Additional practical possibilities:

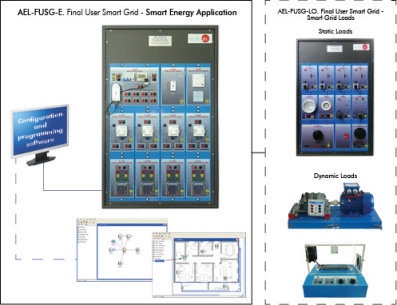

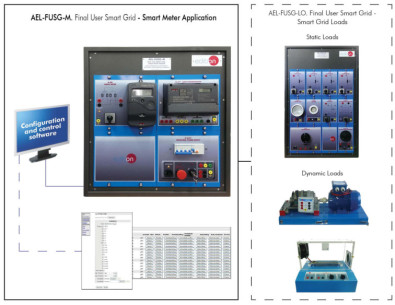

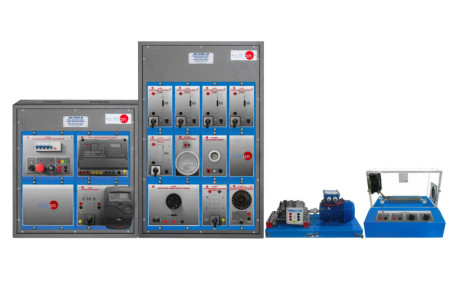

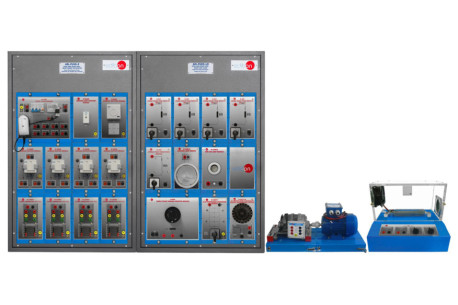

If the user acquires the AEL-FUSG-M. Final User Smart Grid - Smart Meter Trainer and AEL-FUSG-E. Final User Smart Grid - Smart Energy Trainer, then he can perform, among many others, the following practical exercises:

  1. Measurement of energy consumption at home or by an industrial consumer and comparison of this measurement with the utility´s register (smart meter).
  2. Remote scheduling of Smart devices (Smart plug, Smart relays, thermostat, different sensors, etc.) according to the tariff proposed by the utilities.
  3. Development of switching schemes through the management platform for appliances connected to the smart plugs, smart relays or the thermostat.
  4. Scheduling the energy consumption for optimal periods of sunlight.
