EM-SCADA Software de Sistema de Controle e Aquisição de Dados de Máquinas Elétricas

4.3.2.2.- MOTORES E GERADORES ELÉTRICOS DE CC
CONTROL AND DATA ACQUISITION SYSTEM SOFTWARE FOR ELECTRICAL MACHINES - EM-SCADA

SISTEMAS INOVADORES

The Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA", has been developed by EDIBON to study and analyze the performance of rotating and static electrical machines such as three-phase and single-phase AC motors, synchronous generators, DC motor-generators or three-phase and single phase transformers.

Ver descrição geral

Expansões

ESN

EDIBON Scada-Net

NOTÍCIAS RELACIONADAS

Setting up at Vocational Education Competence Center Riga Technical College RTK
Setting up at Vocational Education Competence Center Riga Technical College RTK
The entire Edibon team is grateful after having supplied a total of 15 units to the Vocational Education Competence Center Riga Technical College RTK (Latvia). Some of the equipment installed are AEL-ACINA, AEL-ACWRA, AEL-AD5, FRECP, EM-SCADA or PAN-PLC-K1, among others. We look forward to...
Ler mais
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

The Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA", has been developed by EDIBON to study and analyze the performance of rotating and static electrical machines such as three-phase and single-phase AC motors, synchronous generators, DC motor-generators or three-phase and single phase transformers.

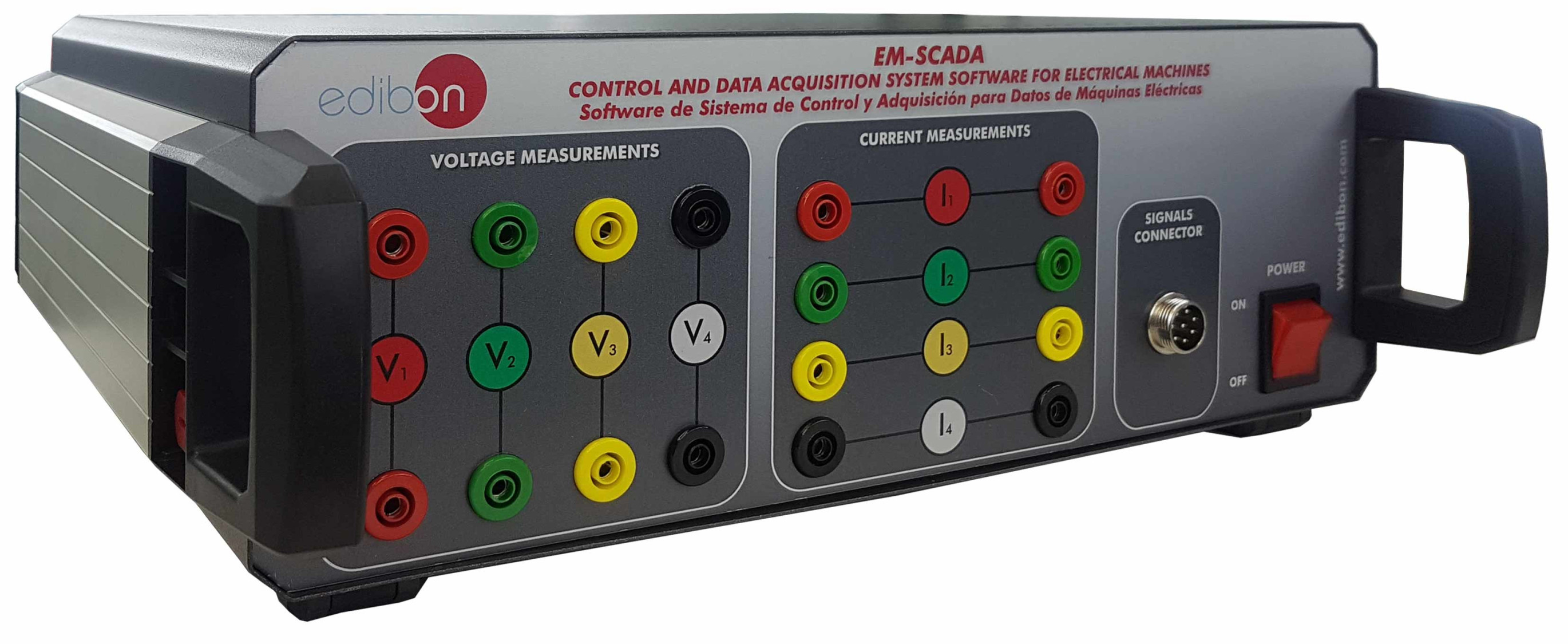

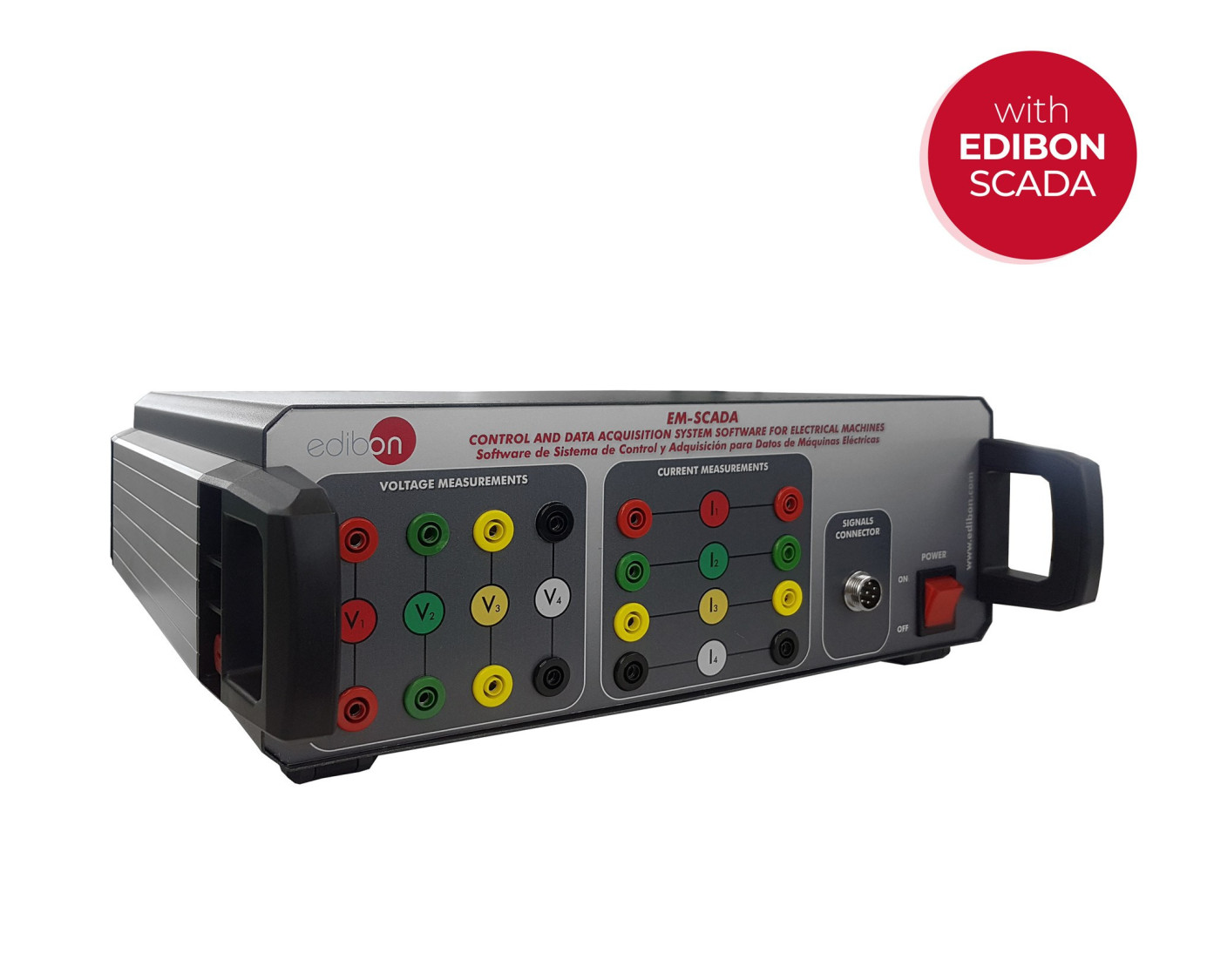

The "EM-SCADA" is designed to work with both rotating electrical machines and transformers. For this purpose, this system has an interface for the data acquisition of all control and power signals, which are acquired and analyzed with the SCADA System afterwards.

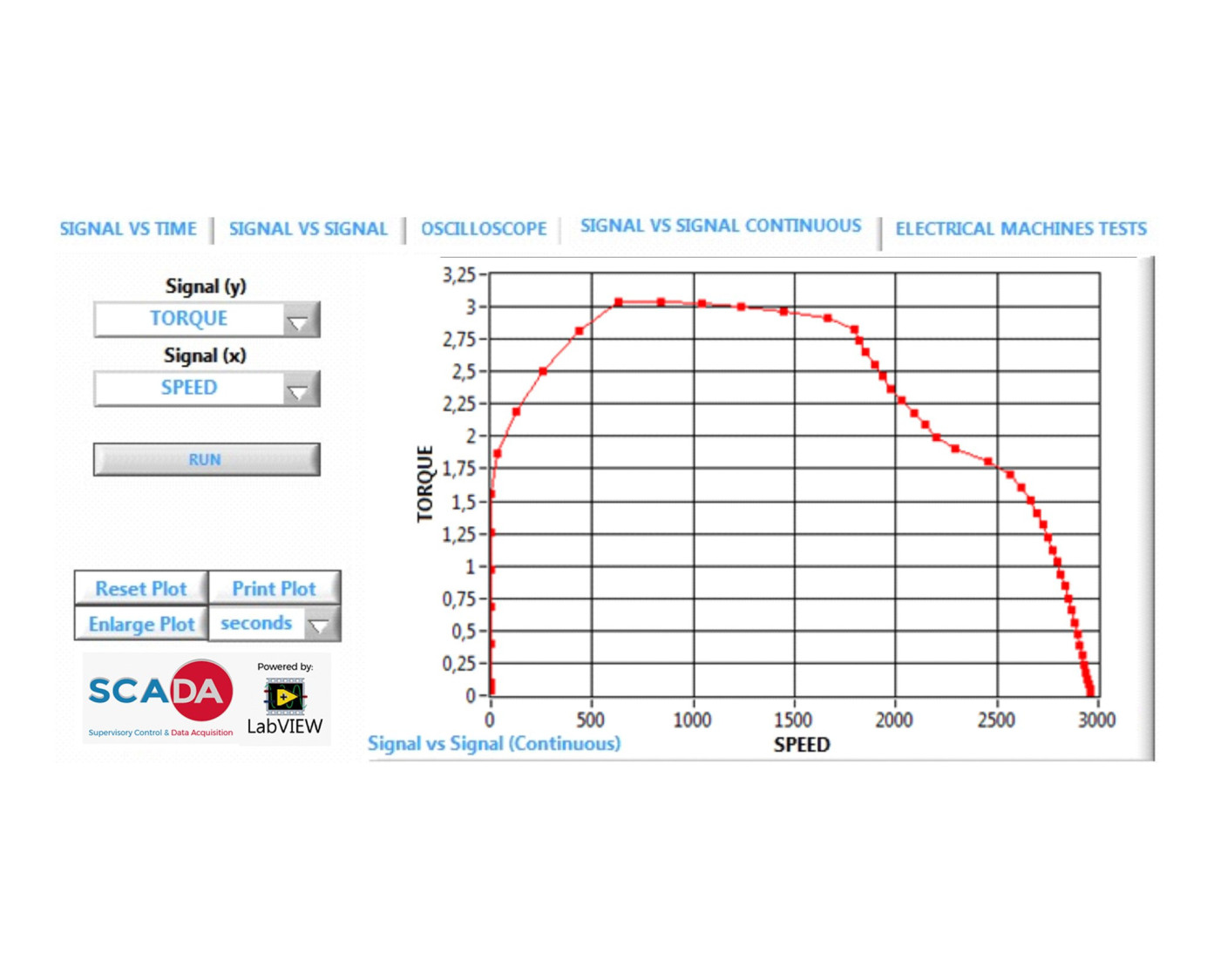

In the case of rotating machines, the interface has the corresponding connections to control a servomotor that is coupled to the motor´s shaft to be tested. The included SCADA Software has several algorithms, which allow the user to transfer different load profiles to test electric motors under different load conditions. In this way, it can be simulated different load profiles with lineal, constant or exponential slope. During the motor testing procedure with the servomotor working as load, electrical and mechanical parameters are monitored in real time (currents, voltages, power, torque, speed, etc.) to obtain the corresponding results ( torque vs speed curve, performance etc.).

In order to carry out transformers testing, the interface has the properly connections to fulfill the electrical parameters measurement when undergoing unloaded and short-circuit test. The results are stored for further analysis with the SCADA System.

The EM-SCADA includes the following elements:

  • Control Interface Box.
  • Data acquisition board.

This Software is supplied with the EDIBON Computer Control System (SCADA), and includes: The software itself + a Control Interface Box + a Data Acquisition Board + Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Exercises for DC/AC motors:

  1. Analysis of starting currents and voltages of the rotating machines.
  2. Analysis of mechanical parameters (torque and speed) of the rotating machines.
  3. Comparison of starting and operating parameters between different motors.
  4. Obtaining monitored parameters in terms of different types of graphs such as signal vs signal or signal vs time.
  5. Real time display of the torque waveform.
  6. Real time display of the speed waveform.
  7. Real time display of the current and voltage waveforms.
  8. Electrodynamic study of different rotating machines.
  9. Manual and automatic braking test and real time monitoring of the results.
  10. Obtaining the characteristic curves for different motors (torque-speed curve, torque-current curve).
  11. Storage, display and comparison of the fulfilled test.

Exercises for single-phase and three-phase transformers:

  1. Three-Phase transformer short-circuit test.
  2. Three-phase transformer unloaded test.
  3. Single-Phase transformer short-circuit test.
  4. Single-Phase transformer unloaded test.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the EM-SCADA unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the EM-SCADA unit process.
  9. Several other exercises can be done and designed by the user.
