FME32 Tubo de Pitot Estático

8.1.2.- MEDIÇÃO

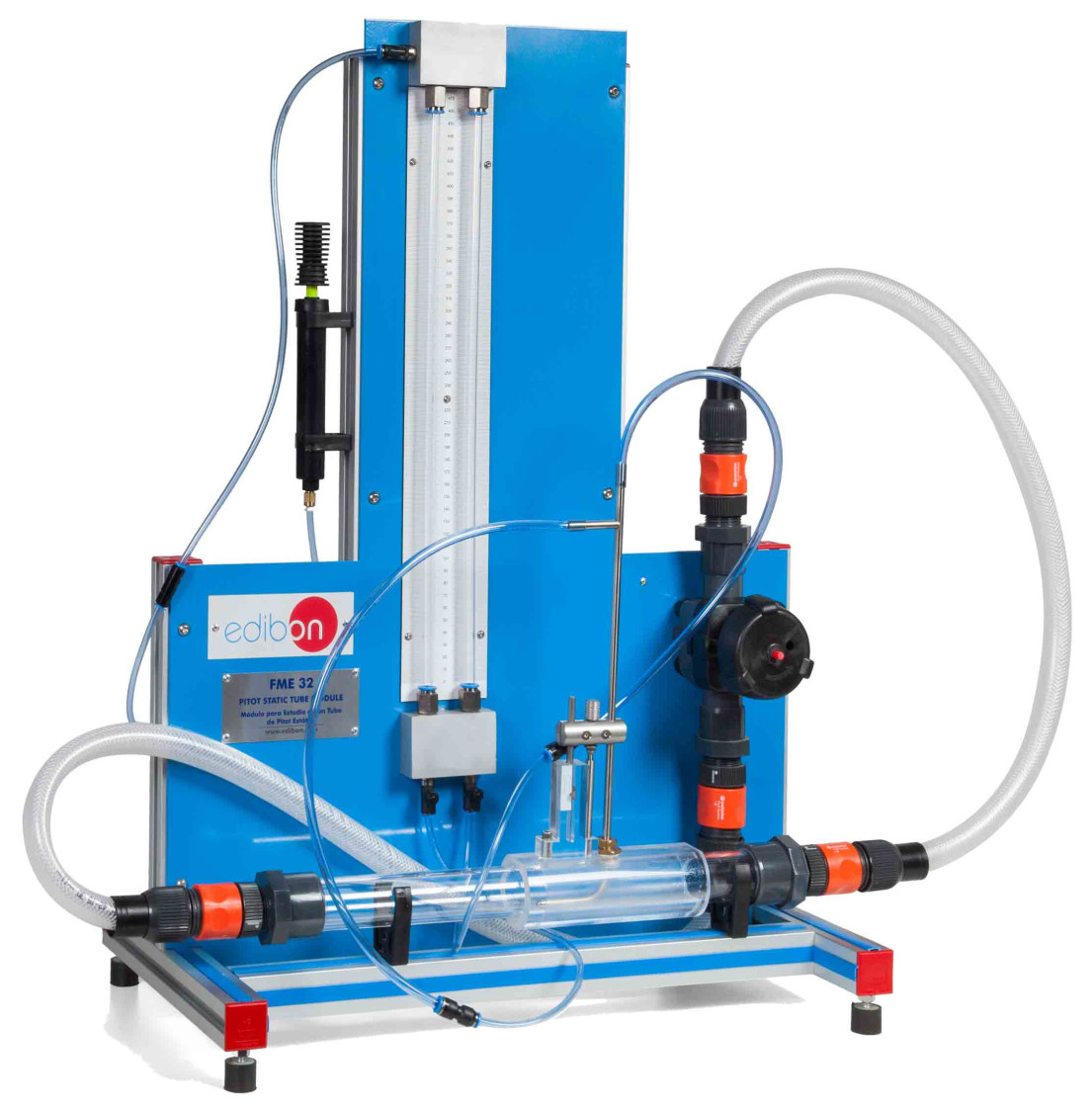

Complete FME32 Unit

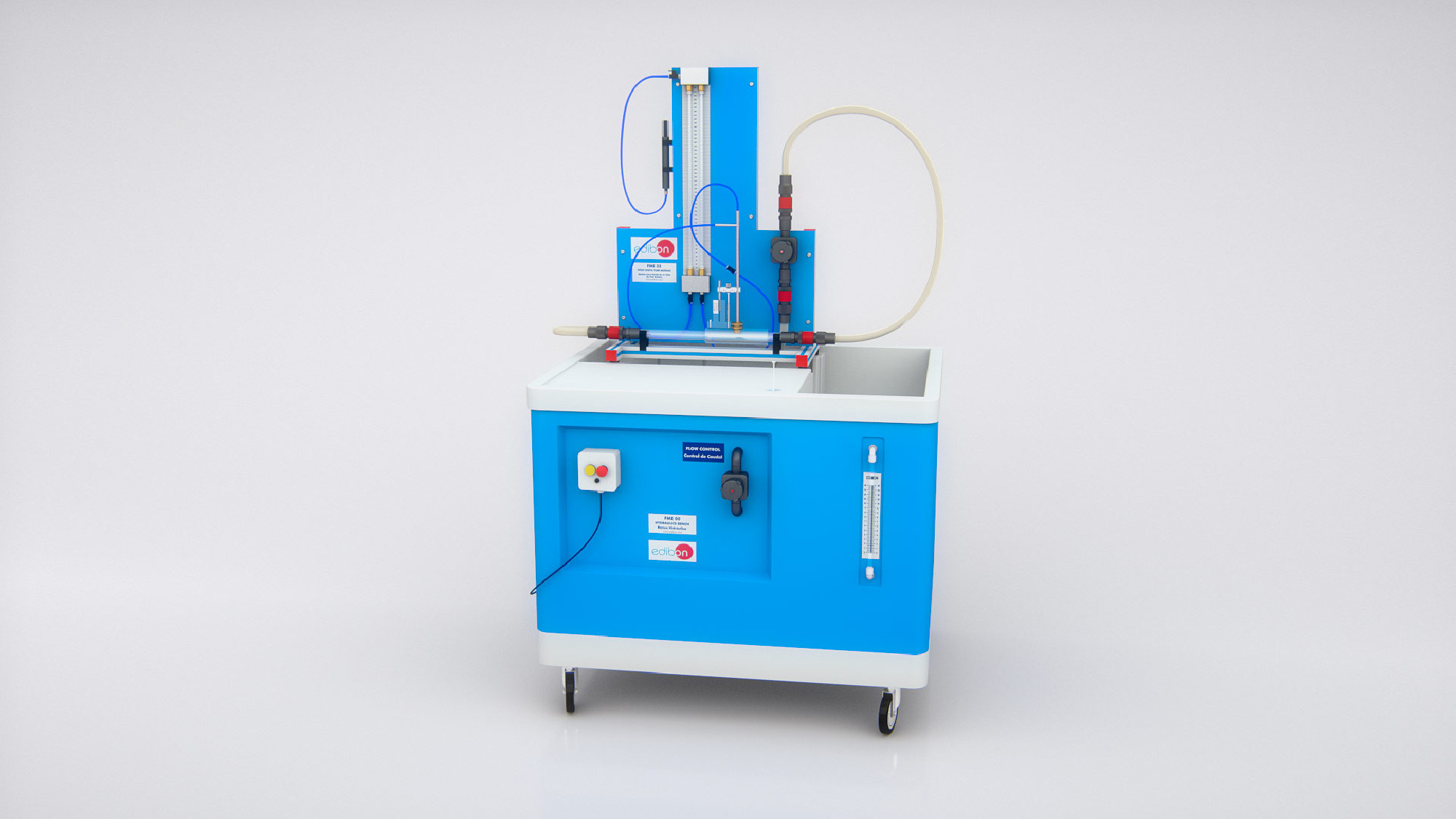

FME32 Unit with service unit FME00

SISTEMAS INOVADORES

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV

Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional

8HE

Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

Ler mais

Basic Fluids Mechanics Integrated Laboratory

With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to respond, in a simple and practical way, to the academic demand of teaching and learning the basis of Fluid Mechanics. The students carry out experiments that show them the laws of Hydraulics, and from where they acquire...

Ler mais

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

Ler mais

Descrição Geral

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.

This tube is connected to manometers via hoses.

The position of the measuring head relative to the bottom edge of the tube can be measured on a scale.

The water supply can come from the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Study of the function of a pitot static tube.
To use a pitot static tube.
Determination of tube flow speed profiles.
Demonstration that the flow speed is proportional to the pressure difference between the total pressure and the static pressure.
Error determination in flow measurements using the Pitot tube as measurement instrument.
Factor Cd determination in the Pitot tube.

ELEMENTOS NECESSÁRIOS

EQUIPAMENTOS COMPLEMENTARES

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA
