FME27 Turbina de Fluxo Axial

8.1.7.- MÁQUINAS HIDRÁULICAS: TURBINAS
AXIAL FLOW TURBINE - FME27

Complete FME27 Unit

AXIAL FLOW TURBINE - FME27

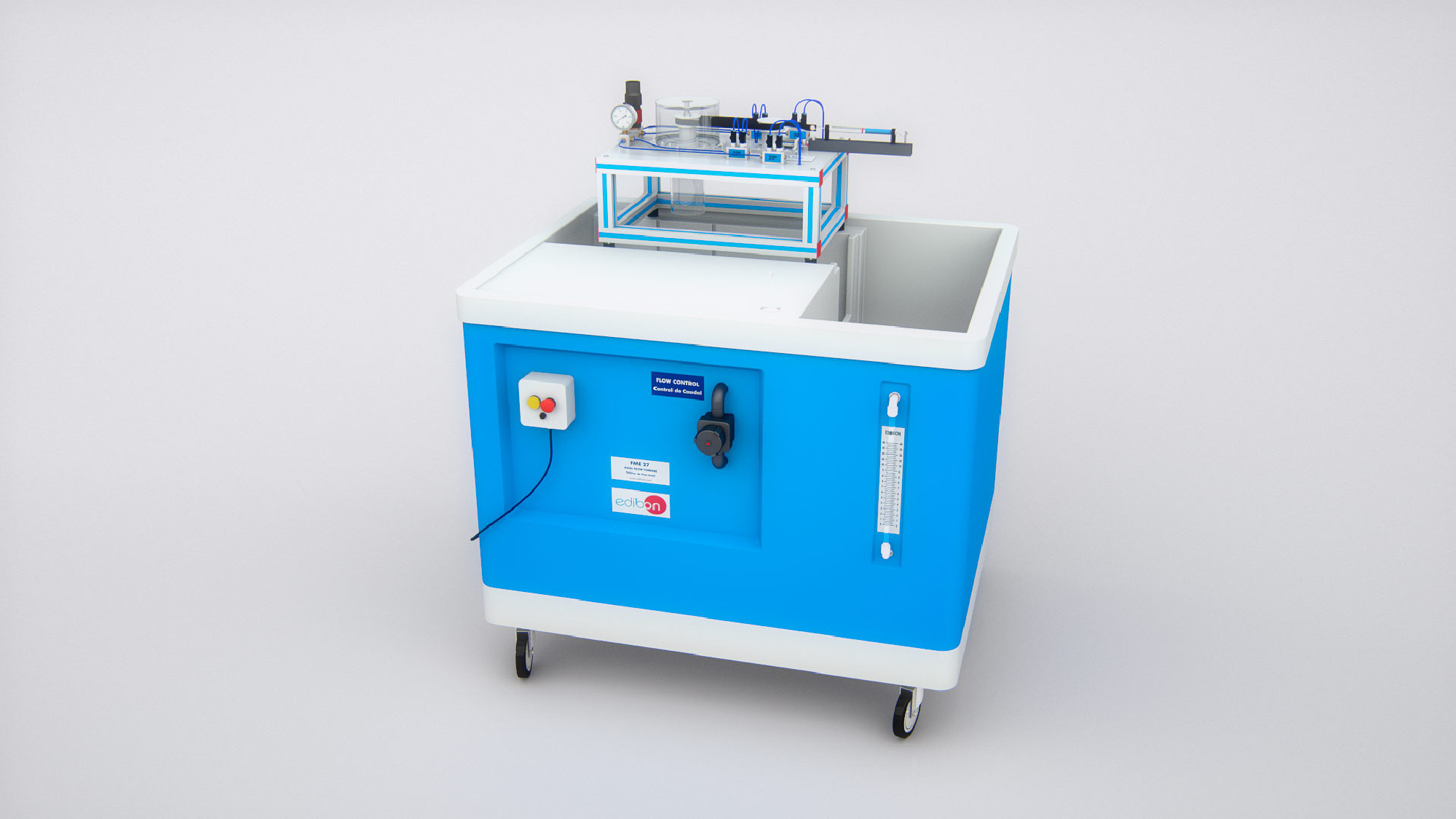

FME27 Unit with service unit FME00

AXIAL FLOW TURBINE - FME27
AXIAL FLOW TURBINE - FME27

SISTEMAS INOVADORES

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

This unit consists of an axial turbine in miniature with eight inclined nozzles at 20° and 30° degrees with respect to the perpendicular direction at the rotating axis.

The pallets of the turbine runner are clearly visible through the transparent tank.

A band brake connected to one load cell varying the load given to the turbine by means of a connection device.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Flow calculation.
  2. Determination of the discharge coefficient of the nozzle.
  3. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (20° nozzle).
  4. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (30° nozzle).
  5. Adimensional analysis.

ELEMENTOS NECESSÁRIOS

EQUIPAMENTOS SIMILARES DISPONÍVEIS

COMPUTER CONTROLLED AXIAL FLOW TURBINE - TFAC
  • TFAC
Available
5.3.6.- ENERGIA HIDRÁULICA
TFAC
Turbina de Fluxo Axial, Controlada por Computador (PC)
The Computer Controlled Axial Flow Turbine, "TFAC", consists of a small-scale turbine with single-stage axial flow input. It has eight nozzles that act as water rings to the rotor, four of which have an incidence angle of 20º and the other four of...
