TFRC Turbina de Fluxo Radial, Controlada por Computador (PC)

5.3.6.- ENERGIA HIDRÁULICA 8.7.3.- TURBINAS
COMPUTER CONTROLLED RADIAL FLOW TURBINE - TFRC

SISTEMAS INOVADORES

The Computer Controlled Radial Flow Turbine, "TFRC", designed by EDIBON, consists of a radial turbine with two nozzles at 90 degrees with respect to the perpendicular direction of the shaft, which allows fundamental tests for the study of the parameters and characteristic curves of a radial flow turbine.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Set up at Universidad de Huelva (Spain)
Set up at Universidad de Huelva (Spain)
Glad to announce one of our latest set-ups at Universidad de Huelva, with a complete installation for the Agroforestry Science department's students and researchers, including AFTC, QRCC, TFRC or MCEN, among others. We are proud to contribute in the technical preparation of future agroforestry...
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

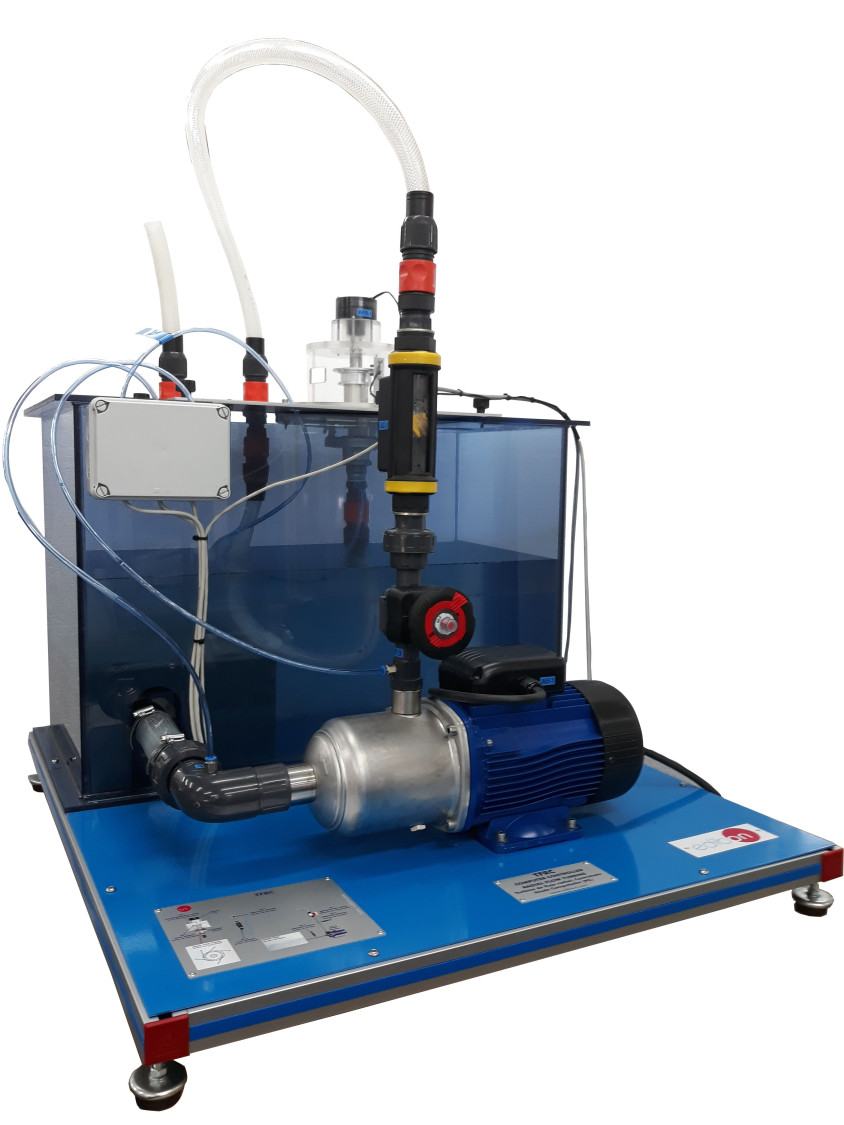

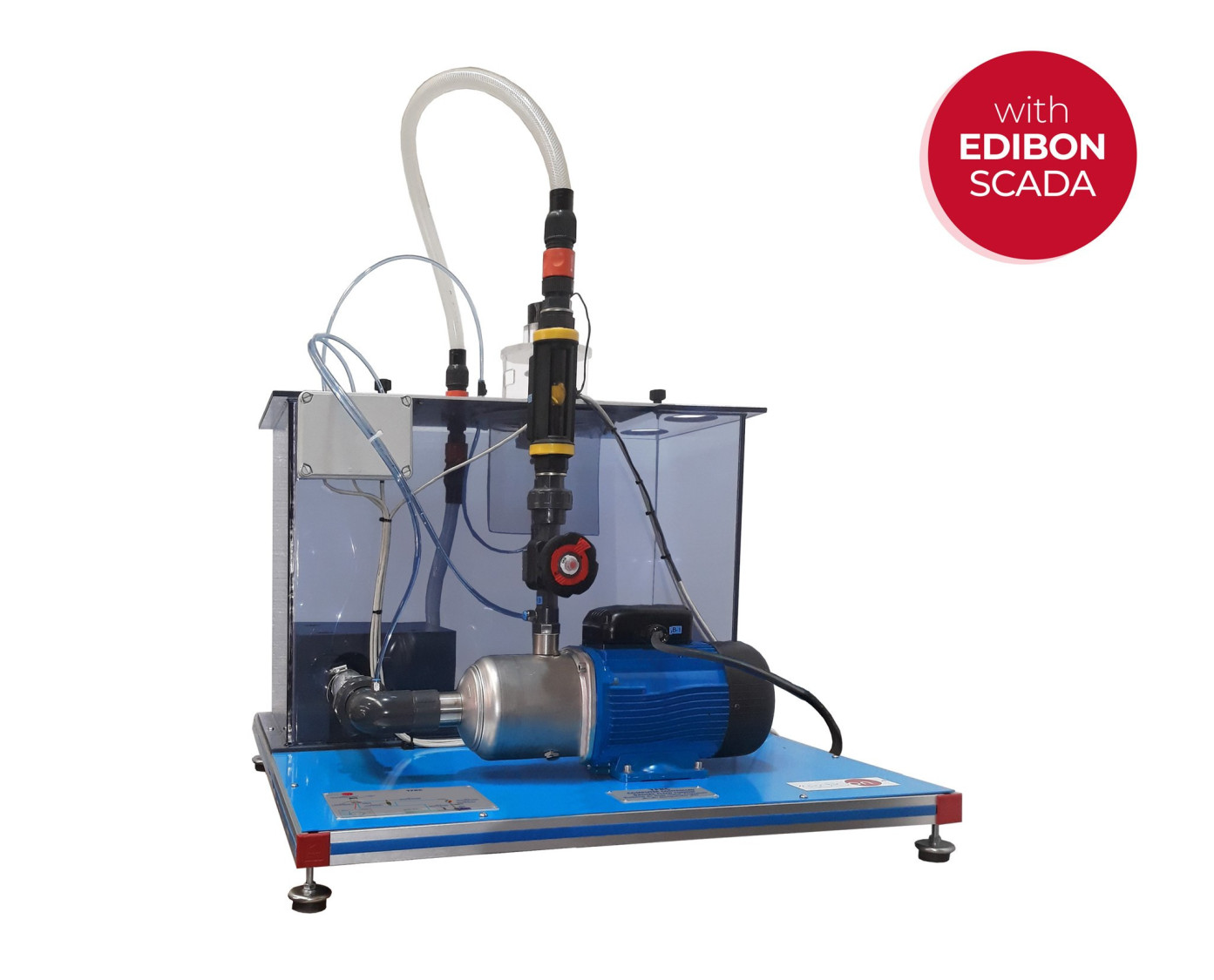

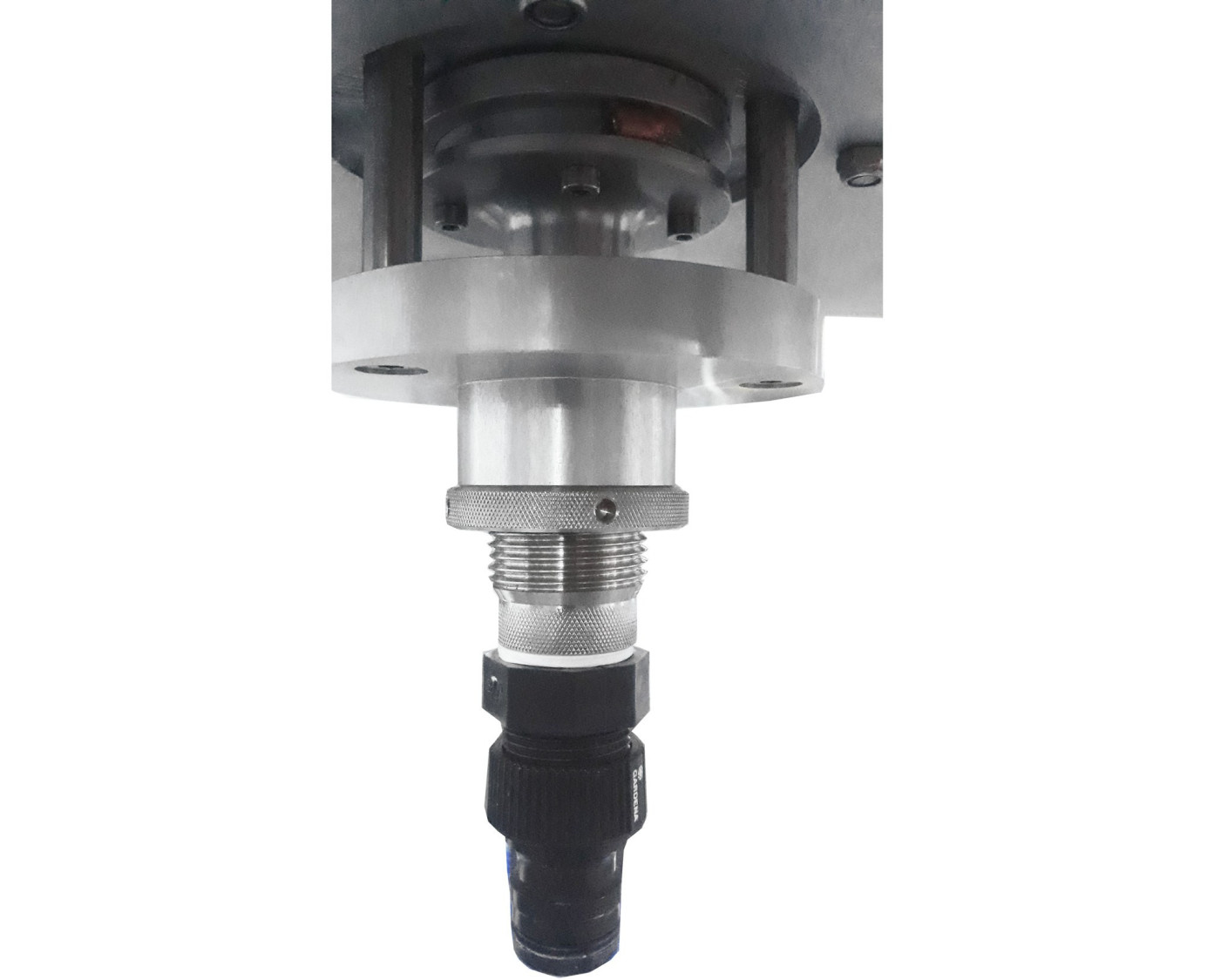

The Computer Controlled Radial Flow Turbine, "TFRC", consists of a small-scale radial flow turbine with two nozzles at 90 degrees to the perpendicular direction of the axis of rotation.

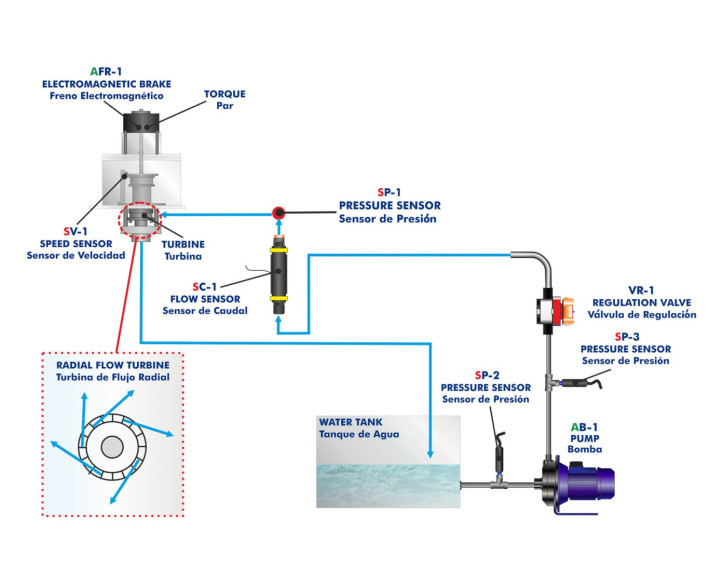

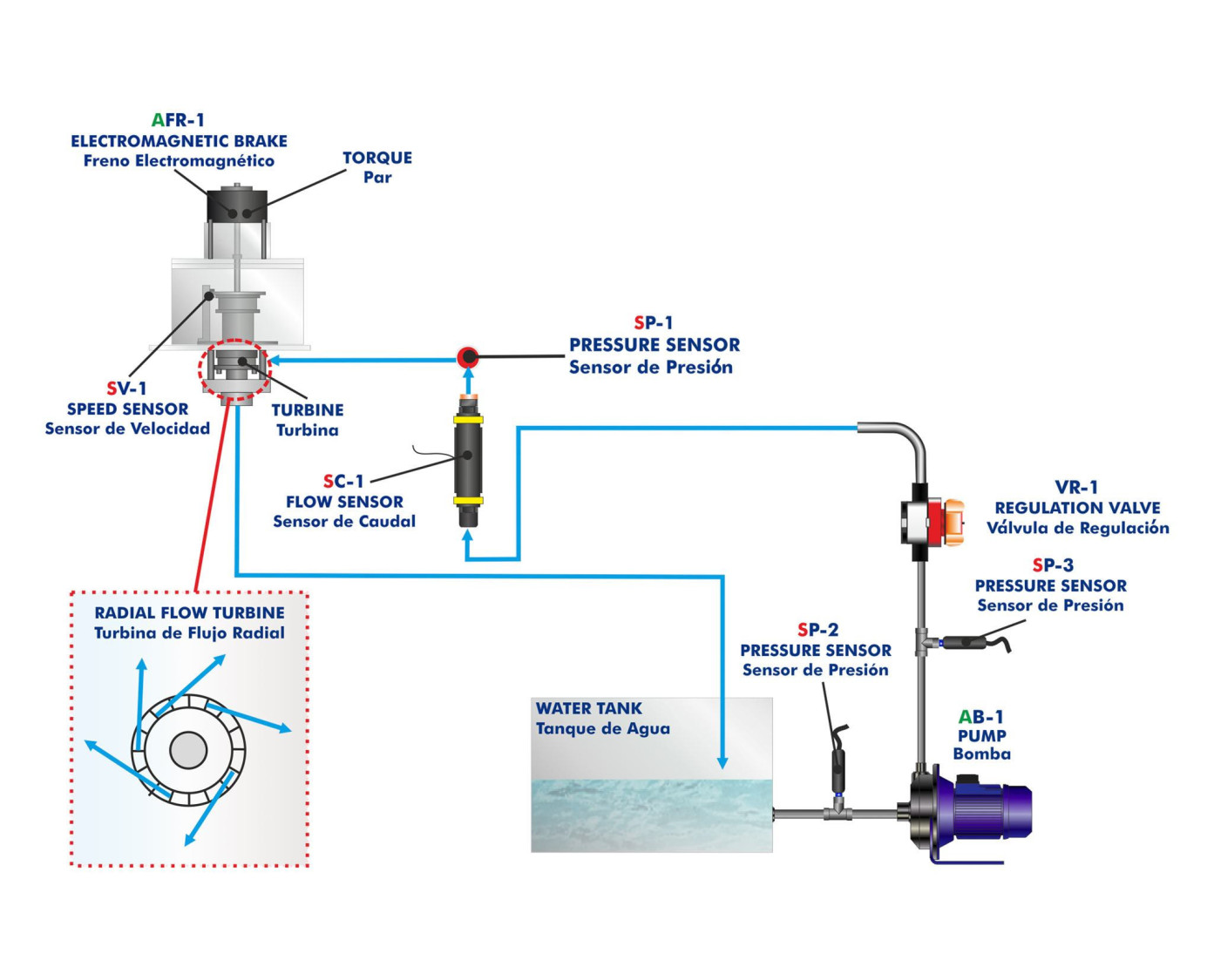

In order to raise the fluid, it has a computer controlled pump that enables the impelled flow to pass through the turbine, in which part of its energy is left, causing the turbine to turn, overcoming the external resistance caused by an electromagnetic brake. This computer controlled brake makes it possible to vary the braking load on the turbine.

In addition, the unit is equipped with a pressure sensor placed at the turbine water inlet which measures the inlet pressure a flow sensor to measure the turbine water inlet flow an optical sensor which determines the speed of the turbine shaft and has two pressure sensors at the pump inlet and outlet, in order to obtain its characteristic curve.

The pump-turbine group has a tank and a pipes system which allow to work constantly with recirculated fluid to avoid the indiscriminate water consumption.

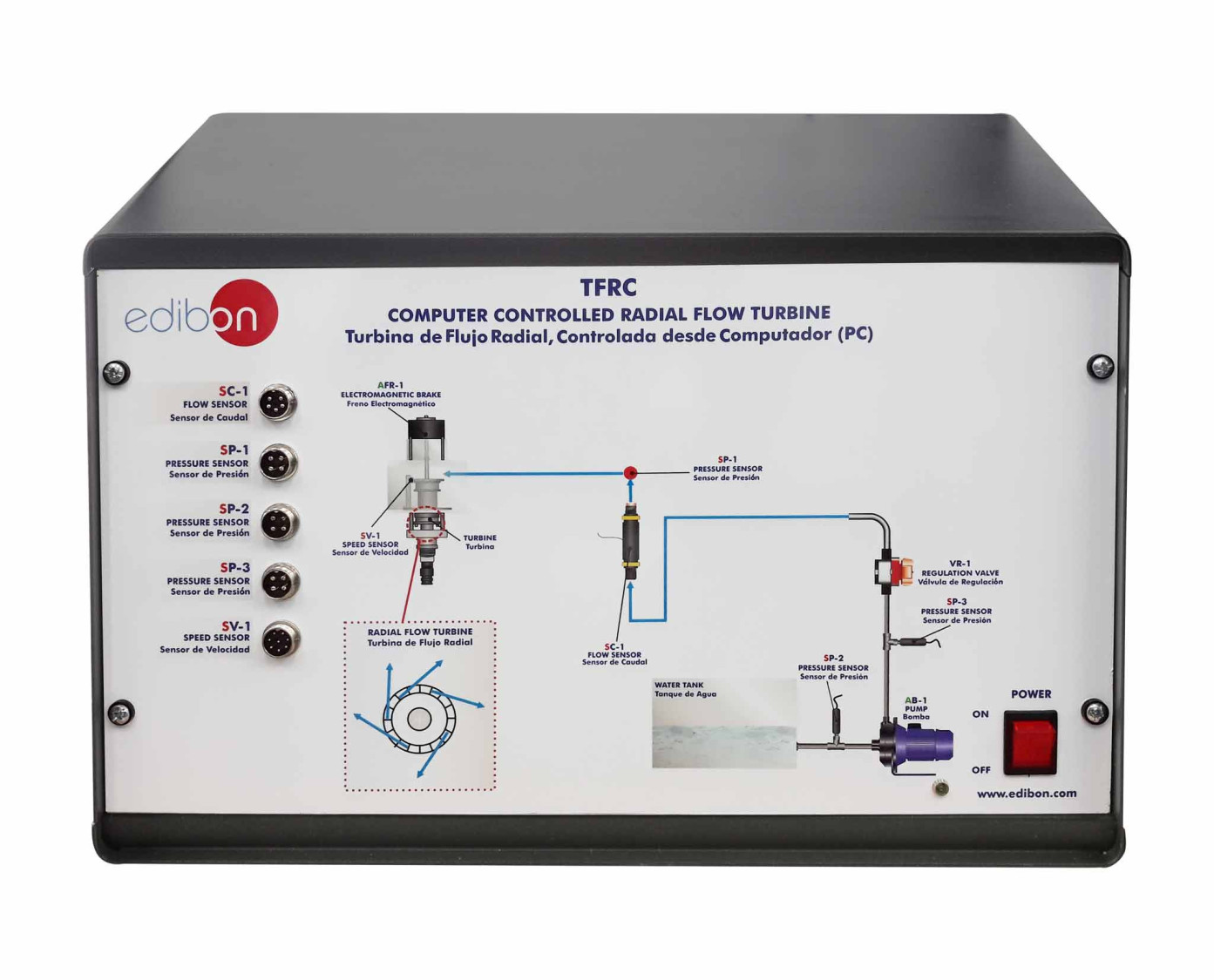

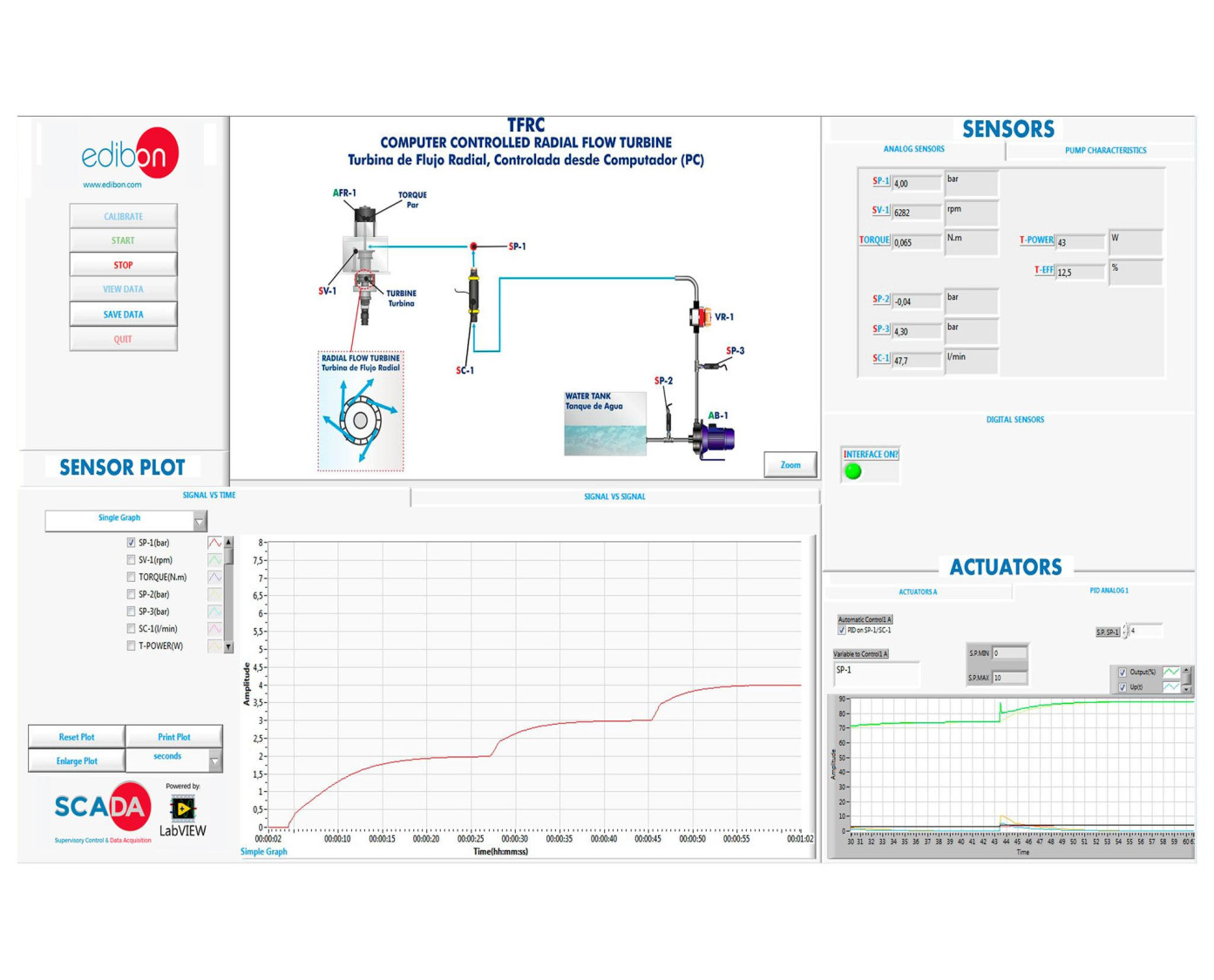

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. To determine the operating characteristics of a radial flow turbine at different speeds.
  2. Investigation of the conversion of hydraulic energy into mechanical energy.
  3. Determination of the characteristic curves of a turbine: Power M (n, Ha), Torque Nm (n, Ha), efficiency h (n, Ha).
  4. Determination of the characteristic curve of a hydraulic pump.
  5. Determination of the height of a hydraulic turbine.
  6. Adimensional analysis.
  7. Calibration of sensors.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TFRC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TFRC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
