PELTON TURBINE - FME16

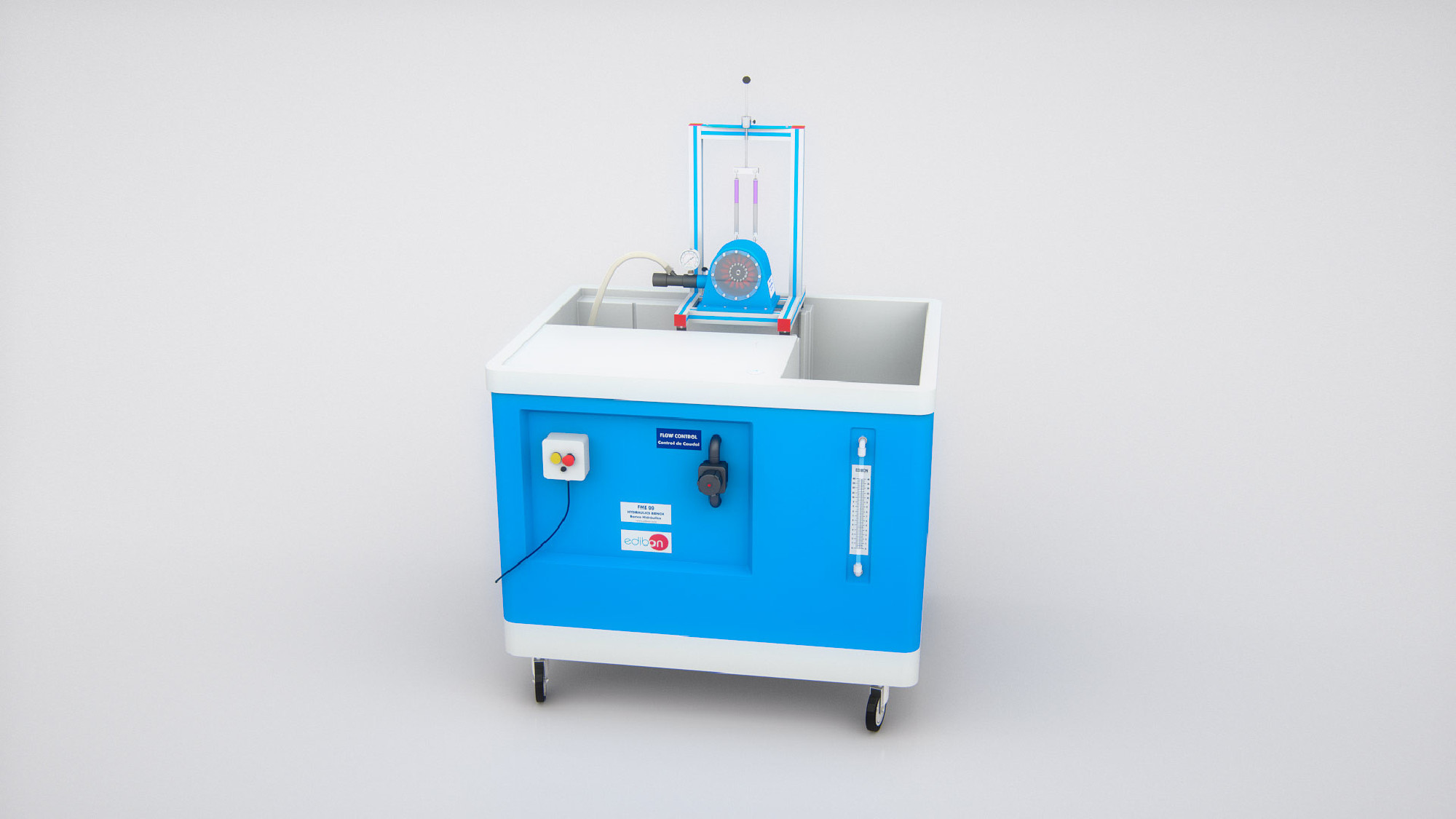

Complete FME16 Unit

PELTON TURBINE - FME16

FME16 Unit with service unit FME00

PELTON TURBINE - FME16
PELTON TURBINE - FME16

SISTEMAS INOVADORES

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

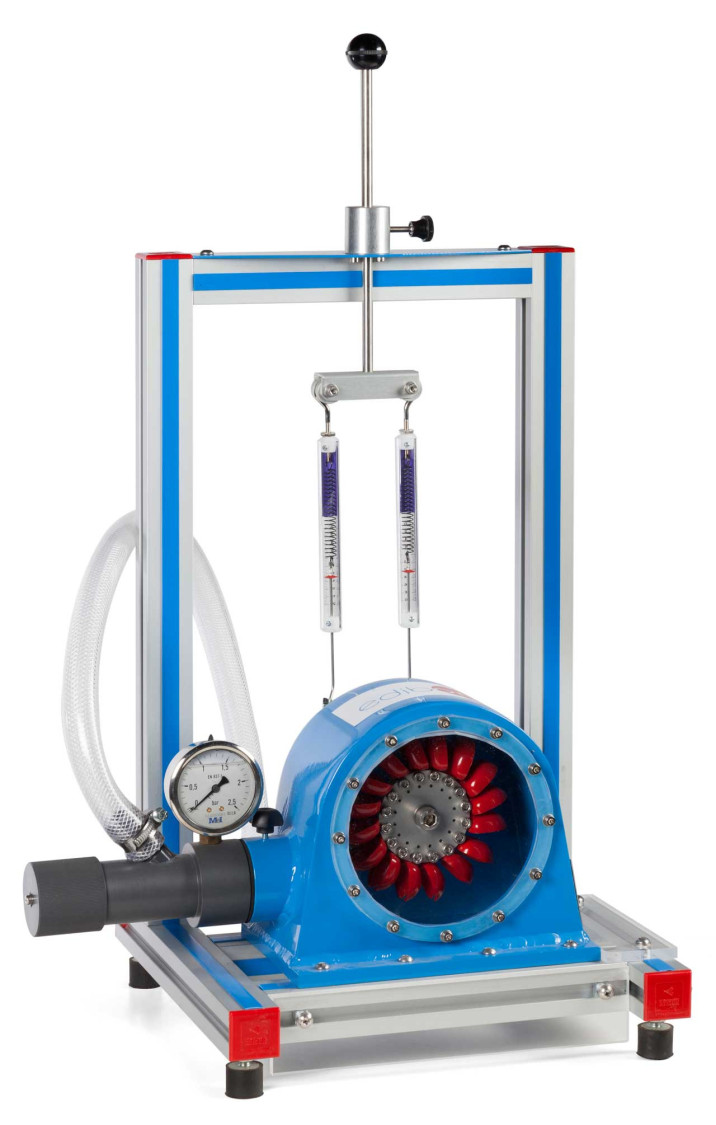

This unit comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

The Pelton’s Turbine runner is clearly visible through the transparent cover of the turbine.

A manometer placed at the inlet of the turbine enables to measure the inlet pressure at that point (water discharge pressure).

A band brake, connected to two dynamometers allows varying the load supplied to the turbine by means of a connection device.

The turbine axis velocity is determined by an optic tachometer.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the operative characteristics of the Pelton Turbine.
  2. Determination of the operation mechanical curves.
  3. Determination of the operation hydraulic curves.
  4. Adimensionalization.

ELEMENTOS NECESSÁRIOS

EQUIPAMENTOS SIMILARES DISPONÍVEIS

COMPUTER CONTROLLED PELTON TURBINE - TPC
  • TPC
Available
5.3.6.- ENERGIA HIDRÁULICA
TPC
Turbina Pelton, Controlada por Computador (PC)
The Computer Controlled Pelton Turbine, "TPC", designed by EDIBON, consists of a small-scale Pelton turbine, with a valve that allows the flow to be regulated. The turbine includes a PELTON runner with 16 buckets, which can be clearly seen through...
