Descrição Geral

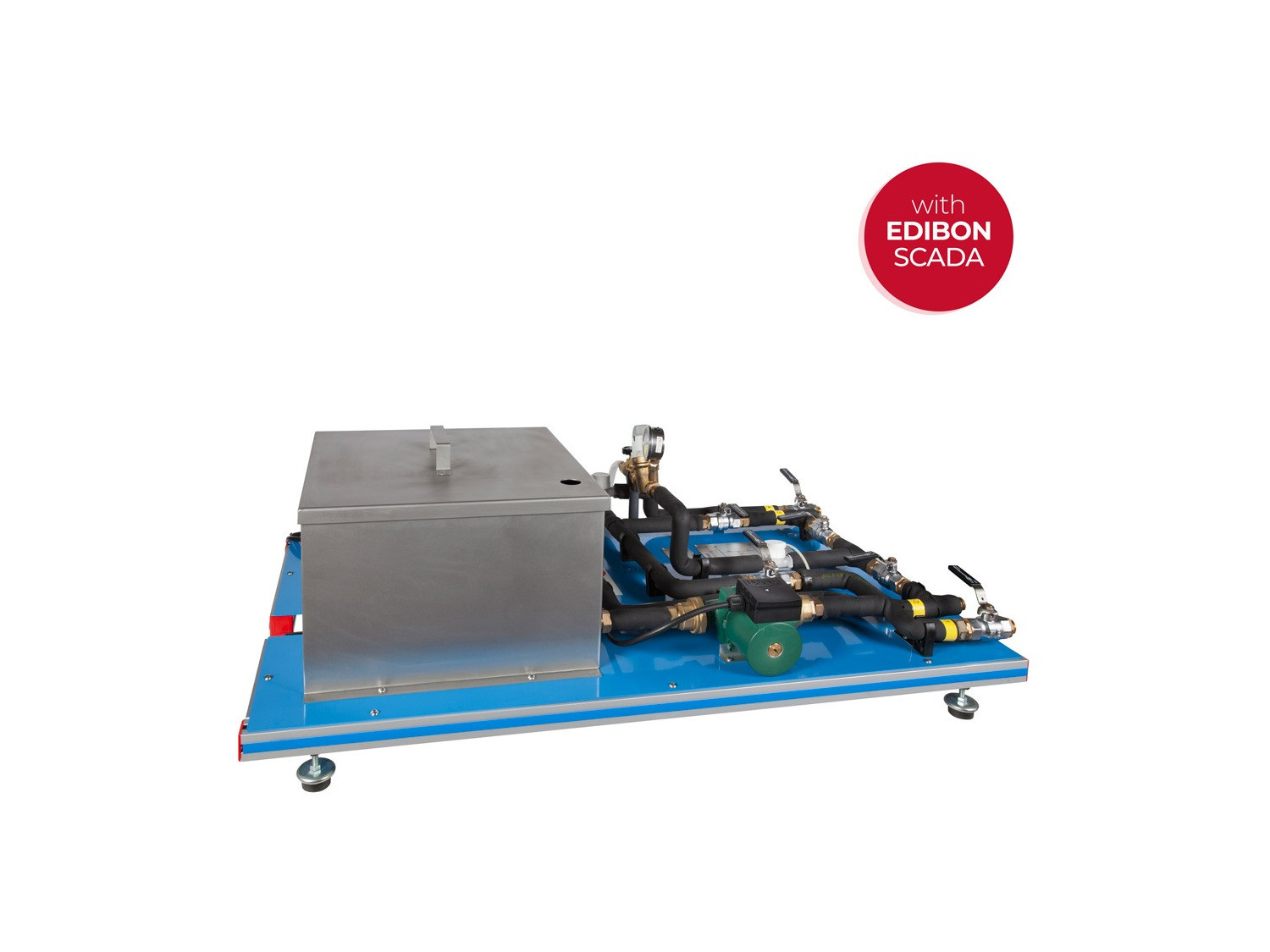

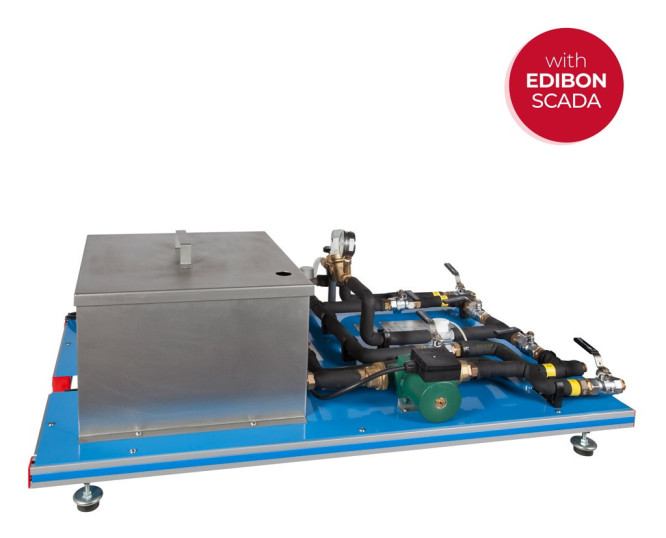

This unit is common for Heat Exchangers type "TI" and can work with one or several exchangers.

This unit performs the following tasks:

Heating water in a computer controlled thermostatic bath.Pumping the hot water.
Regulation and measurement of the cold water and hot water flows.
Measurement of the inlet and outlet temperatures of the cold water and the hot water.
Measurement of the pressure drop in the exchanger.
