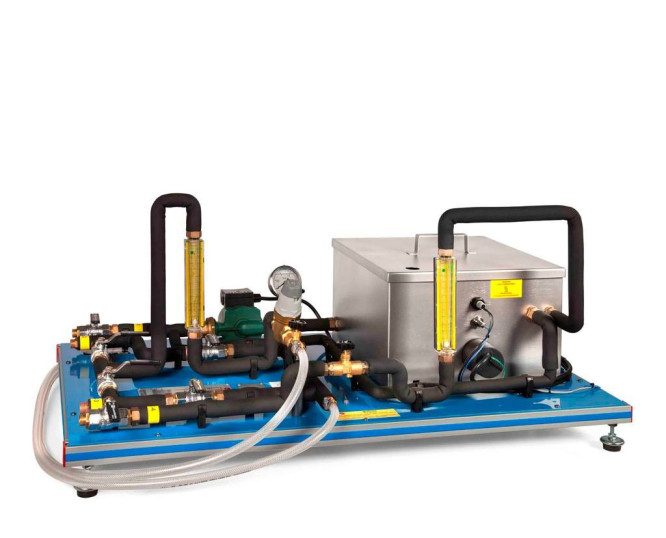

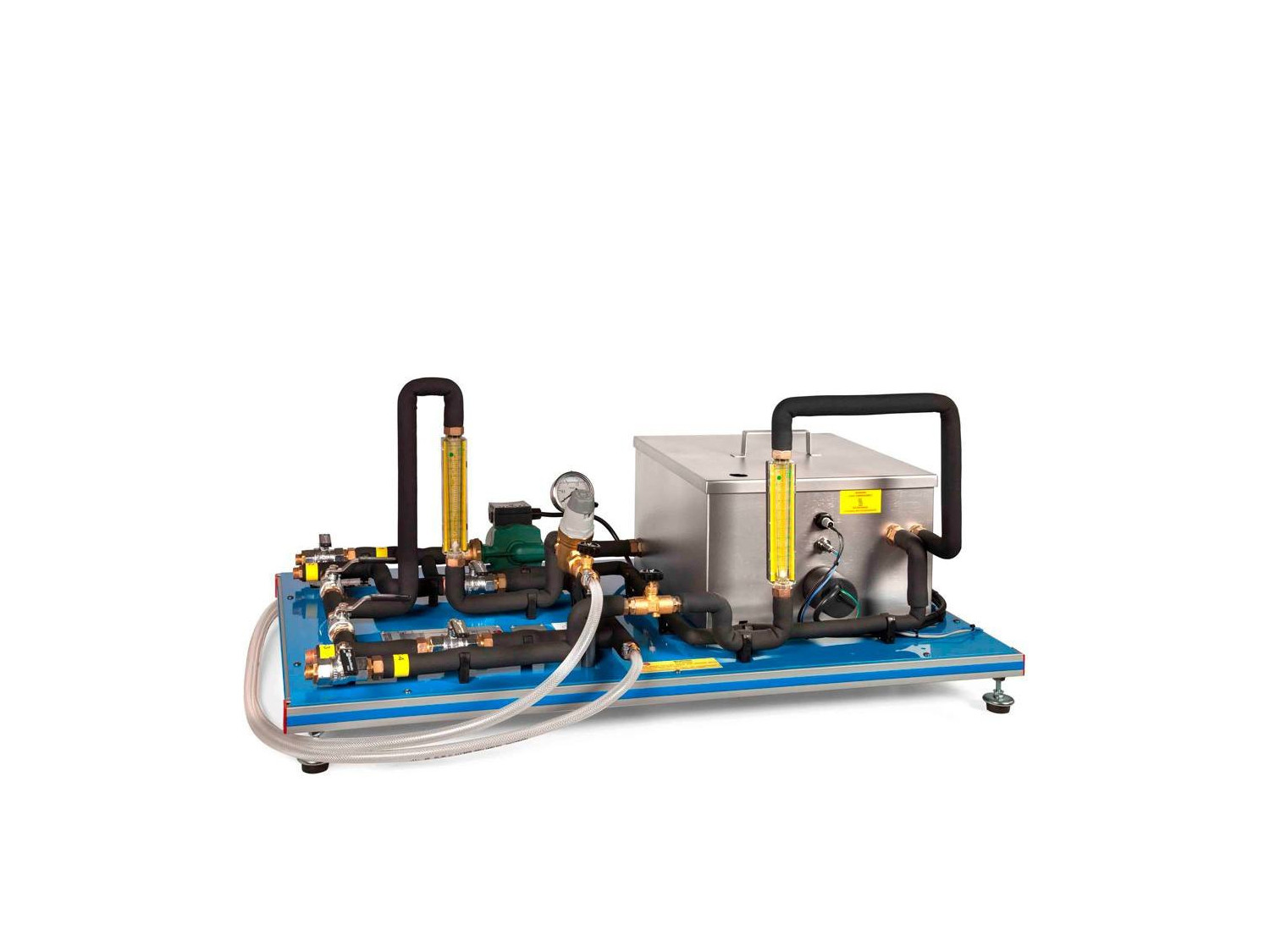

TIUSB Unidade Base e de Serviço (Comum para todos os Trocadores de Calor disponíveis tipo "TI..B")

9.7.- TROCADORES DE CALOR

BASE SERVICE UNIT (COMMON FOR ALL AVAILABLE HEAT EXCHANGERS TYPE "TI..B") - TIUSB

SISTEMAS INOVADORES

This unit is common for Heat Exchangers type "TI..B" and can work with one or several exchangers.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

The complete unit consists of two main elements: the base service unit and the required elements.

The Base Service Unit, "TIUSB", is common for the required elements (at least one) (Not included). Its functions are:

Heating water in a thermostatic bath.
Pumping the hot water.
Regulation and measurement of the cold water and hot water flows.
Measurement of the inlet and outlet temperatures of the cold water and the hot water.
Measurement of the pressure drop in the exchanger.
