AE-PLC-AB Устройство ПЛК типа Allen Bradley

6.2.1.- ОПЦИИ ПЛК

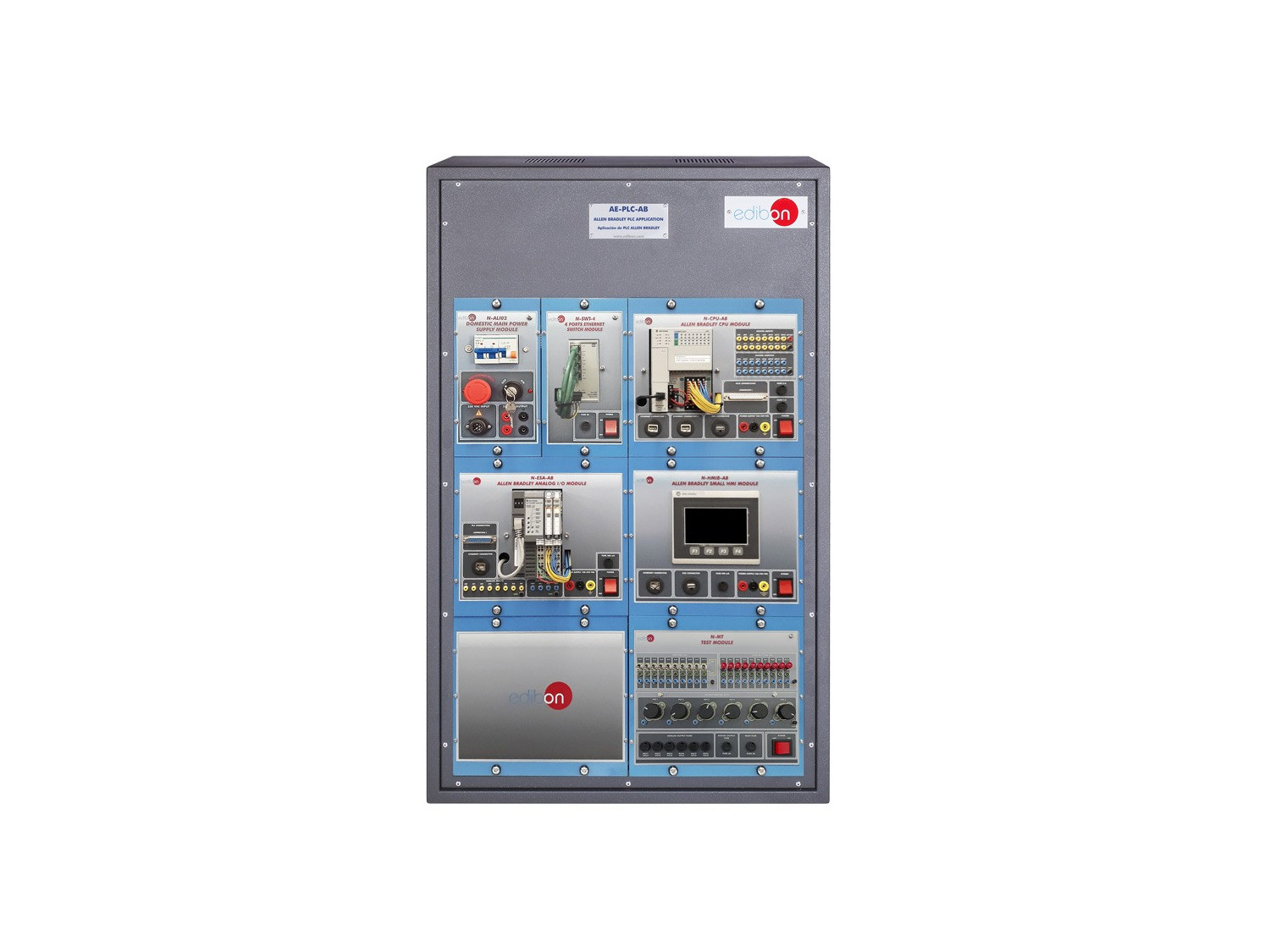

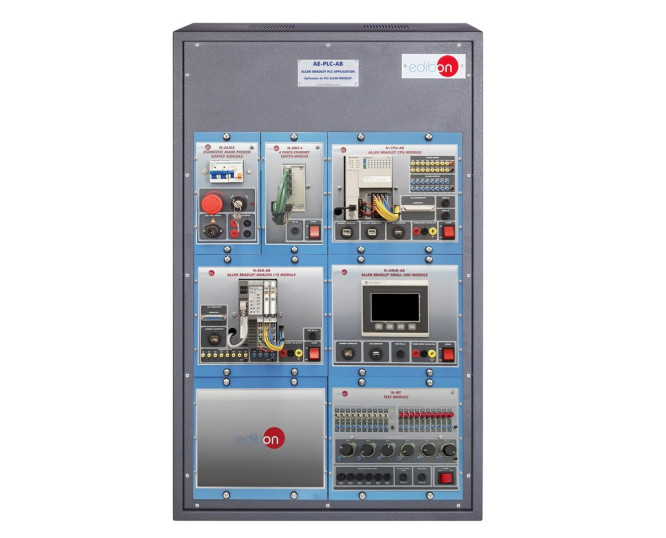

ALLEN BRADLEY PLC APPLICATION - AE-PLC-AB

ИННОВАЦИОННЫЕ СИСТЕМЫ

The ALLEN BRADLEY PLC Application, "AE-PLC-AB", is a PLC unit designed by EDIBON which use one of the last ALLEN BRADLEY PLC units. It allows the user to learn about PLC logic programming, different PLC programming languages, PLC to PC communication, etc.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Advancements in Mechatronics and Compumechatronics: Transforming Industrial Automation
Advancements in Mechatronics and Compumechatronics: Transforming Industrial Automation
Mechatronic Engineering represents the perfect synergy between mechanics and electronics. It's a holistic approach that integrates mechanical engineering, electronics, and automatic control to create intelligent systems and products. From industrial robots to production control systems,...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

The ALLEN BRADLEY PLC Application, "AE-PLC-AB", is a PLC unit designed by EDIBON which use one of the last ALLEN BRADLEY PLC units. It allows the user to learn about PLC logic programming, different PLC programming languages, PLC to PC communication, etc.

The "AE-PLC-AB" is provided with a set of practical exercises, through which the student will understand how to work with the PLC systems, without any background knowledge or experience. Can be used alone, to study the PLC systems, or in combination with the EDIBON compatible units, to study a real application of the PLC systems.

The "AE-PLC-AB" is a modular system with the common components that make up a complete PLC system. The ALLEN BRADLEY PLC Base Unit, "AE-PLC-AB-UB" always includes the power supply, the PLC CPU module and the software to program it, but there are also available a series of recommended additional kits to complete the PLC system with the required functions of the programmable controller (test module, analog input and output signals, HMI devices, PLC internet connection, etc.). These kits allows the user to learn about HMI programming, testing analog inputs and outputs signals, programming a web server application, etc.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Using variables.
  2. Using digital inputs I.
  3. Using digital inputs II.
  4. Testing digital inputs.
  5. Using digital outputs.
  6. Testing digital outputs.
  7. Using analog signals I (AB-PLC-K1 and AB-PLC-K2).
  8. Using analog signals II (AB-PLC-K1 and AB-PLC-K2).
  9. Square wave generator.
  10. HMI simple program (AB-PLC-K3 or AB-PLC-K4).
  11. Using digital outputs with HMI device I (AB-PLC-K3 or AB-PLC-K4).
  12. Using digital outputs with HMI device II (AB-PLC-K3 or AB-PLC-K4).
  13. Reading data from a register with the HMI device (AB-PLC-K3 or AB-PLC-K4).
  14. Writing data to a register with the HMI device (AB-PLC-K3 or AB-PLC-K4).
  15. Switching screens of the HMI device (AB-PLC-K3 or AB-PLC-K4).
  16. Internet connection of the PLC unit (AB-PLC-K5).
  17. Control digital inputs with a web server application (AB-PLC-K5).
  18. Control digital outputs with a web server application (AB-PLC-K5).
  19. Control analog inputs with a web server application (AB-PLC-K5).
  20. Control analog outputs with a web server application (AB-PLC-K5).
