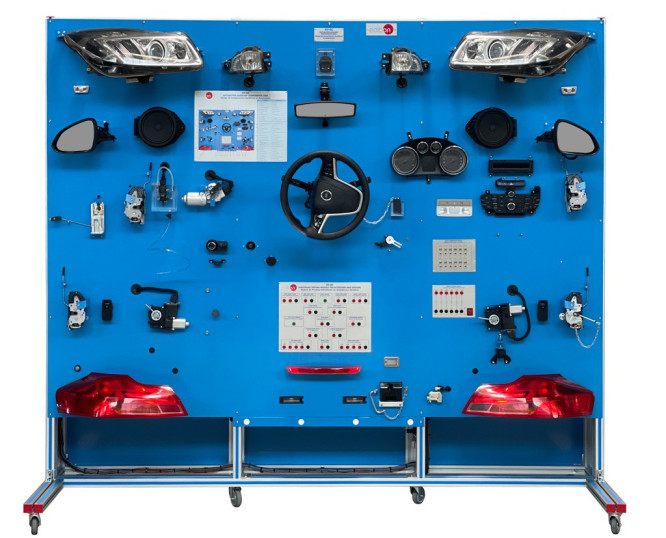

The Automotive Auxiliary Components Unit, "AV-AC", has been designed by EDIBON to help the students to understand the operation of real automotive sensors and actuators and how an electronic control unit works.
НОВОСТИ ПО ТЕМЕ
ОБЩЕЕ ОПИСАНИЕ
The Automotive Auxiliary Components Unit, "AV-AC", provides a practical solution to obtain advance knowledge in the electronic and electric systems used in the automotive field today.

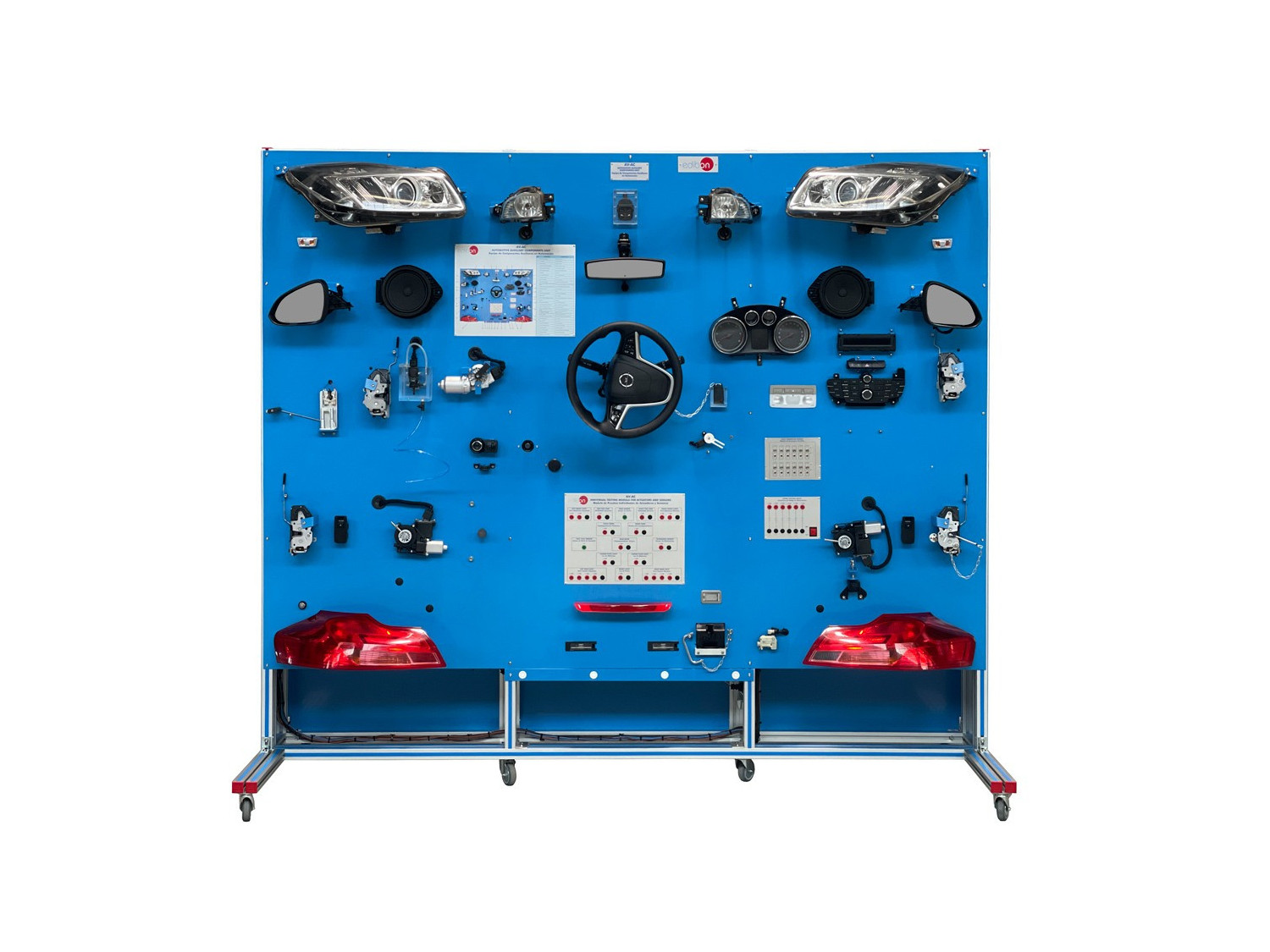

All sensors and actuators included in the "AV-AC" unit are mounted on individual plates with the name, the standardized symbol and the 4 mm lab jack to connect the component. All sensors and actuators are real automotive components and can be connected to the electronic control unit at the same time, in order to understand the operation of each component working together, like in a real situation.
The sensors and actuators are focused on different automotive auxiliary systems: car lightening system, wiper and washer system, power door locks system, car instrument panel, electric windows system, ultrasonic car park system, etc. All these systems components are real automotive sensors and actuators. The sensors signal measurement and the control signal of the actuators in the "AV-AC" unit are done through digital and analog signals, PWM signals and the network protocol CAN bus.
The "AV-AC" unit also includes a fault generation module, which can insert up to twelve faults in the electronic control unit (faults in different wires of the network protocol CAN bus, faults in the 12 VDC power supply, etc.).
The "AV-AC" unit is provided with a different set of practical exercises, through which the student will understand how the components used in electric and electronic systems in the automotive technology work.
УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ
РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
- Familiarization with electronic control units.
- Lighting elements and light sensor.
- Central locking system activation.
- Windscreen wipers and rain sensor.
- Function of the adjustable and heated lateral rear-view mirror.
- Electrical window lifters system activation.
- Ultra-sonic parking system.
- Reverse light and switch.
- Brake light and switch.
- Car steering wheel control functions.
- Instrumentation panel functions.
- Activation and control of the lighting system.
- Function of the adjustable rear-view mirror with auto-dimming.
- Car audio system.
- Fault insertion and diagnosis.
- Individual testing actuators and sensors.
БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ
- Several other exercises can be done and designed by the user.
