MCF Оборудование для ременной передачи с трением

7.1.5.- ТРИБОЛОГИЯ (ТРЕНИЕ, ИЗНОС, СМАЗКА) 14.1.5.- ТРИБОЛОГИЯ (ТРЕНИЕ, ИЗНОС, СМАЗКА)

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

Посмотреть общее описание

Каталог

Спецификации конкурса

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения

MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

7TV

Лаборатория механики, автомобилестроения и материалов для технического и профессионального образования

7HE

Лаборатория механики, автомобилестроения и материалов для высшего образования

НОВОСТИ ПО ТЕМЕ

ОБЩЕЕ ОПИСАНИЕ

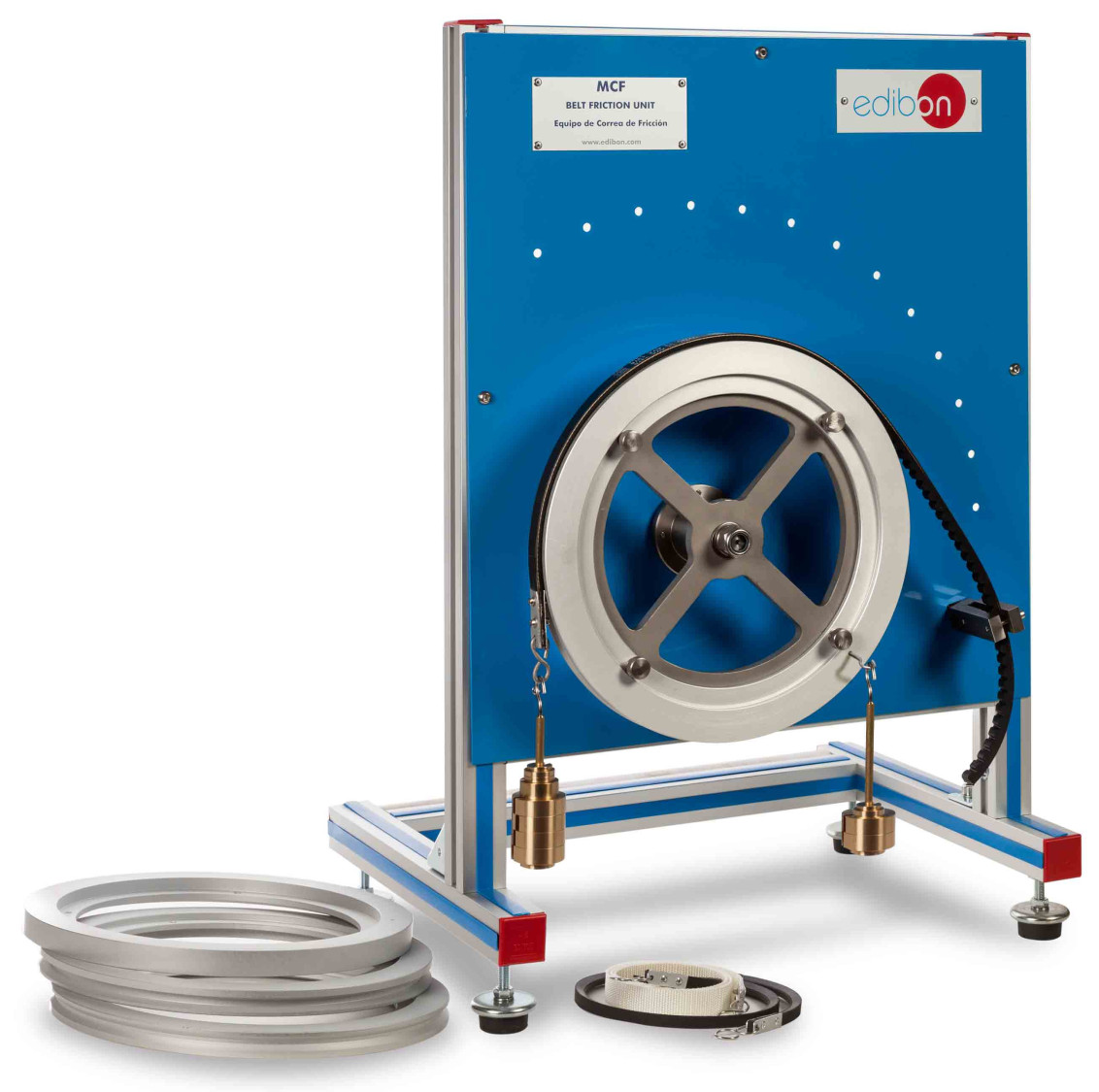

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

With this unit the relationship between the tensions in the two sides of a belt can be observed, to evaluate the differences between flat (leather or rope) and V belts and to investigate the effect of the angle lap, among others.

Tension is introduced into the belt by hanging masses or weights. The slipping torque is determined by the addition of suitable masses attached to a cord wrapped round the drum.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

Investigation of the relationship between the belt tensions and the angle of lap for a flat belt.
Comparison of the driving torque for a given angle of lap.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

Evaluation of the differences between flat belts and V-shaped belts.
Evaluation of the differences between V-shaped toothed and flat belts.
Determination of the coefficient of friction between the pulley and belt for the belt sections.
Verification of the belt tension equation.

АНАЛОГИ ОБОРУДОВАНИЯ В НАЛИЧИИ

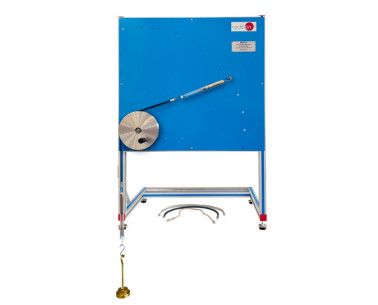

BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A

MCF/A

Available

7.1.5.- ТРИБОЛОГИЯ (ТРЕНИЕ, ИЗНОС, СМАЗКА)

MCF/A

Оборудование для ременной передачи с трением и динамометрами

The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.With this unit it is possible to observe the relationship between...
