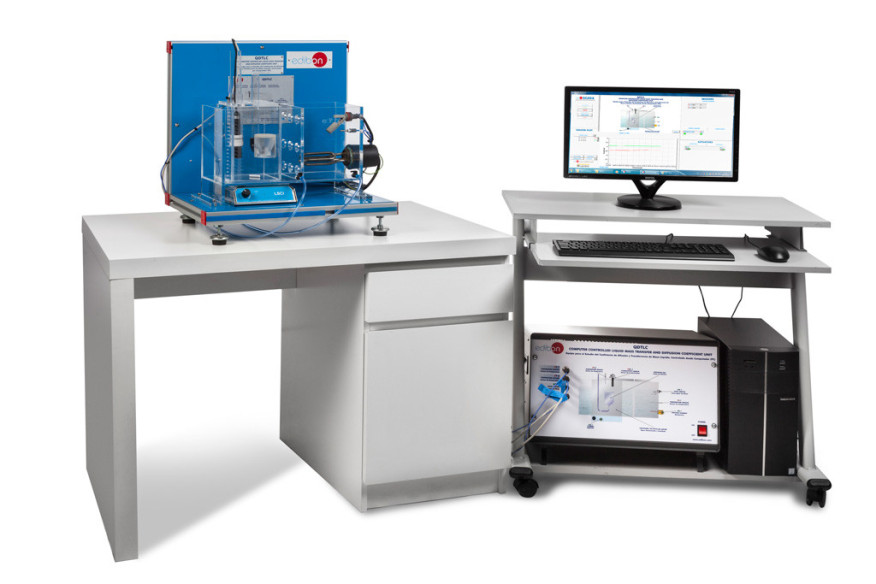

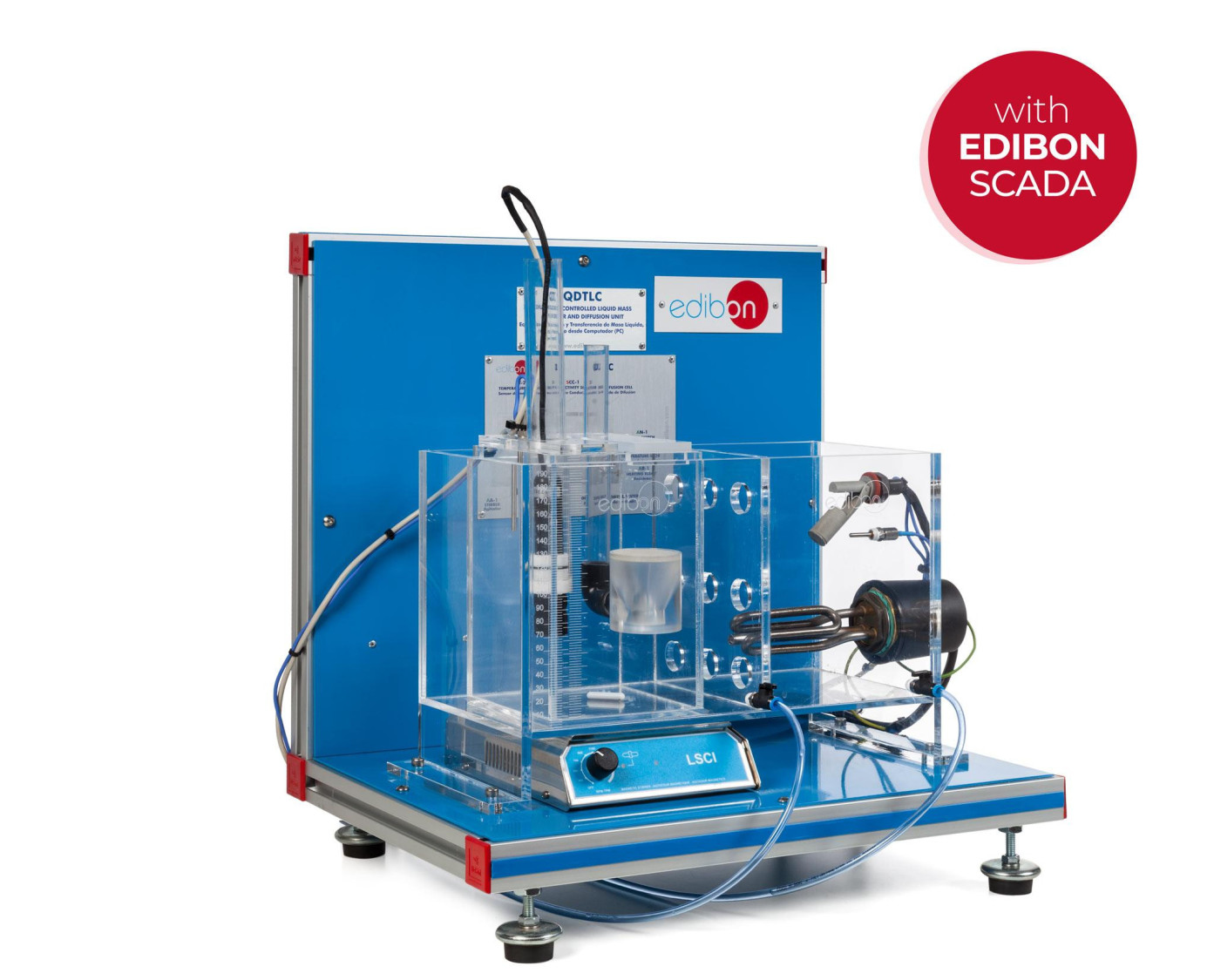

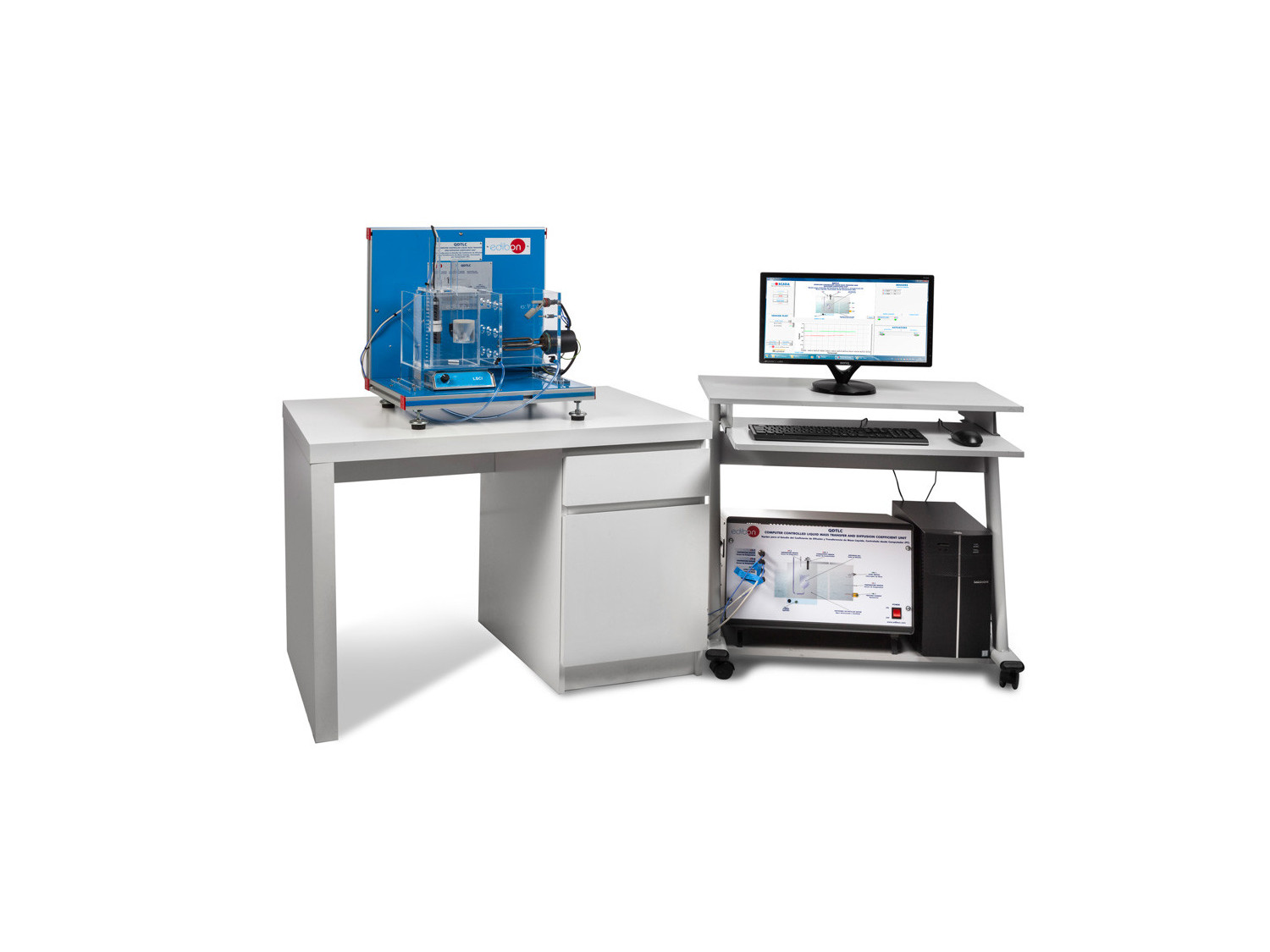

Complete QDTLC unit

COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC

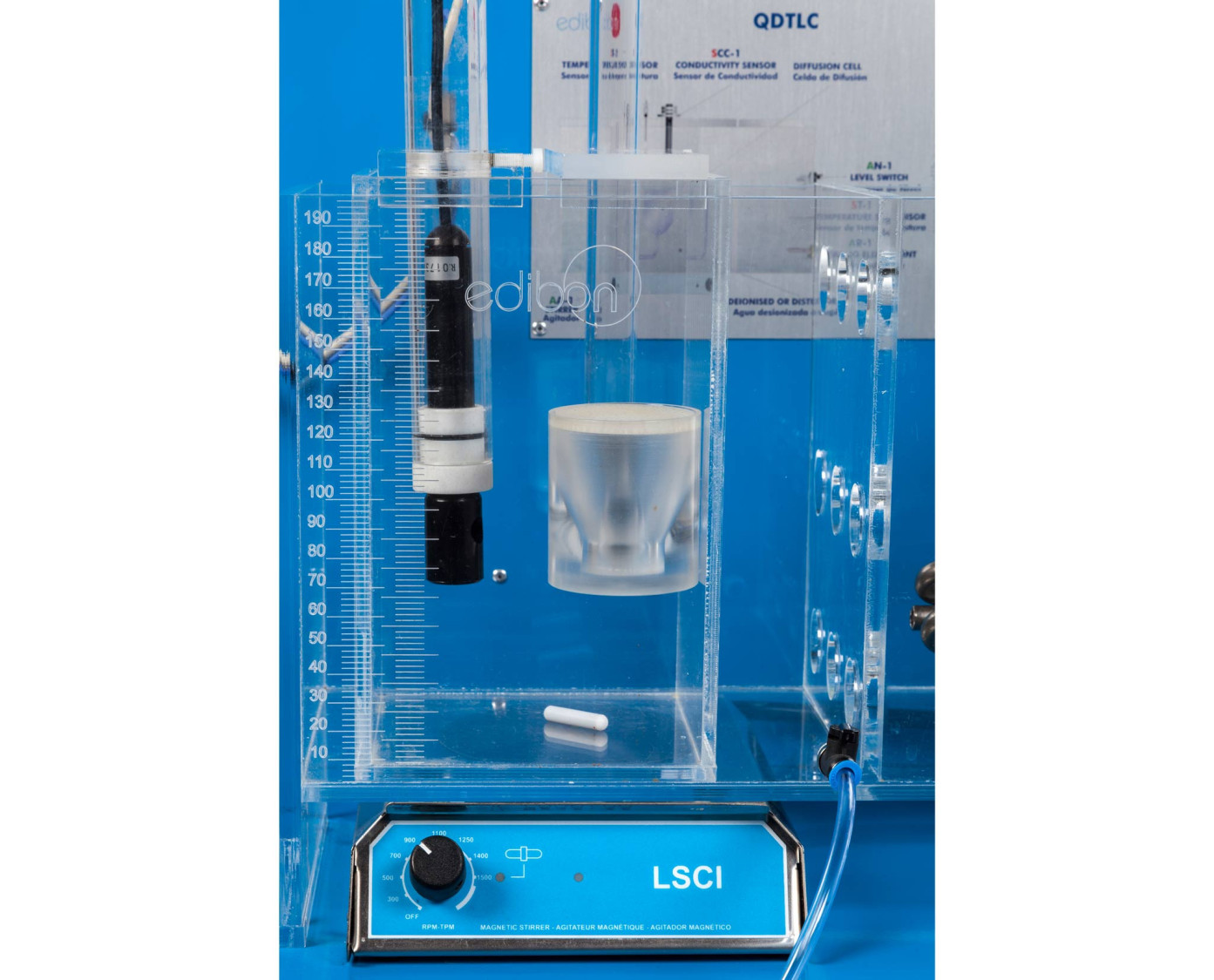

Unit details

COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC

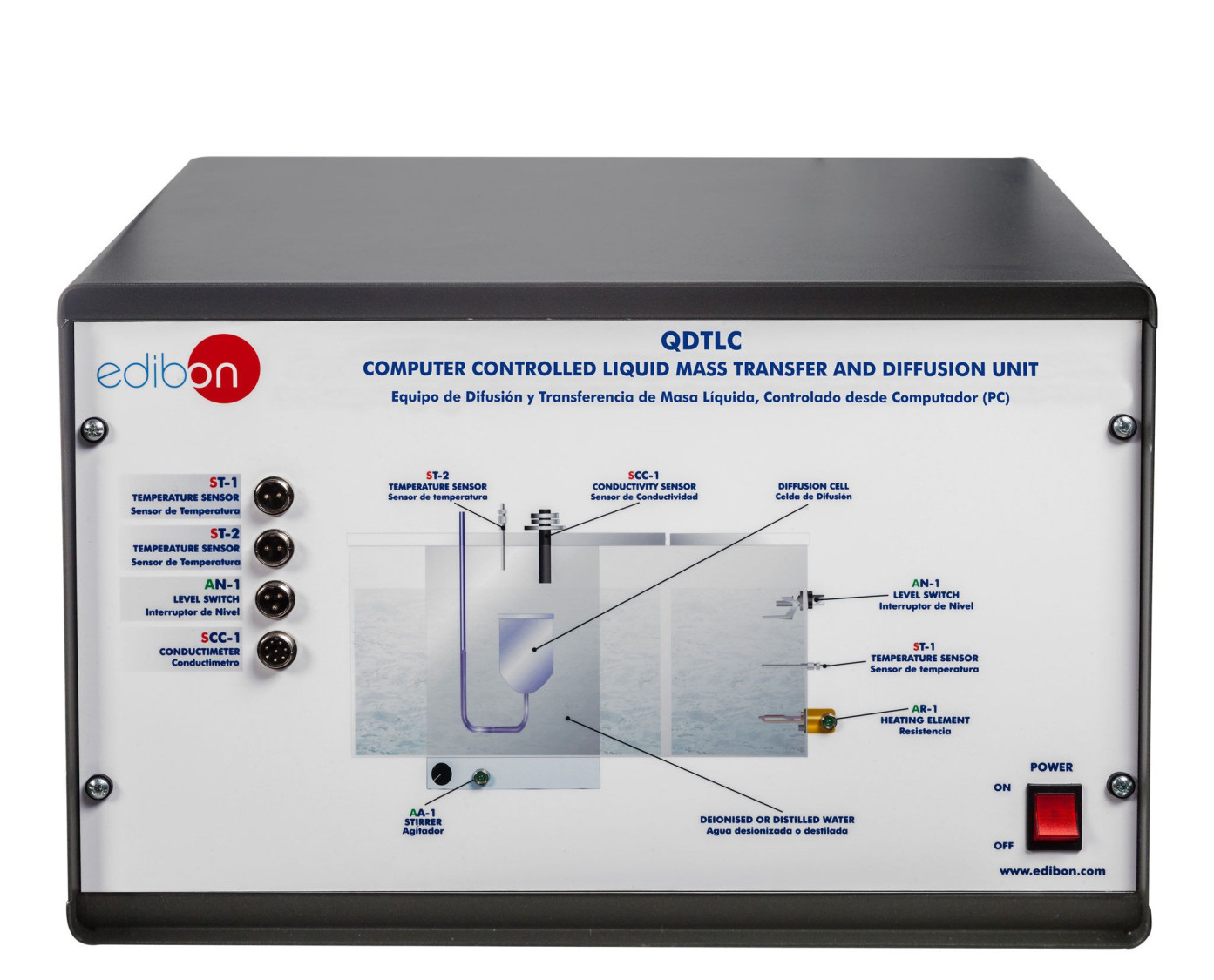

QDTLC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC

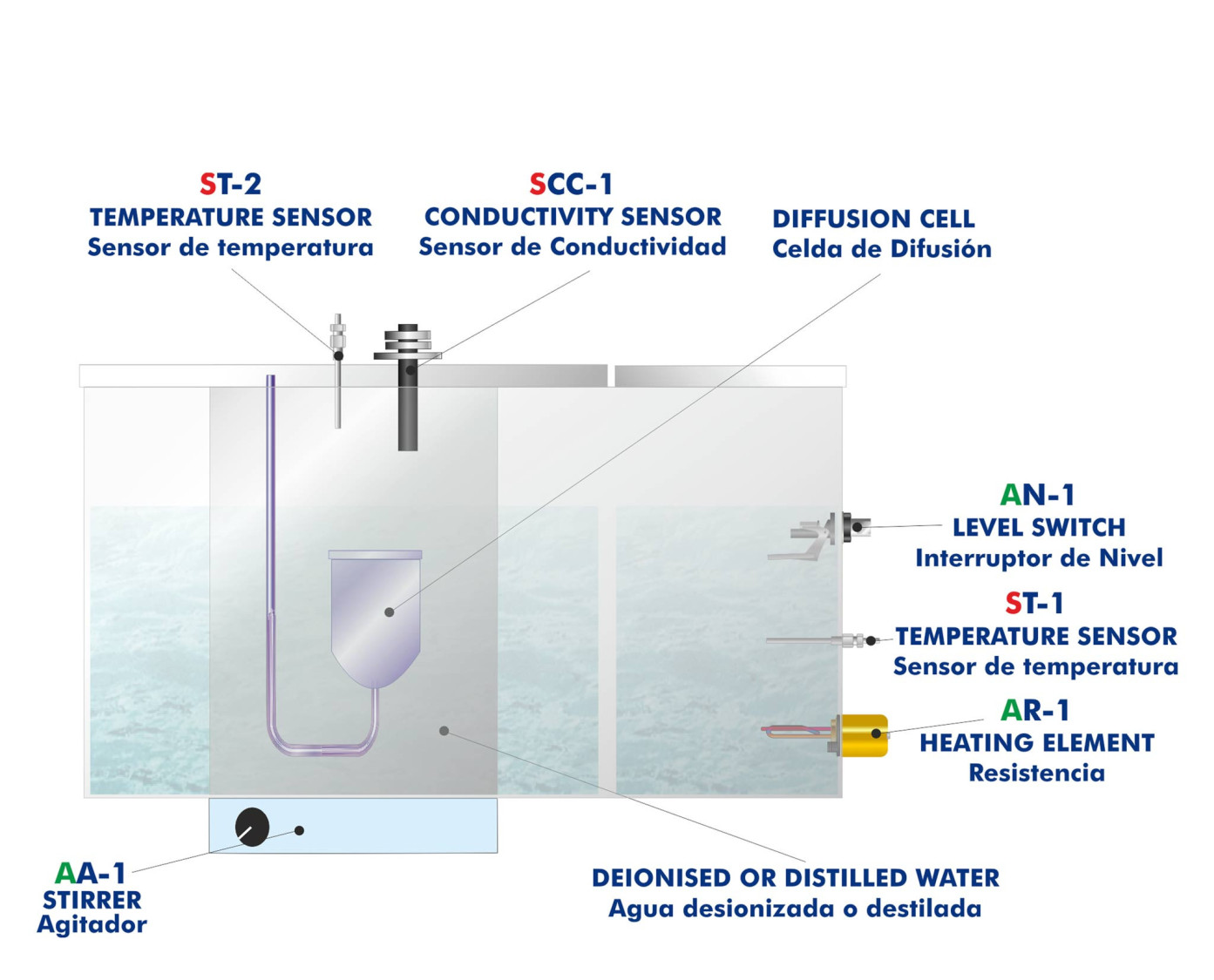

Process diagram and unit elements allocation

COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC

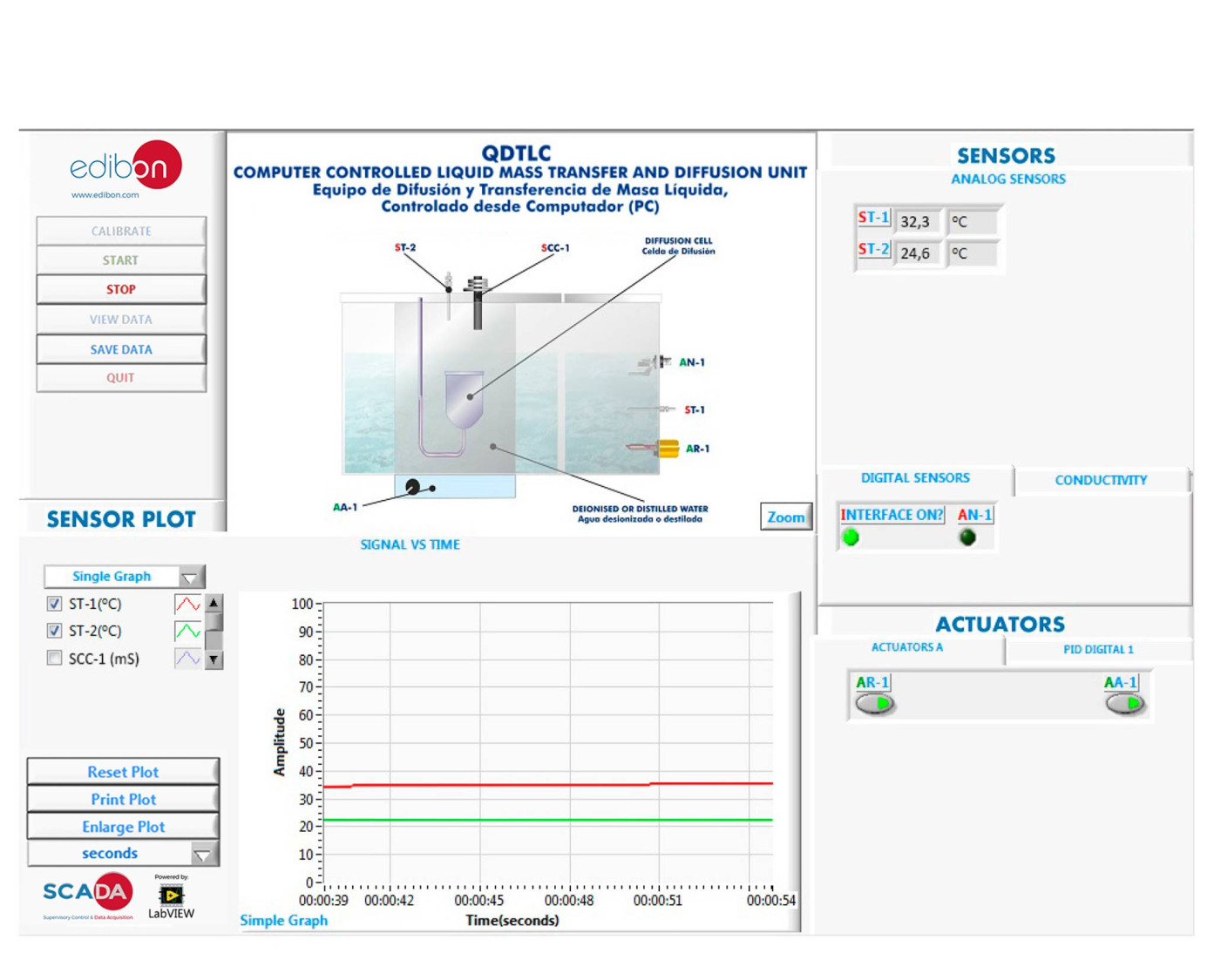

QDTLC/SOF. QDTLC Software. Main Screen

COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC
COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC
COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC
COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC
COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC
COMPUTER CONTROLLED LIQUID MASS TRANSFER AND DIFFUSION UNIT - QDTLC

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Computer Controlled Liquid Mass Transfer and Diffusion Unit, "QDTLC", is a teaching unit that allows the students to familiarise with the notions of mass transfer theory, specially the diffusion in liquid systems, obtaining experimental data and results which are very useful for an ideal practice understanding of the process and consequently, for the technical teaching of the students.

Посмотреть общее описание
Каталог Каталог
Спецификации конкурса
Запросить информацию

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
PLCHMI

Местное/дистанционное Управление и Мониторинг IIoT с HMI
ELK

Набор для разработки ПО EDIBON на базе NI LabVIEW™
ESN

EDIBON Scada-Net
ECL

Облачное Обучение EDIBON

ЛАБОРАТОРИИ

11TV
 Химическая инженерная лаборатория для технического и профессионального образования
11HE
 Химическая инженерная лаборатория для высшего образования
11PTC
 Лаборатория нефтяного учебного центра

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

The Computer Controlled Liquid Mass Transfer and Diffusion Unit, "QDTLC", is a teaching unit that allows the students to familiarise with the notions of mass transfer theory, specially the diffusion in liquid systems, obtaining experimental data and results which are very useful for an ideal practice understanding of the process and consequently, for the technical teaching of the students.

The experimental determination of the diffusion coefficient D for a binary mixture, can be performed with a device such as the one AB described below.

A small volume tube with a filtering cell which has a certain number of pores has been placed at one of its ends. A concentrated solution of salt (sodium chloride) has been introduced inside. The tube is introduced in a vessel with pure solvent (distilled water). Now, the diffusion starts, and it will be indirectly measured by the conductivity data. A thermostatic bath allows us to make the experiments at different temperatures.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Fick´s law application to calculate the diffusivity.
  2. Direct measurement of mass transfer rates.
  3. Determination of molar density rate.
  4. Effect of concentration of diffusion coefficients.
  5. Simple analysis of a first order unsteady state process.
  6. Concentration and conductivity relation.
  7. Study the temperature effect on diffusion coefficients.
  8. Sensors calibration.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the QDTLC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the QDTLC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
