TFTC Оборудование для проверки производительности сопел, управляемое компьютером (ПК)

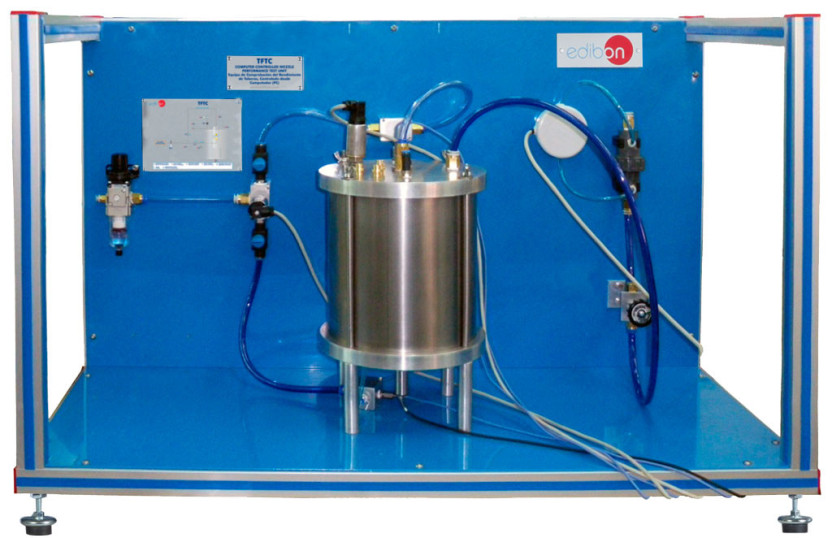

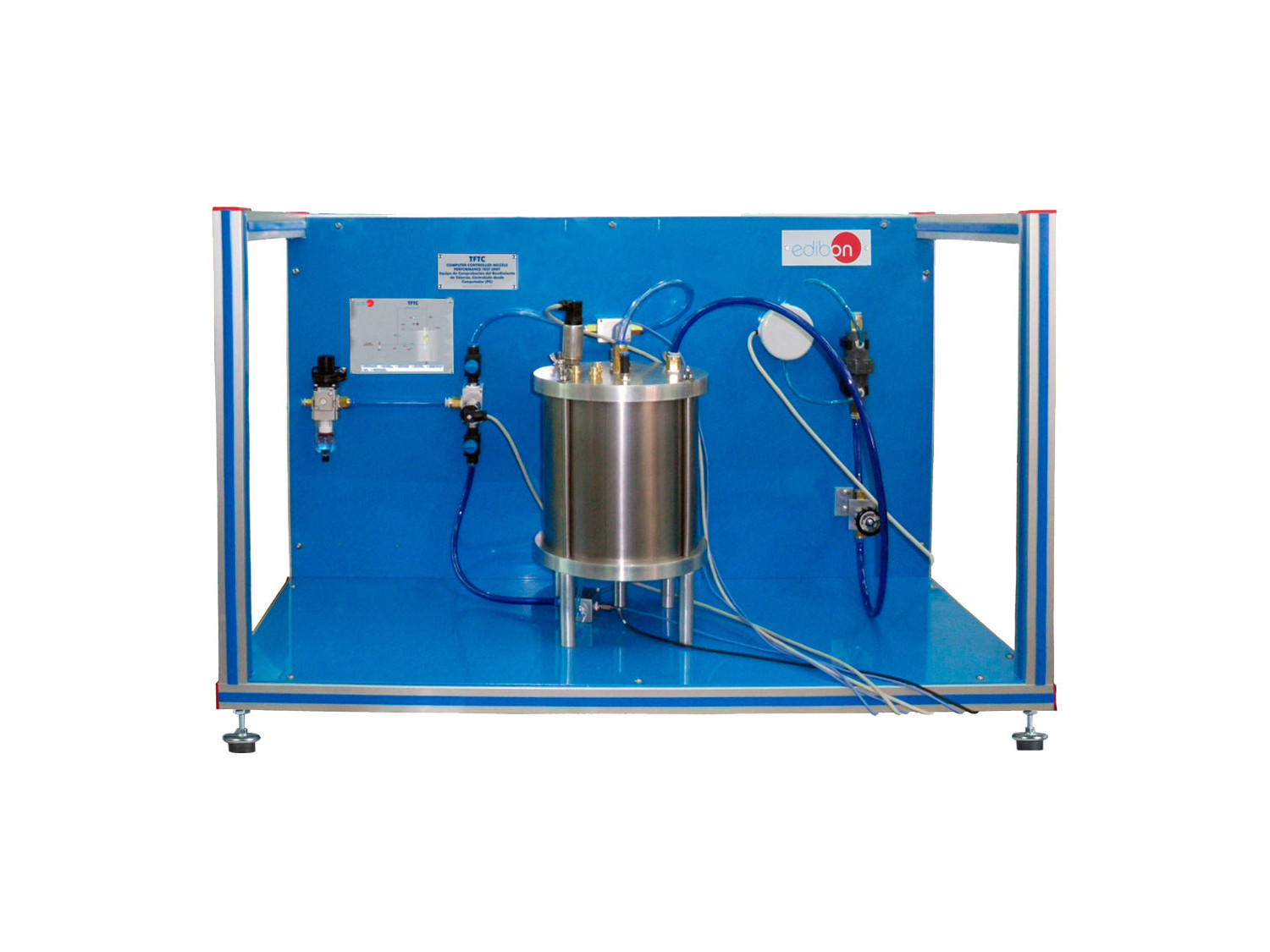

The Computer Controlled Nozzle Performance Test Unit, "TFTC", has been specially designed to allow students to investigate and study the performance of a nozzle (kinetic energy and thrust).

Operating from a normal laboratory compressed air supply, the unit is supplied with one convergent and four convergent-divergent nozzles that can be rapidly interchanged.

This test unit consists of a pressure chamber, with two supports for the nozzles, and a force sensor in its bottom support. Depending on how the user wishes to work, the nozzle will be fixed to the bottom or to the top support. On the side in which the nozzle has not been fixed, the user will put the lid on which the air will fall. This lid makes a system that allows the air to be separated from it as soon as the air has impacted tangentially on the incidence direction, not on the anti-paralell direction to the incidence direction. Thus, the measured force will be only the incident one, without any kind of reaction due to the "rebound" of the jet.

By means of a valves system the user will be able to obtain that the air comes into the chamber in its bottom or in its top part. Besides, the pressure in the chamber will be controlled by a pressure control system.

Moreover, three temperature sensors are available, two at the chamber inlets and another one in the chamber. The pressure can be measured at any moment at the chamber inlet and inside, whereas a sensor in its outlet calculates the air flow that comes out from the chamber.

Finally, the impulse/reaction force made by the jet coming from the nozzle is measured by a force sensor.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
