TRD2PC Тренажёр системы двухдверной холодильной установки бытового назначения

9.4.- ХОЛОДИЛЬНАЯ УСТАНОВКА
COMPUTER CONTROLLED TWO DOORS DOMESTIC REFRIGERATION UNIT - TRD2PC

ИННОВАЦИОННЫЕ СИСТЕМЫ

The objective of the Computer Controlled Two Doors Domestic Refrigeration Unit, "TRD2PC", is to introduce the student into the complex world of refrigeration systems through a common domestic appliance.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
PLCHMI

Местное/дистанционное Управление и Мониторинг IIoT с HMI
ELK

Набор для разработки ПО EDIBON на базе NI LabVIEW™
ECR

Промышленная Модульная Система EDIBON с NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Облачное Обучение EDIBON

ЛАБОРАТОРИИ

9TV
 Лаборатория термодинамики и теплотехники для технического и профессионального образования
9HE
 Лаборатория Термодинамики и Термотехники для Высшего образования

НОВОСТИ ПО ТЕМЕ

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Читать дальше
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Читать дальше
Installation at UPV/EHU - San Sebastian
Installation at UPV/EHU - San Sebastian
The EDIBON team has carried out a new installation, this time in our country, at the International UPV/EHU. Now, students and professors of the university have the possibility to continue their studies with the Computer Controlled Continuous Distillation, UDCC, the Computer Controlled Test Bench...
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

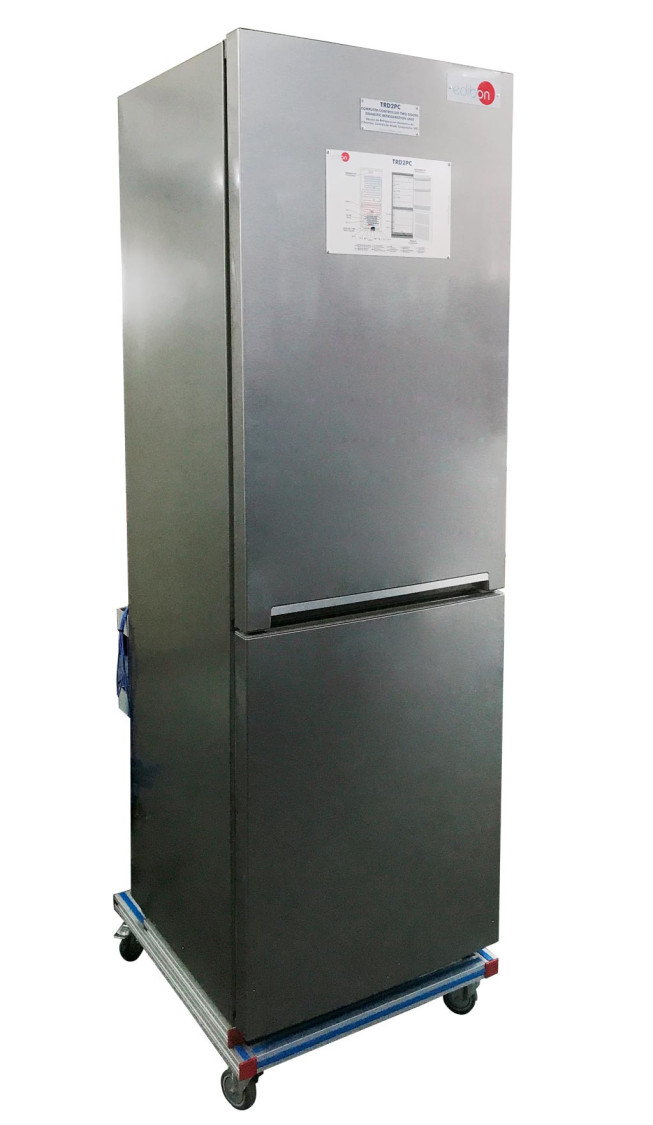

The main element of the Computer Controlled Two Doors Domestic Refrigeration Unit, "TRD2PC", is a combifridge freezer with transparent panels to observe all the elements of a refrigeration cycle: compressor, filter,evaporator, condenser, etc.

Throughout the refrigeration circuit, temperature sensors and pressure sensors are arranged at key points ofthe circuit.

The fridge has an upper door for a refrigerator and a lower door for the freezer. There are mobile temperaturesensors in both compartments.

It has a thermostat to adjust the cooling temperature and a defrost heating element to prevent the evaporatorfrom freezing.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes:The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisitionand Data Management Software Packages, for controlling the process and all parameters involved in theprocess.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Study of the operating principle of a combi fridge freezer.
  2. Familiarization with the main components of a refrigerator.
  3. Study of the food position influence in the refrigerator.
  4. Thermostat setting.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Many students view results simultaneously.To view all results in real time in the classroom by means of aprojector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control.This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a realindustrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic,and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.
  7. Control of the TRD2PC unit process through the control interfacebox without the computer.
  8. Visualization of all the sensors values used in the TRD2PC unitprocess.
  9. Several other exercises can be done and designed by the user.
